Control 1 door via TCP/IP with AC110~240V 5A access power supply and backup battery space
Brand:
S4AItem NO.:

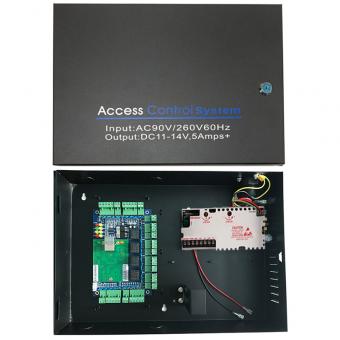

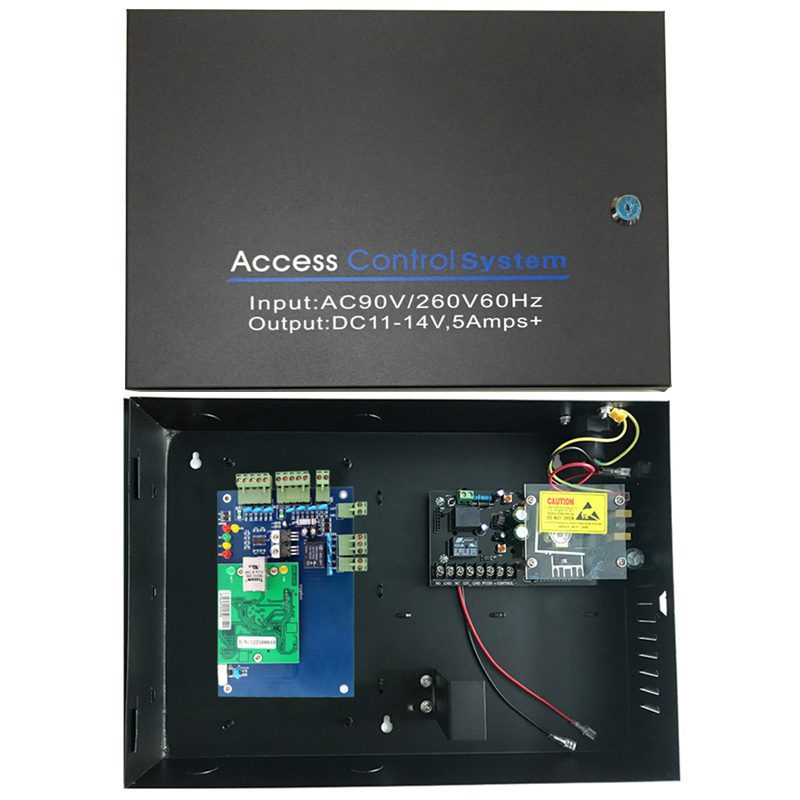

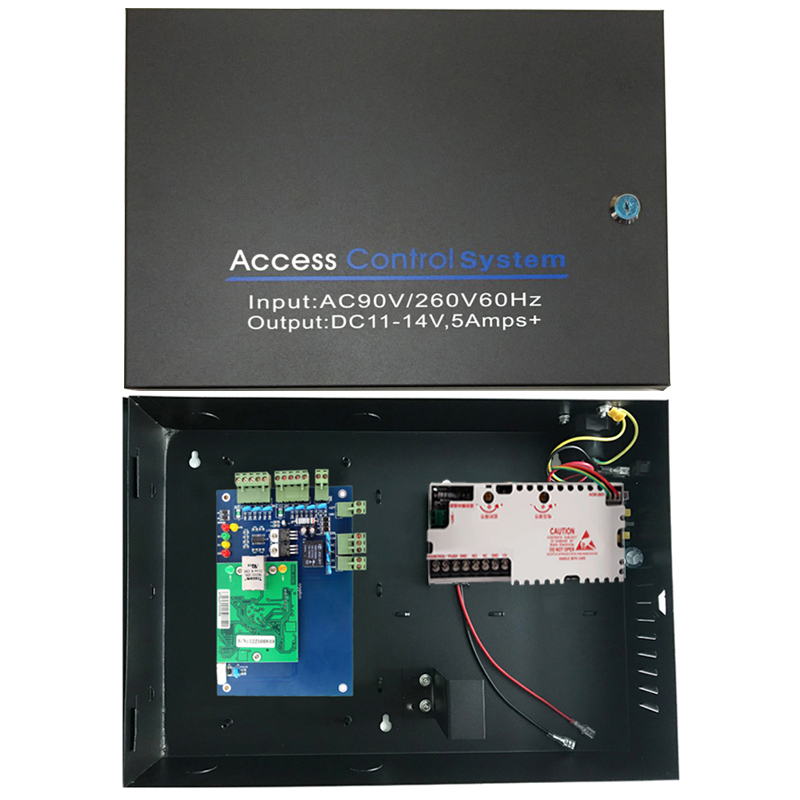

ACB-001PSEthernet One Door Network Access Control Panel for Door Access Control and Parking Management Access Control
Model No.: ACB-001PS

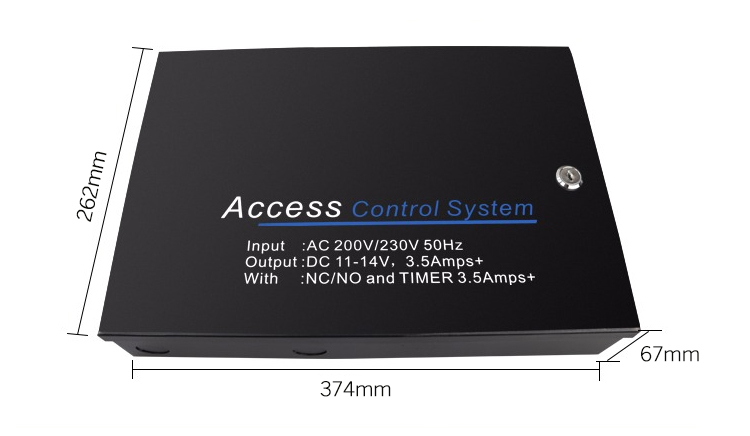

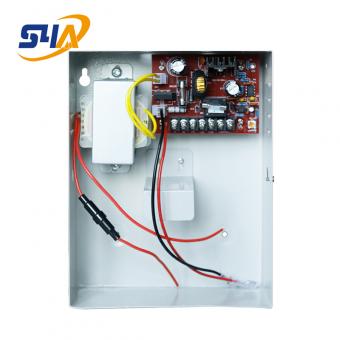

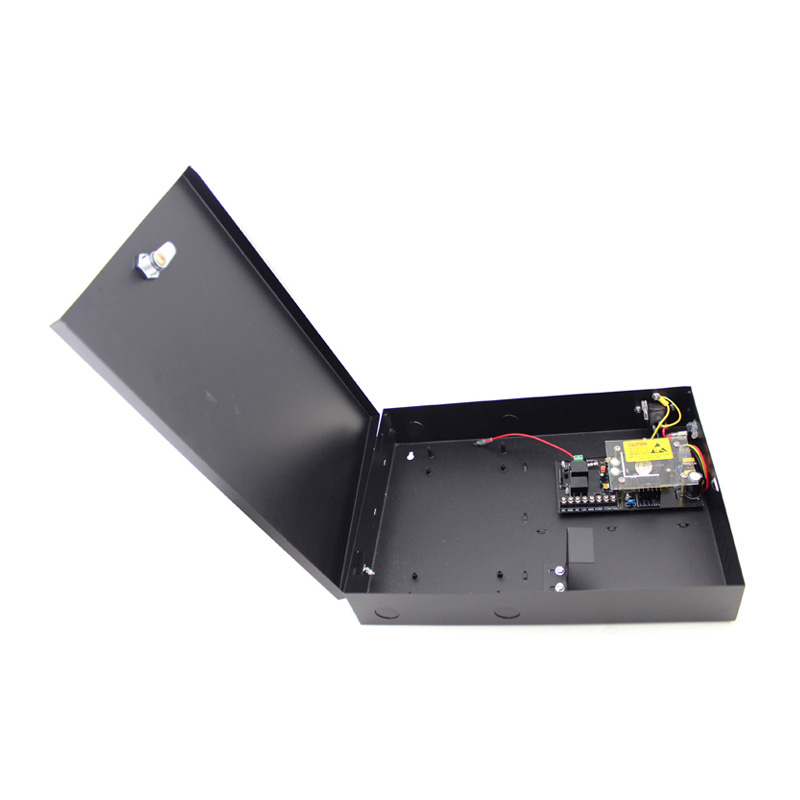

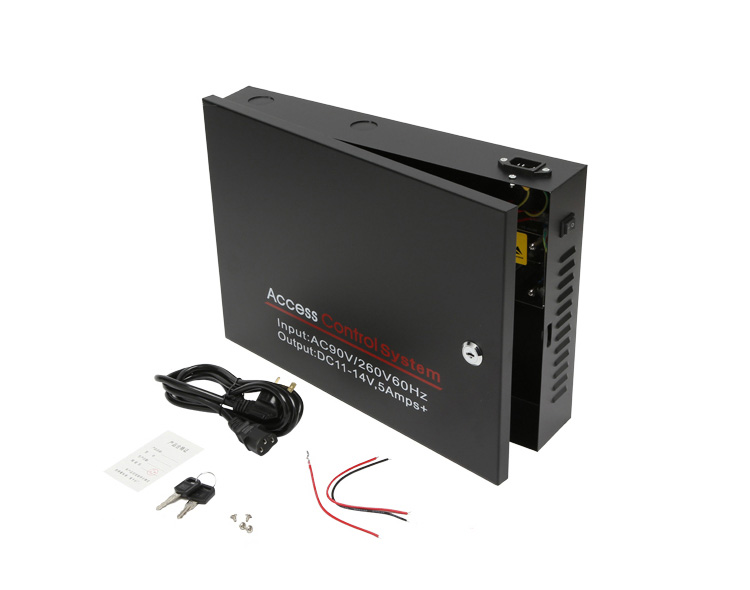

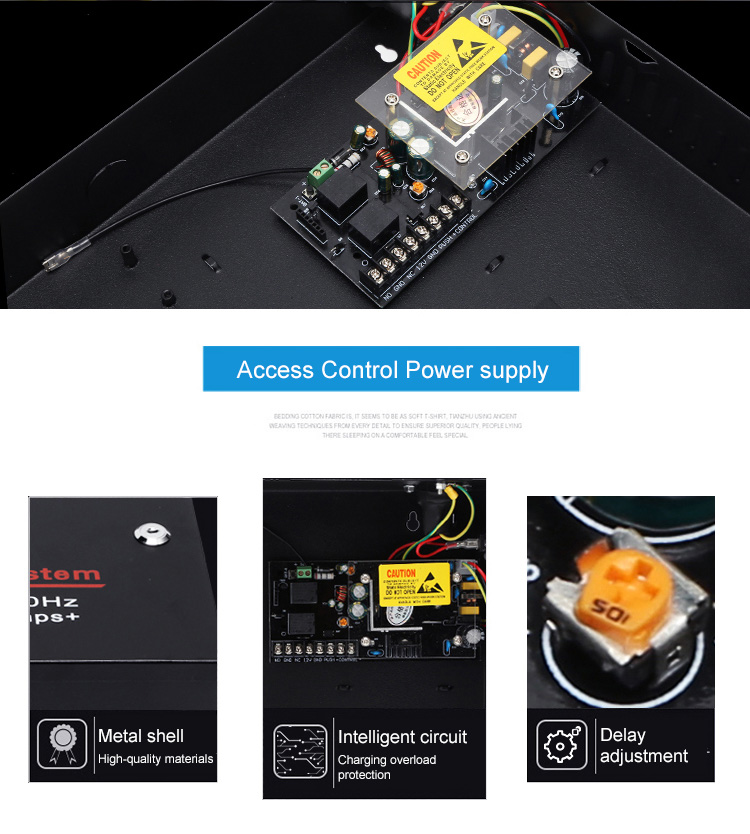

PS-6653B Power supply with Backup battery (AC110~240V 5A)
Input Voltage | AC110~240V 50Hz~60Hz |
Output Voltage | DC9V~16V |
Output Current | 5A |
Dimension | 371 x 266 x 66mm |
Packing box | 395 x 270 x 74mm |
Weight | 2.04kg |

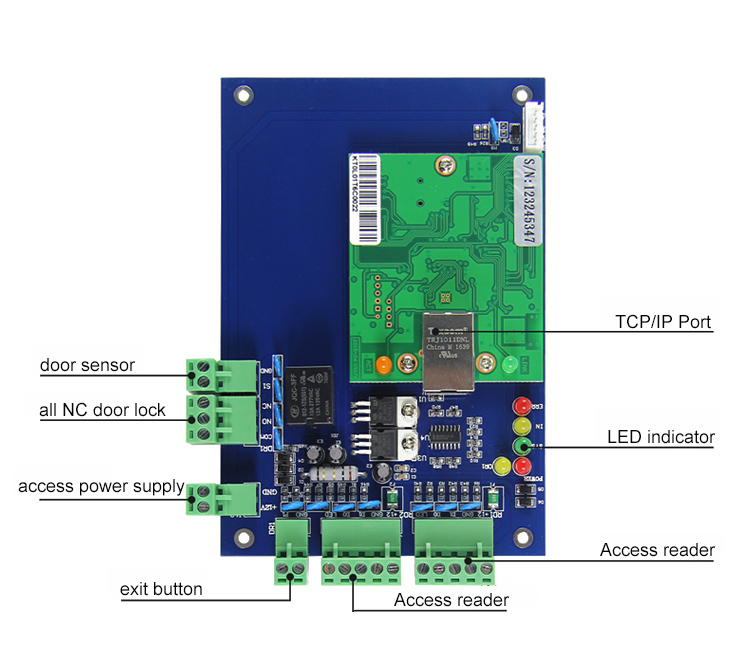

Single door Network Access control board
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-001 | ACB-002 | ACB-004 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping the card, or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card, and get outdoor by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pcs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||

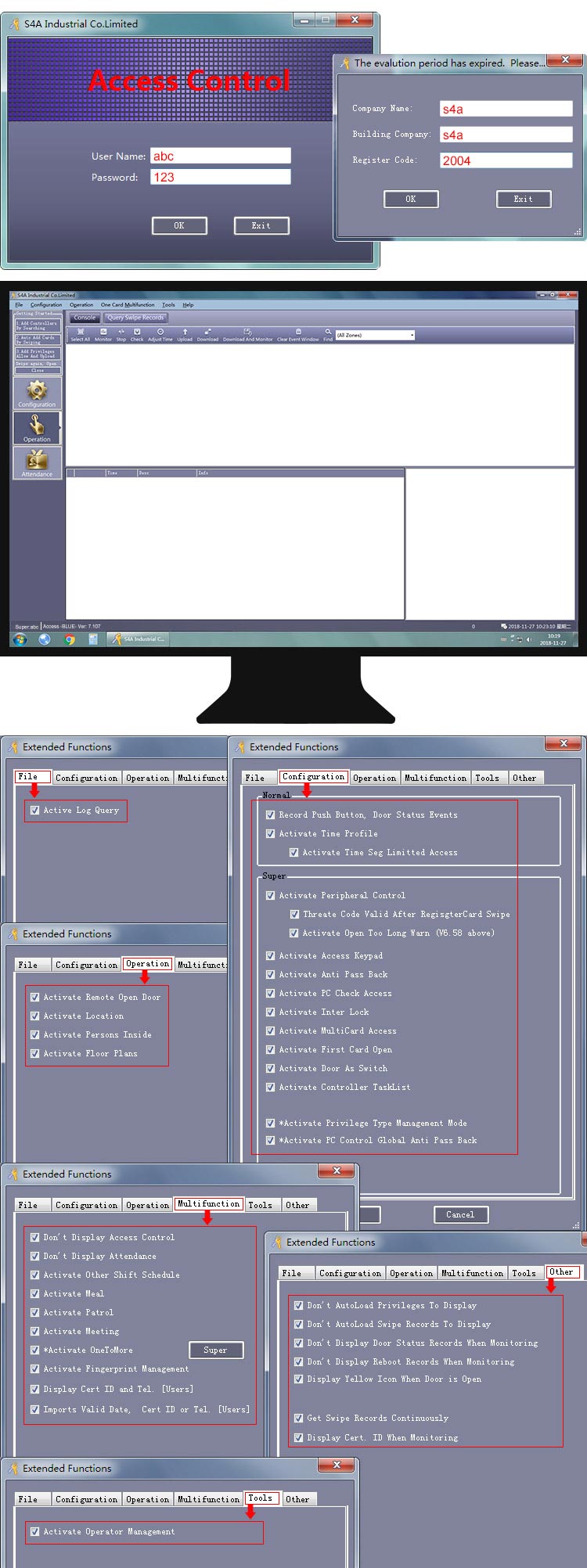

Here are all available powerful functions for our ACB-001, ACB-002, and ACB-004
Ethernet One Door Network Access Control Panel for Door Access Control and Parking Access Control | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ACB-001PS | 10 PC | 25.4 KG | 58x40x43 CM |
S4A Datesheet_Ethernet One Door Network Access Control Panel For Door Access Control And Parking Access Control
CCTV Integrated Camera with Access control function, support Web-server to authorize new users and monitor it at real-time> Pixel: 2MP> Dimension: 197x95x82mm
Control 2 doors via TCP/IP with AC110~240V 5A access power supply
Control 4 doors via TCP/IP with AC110~240V 5A access power supply and backup battery

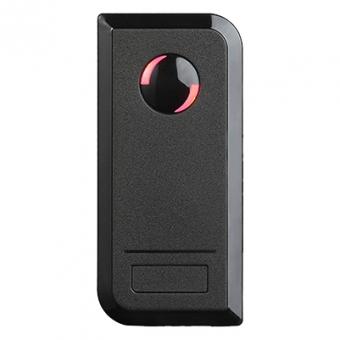

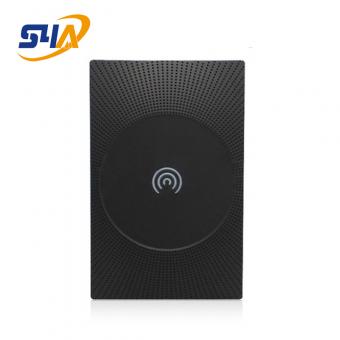

> Card type: EM or MF Card> User Capacity: 2000> Card Reading Distance: 3-6 cm> Size: 117x71x22mm
Dimension: 115x70x26mm
Integrated 0.96-Inch Display Screen: Equipped with a clear built-in display panel to provide real-time visual feedback, system status updates, and intuitive user navigation. Biometric Fingerprint Security: Features a high-speed biometric sensor supporting up to 100 fingerprint templates for secure, spoof-resistant keyless authentication. Dual-Frequency Flexibility: Multi-credential versatility with simultaneous reading support for 125KHz (ID), 13.56MHz (IC), and NFC cards or mobile keys. IP68 Weatherproof Protection: Engineered with a fully encapsulated, glue-poured potted sealing structure to guarantee long-term operational stability in harsh outdoor elements. Ultra-Slim & Compact Footprint: A narrow physical design measuring just 46mm wide allows seamless surface mounting onto modern glass door tracks and restrictive frames.
>Power supply:AC/DC 12V- 24V >Quiescent Current:15mA >Operating current:80mA (when powered by DC12V)
> Card type: EM or EM+HID Card> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 card users> Wiegand 26~44 output> Pulse mode, toggle mode> Multi fingerprints/cards access > Interlock, Support Principal User
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
