> Card type: EM or MF Card
> User Capacity: 2000
> Card Reading Distance: 3-6 cm
> Size: 117x71x22mm
Brand:
S4AItem NO.:

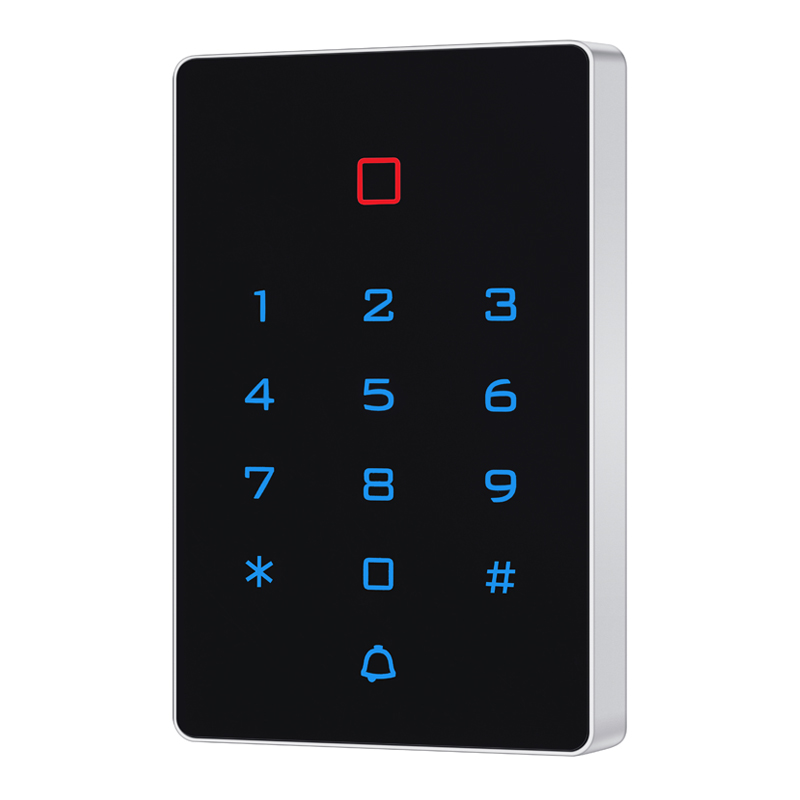

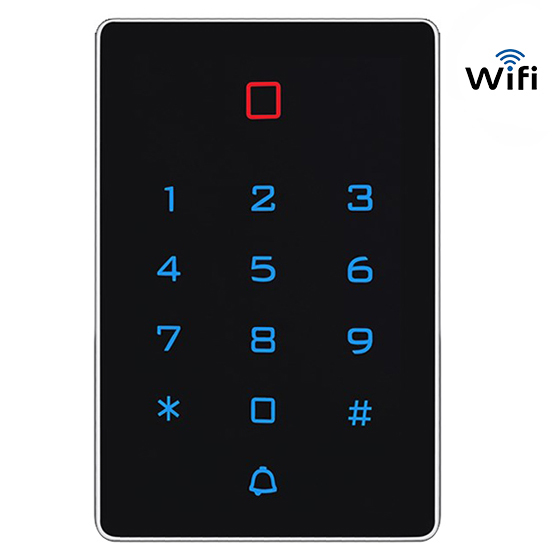

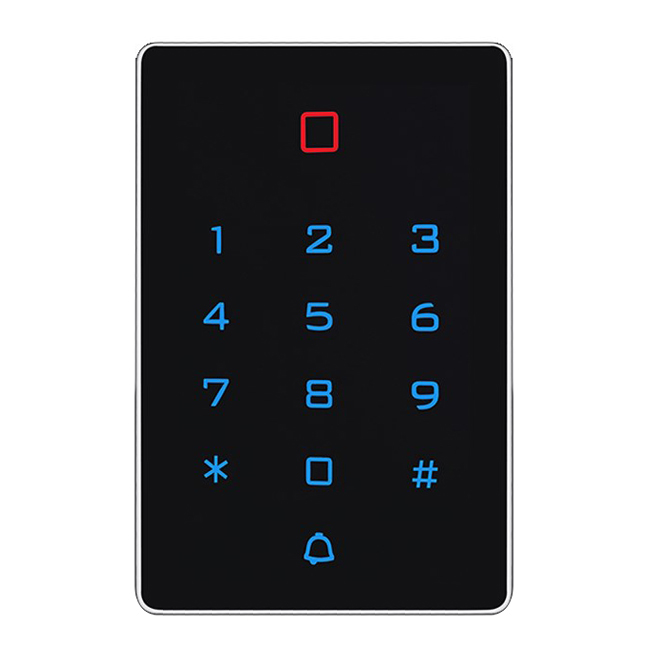

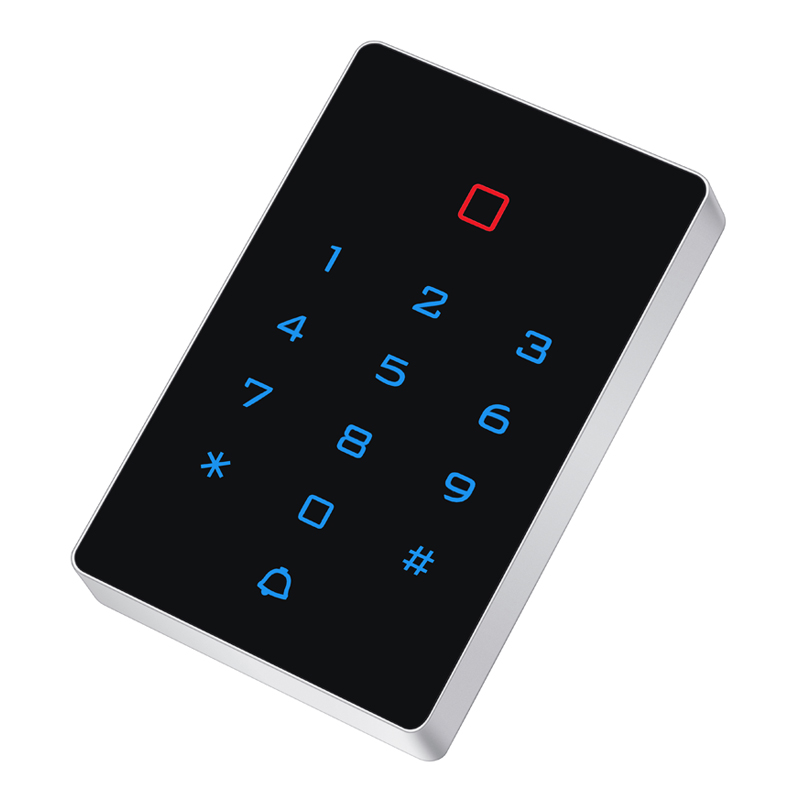

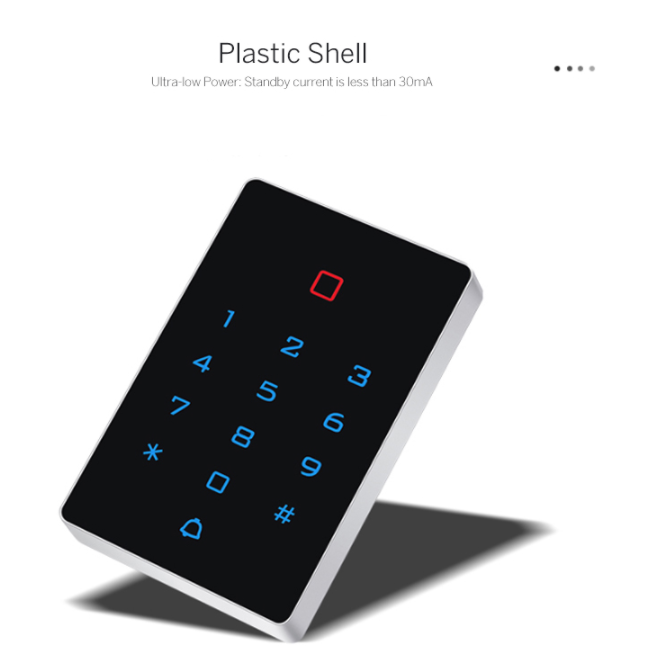

TF301WiFi Touch Screen Standalone Access Controller
Model No.: T12 WIFI EM, MF

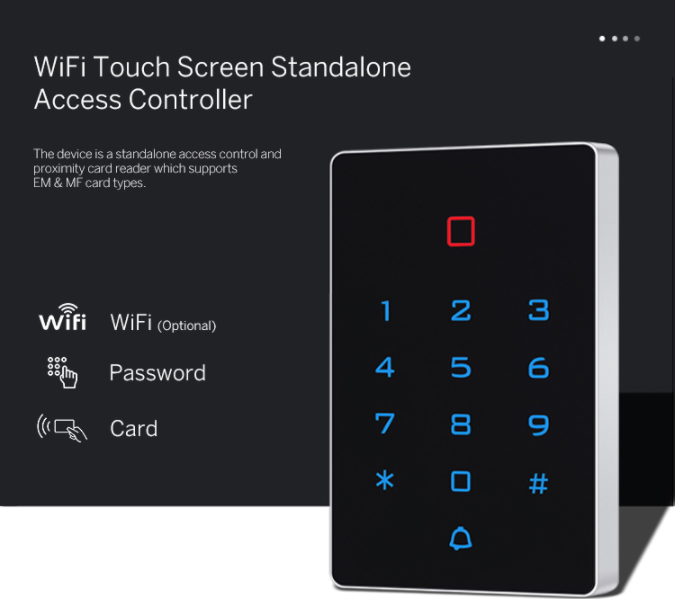

The device is a standalone access control and proximity card reader which supports EM & MF card types. It builds-in STC microprocessor, with strong anti-interference ability, high security and reliability, powerful function, and convenient operation. It’s widely used in high-end buildings, residential communities, and other public places.
Features:
Ultra-low Power: Standby current is less than 30mA
Wiegand Interface: WG26 or WG34 input and output
Searching time: Less than 0.1s after reading the card

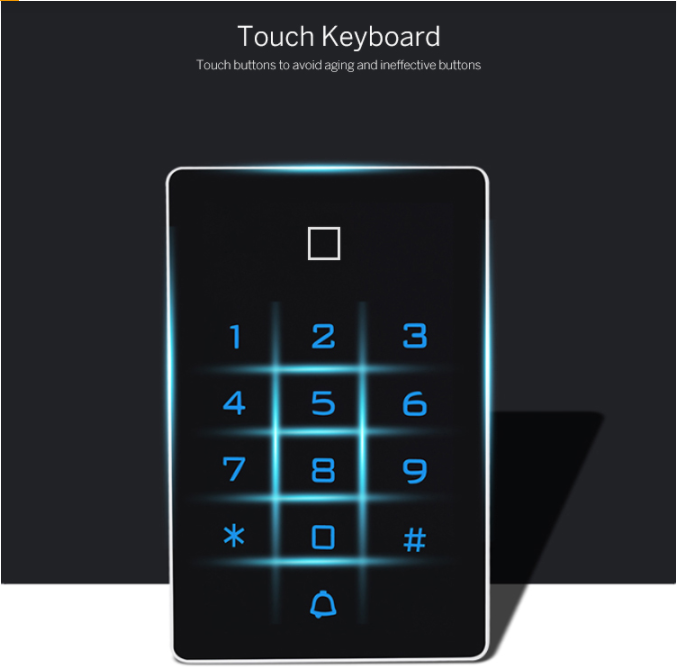

Backlight keypad: Operate easily at night
Doorbell interface: Support external wired doorbell
Access ways: Card, Pin code, Card & Pin code
Independent codes: Use codes without related card
Change codes: Users can change codes by themselves
Delete users by card No.: The lost card can be deleted by the keyboard
Working Voltage | DC12-24V |
Capacity | 2000 users |
Card Reading Distance | 1～3cm |
Lock output load | ≤3A |
Standby Current | ≤30mA |
Door Relay time | 0～99S （Adjustable） |
Working Temperature | -40℃～60℃ |
Working Humidity | 10%～90% |

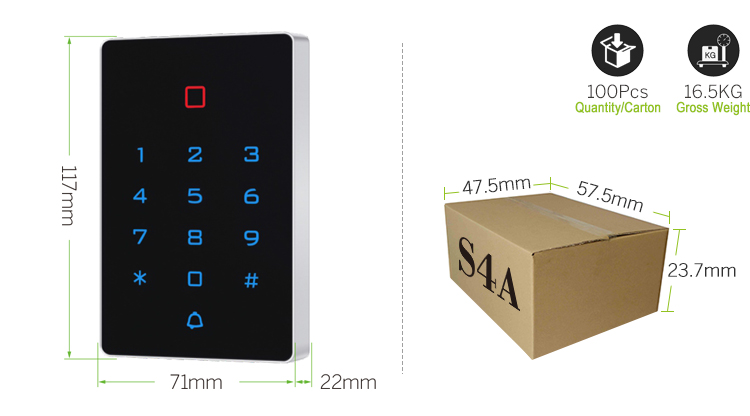

Dimensions | 117*71*22mm |
Tuya Mobile APP, WiFi Touch Screen Standalone Access Controller | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
T12 WiFi EM | 100pcs | 16.5KG | 57.5x47.5x23.7cm |
T12 WiFi MF | 100pcs | 16.5KG | |
S4A Datesheet_WiFi Touch Screen Standalone Access Controller
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
