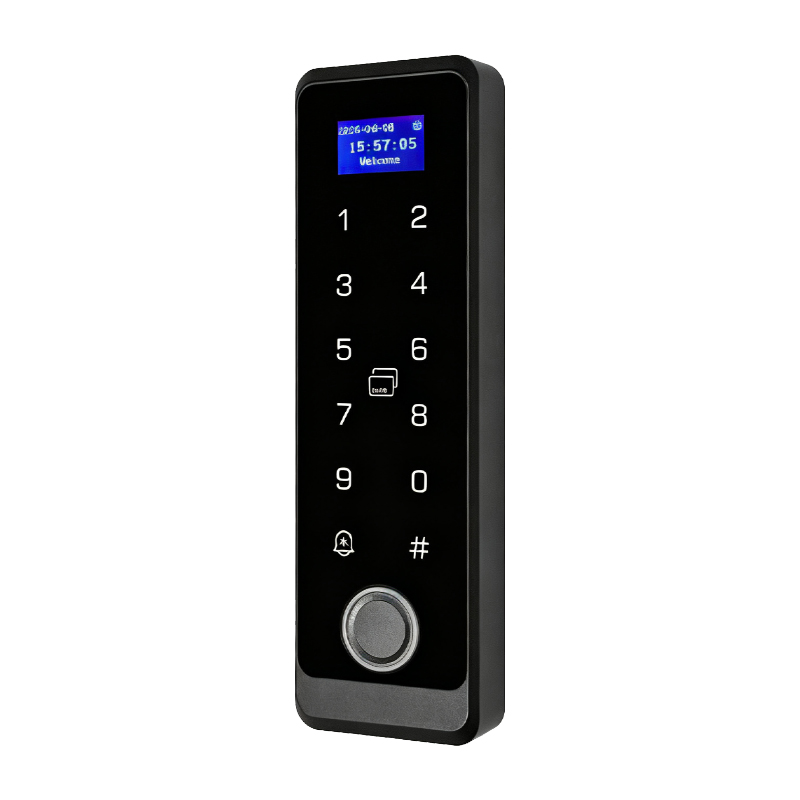

A55Z Slim Waterproof Biometric Fingerprint Access Control Keypad with OLED Display

Integrated 0.96-Inch Display Screen: Equipped with a clear built-in display panel to provide real-time visual feedback, system status updates, and intuitive user navigation.
Biometric Fingerprint Security: Features a high-speed biometric sensor supporting up to 100 fingerprint templates for secure, spoof-resistant keyless authentication.
Dual-Frequency Flexibility: Multi-credential versatility with simultaneous reading support for 125KHz (ID), 13.56MHz (IC), and NFC cards or mobile keys.
IP68 Weatherproof Protection: Engineered with a fully encapsulated, glue-poured potted sealing structure to guarantee long-term operational stability in harsh outdoor elements.
Ultra-Slim & Compact Footprint: A narrow physical design measuring just 46mm wide allows seamless surface mounting onto modern glass door tracks and restrictive frames.

  • Brand:

    S4A

  • Item NO.:

    A55Z
Inquire Now
  • Specifications

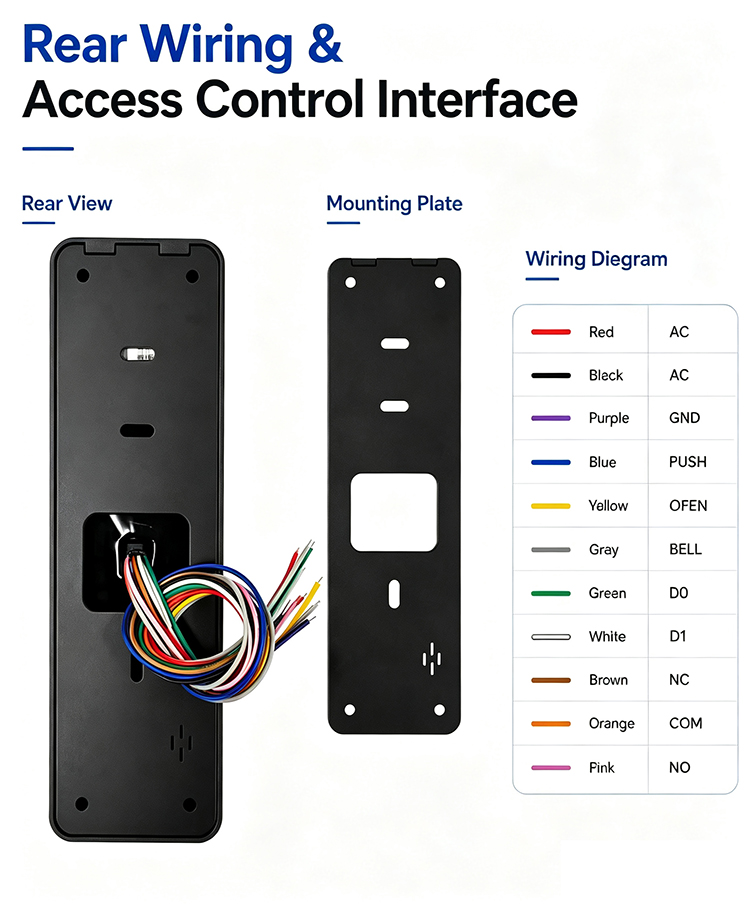

  • Wiring Diagram
  • Package

A55Z Slim Waterproof Biometric Fingerprint Access Control Keypad with Display


The A55Z is an advanced standalone access control terminal featuring an integrated 0.96-inch display screen and an ultra-slim physical profile designed for narrow frames and sleek architectural installations. Combining precision biometric fingerprint identification, an intuitive touch keypad, and a robust potted waterproof structure, this unit delivers high-tier multi-factor authentication. It provides excellent environmental resilience and visually guided entry management for both indoor and outdoor professional security deployments.


Product Parameter Parameter Descr1ption
Model A55Z
Working Voltage AC / DC 12V - 24V
Working Current < 100mA
Operating Temperature -20°C to 60°C
Keypad Type Touch Keypad
Display Screen 0.96-inch Screen
Waterproof Method Glue-poured / Potted Waterproof
User Capacity 10,000 Cards + 100 Fingerprints
Card Types ID, IC, NFC (Dual Frequency)
Wiegand Interface WG26 / WG34 Input & Output
Reading Distance 1cm - 10cm

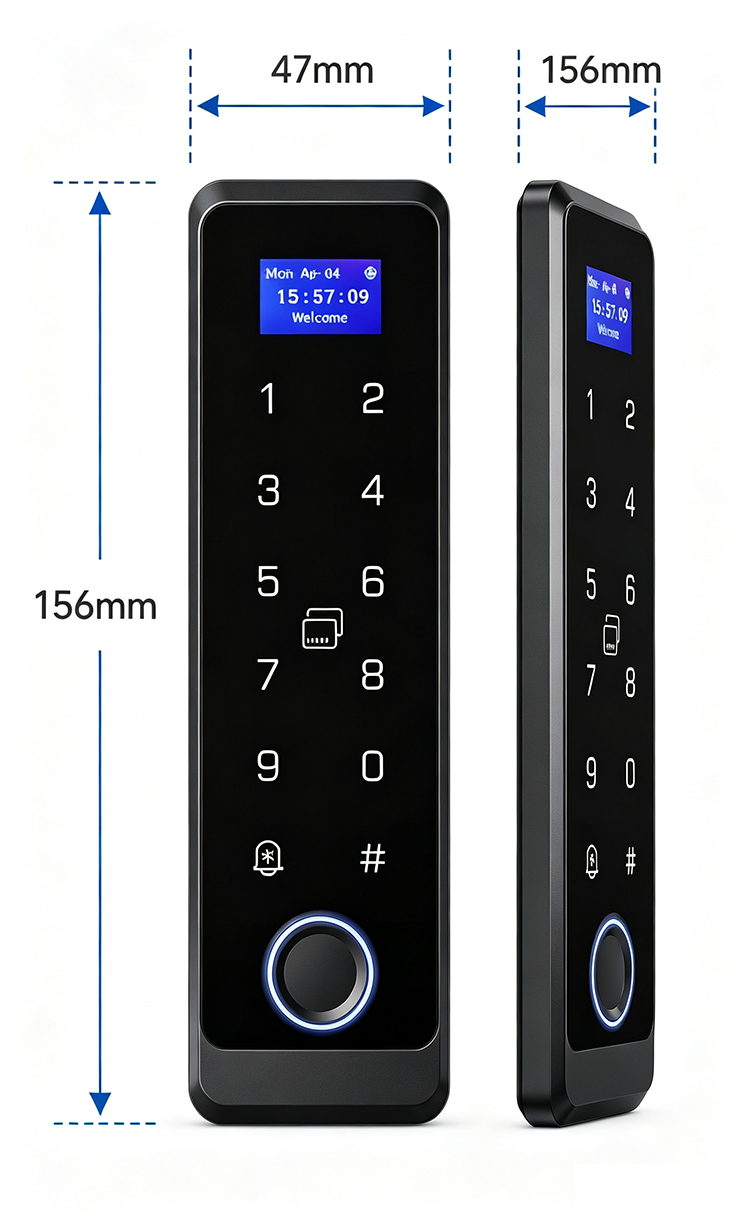

Dimensions
 156mm * 46mm * 18mm

Related Tags : Slim Biometric Access Control Waterproof Fingerprint Keypad OLED Display Access Control Dual Frequency Door Entry Touch Keypad Access Terminal
