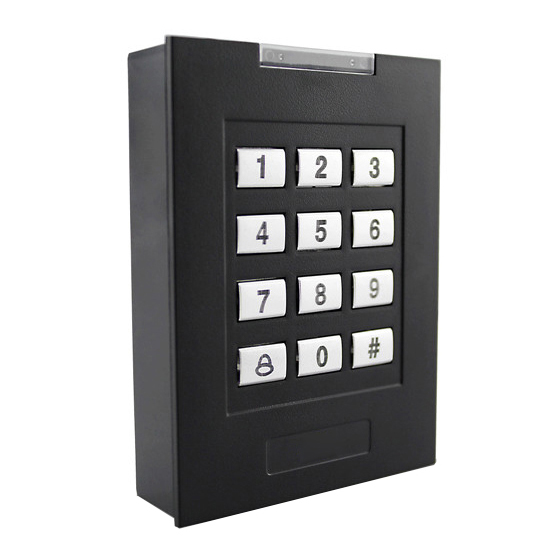

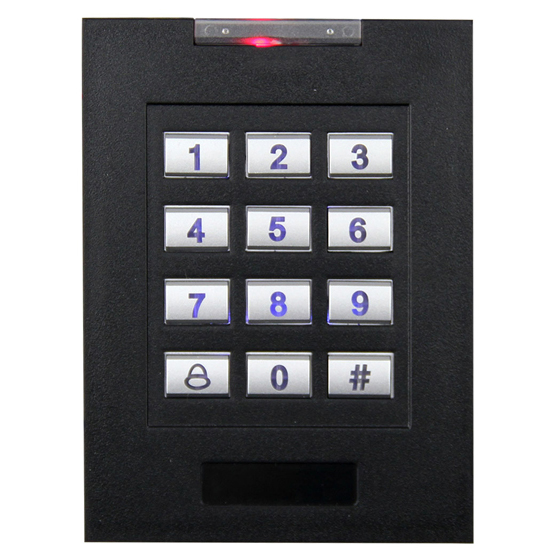

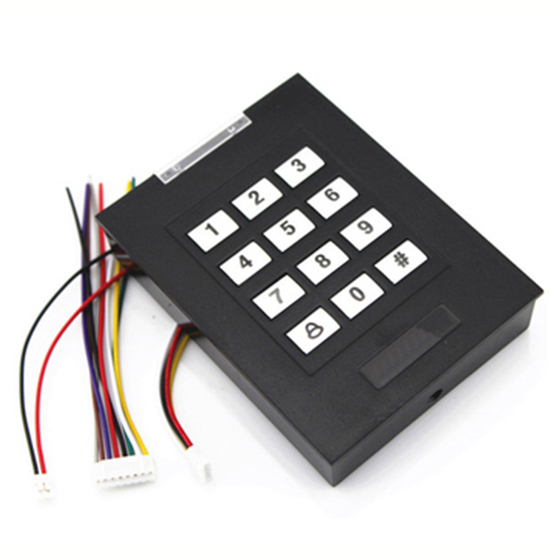

Single door Standalone access control RFID 125KHz Reader

> Card type: EM Card

> ABS single door access control

  • Brand:

    S4A
  • Item NO.:

    SA-0202
  • Specifications

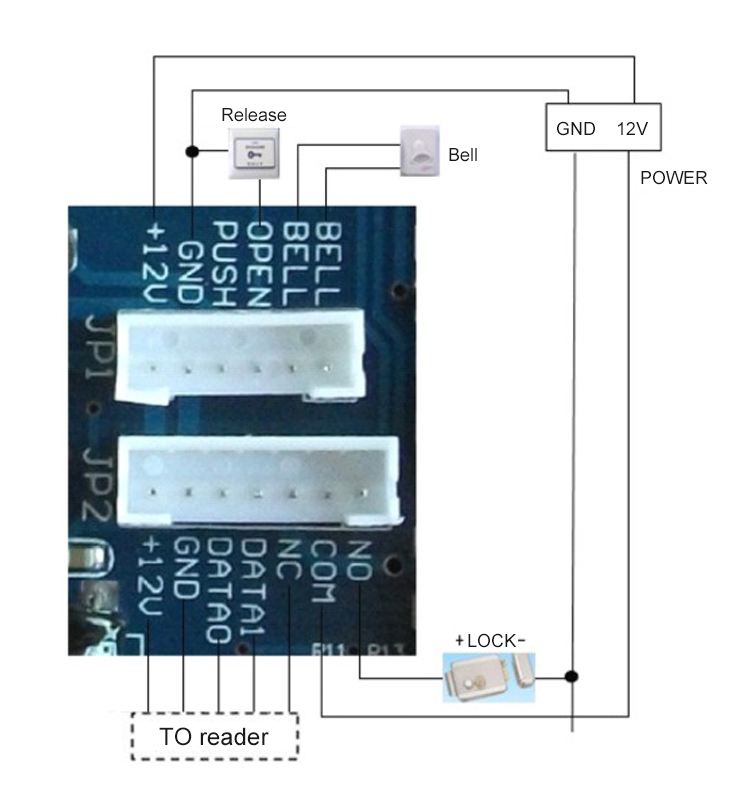

  • Wiring Diagram
  • Package
  • Download

Standalone access controller

Model No.: SA-0202 EM


Card type

EM

Working frequency

125KHz

Capacity

1000 users

Voltage

DC12V

Work current

150mA

Operating Temperature

0℃ ~ 45℃

Storage Temperature

-10℃ ~ 55°C (14°F-131°F)

Relative Humidity operating

40%RM~90%RH

Storage

20%RH~90%RH

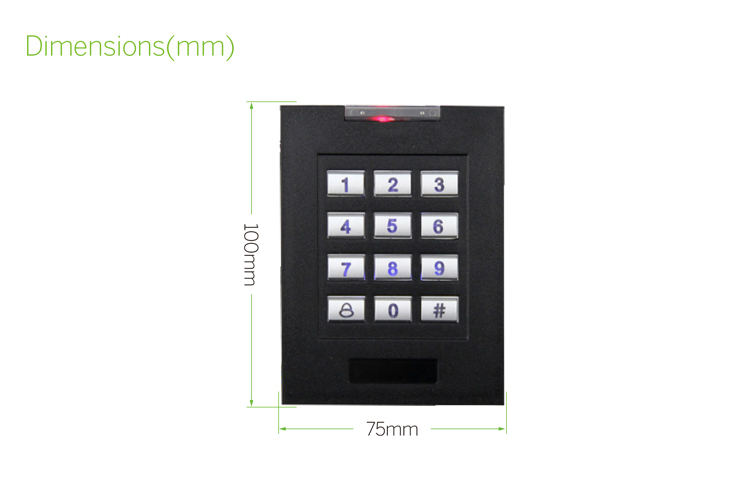

Dimensions

100×75×21mm

Standalone access controller

Standalone access controller

Standalone access controller
