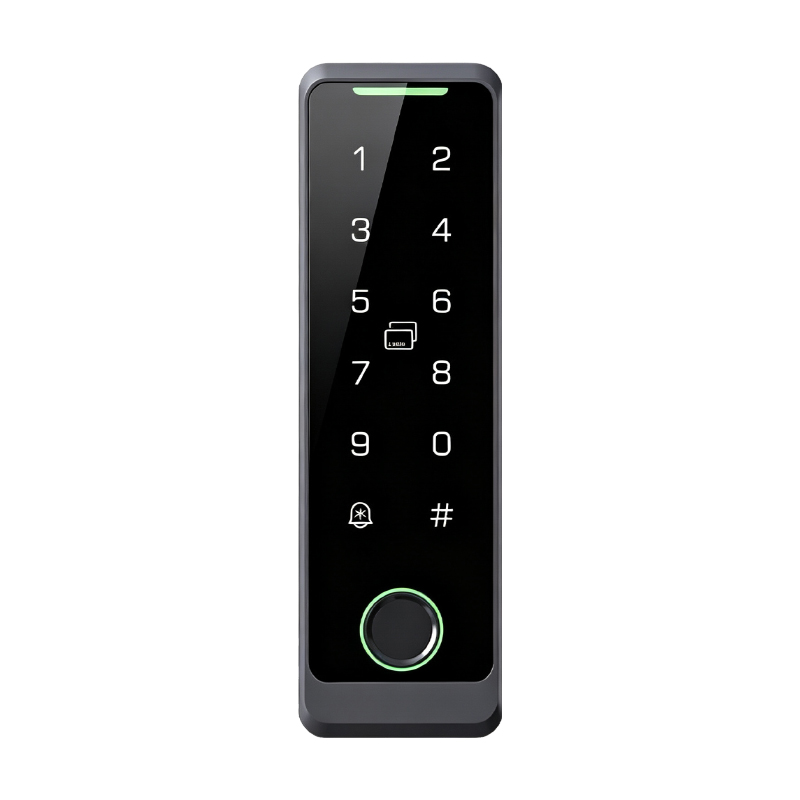

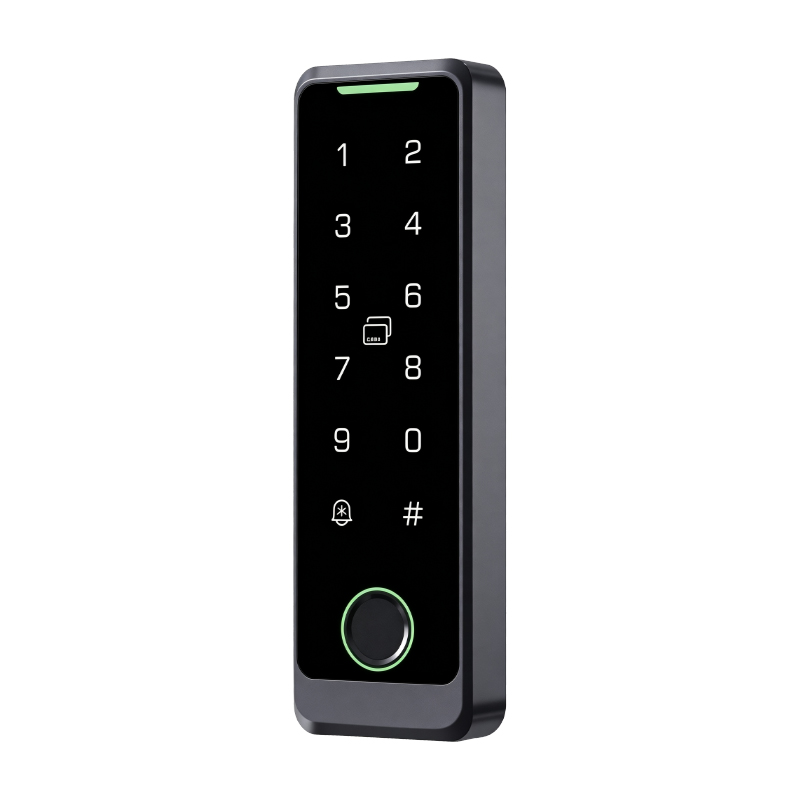

A52Z Slim Waterproof Biometric Fingerprint and Dual Frequency Access Control Keypad

Biometric Fingerprint Authentication: Features a high-precision biometric scanner supporting up to 100 distinct fingerprint users for secure keyless entry.
Dual-Frequency Integration: Multi-credential flexibility with simultaneous support for 125KHz (ID), 13.56MHz (IC), and NFC cards or mobile credentials.
Ultra-Slim & Compact Design: A narrow physical width of just 46mm allows it to fit neatly onto modern profiles, glass door frames, and narrow spaces.
IP68 Weatherproof Sealing: Fully encapsulated, glue-poured potted sealing structure engineered to ensure stable performance in harsh outdoor environments.
Wiegand Communication: Equipped with standard WG26/WG34 input and output interfaces for smooth integration with external readers and controllers.

Brand:
S4A
Item NO.:
A52Z

Inquire Now

Specifications

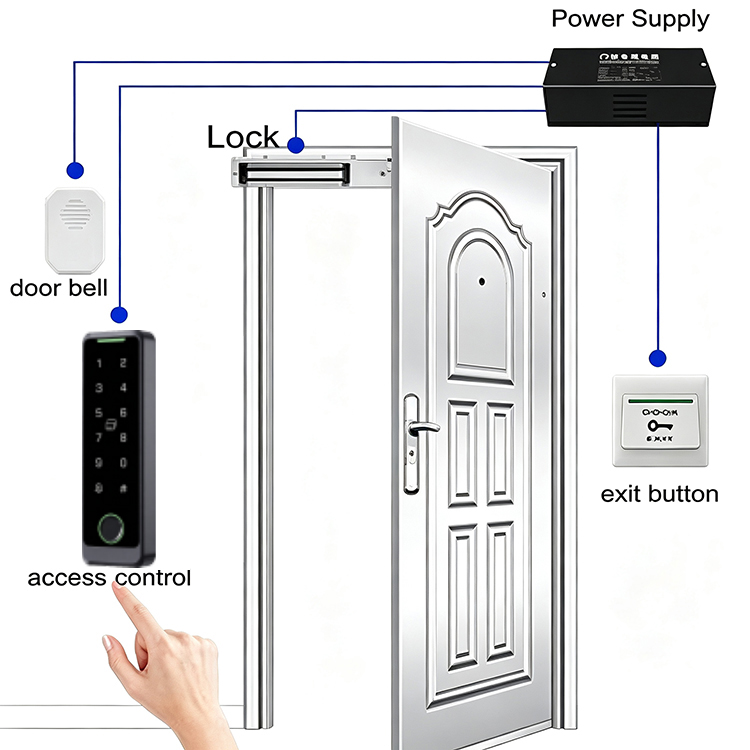

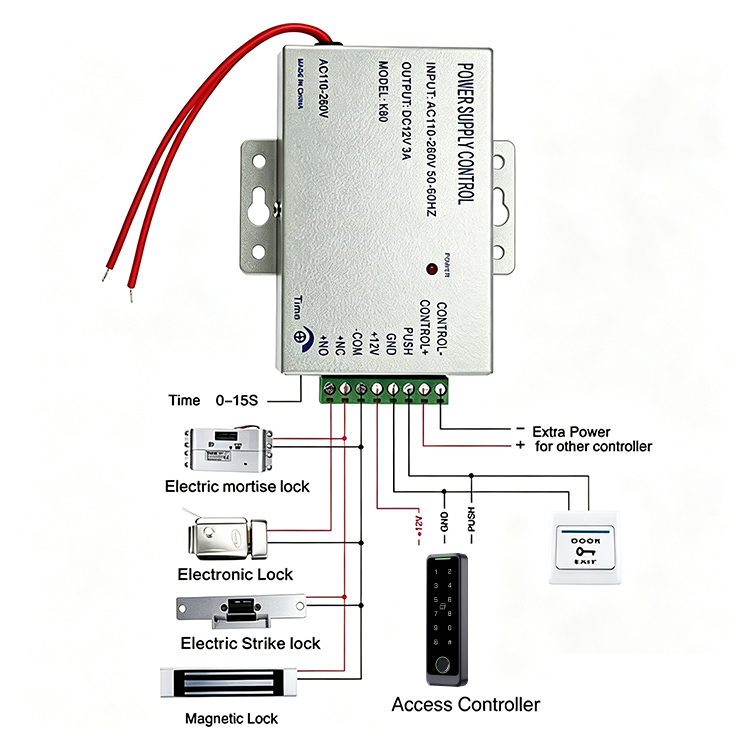

Wiring Diagram
Package

A52Z Slim Waterproof Biometric Fingerprint & Dual Frequency Keypad

The A52Z is an advanced standalone access control terminal designed with a modern, ultra-slim profile tailored for tight spaces and narrow door frames. Combining biometric fingerprint identification, a highly responsive touch keypad, and a fully potted waterproof structure, this unit offers robust multi-factor security. It provides excellent environmental resilience and flexible entry options for indoor and outdoor commercial or residential installations.

Product Parameter	Parameter Descr1ption
Model	A52Z
Working Voltage	AC / DC 12V - 24V
Working Current	< 100mA
Operating Temperature	-20°C to 60°C
Keypad Type	Touch Keypad
Waterproof Method	Glue-poured / Potted Waterproof
User Capacity	1,000 Cards + 100 Fingerprints
Card Types	ID, IC, NFC (Dual Frequency)
Wiegand Interface	WG26 / WG34 Input & Output
Reading Distance	1cm - 10cm

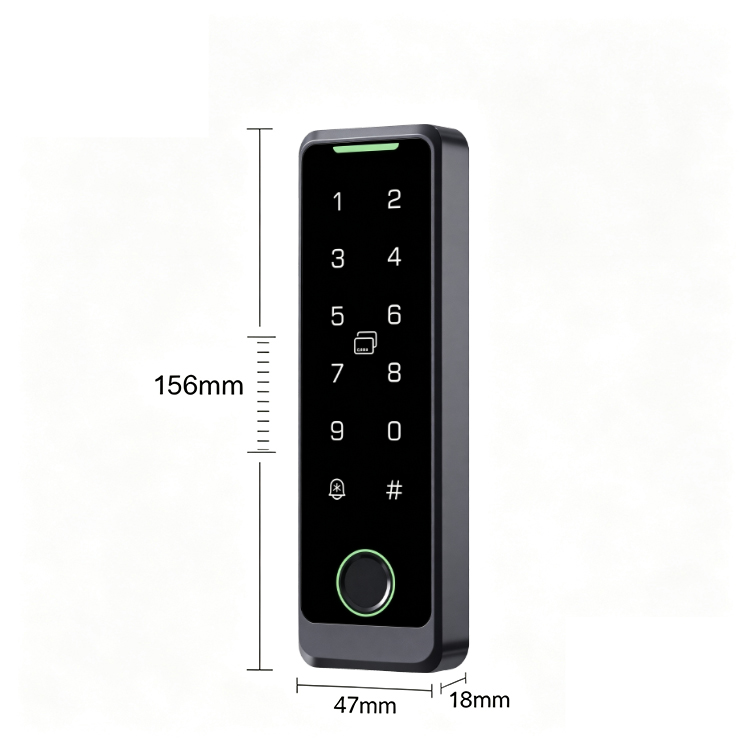

Dimensions	156mm * 47mm * 18mm
