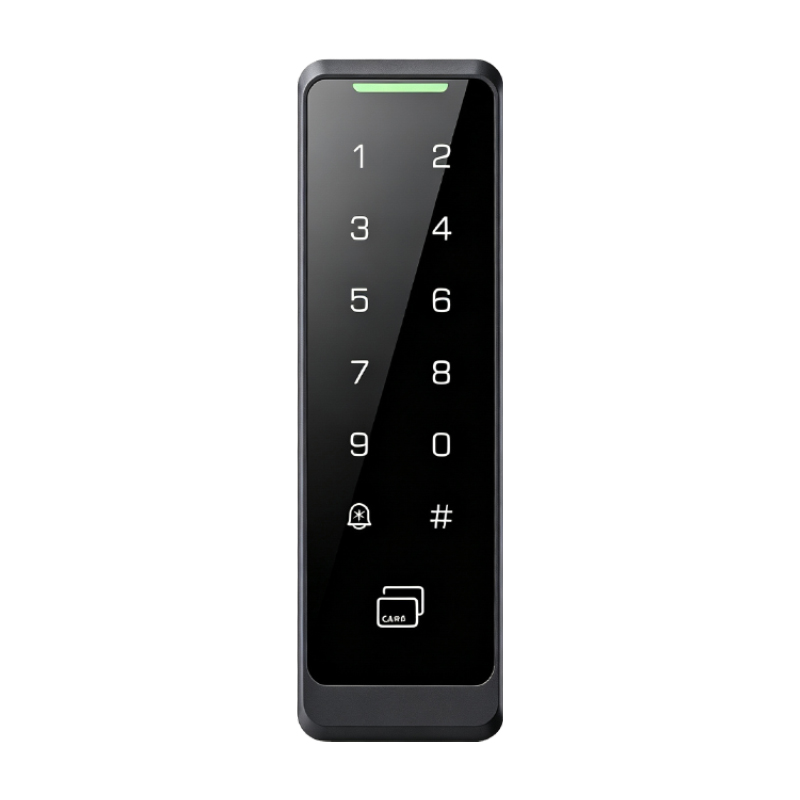

A50S Slim Waterproof Dual Frequency Access Control Keypad with Touch Keys

Ultra-Slim Profile Design: Narrow physical footprint measures just 46mm wide, making it exceptionally well-suited for sleek door frames and tight installation paths.
Dual-Frequency Integration: Multi-credential authentication supporting 125KHz (ID), 13.56MHz (IC), and NFC proximity access methods simultaneously.
IP68 Weatherproof Protection: Fully encapsulated, glue-poured potted sealing structure designed to ensure total operational reliance in severe outdoor elements.
Massive 10,000-Card Capacity: Large-scale system memory built to store and seamlessly manage up to 10,000 card or user credentials.
Wiegand Input & Output: Features dual standard WG26/WG34 input and output pathways for flexible peripheral card reader expansion and controller integration.

Brand:
S4A
Item NO.:
A50S

Inquire Now

Specifications

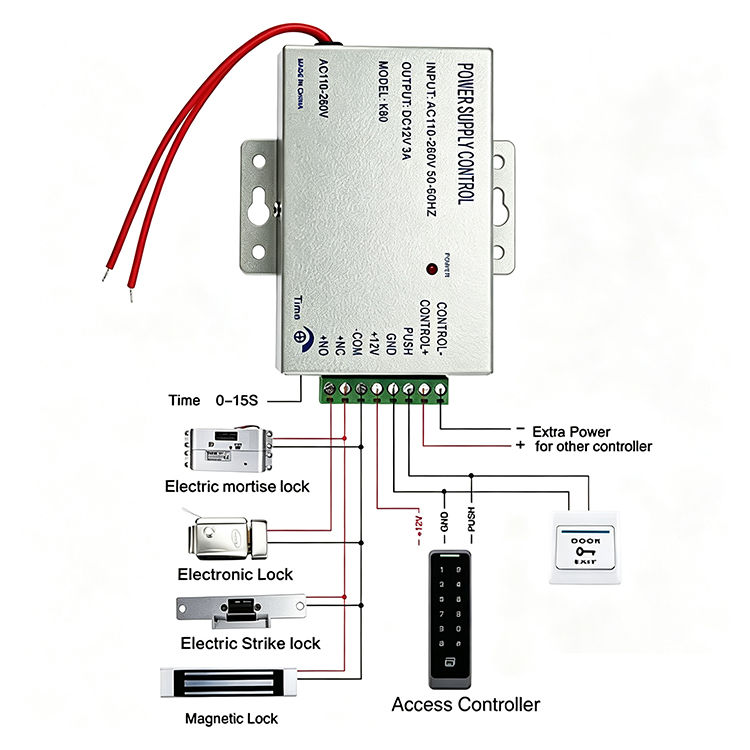

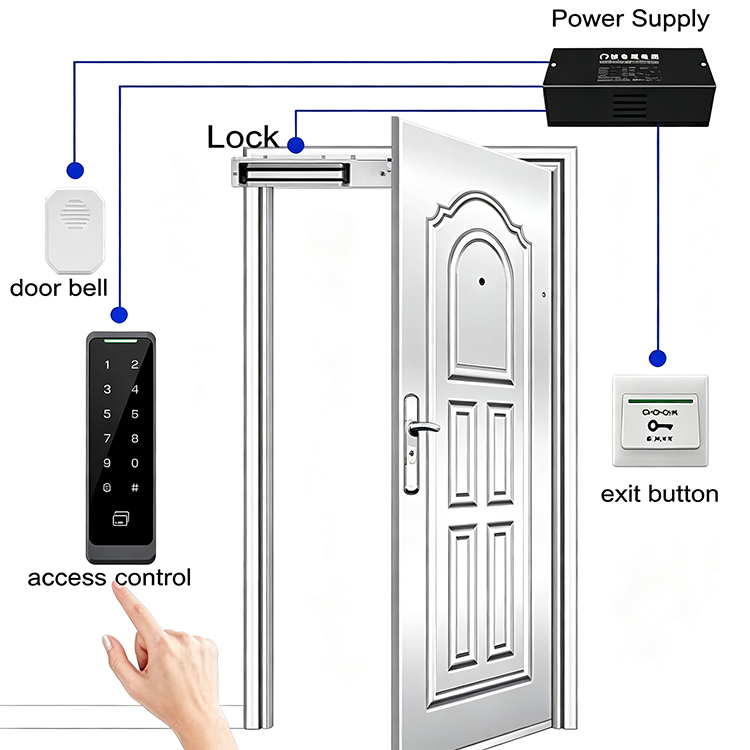

Wiring Diagram
Package

A50S Slim Waterproof Dual Frequency Access Control Keypad

The A50S is a high-capacity standalone access control terminal engineered with a modern, ultra-slim profile designed to seamlessly fit narrow spaces and restricted entry frames. Equipped with a sleek touch keypad and built using a fully potted waterproof structure, this unit delivers exceptional durability in any climate. Offering advanced multi-credential flexibility, it is a premium security choice for indoor and outdoor commercial and residential systems.

Product Parameter	Parameter Descr1ption
Model	A50S
Working Voltage	AC / DC 12V - 24V
Working Current	< 100mA
Operating Temperature	-20°C to 60°C
Keypad Type	Touch Keypad
Waterproof Method	Glue-poured / Potted Waterproof
User Capacity	10,000 Users
Card Types	ID, IC, NFC (Dual Frequency)
Wiegand Interface	WG26 / WG34 Input & Output
Reading Distance	1cm - 10cm

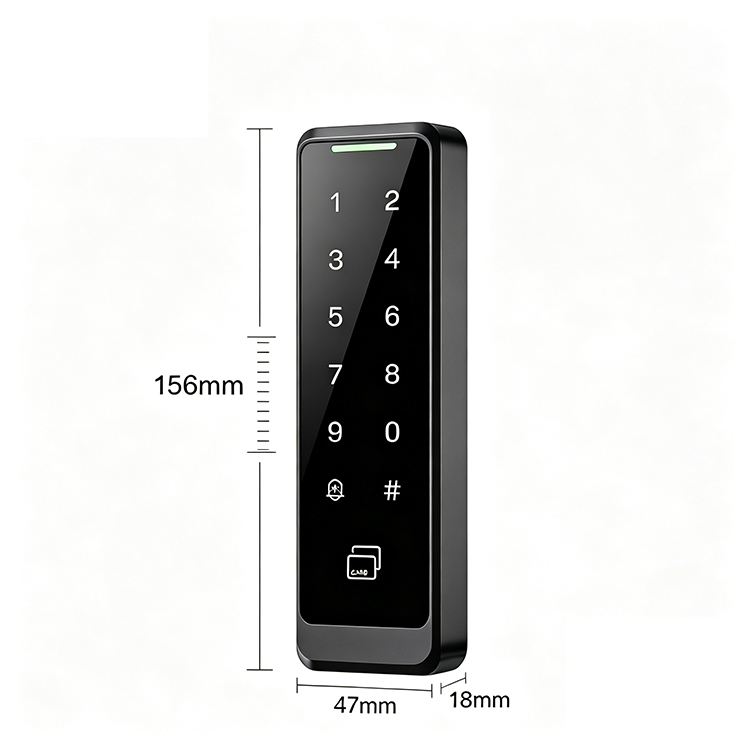

Dimensions	156mm * 47mm * 18mm
