A3S Dual Frequency Waterproof Access Control Keypad with Touch Keys

Dual-Frequency Integration: Multi-credential flexibility supporting 125KHz (ID), 13.56MHz (IC), and NFC access credentials simultaneously.
IP68 Weatherproof Protection: Fully potted sealing architecture engineered to withstand severe outdoor elements and wet conditions.
Massive 10,000-User Capacity: Large data memory storage that effortlessly accommodates up to 10,000 card or PIN users.
Modern Touch Keypad: High-sensitivity touch-sensitive keys for a sleek interface, low wear, and reliable long-term performance.
Wiegand & Peripheral Expansion: Supports standard WG26/WG34 input and output protocols along with external reader connectivity.

  • Brand:

    S4A

  • Item NO.:

    A3S
Inquire Now
  • Specifications

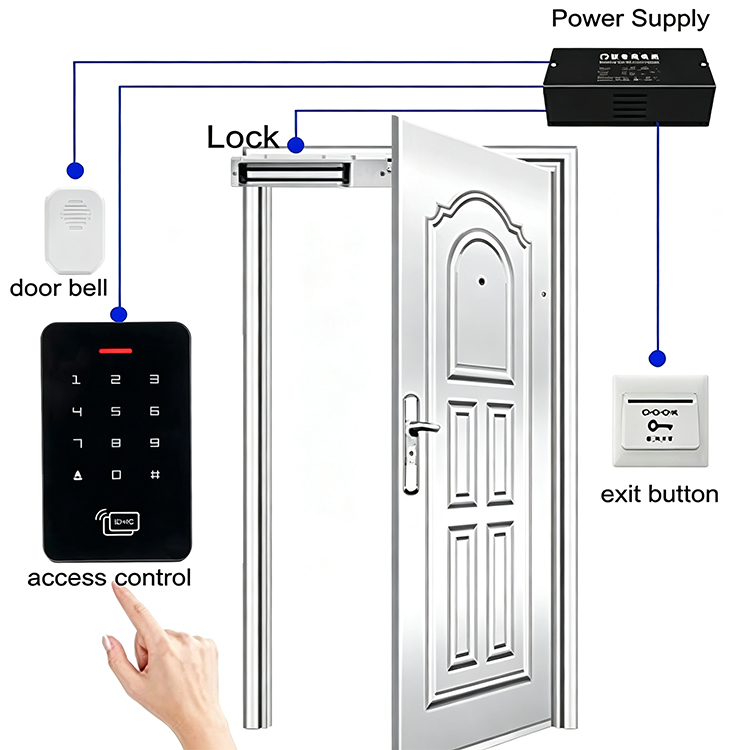

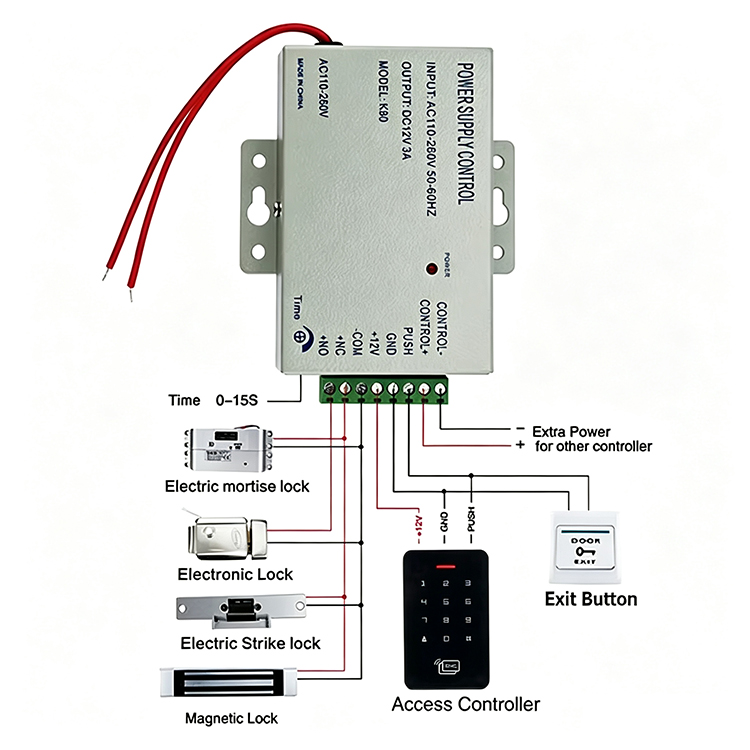

  • Wiring Diagram
  • Package

A3S Dual-Frequency Waterproof Access Control Keypad


The A3S is a high-capacity standalone access control terminal designed to deliver seamless security and a sleek modern aesthetic. Featuring a responsive touch keypad and an integrated potted waterproof structure, this device provides exceptional environmental durability. With its versatile multi-credential compatibility, it serves as an excellent security entry solution for both indoor and outdoor commercial or residential installations.


Product Parameter Parameter Descr1ption
Model A3S (Dual Frequency)
Working Voltage DC 12V - 24V
Working Current < 100mA
Operating Temperature -20°C to 60°C
Keypad Type Touch Keypad

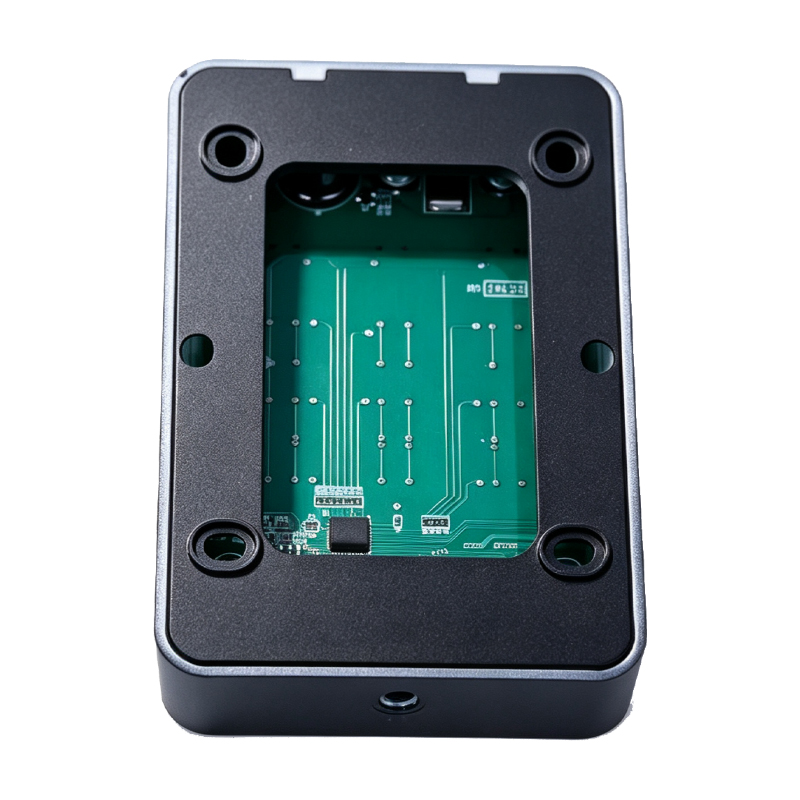

Waterproof Method Glue-poured / Potted Waterproof
User Capacity 10,000 Users
Card Types ID, IC, NFC (Dual Frequency)
Wiegand Interface WG26 / WG34 Input & Output
External Connectivity Supports external card reader connection
Reading Distance 1cm - 10cm

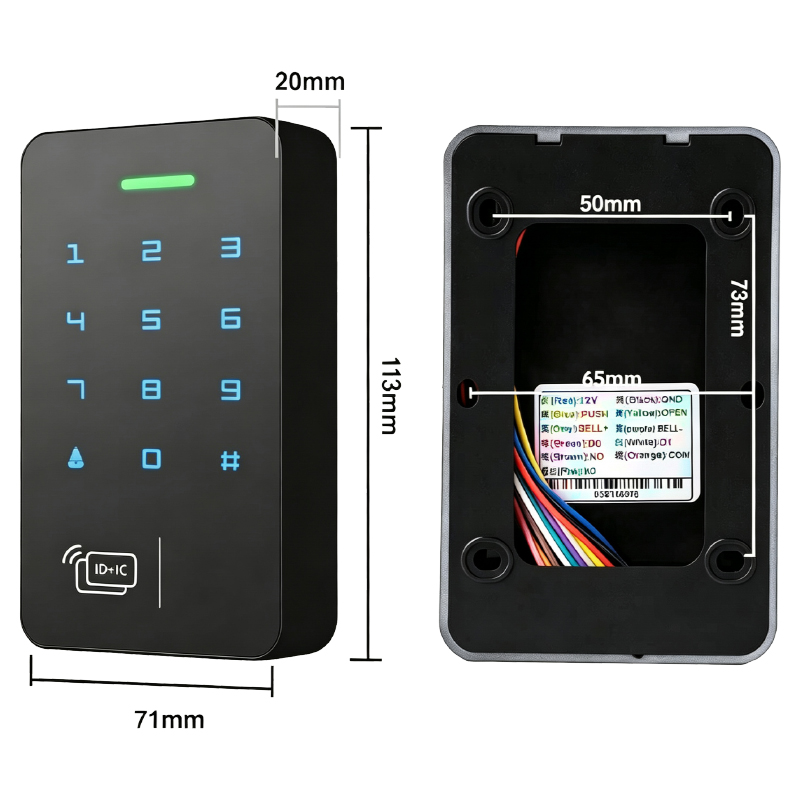

Dimensions
 113mm * 71mm * 20mm
