>Product material: alloy die-casting lock body
>Adsorption distance: 4mm
>Door Magnetic signal: NO/NC/COM
>Lock body size: 257L*30W*33H(mm)
>Embedded size: 142L*30W*33H(mm)
DC12V start 1.6A stable 0.22A
DC24V start 1A stable 0.13A
Brand:
S4AItem NO.:

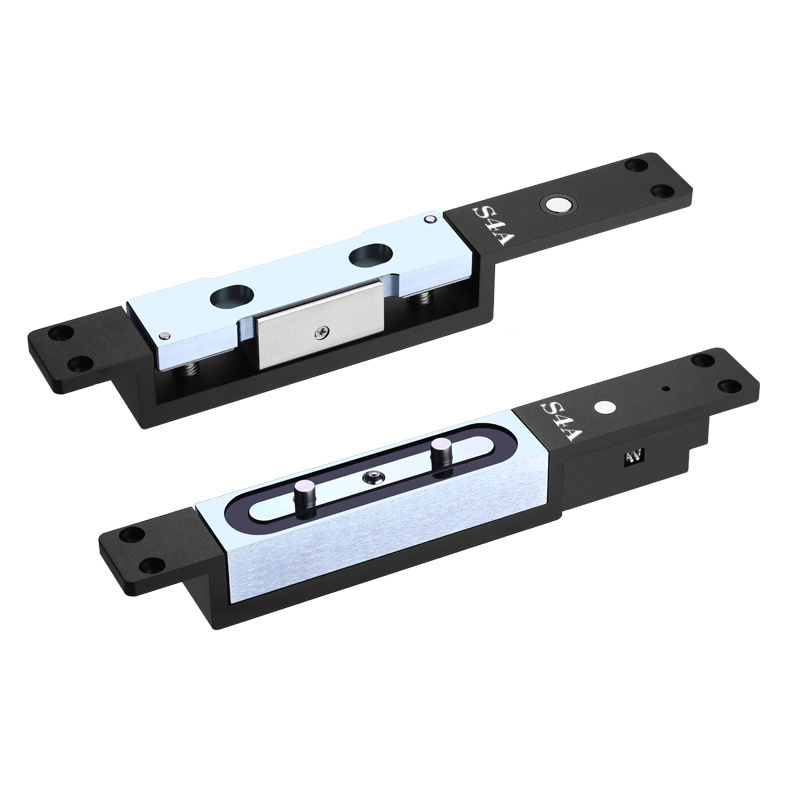

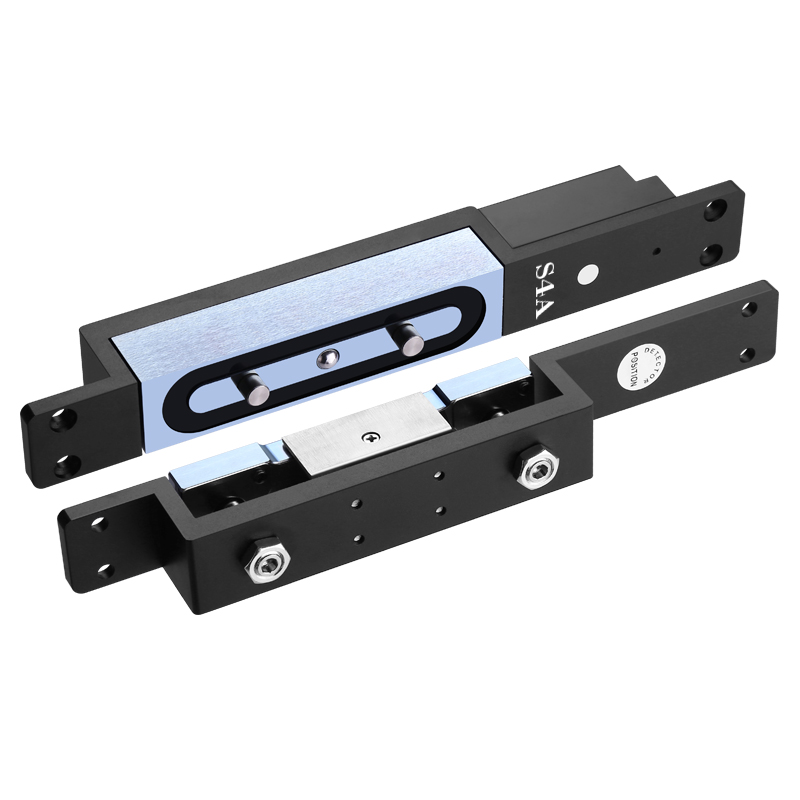

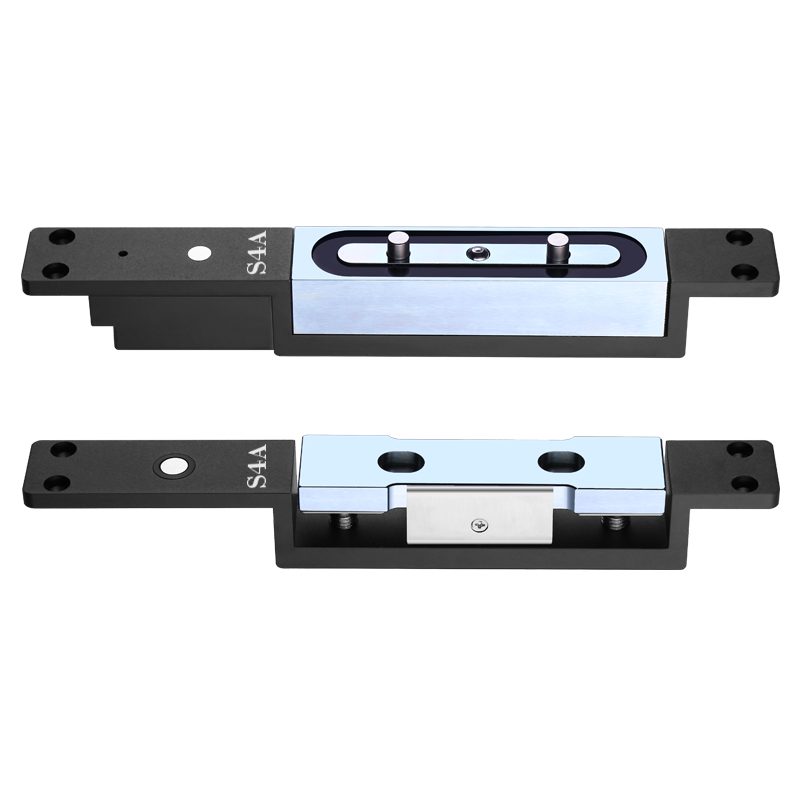

SL-1200Electric Shear Lock Fail-Safe with 2600lbs
Model No.: SL-1200
What is an Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Product material | alloy die-casting lock body |
Adsorption distance | 4mm |
Door Magnetic signal | NO/NC/COM |

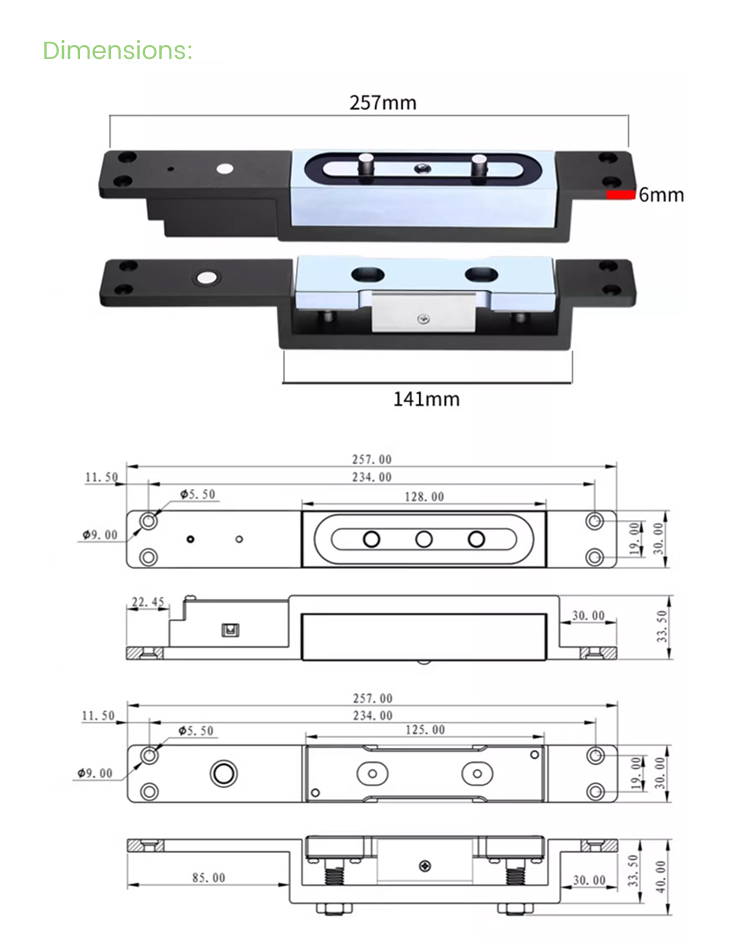

Lock body size | 257L*30W*33H(mm) |
Embedded size | 142L*30W*33H(mm) |
Ambient temperature | -40°C~+55°C |
Working voltage | DC12V~DC24V |
Working current | DC12V start 1.6A stable 0.22A |
DC24V start 1A stable 0.13A | |
Locking delay time | 0/3/6/9 seconds adjustable |
Electric Shear Lock Fail-Safe with 2600lbs | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
SL-1200 | 267x30x34mm | 10pcs | 17.74KG | 39x25x22cm |
S4A Instruction_SL-1200_Electric Shear Lock Fail-Safe With 2600lbs
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> With LED (Red only) > Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED and door sensor> Single door 500KG magnetic lock=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED, door sensor and time delay> Current Draw: 12V/420mA 24V/210mA> 100% Copper material> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> LED, door sensor and Buzzer> Single door EM lock 500KG=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Voltage: DC12V or DC24V> Holding Force: 500KG (1200Lbs)> Current Draw: 12V/420mA 24V/210mA
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> EL-W1200S 4Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: DC12V or DC24V
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
