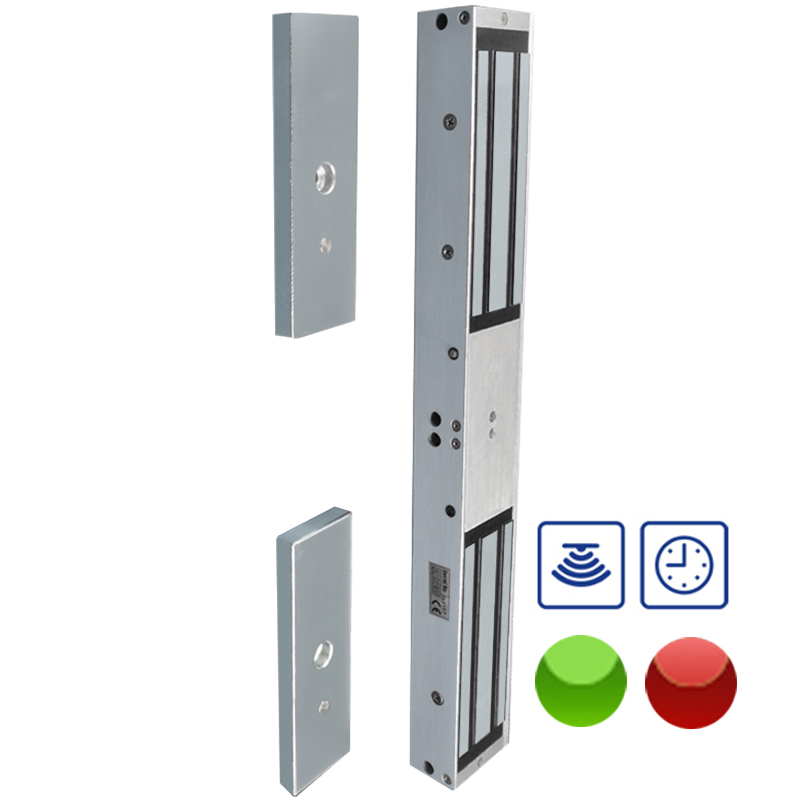

Double Door 500KG Magnetic Lock

> Built in LED, door sensor and time delay

> Voltage: DC12V or DC24V

> Current Draw: 12V/500mAx2 24V/250mAx2

  • Brand:

    S4A
  • Item NO.:

    EL-1200DST
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Double Door 500KG Magnetic Lock

Model No.: EL-1200DST


Product Parameter

Parameter Description

EL-1200D

Without indicator lights

EL-1200DS

With LED (Red only)

EL-1200DST

Built-in LED, door sensor, and time delay

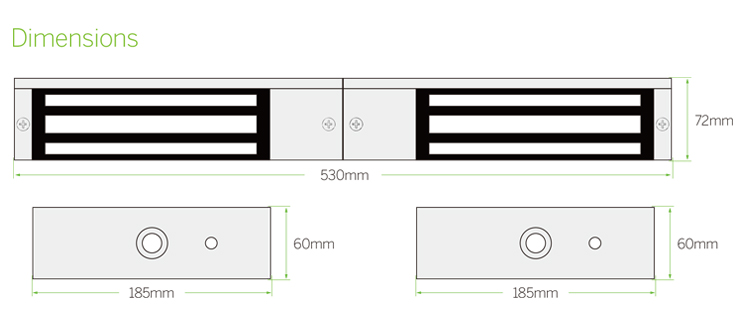

Lock Dimension

530Lx72Wx40H(mm)

Armature Plate Dimension

185Lx60Wx13H(mm)

Holding Force

500kgx2(1200Lbsx2)

Input Voltage

DC12V or DC24V

Current Draw

12V/500mAx2 24V/250mAx2

Suitable for

Wooden door, Glassdoor, Metal door, Fireproof door

Signal Output

Need to order EL-D1200S

Surface Temp

≤20°C

Operating Temp

-10℃ ~ 55°C (14°F-131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

9KG

Standard Packing

4pcs


Double door Magnetic lockDouble door Magnetic lock

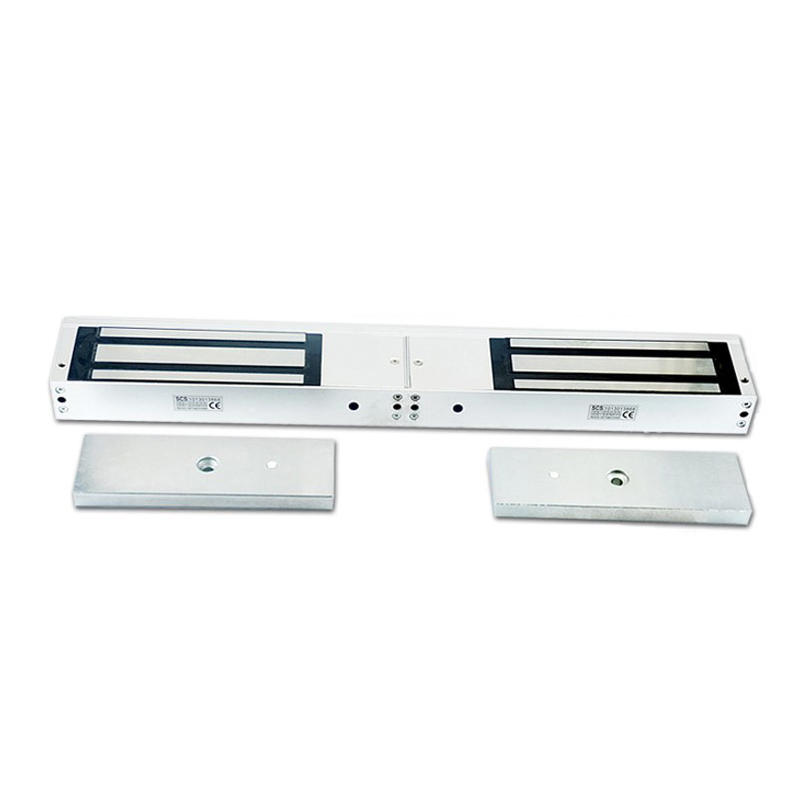

Double door 500KG Magnetic lock

Double Electromagnetic Lock Series (1200Lbs)

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

4pcs

 530Lx72Wx40H(mm

9kg

36.5KG

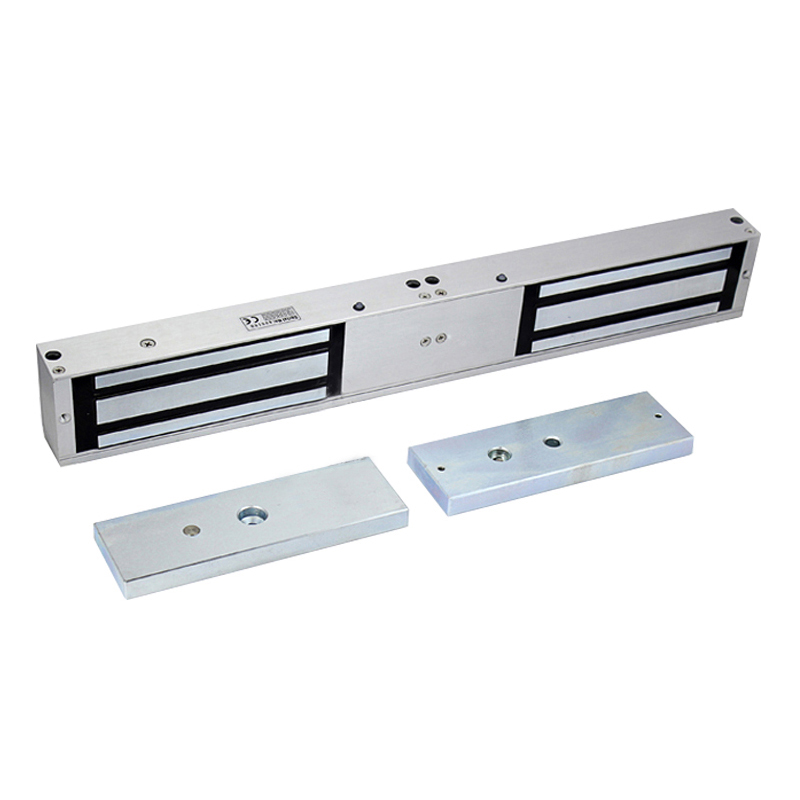

Double door 500KG Magnetic lock

S4A Instruction_EL-1200DST_Double Door 500KG Magnetic Lock
