Brand:
S4AItem NO.:

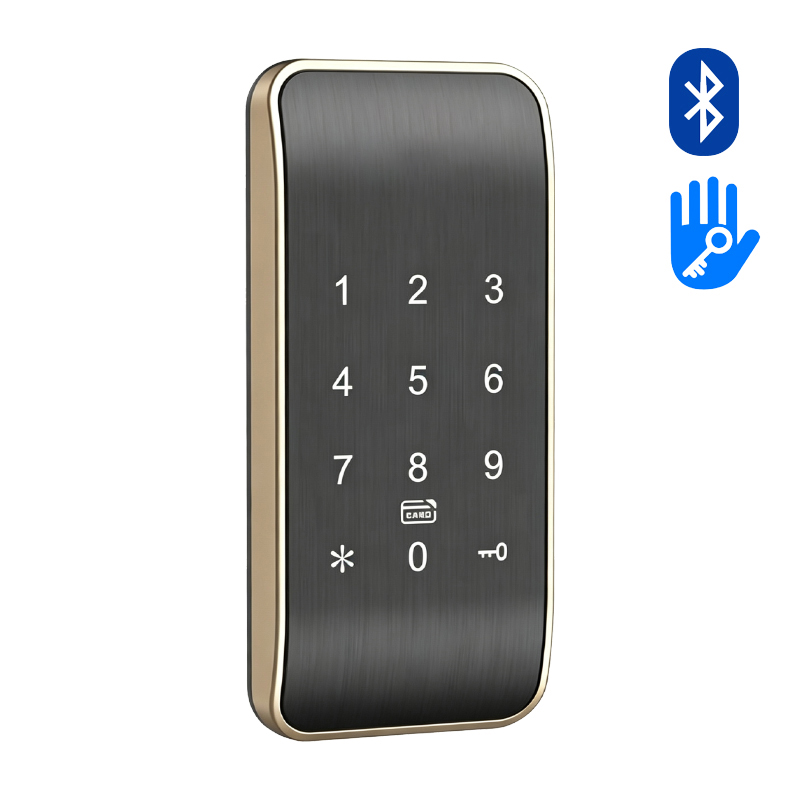

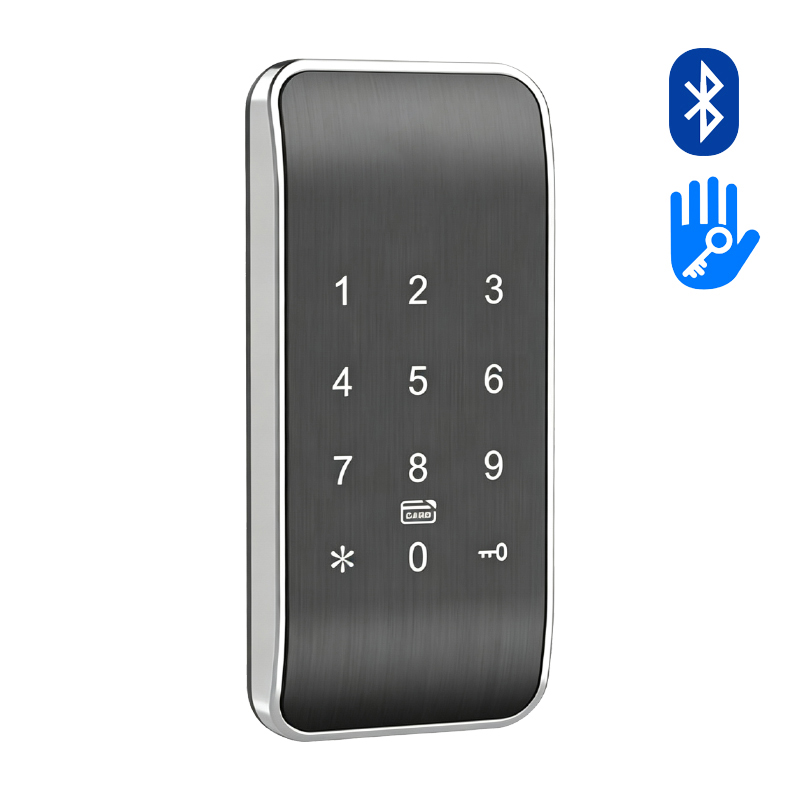

CB-167CB-167 Smart Cabinet Combination Lock
The CB-167 is an advanced smart cabinet combination lock engineered for secure storage management in gyms, offices, and commercial facilities. Built with a durable aluminum alloy casing, it supports flexible unlock methods including Mifare IC card, PIN code, combination, and TTLock app management via Bluetooth. Featuring fast response times under 1.5 seconds, low power consumption, emergency external power support, and dual-mode operation (Public and Private modes), the CB-167 provides an efficient access control solution.
Parameter
Specification
Model Number
CB-167
Product Name
Smart Cabinet Combination Lock
Unlock Methods
Mifare Card, PIN Code, Combination, TTLock App
Material
Aluminum Alloy
Color Options
Gold / Silver / Black

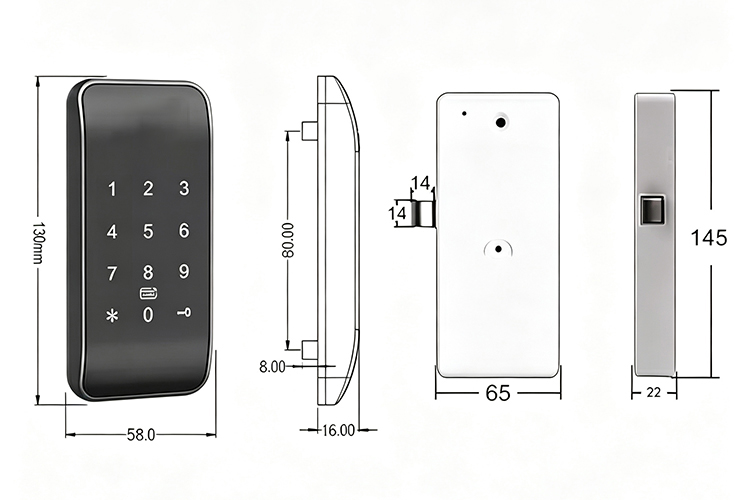

Lock Dimensions
130 * 58 * 16 mm
Latch Hole Dimensions
145 * 64 * 22 mm
Power Supply
4 x AA Batteries
Unlock Speed
< 1.5 Seconds
Password Capacity
200
Card Capacity
200 Cards
Sensing Distance
< 3 cm
Supported Modes
Public Mode & Private Mode
Static Power Consumption
< 40 uA
Dynamic Power
< 300 mA
Low Voltage Alarm
< 4.8 V
Emergency Power Supply
External Power Box Interface
Operating Temperature
-10°C to +55°C
Operating Humidity
10%–80% RH
Single Set Weight
261.9 g
Single Box Dimensions
18.5 * 17.5 * 4 cm
Carton Specifications
54.5 * 38 * 46.5 cm (66 Sets / Carton)
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm
>Unlock Way:Password/card/Fingerprint/Key/APP>Installation:Wall mount/Shackle>Bluetooth Distance:Within 10m
>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
