Brand:
S4AItem NO.:

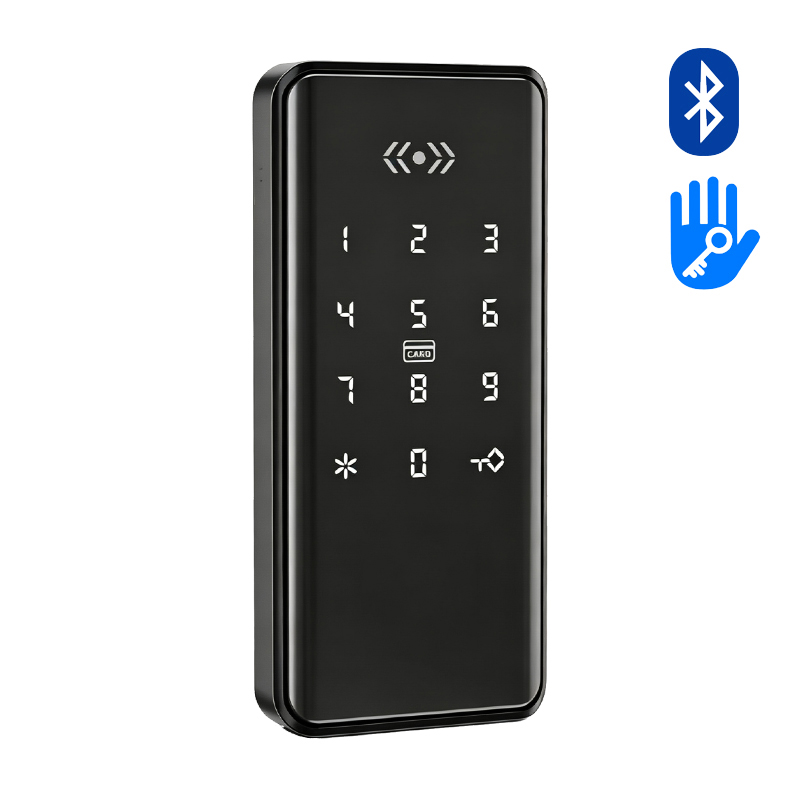

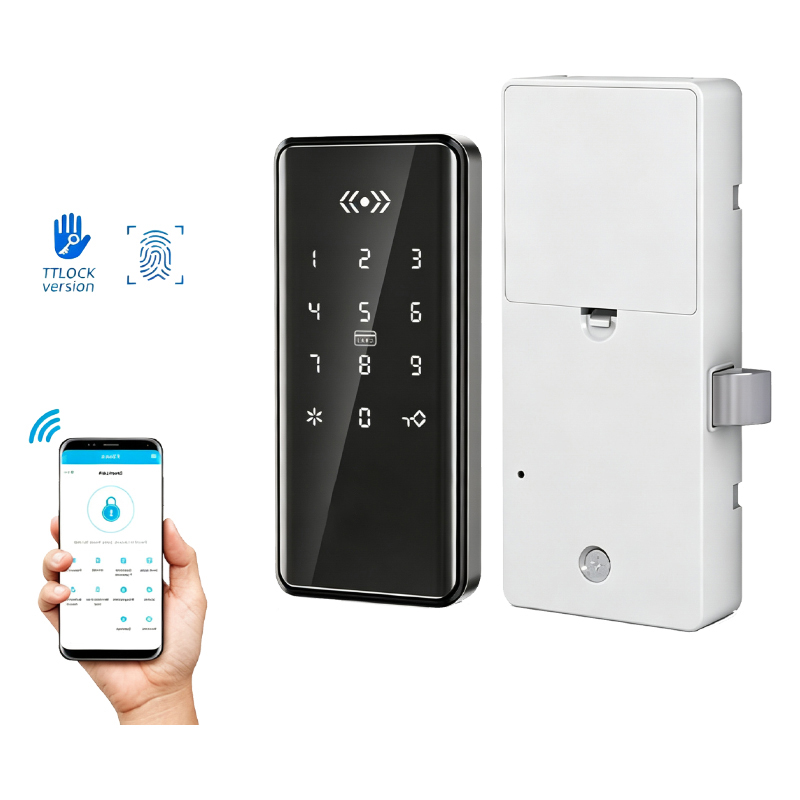

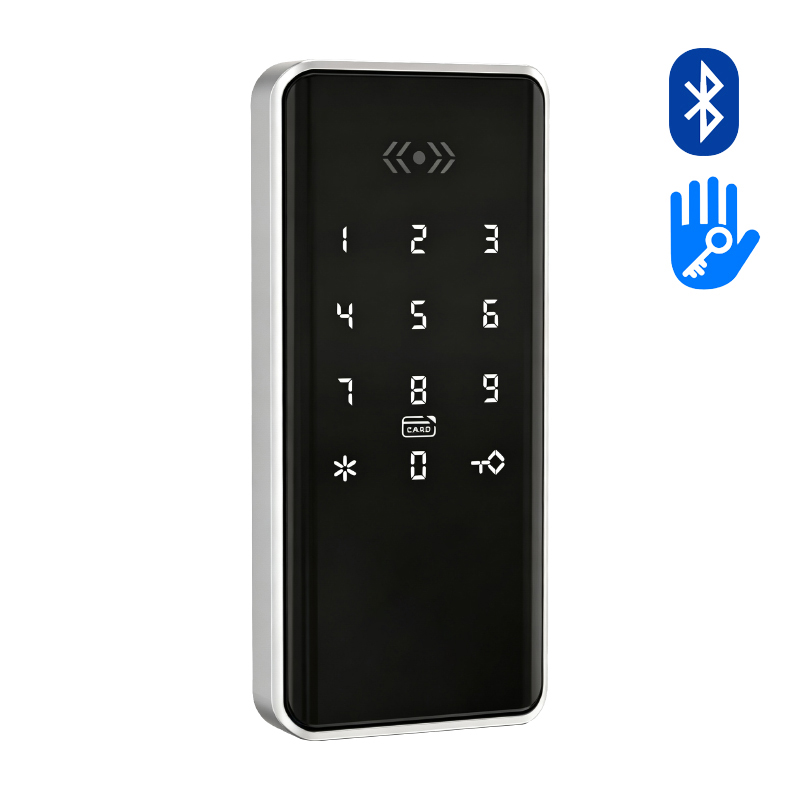

CB-179CB-179 Smart Cabinet Combination Lock

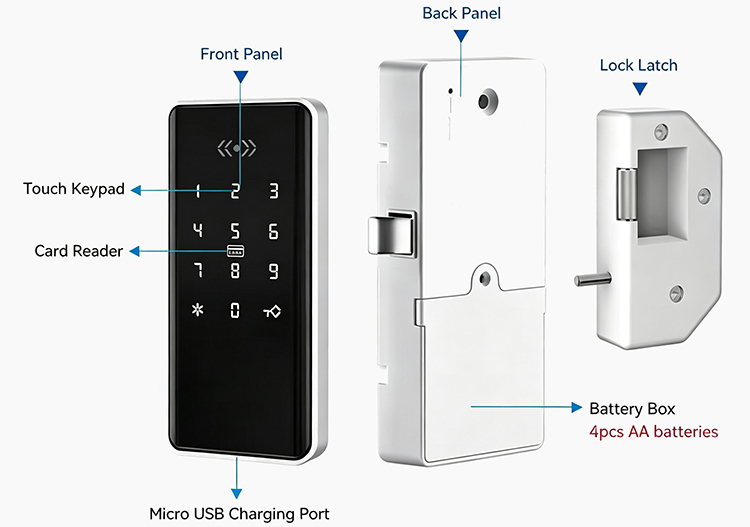

The CB-179 is a premium smart cabinet combination lock designed for modern electronic lockers, cabinets, and storage management. Crafted with a durable aluminum alloy housing, it supports multi-modal access including Mifare IC card, PIN code, fingerprint, and smartphone unlock via the TTLock App. Featuring Bluetooth/Wi-Fi connectivity and emergency external power support, the CB-179 delivers seamless security and intelligent access management.
Parameter
Specification
Model Number
CB-179
Product Name
Smart Cabinet Combination Lock
Application
Smart Storage Cabinet / Locker
Unlocking Options
Mifare Card, PIN Code, Fingerprint, Mobile App (TTLock)
Card Type
M1 IC Card (13.56MHz)
Network / Protocol
BLE, Wi-Fi (Requires Gateway for Remote Control)
Mobile App
TTLock App
Material
Aluminum Alloy
Color Options
Silver / Black

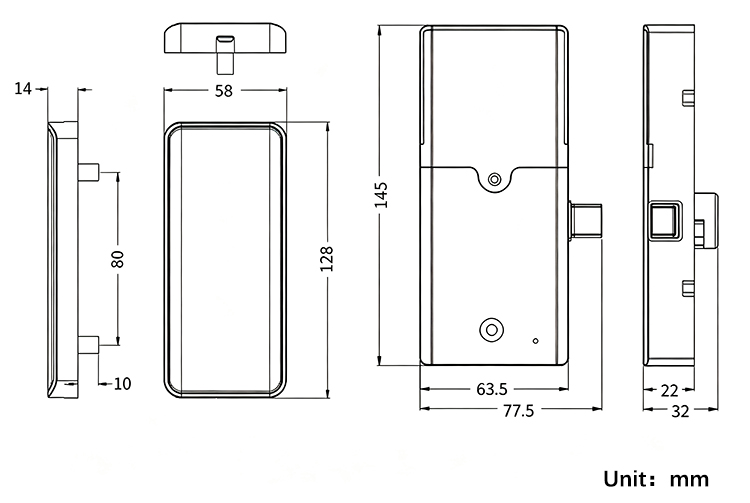

Lock Dimensions
128 * 58 * 14.1 mm
Latch Hole Dimensions
145 * 63.5 * 22 mm
Power Supply
4 x 6V AA Alkaline Batteries
Low Voltage Alarm
≤ 4.8V
Emergency Power
External Power Connector Interface
Single Set Weight
271.6 g
Single Box Dimensions
18.5 * 17.5 * 4 cm
Carton Specifications
54.5 * 38 * 46.5 cm (66 Sets / Carton)
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm
>Unlock Way:Password/card/Fingerprint/Key/APP>Installation:Wall mount/Shackle>Bluetooth Distance:Within 10m
>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
