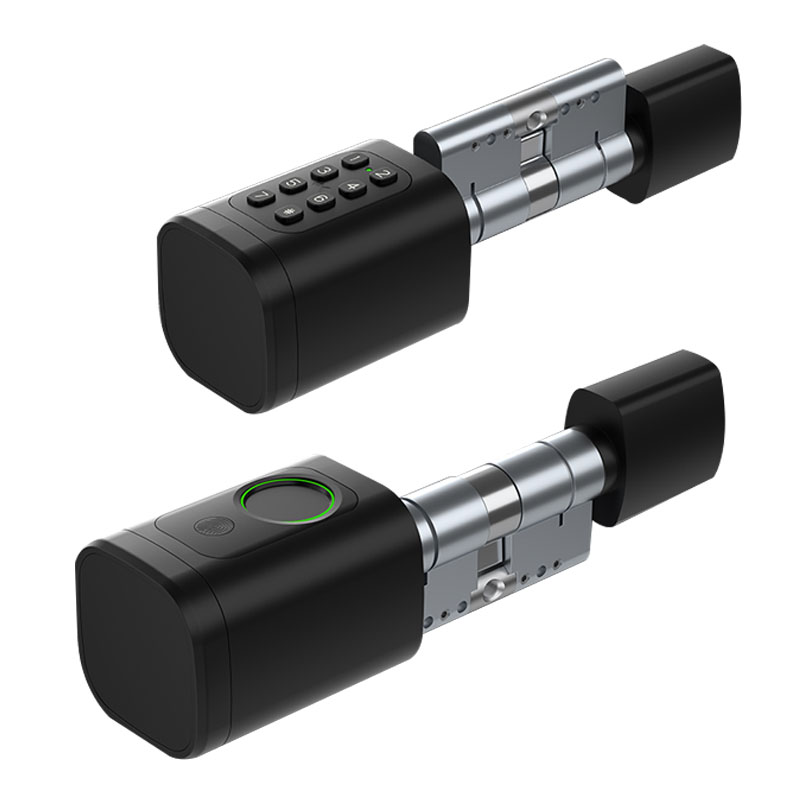

Tuya bluetooth Smart Cylinder Lock with Biometric Fingerprint Bolt Lock Anti-Theft

>Material:Aluminum Alloy/Brass

>Unlock Way:Fingerprint/Card/Password/APP/key

>Door thickness:38~50MM / with extra can fit38~120mm

  • Brand:

    S4A
  • Item NO.:

    S4A-V1(Tuya Bluetooth)
  • Specifications
  • Wiring Diagram
  • Package

Tuya bluetooth Smart Cylinder Lock  with Biometric Fingerprint Bolt Lock Anti-Theft

Model No.: S4A-V1(Tuya Bluetooth)


Material

Aluminum Alloy/Brass

Color

Black/silver

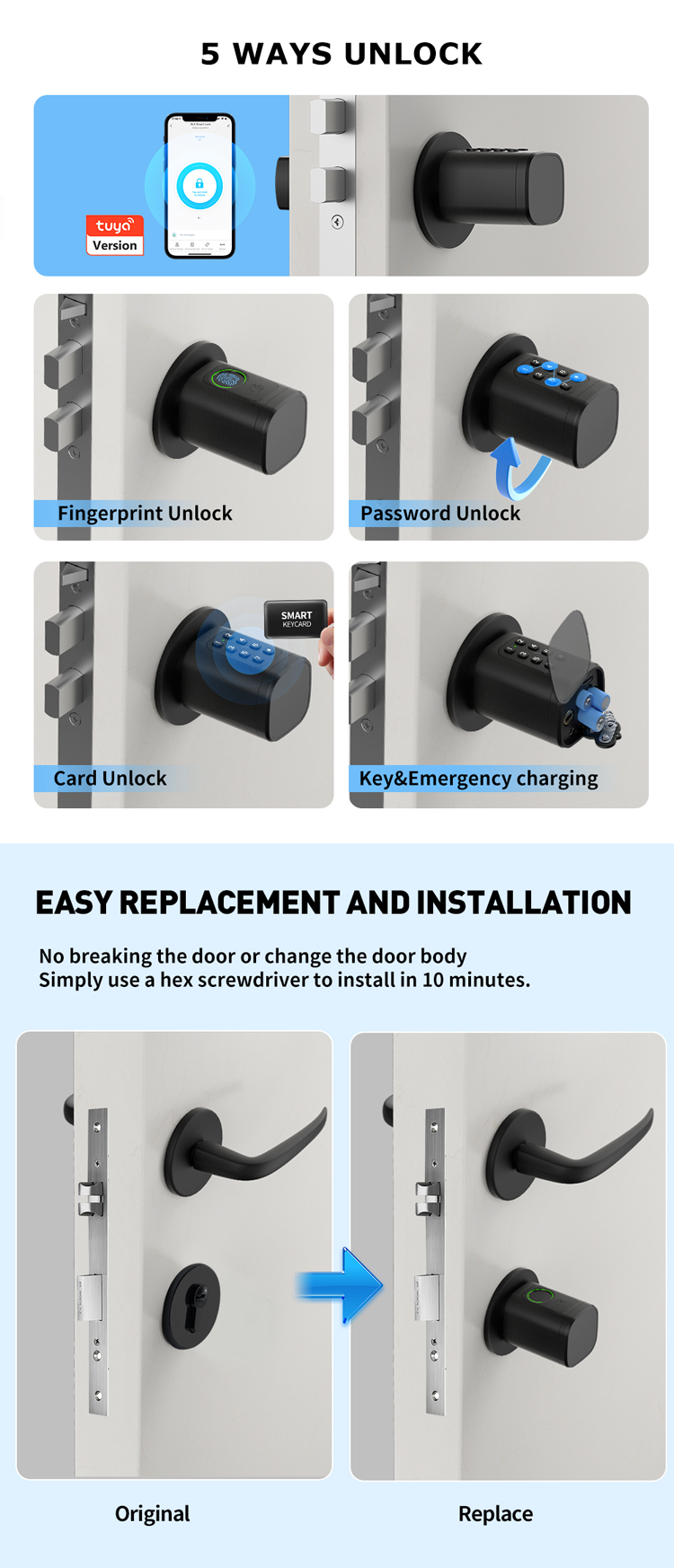

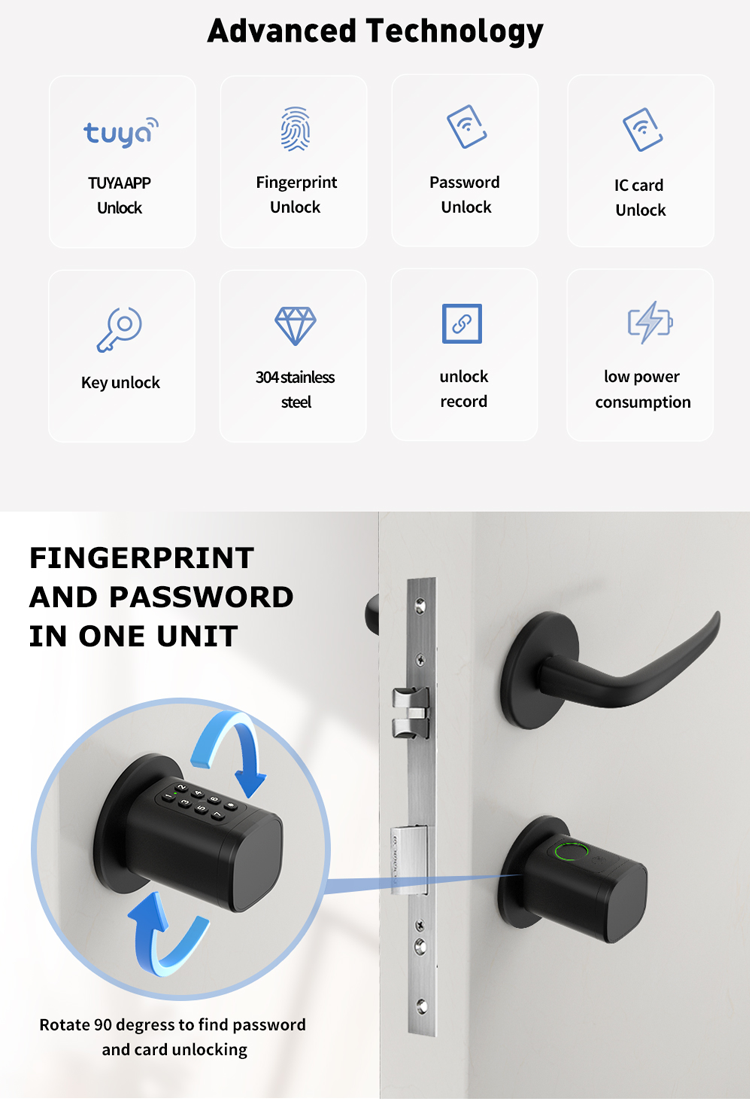

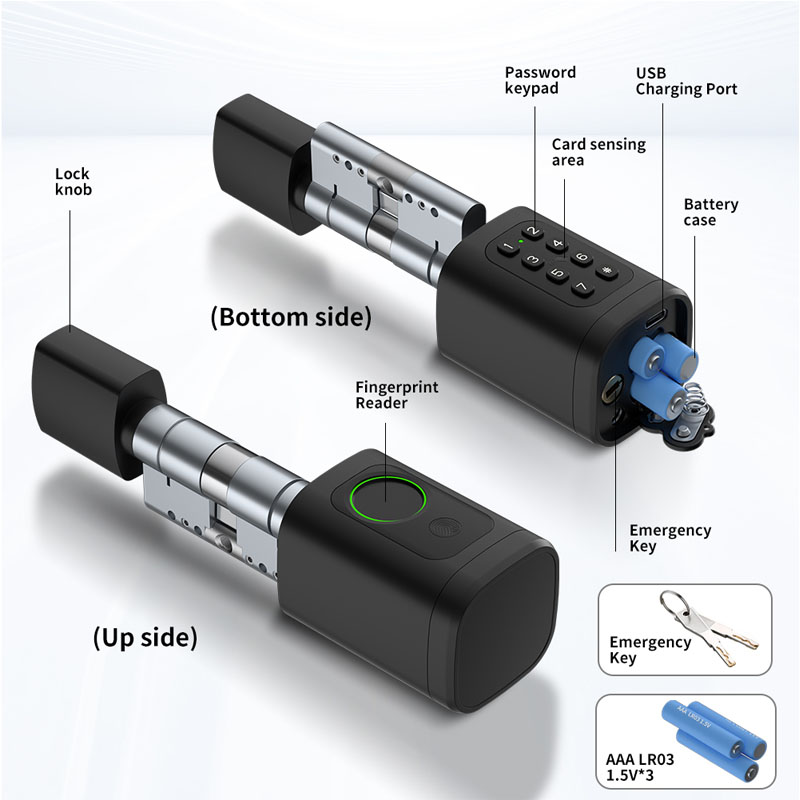

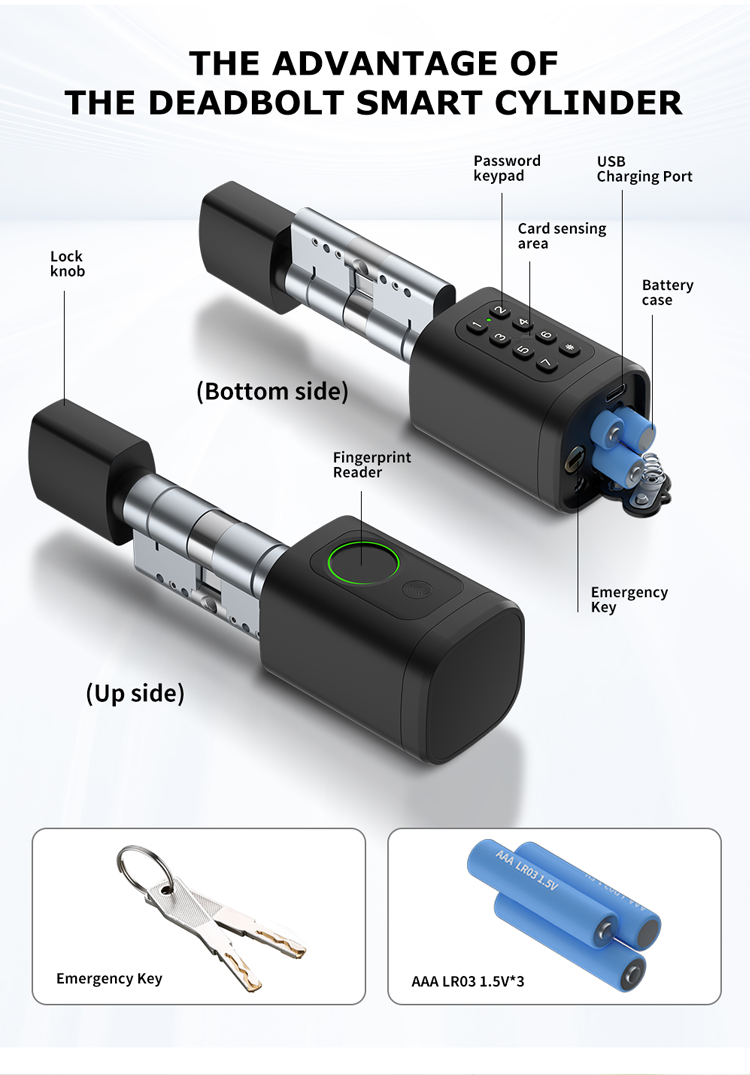

Unlock Way

Fingerprint/Card/Password/APP/key

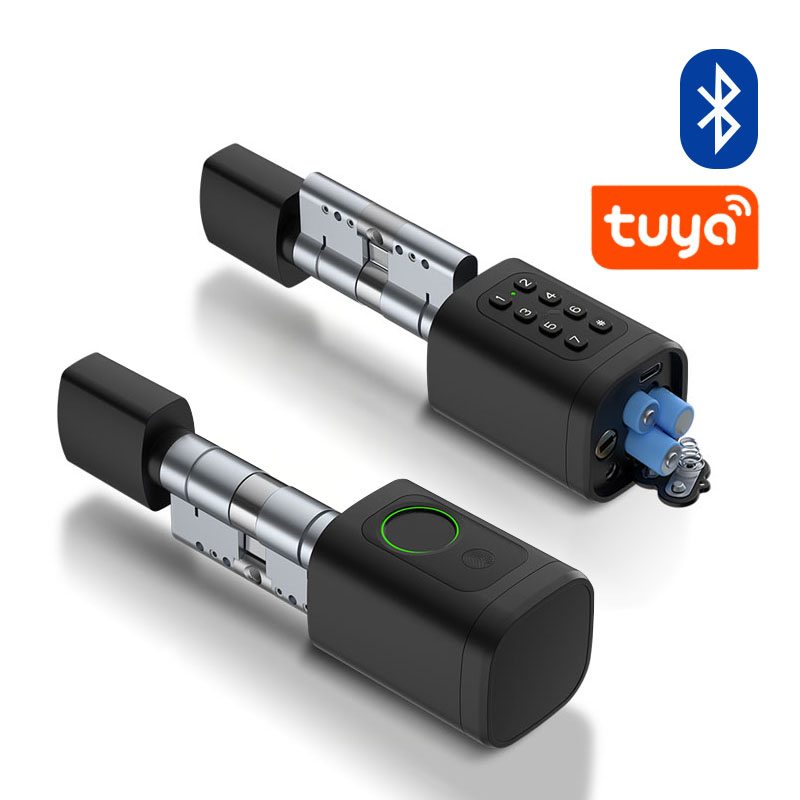

Power Supply

AAA LRO3 1.5V*3

Installation

Intermediate;Tools required(included)

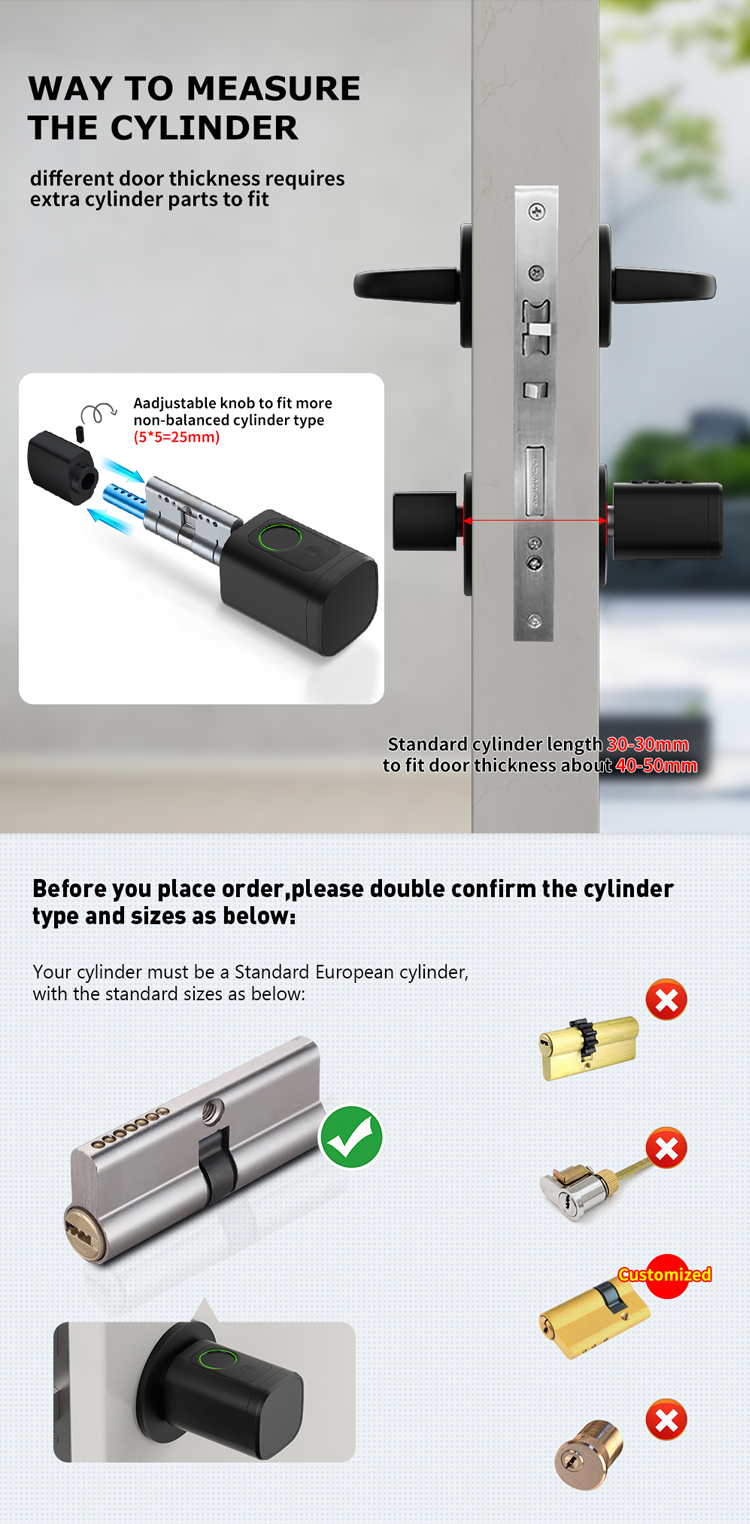

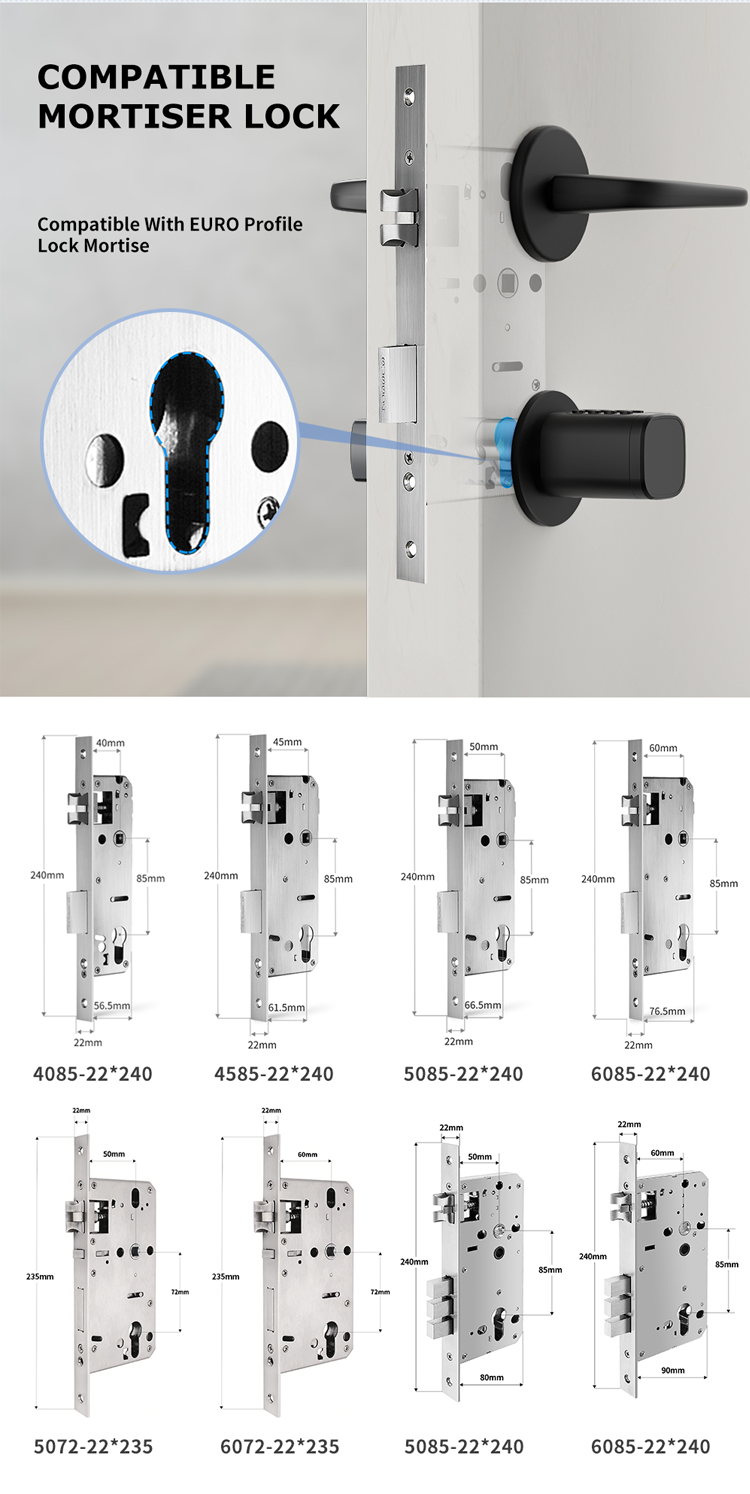

Door thickness

38~50MM / with extra can fit38~120MM

Emergency Power

1X Micro Type-C charging port

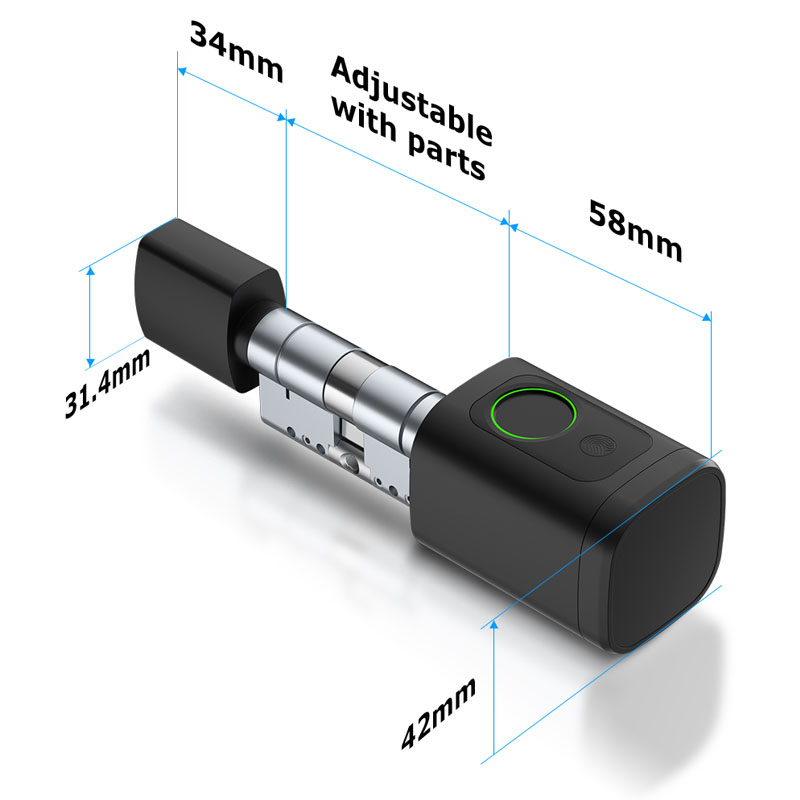

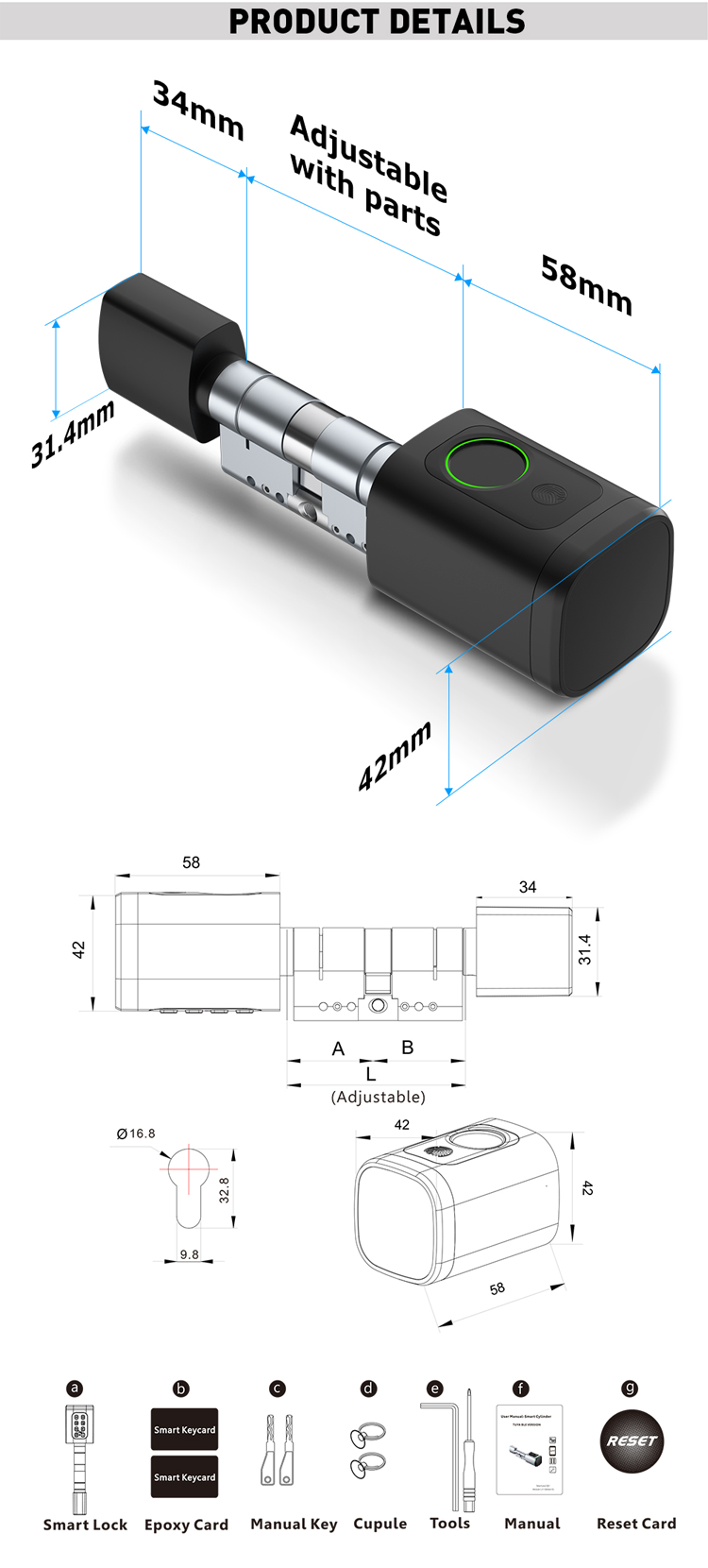

Product Dimension

Front knob dimension:42x58mm

We have an S4A's Partner sent us this question.

"I am experiencing an issue where the lock functions normally via the physical handle, but fails to trigger for electronic methods. When using a password, fingerprint, or access card, the lock does not engage or disengage"


Since the manual key works, the mechanical part is fine. The issue where fingerprints/codes fail to
unlock is likely due to the clutch not engaging. Please try the following steps:

1: Replace the Batteries: Please use 3 brand-new high-quality alkaline batteries.
Sometimes low voltage can power the lights but cannot drive the internal motor.

2: Listen for the Motor: After a successful fingerprint scan, listen closely for a "whirring"
sound inside the lock. If there is no sound, the motor may not be receiving power.

3: Check Alignment: Slightly loosen the side fixing screw and ensure the cylinder is not
 under physical tension or compressed too tightly against the door.

If these steps don't solve it, please send us a short video of the lock's reaction (with sound),
and we will immediately coordinate with our engineers to provide a further solution for you.

We are committed to ensuring your lock works perfectly.

Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock


Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock

Tuya bluetooth Smart Cylinder Lock
