TTLock App Control: Remotely send eKeys, generate timed or one-time passcodes, manage users, and view audit trail records via the TTLock APP.
5 Unlocking Modes: Supports Fingerprint, Passcode, IC Card, Mechanical Key, and Smartphone APP unlocking.
Weatherproof Outdoor Protection: Integrated protective cover guards the touch panel against rain, dust, and UV exposure.
Heavy-Duty Build: High-durability aluminum alloy construction with scratch-resistant tempered glass keypad panel.
Flexible Dual Mounting: Easy installation using permanent wall mounting or flexible shackle hanging for doors and gates.
Brand:
S4AItem NO.:
S4A-K5FS4A-K5F TTLock Smart Key Box Lock

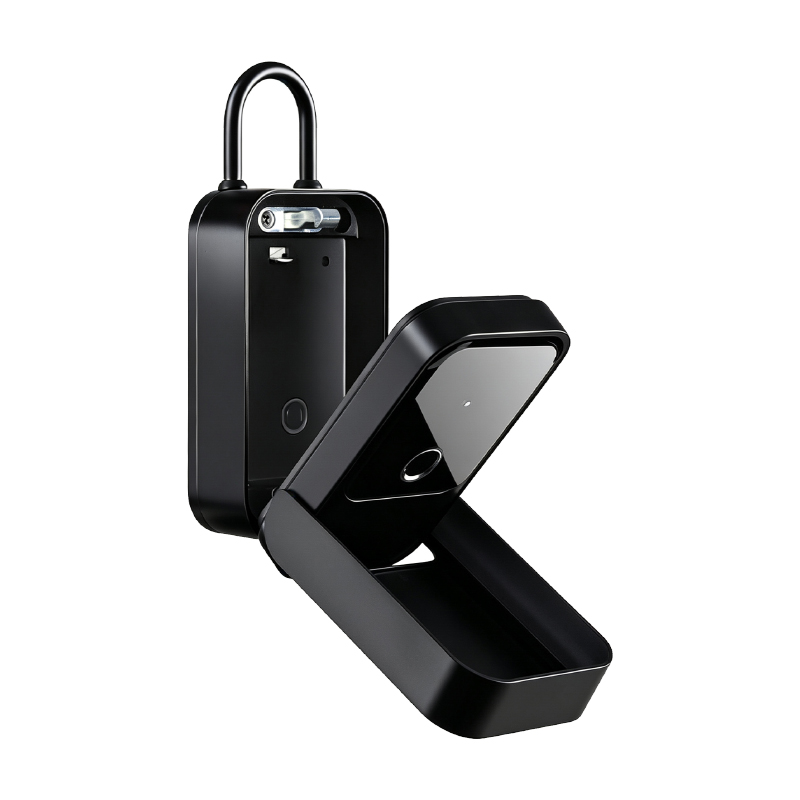

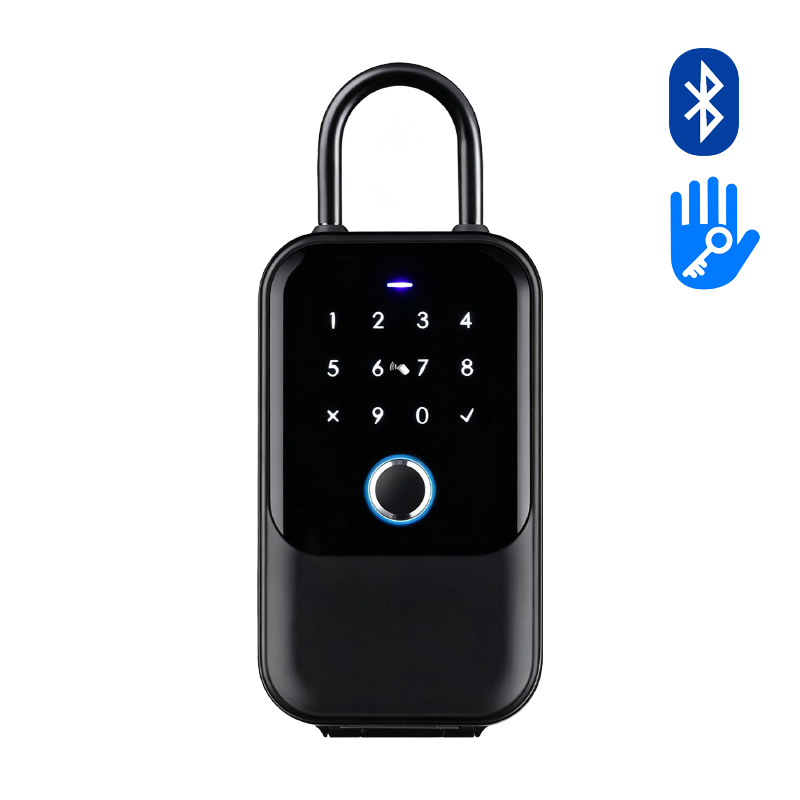

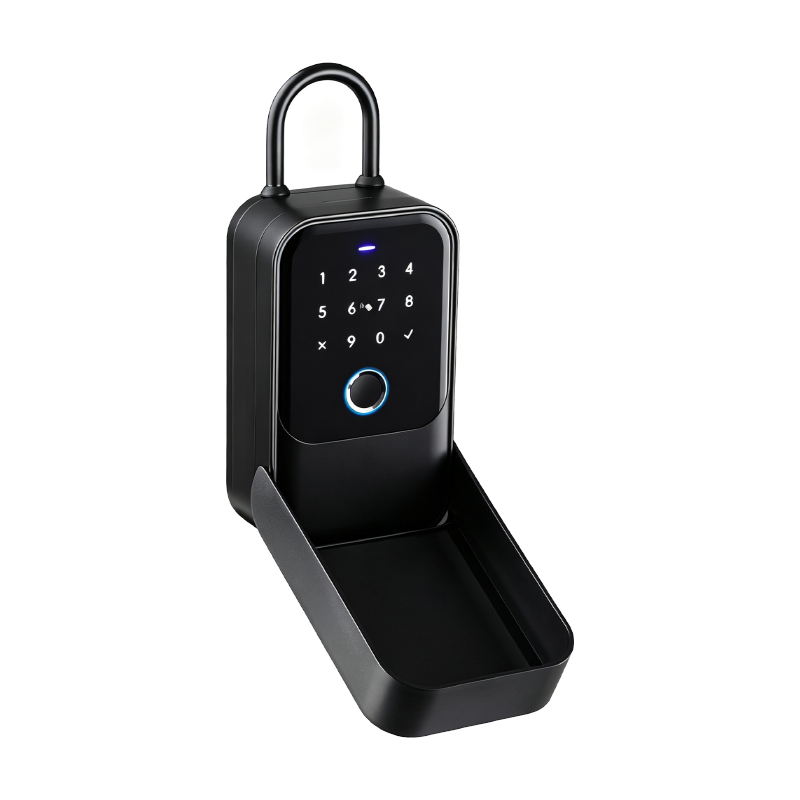

The S4A-K5F is an outdoor waterproof smart key box powered by the TTLock system, engineered for efficient key delegation and property access control. Featuring a rugged aluminum alloy body, tempered glass touch keypad, and protective weather cover, it supports 5 unlocking methods: Fingerprint, Passcode, IC Card, Mechanical Key, and TTLock APP via Bluetooth. Designed for both wall mount and shackle hanging setups, it enables property managers and vacation rental hosts to send eKeys and timed passcodes remotely from anywhere.
Parameter
Specification
Model Number
S4A-K5F
Product Name
TTLock Outdoor Waterproof Smart Key Box
App System
TTLock APP / TTHotel System
Housing Material
Aluminum Alloy + Tempered Glass Touch Screen
Unlock Methods
Password / Card / Fingerprint / Key / APP
Installation Type
Wall Mount / Shackle
Power Supply
4pcs AAA Batteries
Bluetooth Distance
Within 10 meters
Working Temperature
-25°C ~ 55°C
Net Weight
0.68 kg
Product Dimension
Front:138x45x77.5mm
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm

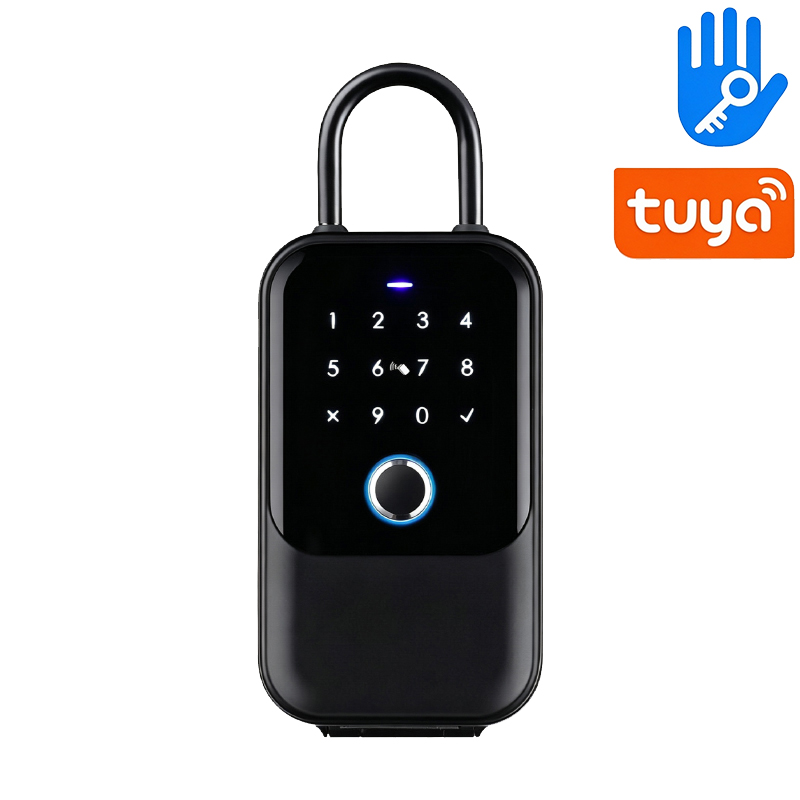

>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
>Unlock Ways: Fingerprint + IC Cards + Mechanical Key>Support Lock Body: Dual Bolt Lock Body>Handle Material: Zinc Alloy ( including decoration circle )
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
