Brand:
S4AItem NO.:
CB-118CB-118 Smart Cabinet Combination Lock
The CB-118 is a durable smart cabinet combination lock engineered for secure storage solutions in gyms, hotels, saunas, schools, and commercial facilities. Crafted with a premium aluminum alloy housing, it provides multi-modal access including Mifare IC card, PIN code, fingerprint, and smartphone control via the TTLock App. Powered by 4 x AA alkaline batteries and designed to fit door thicknesses of 15mm–25mm, the CB-118 offers reliable performance and effortless management.
Parameter
Specification
Model Number
CB-118
Product Name
Smart Cabinet Combination Lock
Unlocking Options
Mifare Card, PIN Code, Mobile App (TTLock)
Material
Aluminum Alloy (Panel: Zinc Alloy + PC / Lock Body: ABS)

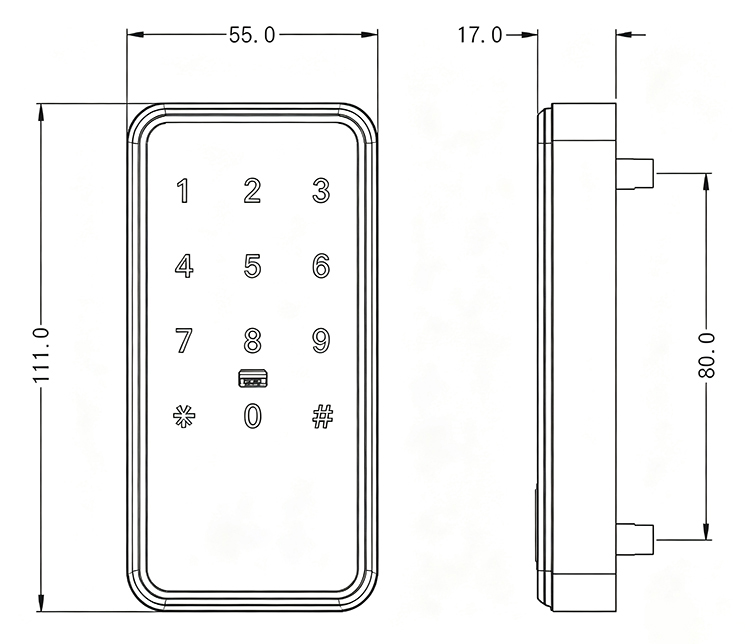

Panel Size
108 * 55 * 16 mm (120 * 55 * 16 mm Options)

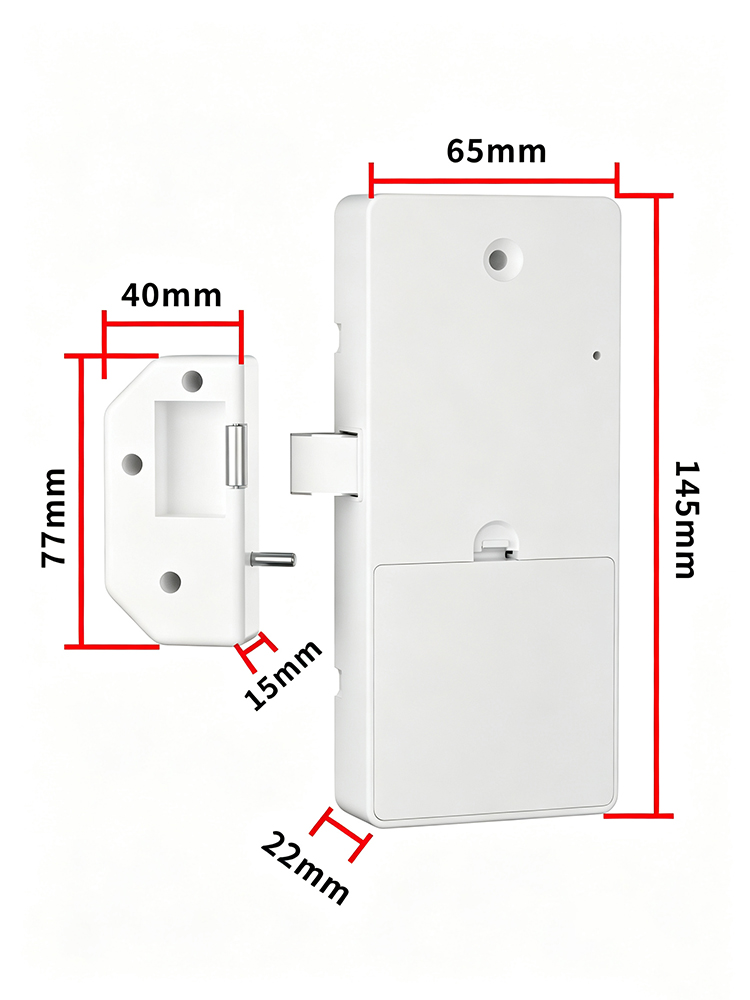

Lock Body Size
145 * 63.5 * 22 mm
Door Thickness Compatibility
15 mm – 25 mm
Power Supply
4 x AA Alkaline Batteries
Applications
Sauna, GYM, Hotel, School, Supermarket, Apartment, Swimming Pool, Factory
Single Set Weight
339.1 g
Single Box Dimensions
18.5 * 17.5 * 4 cm
Carton Specifications
54.5 * 38 * 46.5 cm (66 Sets / Carton)
>Material:Aluminum Alloy/Brass>Unlock Way:Fingerprint/Card/Password/APP/key>Door thickness:38~50MM / with extra can fit38~120mm
>Material:Aluminum Alloy/Brass >Unlock Way:Fingerprint/Card/Password/APP/key >Door thickness:38~50MM / with extra can fit38~120mm

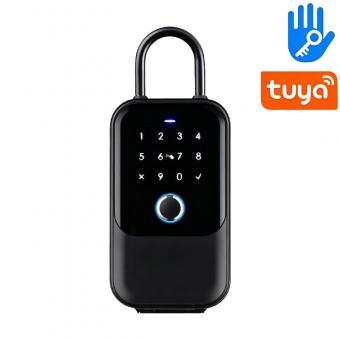

TTLock App Control: Remotely send eKeys, generate timed or one-time passcodes, manage users, and view audit trail records via the TTLock APP. 5 Unlocking Modes: Supports Fingerprint, Passcode, IC Card, Mechanical Key, and Smartphone APP unlocking. Weatherproof Outdoor Protection: Integrated protective cover guards the touch panel against rain, dust, and UV exposure. Heavy-Duty Build: High-durability aluminum alloy construction with scratch-resistant tempered glass keypad panel. Flexible Dual Mounting: Easy installation using permanent wall mounting or flexible shackle hanging for doors and gates.
>App name:TTlock APP or Tuya APP>Material quality:Plastic housing>Weight: 230g
>App name:TTlock APP or Tuya APP>Material quality:Metal housing>Weight: 430g
Material:Aluminum Alloy/BrassUnlock Way:Card/Password/APP/keyAvailable Thickness:35mm~60mm
Invisible Hidden Installation: Mounts inside wooden cabinets and lockers (up to 50mm thickness) without damaging or altering external door appearances. TTLock App & RFID Access: Supports keyless unlocking via TTLock Bluetooth app alongside Mifare M1 RFID cards and wristbands. Dual Working Modes: Configurable into 1-Key or 2-Key authorization modes for flexible user management. Long-Lasting Battery Life: Powered by 4 AA batteries (DC 6V) delivering up to 1 year of daily use. Durable & Compact ABS Design: Built from sturdy ABS material measuring 76*76*29.5 mm and weighing only 0.25kg per piece.
4-in-1 Versatile Unlocking: Unlocks using fingerprint, Mifare IC card, PIN code, and TTLock Bluetooth mobile app. Integrated Digital Number Plate: Features a clear top-mounted digital display for easy locker identification and management. Durable Aluminum Alloy & PC Housing: Constructed from robust aluminum alloy and PC material in a compact 130 * 95 * 17 mm footprint. Generous User Capacity: Stores up to 50 fingerprints and 200 password sets with secure cloud data management via Bluetooth. Long Battery Life & Security Alarms: Powered by 4 AA alkaline batteries offering up to 12 months of daily use with built-in low battery warnings.
