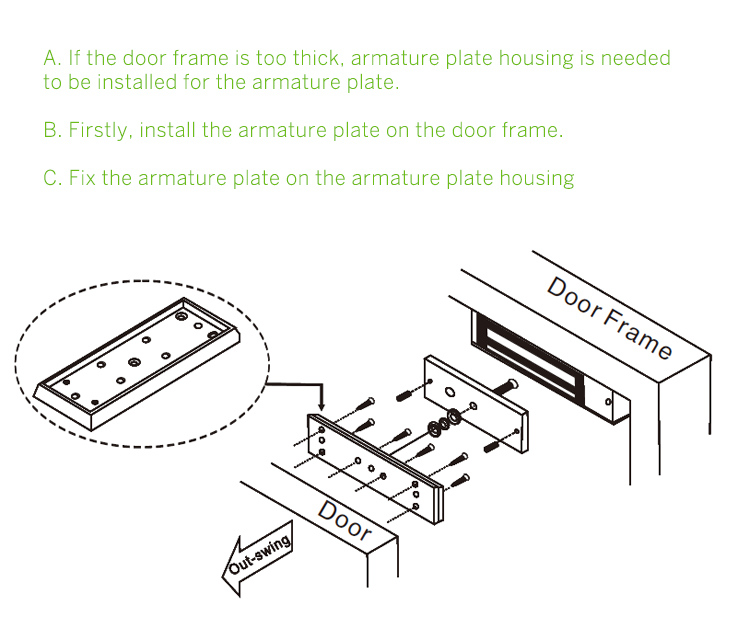

>I bracket is used to install the plate on the door leaf,Material are High Strength Aluminum.
Brand:
S4AItem NO.:

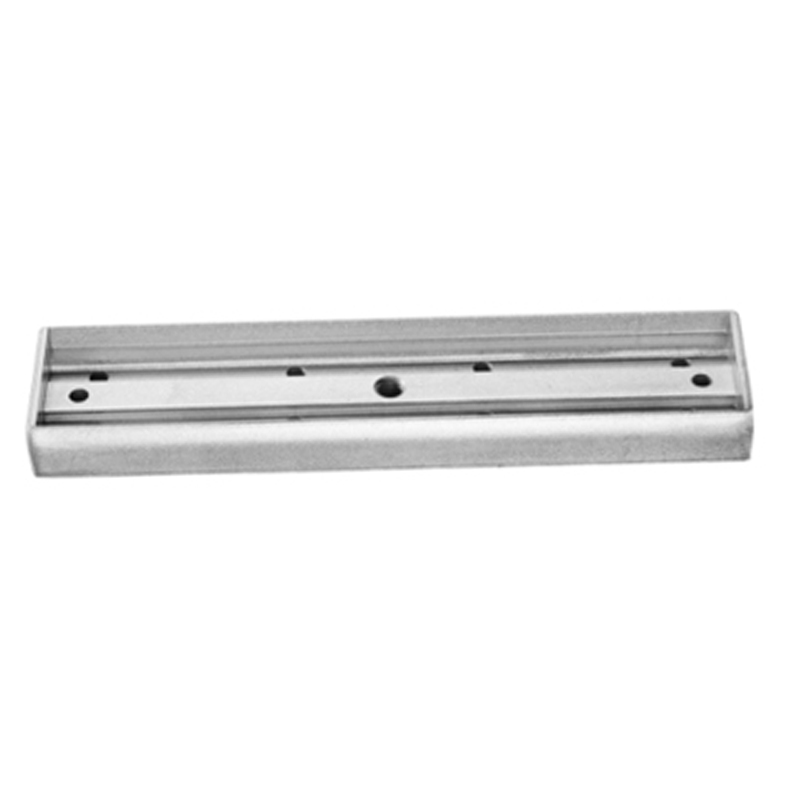

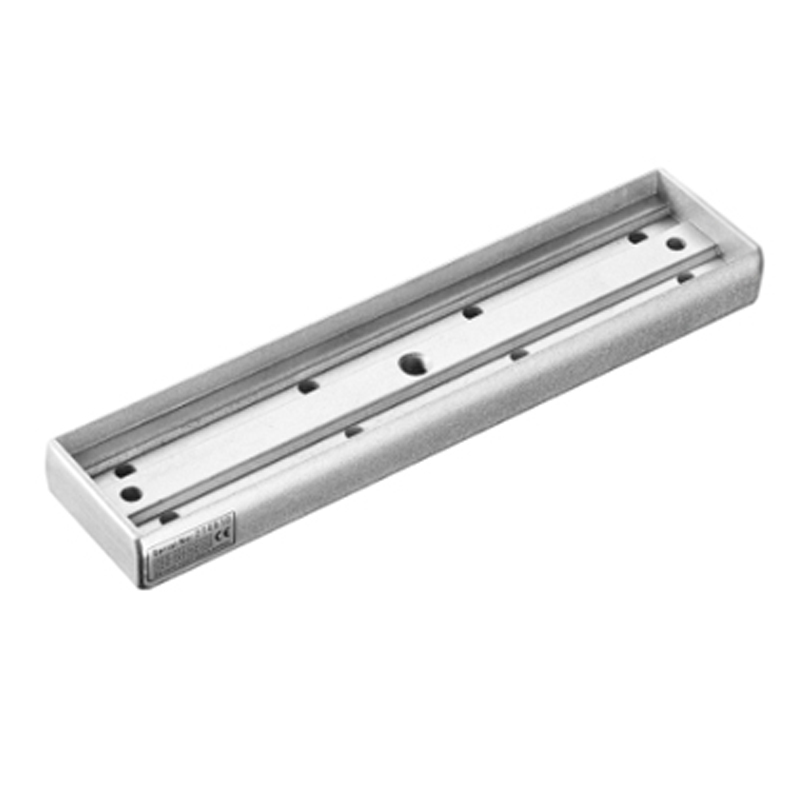

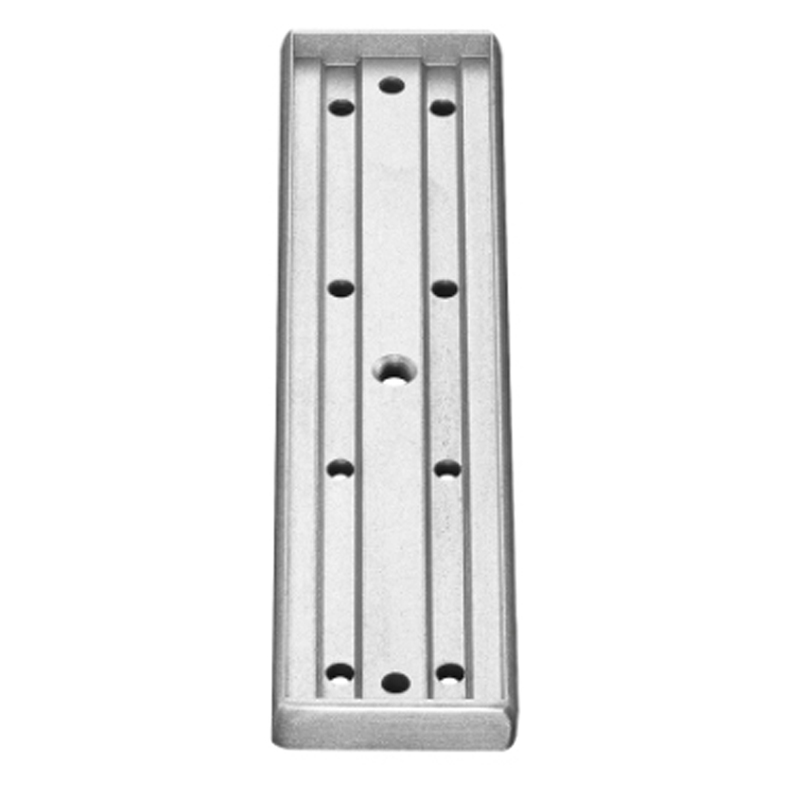

AH-1200AH-1200 Installation Groove Of Armature Plate
Model No.: AH-1200
| Product Parameter | Parameter Description |
| S4A Model | AP-1200 |
| Product Name | Armature Plate Housing |
| Dimension | 193x68x19(mm) |
| Material | High Strength Aluminum, Sandblast Finished |
| Suitable | Narrow Door |
| Opening Mode | 90 Degree Door |
| Finished for Shell | Anodized aluminum |
| Weight | 0.36KG |
| Standard Package | 100PCS/CTS |
| Carton Weight | 36KG |
| Carton Size | 42*35*30 (cm) |
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> With LED (Red only) > Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED and door sensor> Single door 500KG magnetic lock=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED, door sensor and time delay> Current Draw: 12V/420mA 24V/210mA> 100% Copper material> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> LED, door sensor and Buzzer> Single door EM lock 500KG=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Voltage: DC12V or DC24V> Holding Force: 500KG (1200Lbs)> Current Draw: 12V/420mA 24V/210mA
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> EL-W1200S 4Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: DC12V or DC24V
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
