> EL-W600SD 7Wires

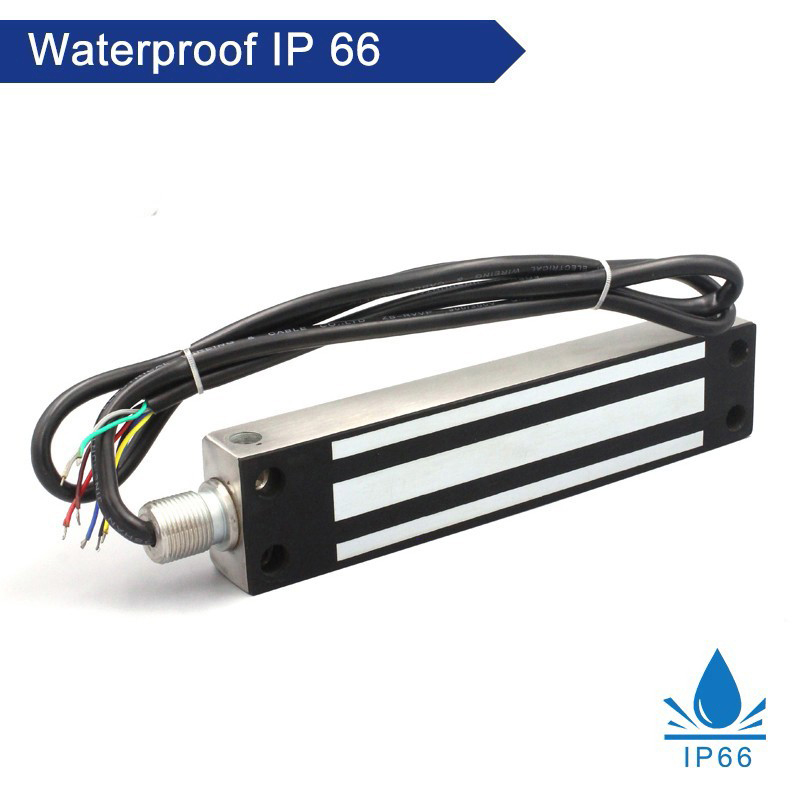

> Waterproof IP66
> Holding Force: 280KG(600Lbs)
> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
> Lock Size: 220Lx47Wx28H(mm)
Brand:
S4AItem NO.:
EL-W600SD 7WiresWireless Entry Magnetic Lock Kit
Model No.: EL-W600SD 7Wires
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate. There are two main types of electric locking devices. Locking devices can be either "fail safe" or "fail secure". A fail-secure locking device remains locked when power is lost. Fail-safe locking devices are unlocked when de-energized. Direct pull electromagnetic locks are inherently fail-safe. Typically the electromagnet portion of the lock is attached to the door frame and a mating armature plate is attached to the door. The two components are in contact when the door is closed. When the electromagnet is energized, a current passing through the electromagnet creates a magnetic flux that causes the armature plate to attract to the electromagnet, creating a locking action. Because the mating area of the electromagnet and armature is relatively large, the force created by the magnetic flux is strong enough to keep the door locked even under stress.
EL-W600S 4Wires | 12V & 24V adjustable |

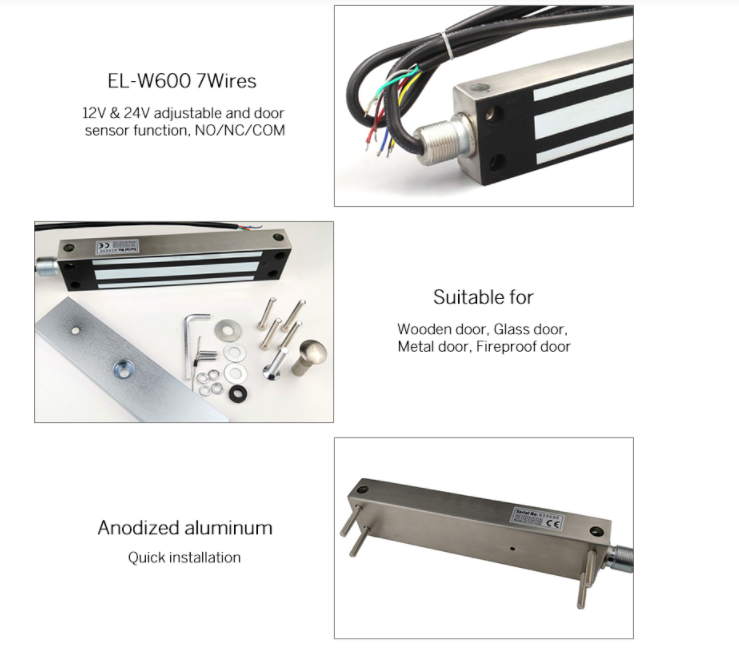

EL-W600SD 7Wires | 12V & 24V adjustable and door sensor function, NO/NC/COM |

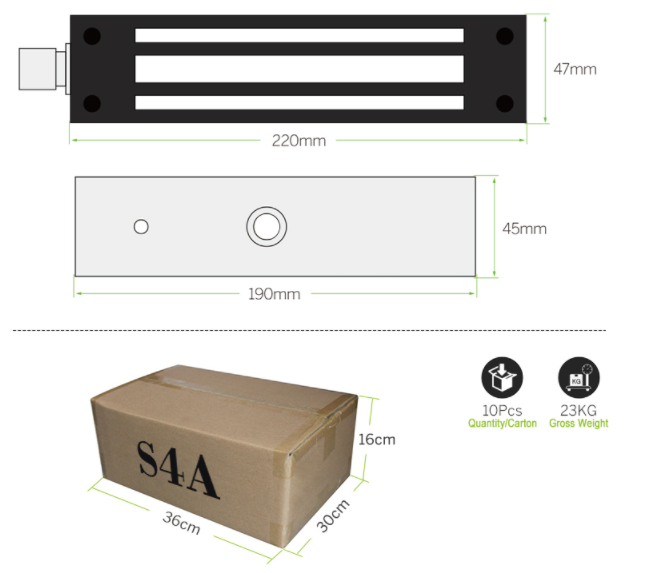

Lock Size | 220Lx47Wx28H(mm) |
Armature plate | 190Lx45Wx13H(mm) |
Holding Force | 280kg(600Lbs) |
Voltage | DC12V or DC24V(adjustable) |
Current Draw | 12V/500mA 24V/250mA |
Optional Bracket | LZ-W600 |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Signal Output | Need to order EL-W600S |
Surface Temp | ≤20°C |
Operating Temp | -10°C ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 2.5kg |
280KG Stainless Steel Waterproof IP66 Door Magnetic Lock with Signal Output and 12V 24V | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-W600S 2Wires | 220x47x28mm | 10pcs | 19.5KG | 30x15x4cm |
EL-W600S 4Wires | 220x47x28mm | 10pcs | 23KG | 36x30x16cm |
EL-W600SD 7Wires | 10pcs | 23KG | ||
S4A Instruction_EL-W600SD 7Wires_280KG Stainless Steel Waterproof IP66 Door Magnetic Lock with Signal Output and 12V 24V
