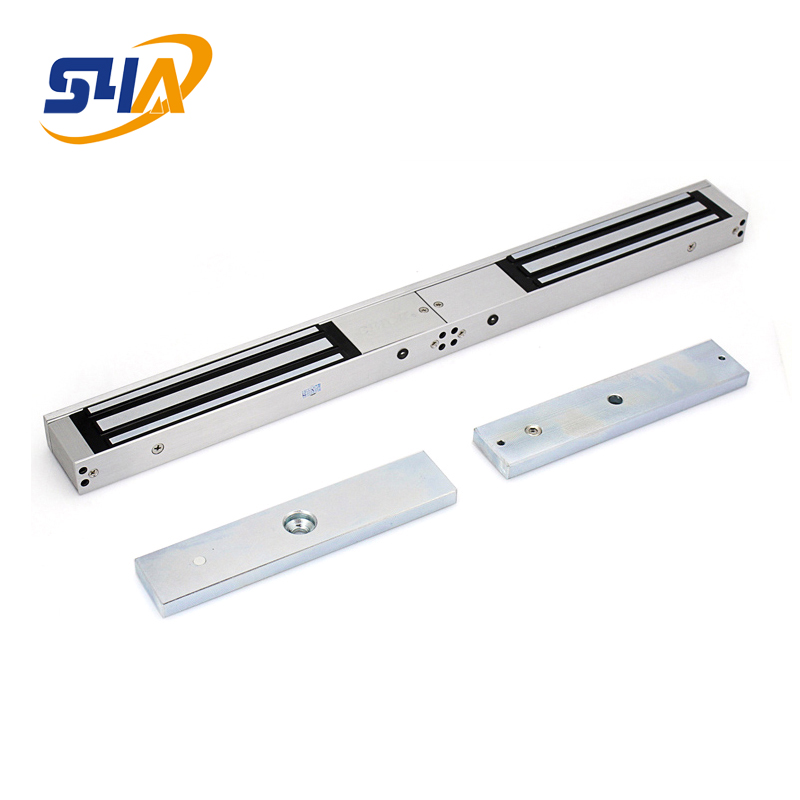

12V &24V 600Lbs Safety EM Electromagnetic lock Electric Magnetic Door Lock with LED and time delay

> With LED, door senor

> Holding force: 280KGx2(600lbsx2)

> Voltage: DC12V and DC24V (adjustable)

> Current Draw: 12V/500mAx2 24V/240mAx2

> Lock Size: 500Lx48.5Wx25H(mm)

> Armature plate: 180x38x11mm


  • Brand:

    S4A
  • Item NO.:

    EL-600DSD
  • Specifications
  • Wiring Diagram
  • Package
  • Download

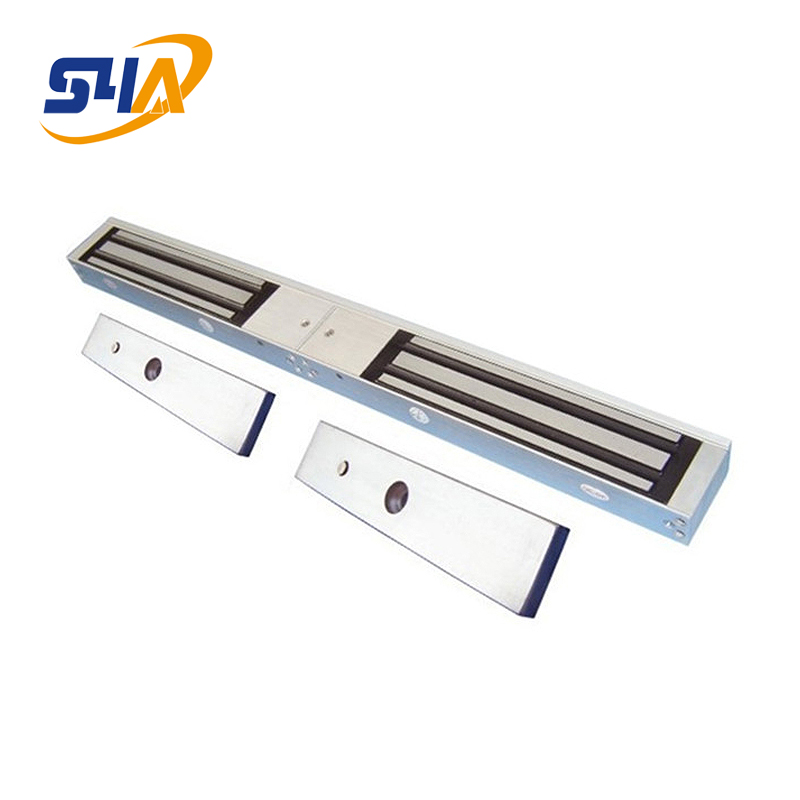

Double Door 280KG Magnetic Lock

Model No.: EL-600DSD


A magnetic lock is a magnet that is created when an electrical current is passed through a wire with multiple coils around an iron core, or a solenoid (single coiled wire wrapped around a metal core). When the electrical current is disrupted the metal wire is no longer magnetized. Because of the very nature of an electromagnet, it can not be fail-secure, which means that in the result of an emergency or power outage, the doors will unlock. The built-in feature of unlocking in the result of a power outage (referred to as fail-safe) is the basic operating premise of the electromagnet or maglock.

EL-600D

Without indicator lights

EL-600DS

With LED (Red only)

EL-600DSD

With LED, door senor

EL-600DST

LED, door sensor, Time delay

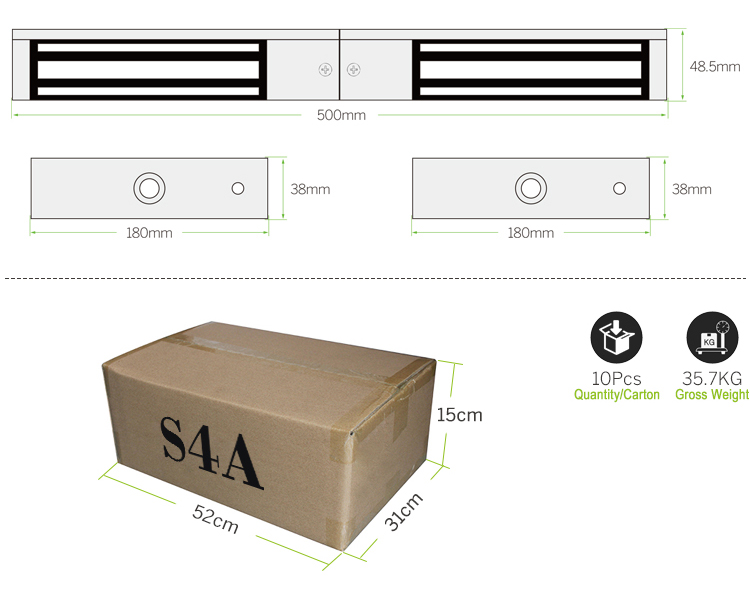

Lock Size

500Lx48.5Wx25H(mm)

Armature Plate

180Lx38Wx11H(mm)

Holding Force

280kgx2 (350Lbsx2)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/500mAx2 24V/250mAx2

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10℃ ~ 55℃ (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

4kg

Standard Packing

4pcs

 EM Electromagnetic lock

 EM Electromagnetic lock

12V &24V 600Lbs Safety EM Electromagnetic lock Electric Magnetic Door Lock with LED and time delay

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

EL-600D

500x48.5x25mm

10pcs

35.7KG

52x31x15cm

EL-600DS

10pcs

35.7KG

EL-600DSD

10pcs

35.7KG

EL-600DST

10pcs

35.7KG

 EM Electromagnetic lock

S4A Instruction_EL-600DSD_Best Magnetic Door Lock 280KG for Double Door
