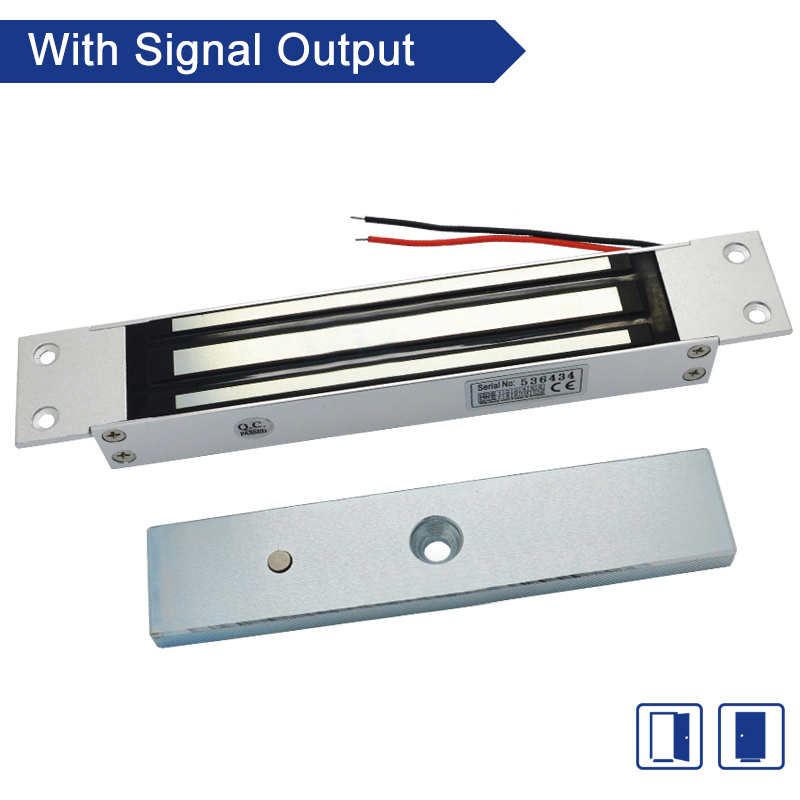

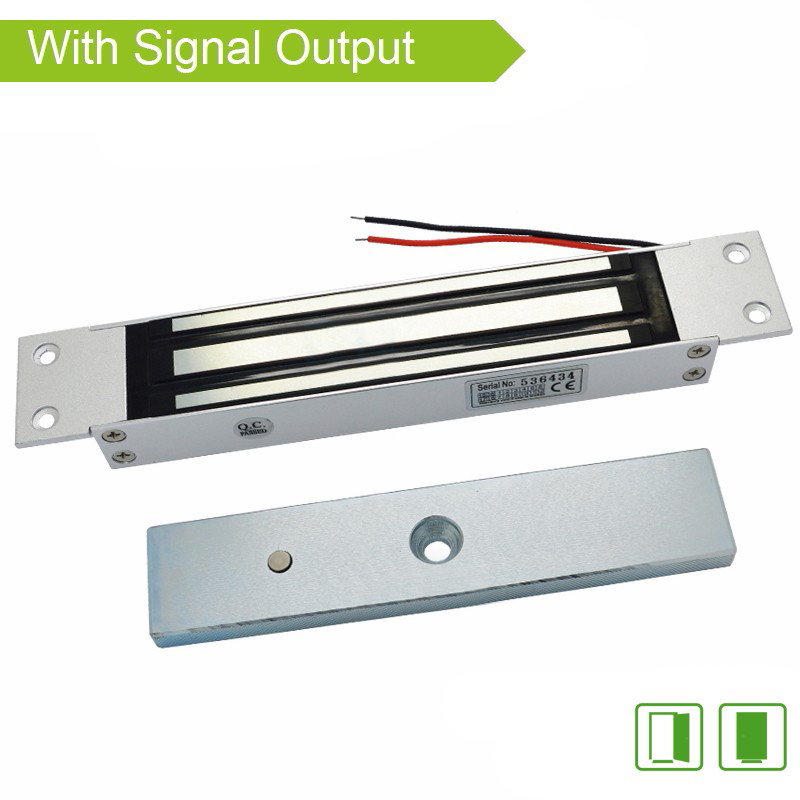

> With Signal Output
> Voltage: DC12V or DC24V
> Holding Force: 280kg(600Lbs)
> Current Draw: 12V/500mA 24V/250mA
> Lock Size: 258Lx42Wx26H(mm)
> Armature plate: 180x38x11mm
Brand:
S4AItem NO.:
EM-600TSMortise Mount Lock 280KG (600Lbs)
Model No.: EM-600TS
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate. There are two main types of electric locking devices. Locking devices can be either "fail safe" or "fail secure". A fail-secure locking device remains locked when power is lost. Fail-safe locking devices are unlocked when de-energized. Direct pull electromagnetic locks are inherently fail-safe. Typically the electromagnet portion of the lock is attached to the door frame and a mating armature plate is attached to the door. The two components are in contact when the door is closed. When the electromagnet is energized, a current passing through the electromagnet creates a magnetic flux that causes the armature plate to attract to the electromagnet, creating a locking action. Because the mating area of the electromagnet and armature is relatively large, the force created by the magnetic flux is strong enough to keep the door locked even under stress.
EL-600T | Without Signal Output |
EL-600TS | With Signal Output |

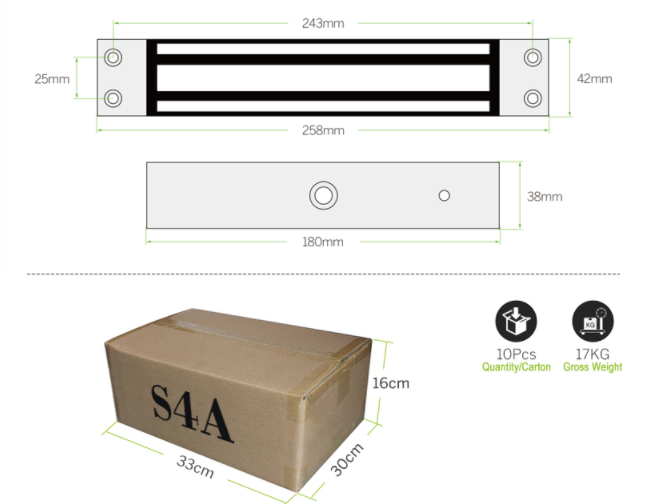

Lock size | 258Lx42Wx26H(mm) |
Armature Plate | 180Lx38Wx11H(mm) |
Working voltage | DC12V or DC24V |
Current Draw | 12V/500mA 24V/250mA |
Surface Temp | ≤20℃ |
Operating Temp | -10℃ ~ 55℃（14°F-131°F） |
Finishes for shell | Anodized Aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 1.9KG |
Electronic Magnetic Lock 600lbs With Signal Output | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EM-600T | 258x42x26mm | 10pcs | 17KG | 33x30x16cm |
EM-600TS | 10pcs | 17KG | ||

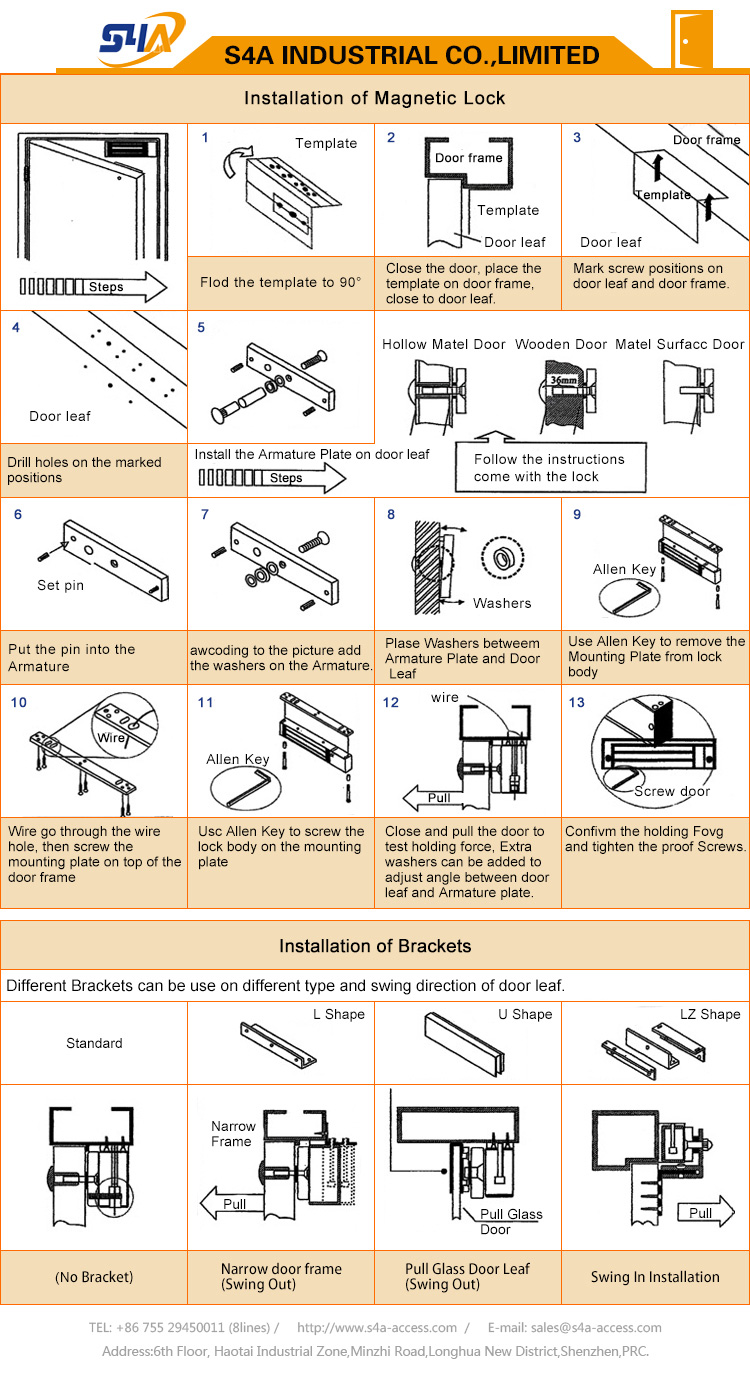

S4A Instruction_EM-600TS_Hidden Magnetic Lock 600lbs
