Long Range UHF RFID Reader for Vehicle/Parking Application 15 Meters Read Range

> Waterproof, IP65

> Free demo and SDK

> Stable reading distance: 5~15m

> Frequency: 920-925MHz or customize other frequency


  • Brand:

    S4A
  • Item NO.:

    UHF-115
  • Specifications

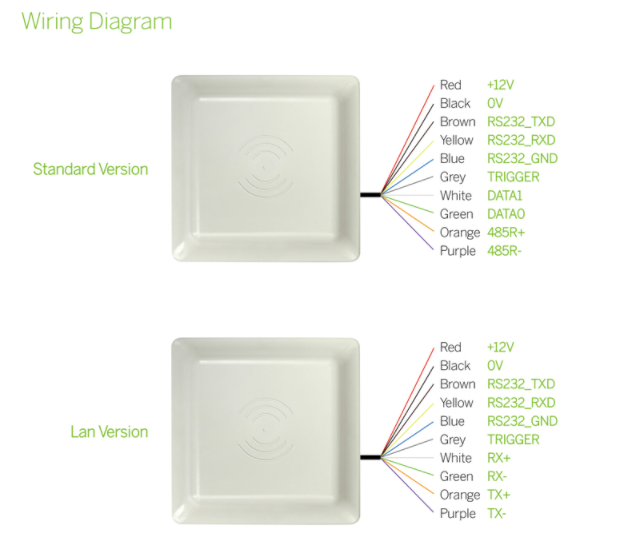

  • Wiring Diagram
  • Package
  • Download

UHF RFID Passive Reader with 915M Long Distance Access Control Vehicle Logistics Application

Model No.: UHF-115


> Working Frequency: National standard (920~925MHz), America standard (902~928MHz), or customize other frequency ISO18000-6C(EPC GEN2)

> Frequency Power: 0~30dBm, be adjusted by software


Specification

Working Frequency

National standard (920~925MHz), America standard (902~928MHz), or customize other frequency

Support Protocol

ISO18000-6B, ISO18000-6C(EPC GEN2)

Frequency Hopping

FHSS or fixed frequency set by software

Working Way

automatically reading card at regular time, can set reading card way

Frequency Power

0~30dBm, be adjusted by software

Reading Distance

5-15M

Reading Sensitivity

dual polarization reading

Reading Speed

one label 64 bit ID number < 6ms

Antenna

build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna, gain 12dBi

Interface

RS485, RS232, Wiegand26, Wiegand34, RJ45

Working Voltage

DC12V

Working Status Indication

buzzer

Power

1W

Working Temperature

-20℃ ~ 80℃

Storage Temperature

-40℃ ~ 125℃

Working Humidity

20% ~ 95% (no condensing)

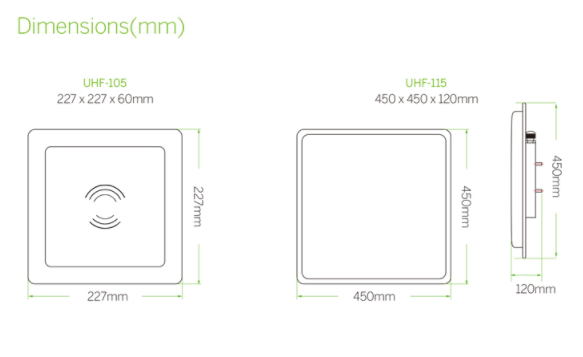

Dimension

450 × 450 × 120mm

Weight

9.5KG

Signal Definition:

Long Range UHF RFID Reader for Vehicle/Parking Application 15 Meters Read Range

Model No.

Quantity/Carton

Gross Weight

Carton Size

UHF-115

2PCS

16KG

63X50X25cm

4PCS

32KG

63X51X51cm

uhf RFID Reader

uhf RFID Reader

UHF Rfid Passive Reader with 915m Long Distance Access Control Vehicle Logistics Application

Model No.

Quantity/Carton

Gross Weight

Carton Size

UHF-115

2PCS

19.2KG

64*33*23cm

4PCS

35.15KG

64X52X52cm

uhf RFID Reader

S4A UHF-115 Use Manual_Uhf Rfid Passive Reader with 915m Long Distance Access Control Vehicle Logistics Application
