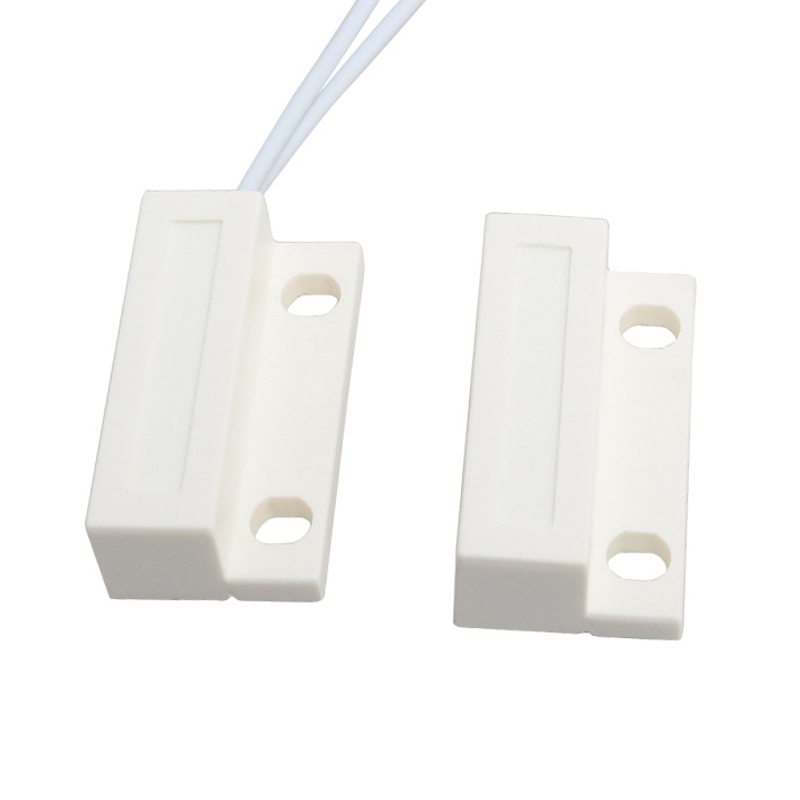

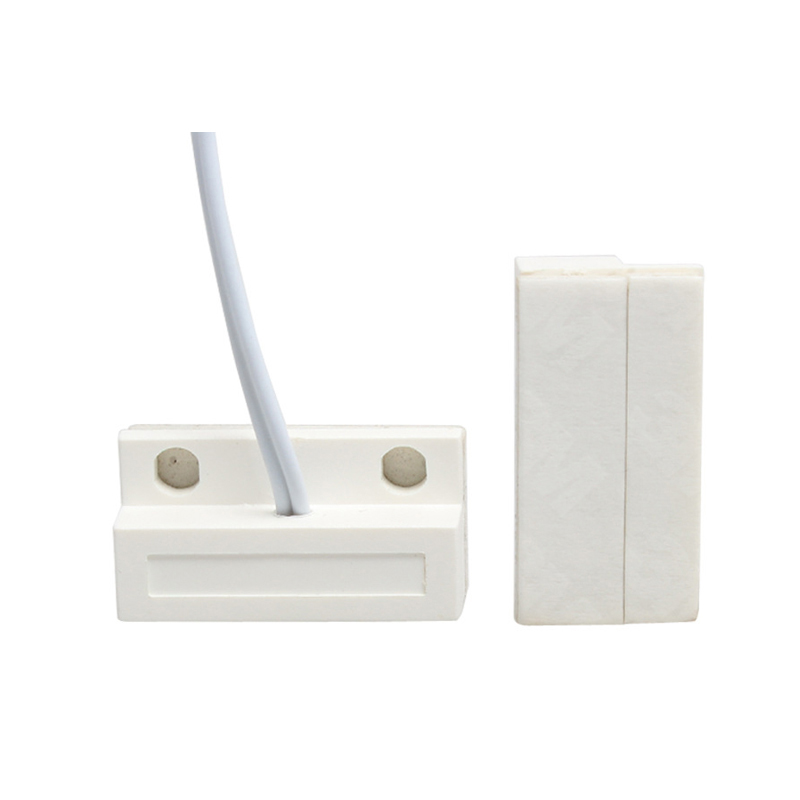

Wired Door Window Contact Sensor

>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A

>Switch type: NO-Normally Open / NC-Normally Close / NO+NC

  • Brand:

    S4A
  • Item NO.:

    RC-38A
  • Specifications
  • Wiring Diagram
  • Package
  • Download

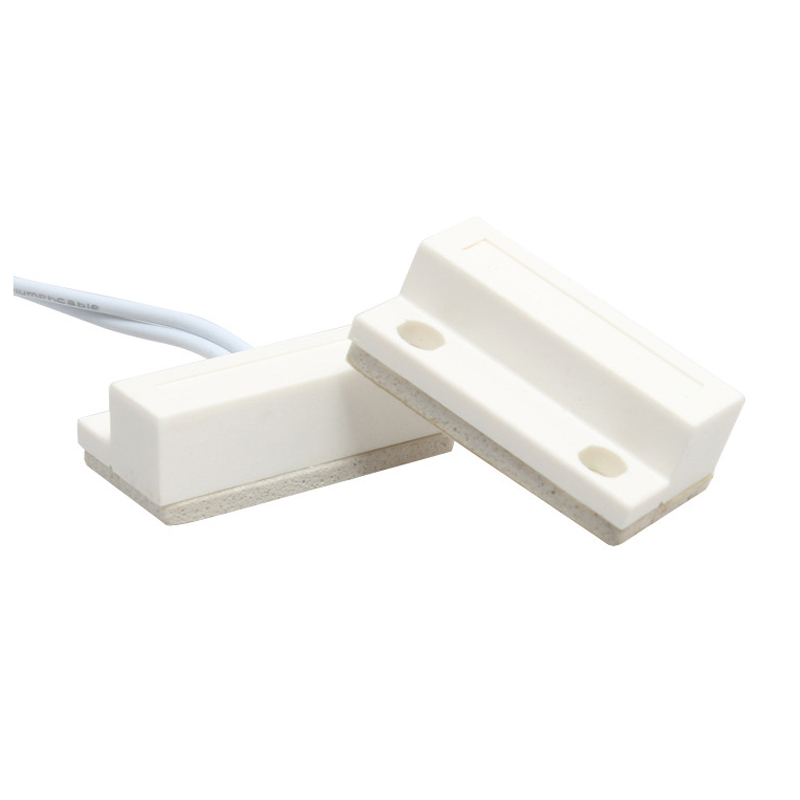

Wired Door Window Contact Sensor

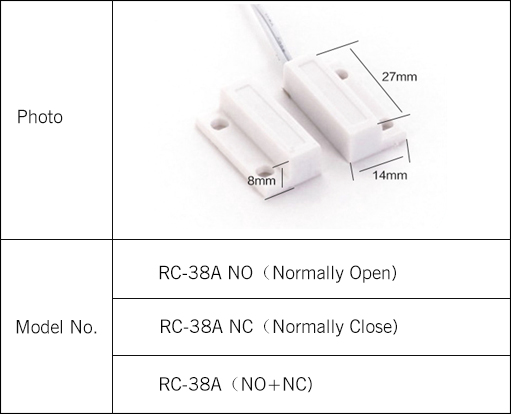

Model No.: RC-38A


Window Contact Sensor


what is Magnetic Reed Switch?

The reed switch is an electrical switch operated by an applied magnetic field. ... The switch may be actuated by an electromagnetic coil, making a reed relay, or by bringing a permanent magnet near it. When the magnetic field is removed, the contacts in the reed switch return to their original position.


What are magnetic reed switches used for?

A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.


Sensing distance

15-25mm

Shell material

ABS

Color

white, brown

Electrical parameters

maximum power 10W, maximum voltage 100V, maximum current 0.5A

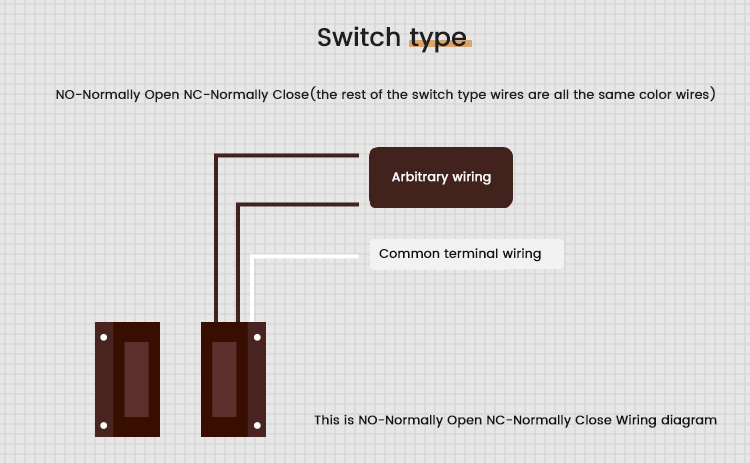

Switch type

NO-Normally Open / NC-Normally Close / NO+NC

Scope of application

wooden doors and windows

Lead

L1007UL#24AWG260mm

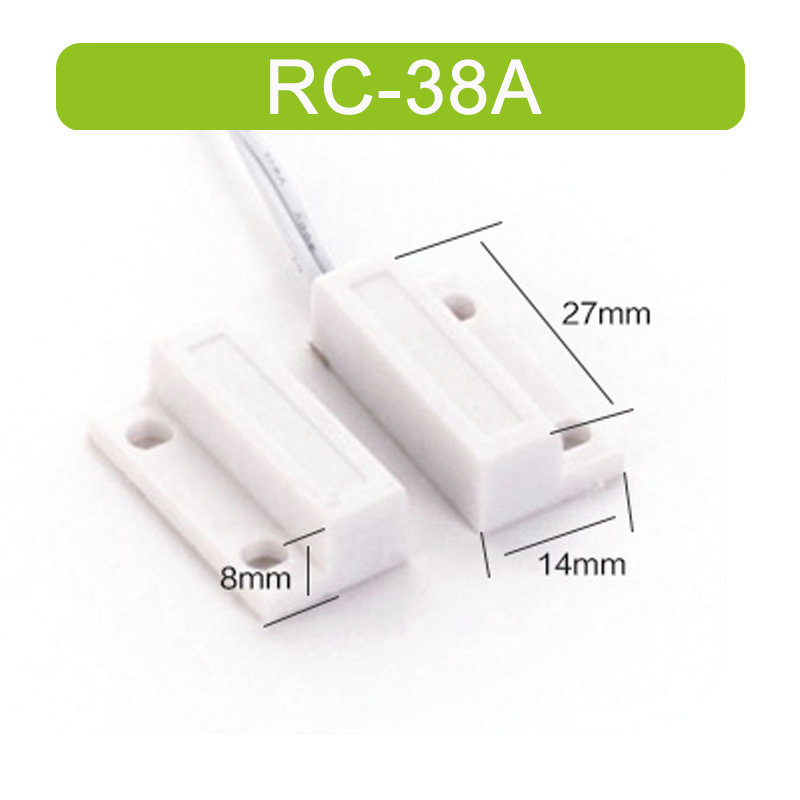

Product parameters

27*14*8mm


Window Contact Sensor

Window Contact Sensor


Window Contact Sensor

Window Contact Sensor

Window Contact Sensor

S4A_Datesheet_Wired Door Window Contact Sensor
