Magnetic Door Switch

>Sensing distance: 50-70mm

>Switch form: NO-Normally Open/NC-Normally Close/NO+NC

  • Brand:

    S4A
  • Item NO.:

    OC-60
  • Specifications

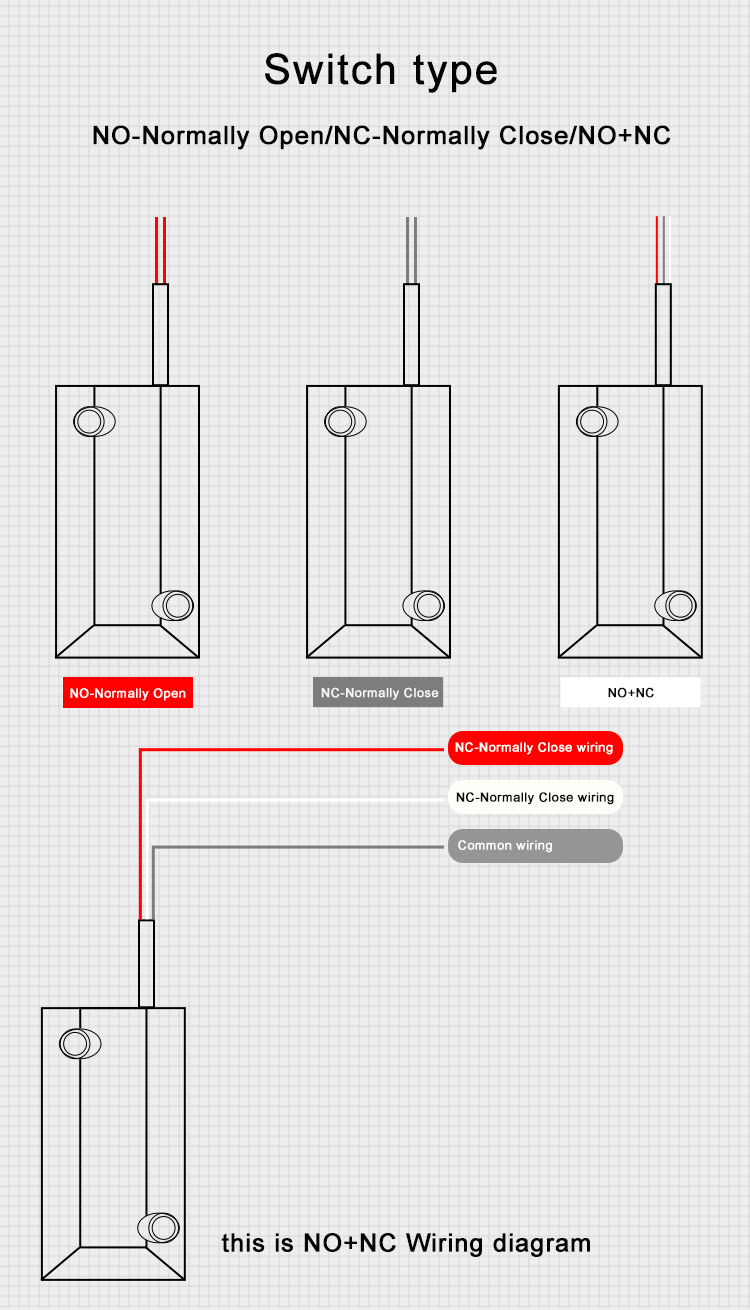

  • Wiring Diagram
  • Package
  • Download

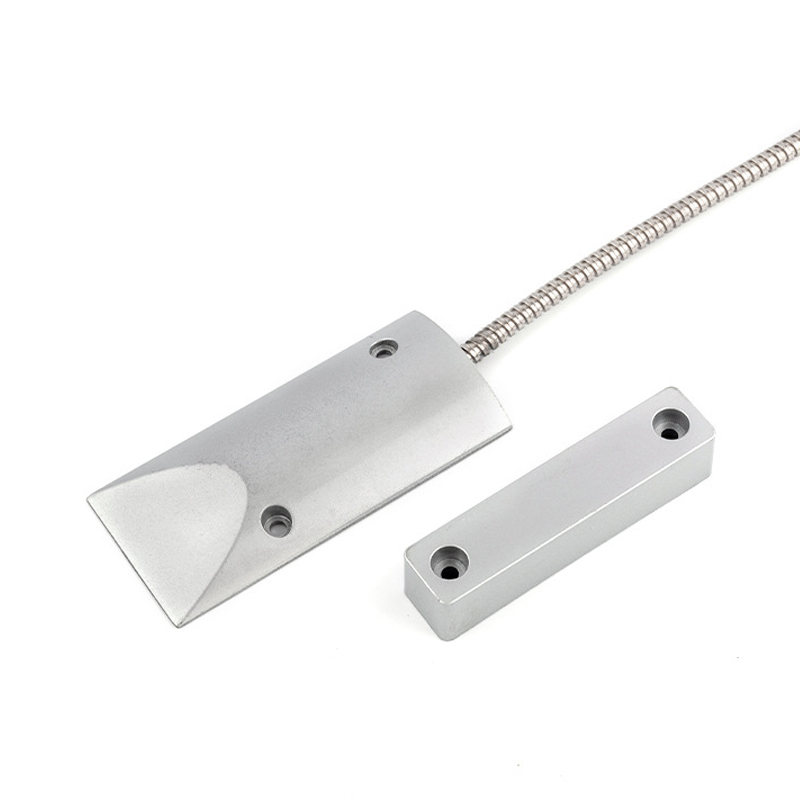

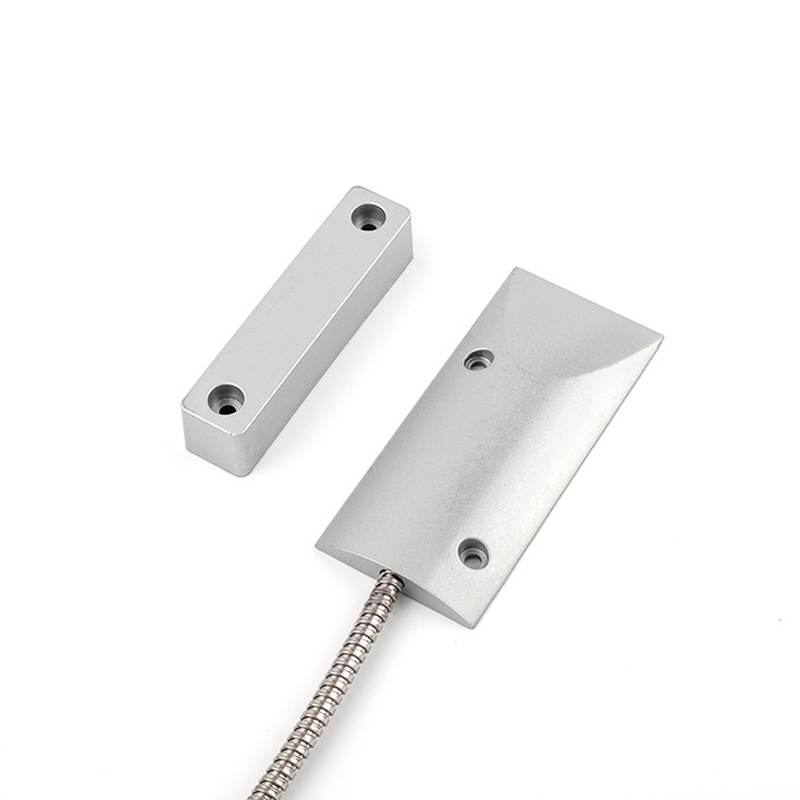

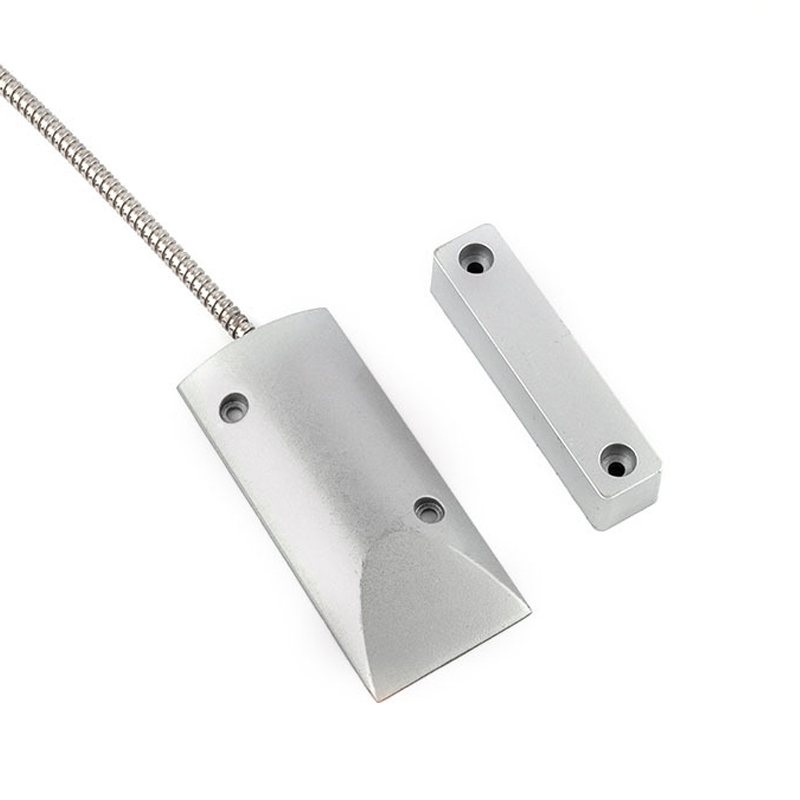

Magnetic Door Switch

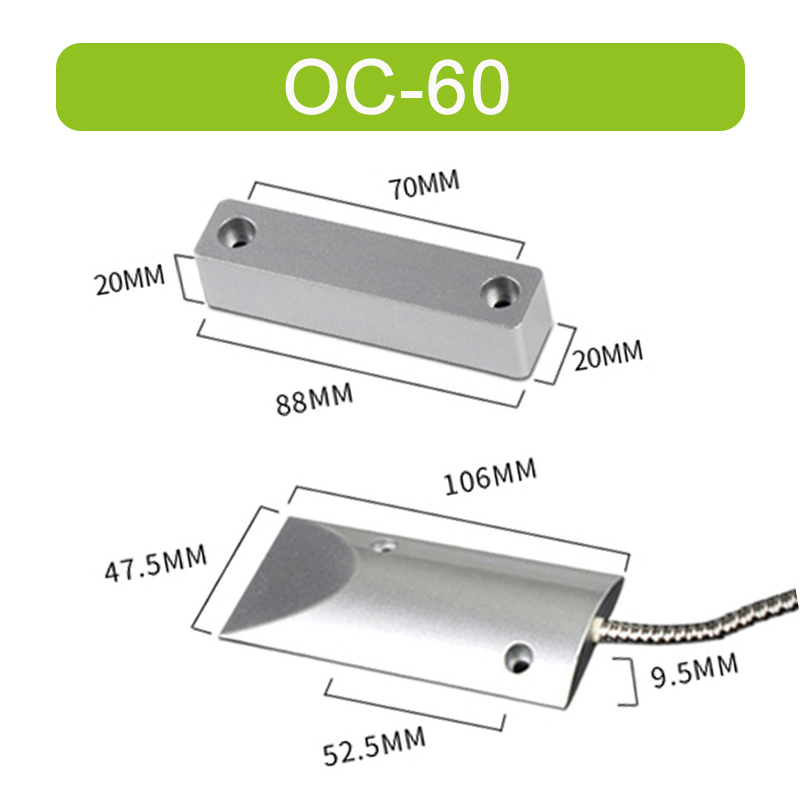

Model No.: OC-60


Magnetic Door Switch


what is Magnetic Reed Switch?

The reed switch is an electrical switch operated by an applied magnetic field. ... The switch may be actuated by an electromagnetic coil, making a reed relay, or by bringing a permanent magnet near it. When the magnetic field is removed, the contacts in the reed switch return to their original position.


What are magnetic reed switches used for?

A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.

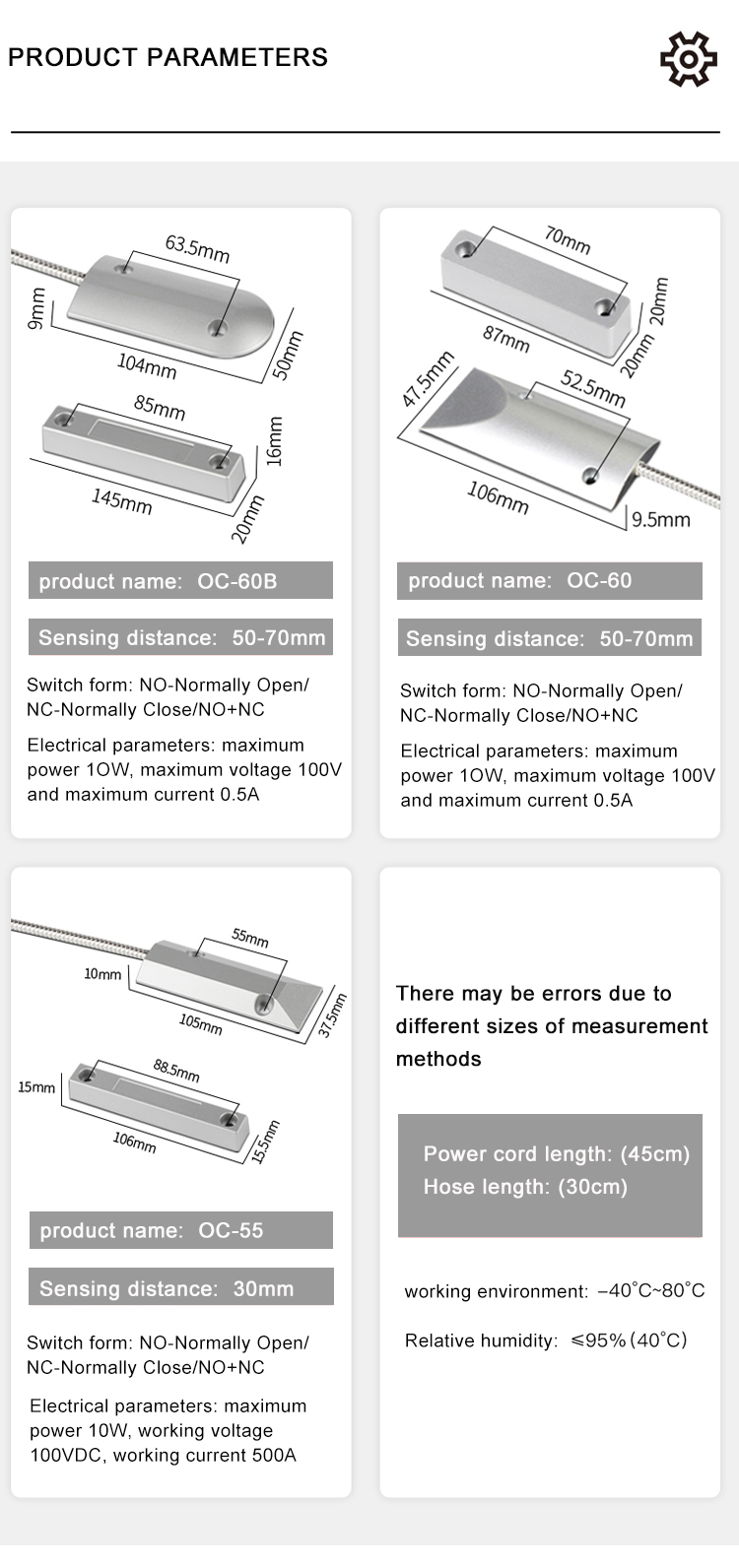

S4A Model

OC-60

Sensing distance

50-70mm

Switch form

NO-Normally Open/NC-Normally Close/NO+NC

maximum power

10W

maximum voltage

100V

maximum current

0.5A

Power cord length

45cm

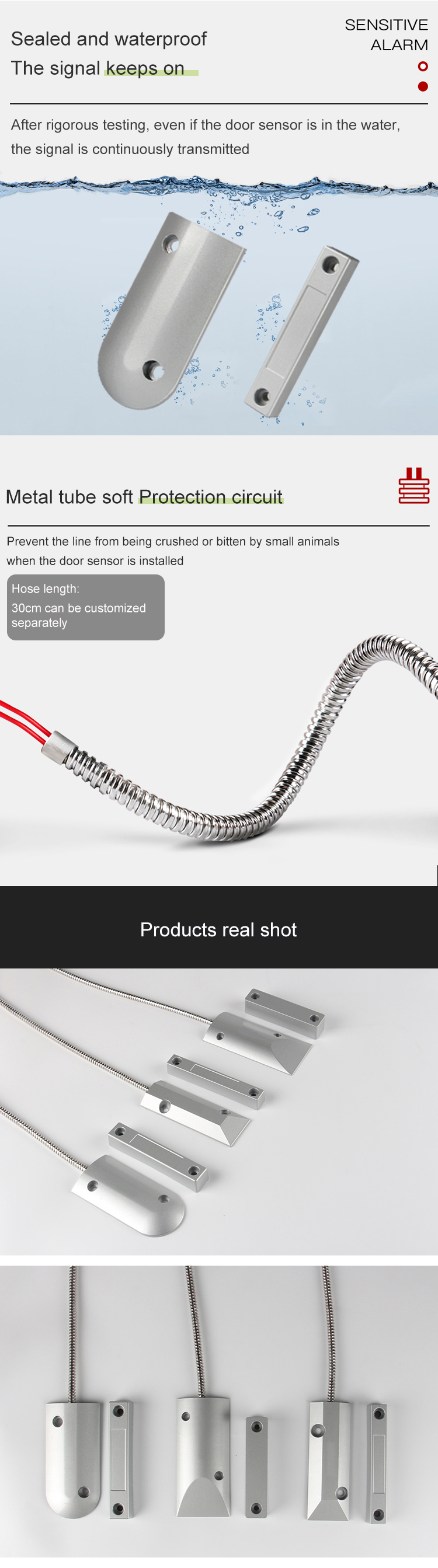

Hose length

30cm

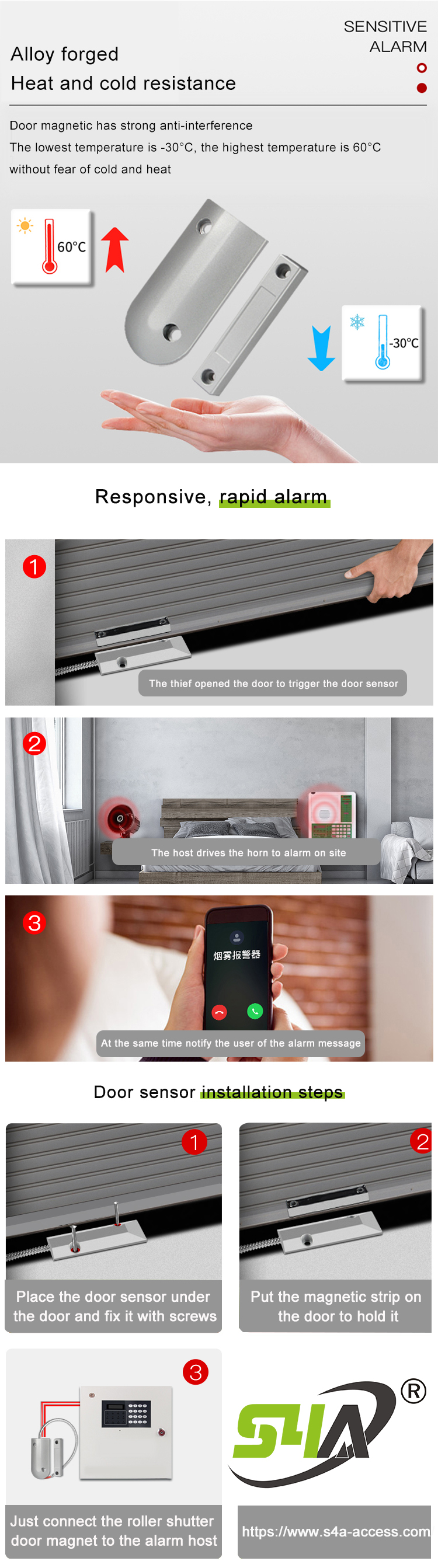

Working environment

-40°C~80℃

Relative humidity

≤95% (40℃ )

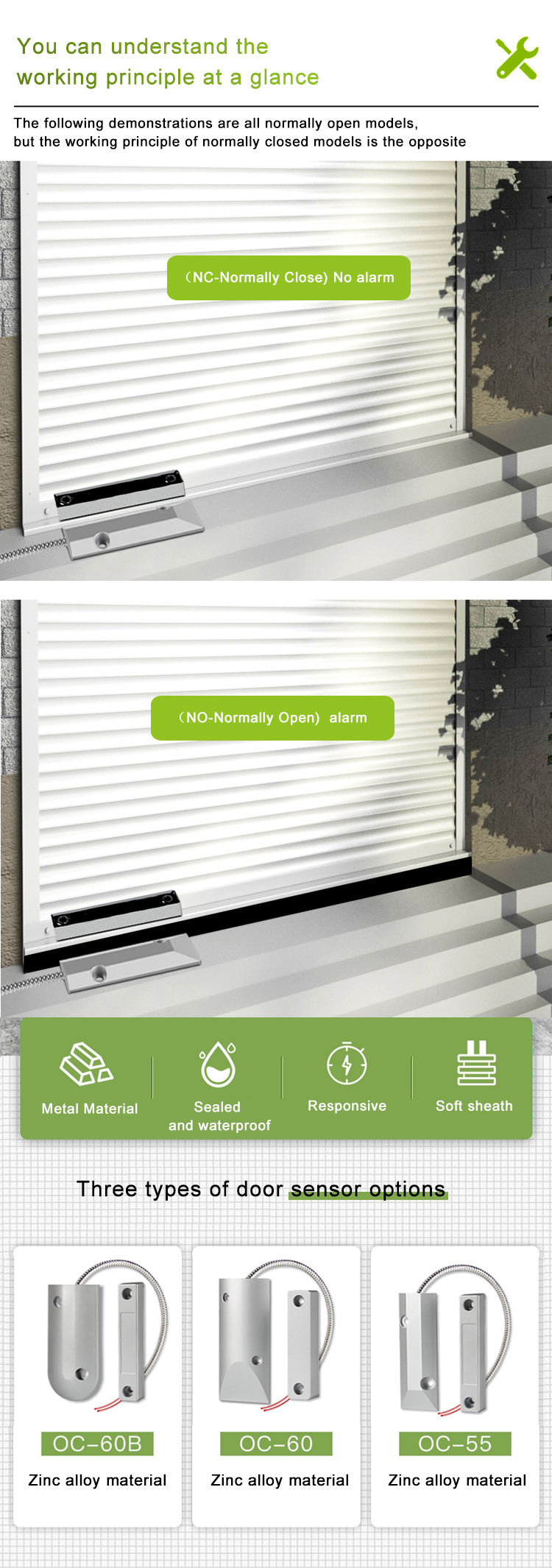

Magnetic Door Switch

Magnetic Door Switch

Magnetic Door Switch

Magnetic Door Switch

Magnetic Door Switch

S4A_Datesheet_Magnetic Door Switch
