Reed Switch DC 5V to 12V

>Switch form: NO-Normally Open/NC-Normally Close/NO+NC

>Power cord length: 45cm

>Hose length: 30cm

>Working environment: -40°C~80℃

>Relative humidity: ≤95% (40℃ )

  • Brand:

    S4A
  • Item NO.:

    OC-59
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Reed Switch  DC 5V to 12V

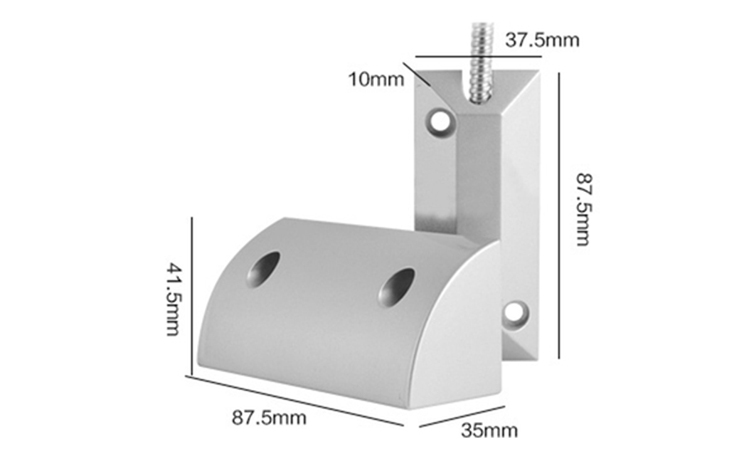

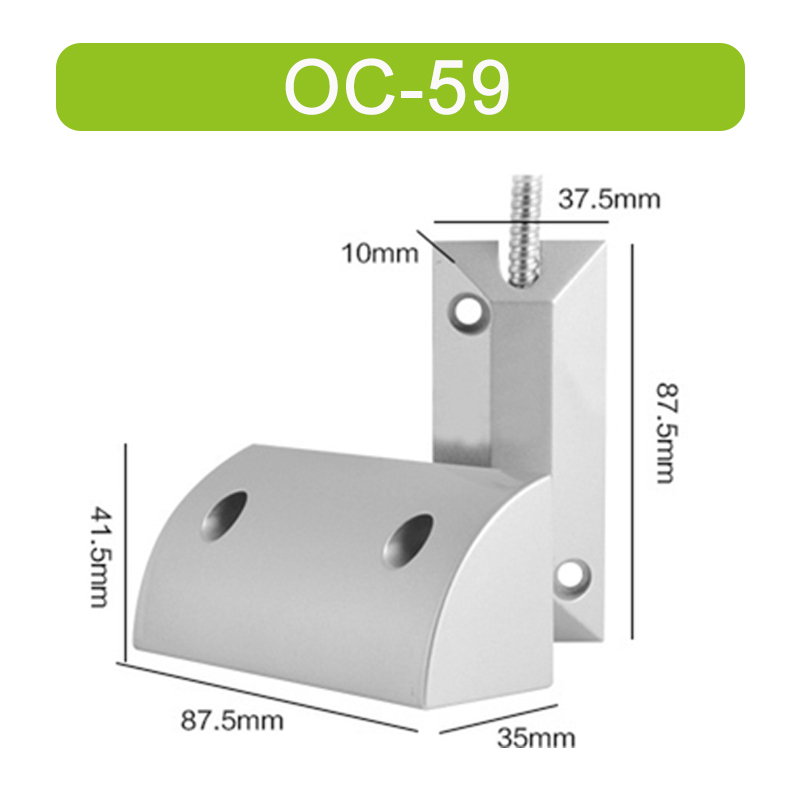

Model No.: OC-59


Reed Switch


what is Magnetic Reed Switch?

The reed switch is an electrical switch operated by an applied magnetic field. ... The switch may be actuated by an electromagnetic coil, making a reed relay, or by bringing a permanent magnet near it. When the magnetic field is removed, the contacts in the reed switch return to their original position.


What are magnetic reed switches used for?

A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.

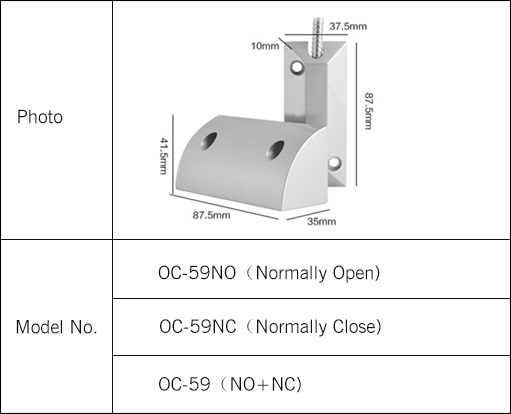

S4A Model

OC-59

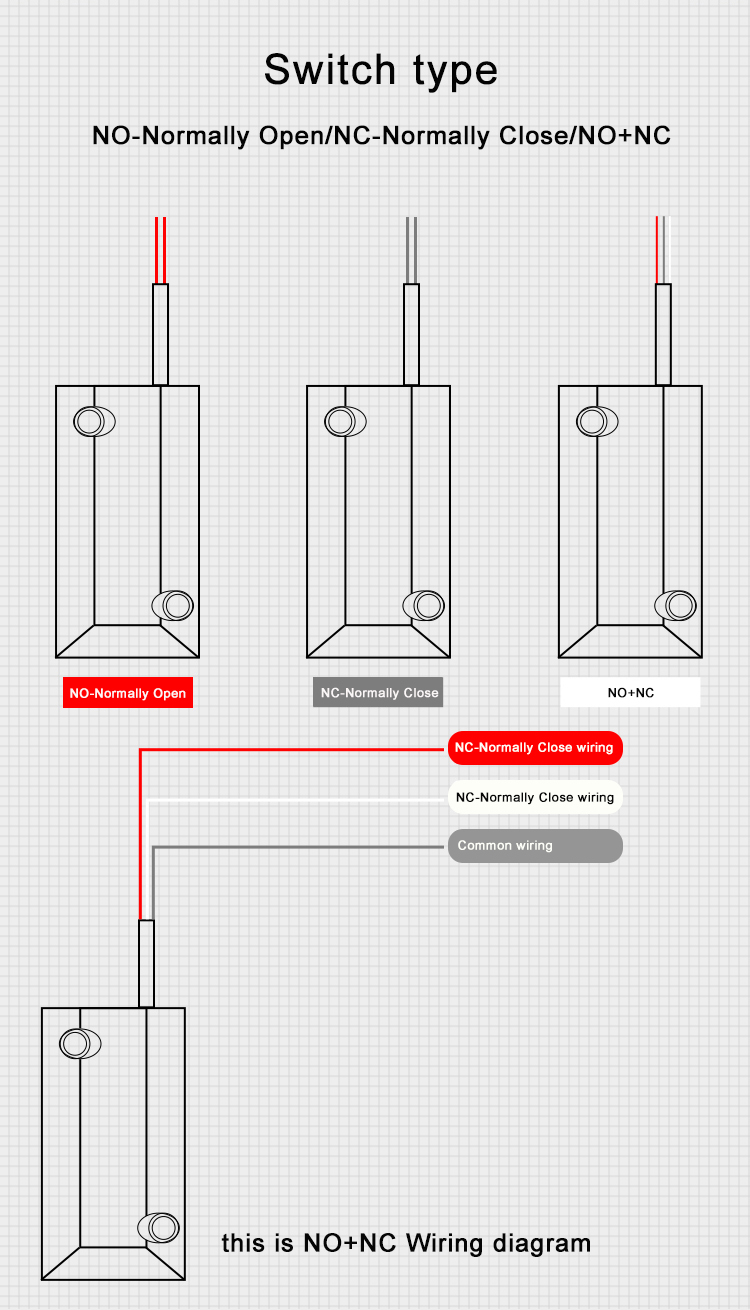

Switch form

NO-Normally Open/NC-Normally Close/NO+NC

maximum power

10W

maximum voltage

100V

maximum current

0.5A

Power cord length

45cm

Hose length

30cm

Working environment

-40°C~80℃

Relative humidity

≤95% (40℃ )


Reed Switch

Reed Switch

Reed Switch

Reed Switch

Reed Switch

S4A_Datesheet_Reed Switch  DC 5V to 12V
