Security Door Alarm Window Alarm Sensors

>Electrical parameters: maximum power 10W, maximum voltage 100V, maximum current 0.5A

>Switch form: NO-Normally Open / NC-Normally Close / NO+NC

>Current/Voltage/power: 0.1A/100VDC/ 3W

  • Brand:

    S4A
  • Item NO.:

    MC-56
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Security Door Alarm Window Alarm Sensors

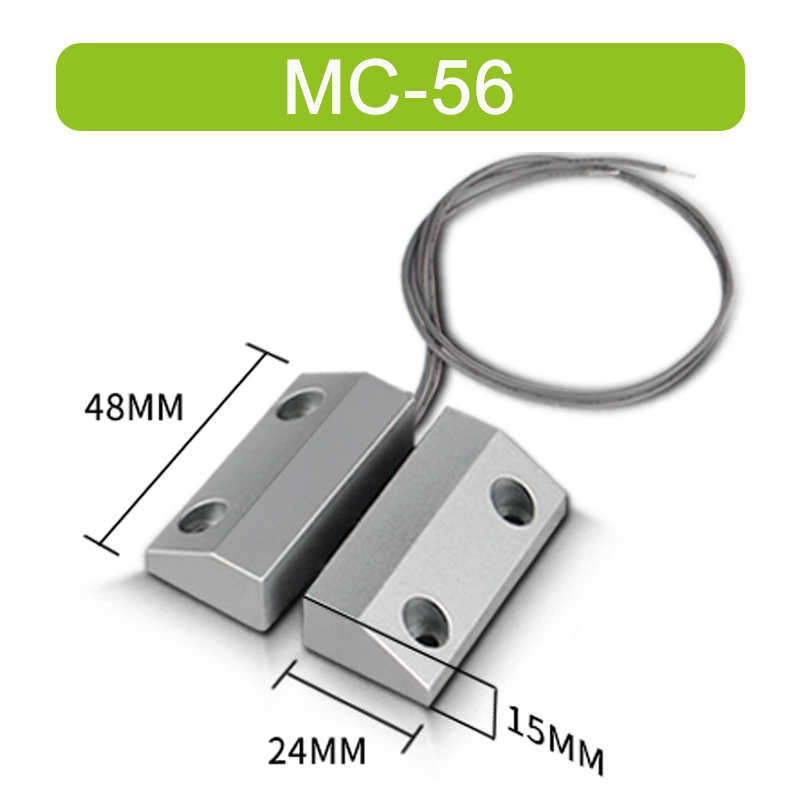

Model No.: MC-56


Window Alarm Sensors


what is Magnetic Reed Switch?

The reed switch is an electrical switch operated by an applied magnetic field. ... The switch may be actuated by an electromagnetic coil, making a reed relay, or by bringing a permanent magnet near it. When the magnetic field is removed, the contacts in the reed switch return to their original position.


What are magnetic reed switches used for?

A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.


Sensing distance

25-35mm

Hole distance

23mm

Electrical parameters

maximum power 10W, maximum voltage 100V, maximum current 0.5A

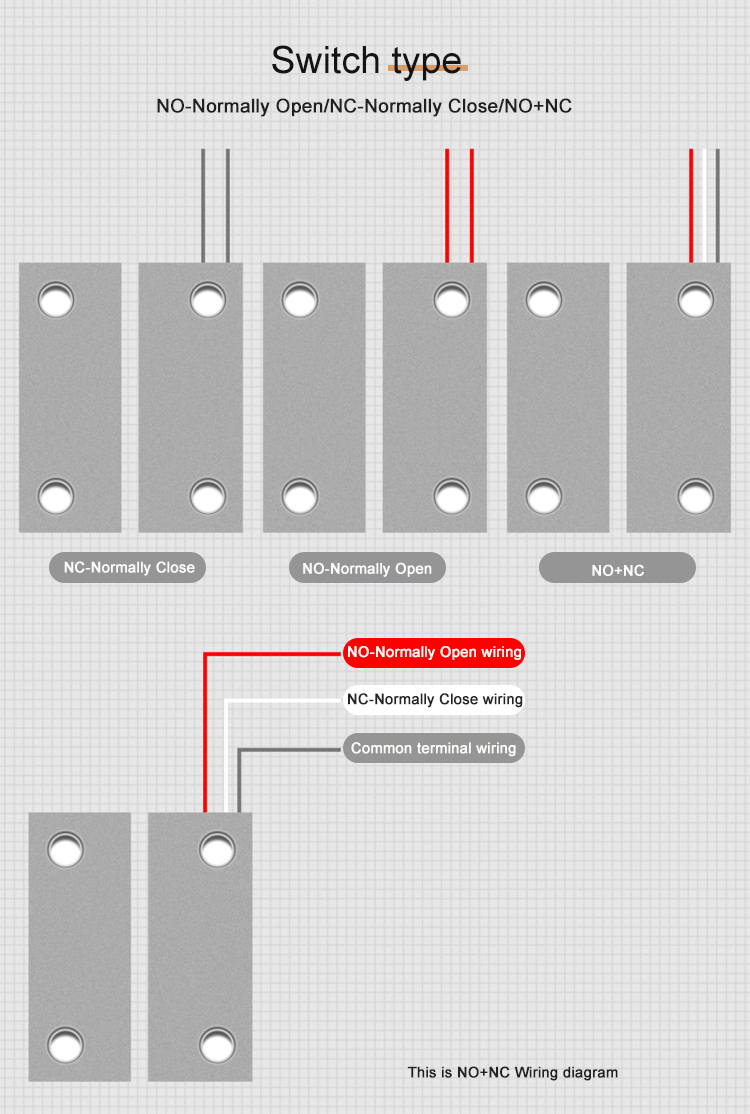

Switch form

NO-Normally Open / NC-Normally Close / NO+NC

Scope of application

metal doors/windows/cabinet

Current

0.1A

Voltage

100VDC

Power

3w

Shell material

zinc alloy, silver gray plating

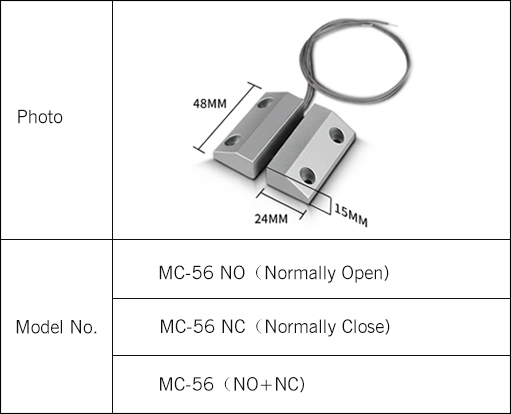

size

48*24*15mm


Window Alarm Sensors

Window Alarm Sensors

Window Alarm Sensors

Window Alarm Sensors

Window Alarm Sensors

S4A_Datesheet_Security Door Alarm Window Alarm Sensors
