RFID Access Wiegand Reader

/

ABS Rfid Reader

/Wiegand and RS232 rfid Access Reader

New Products

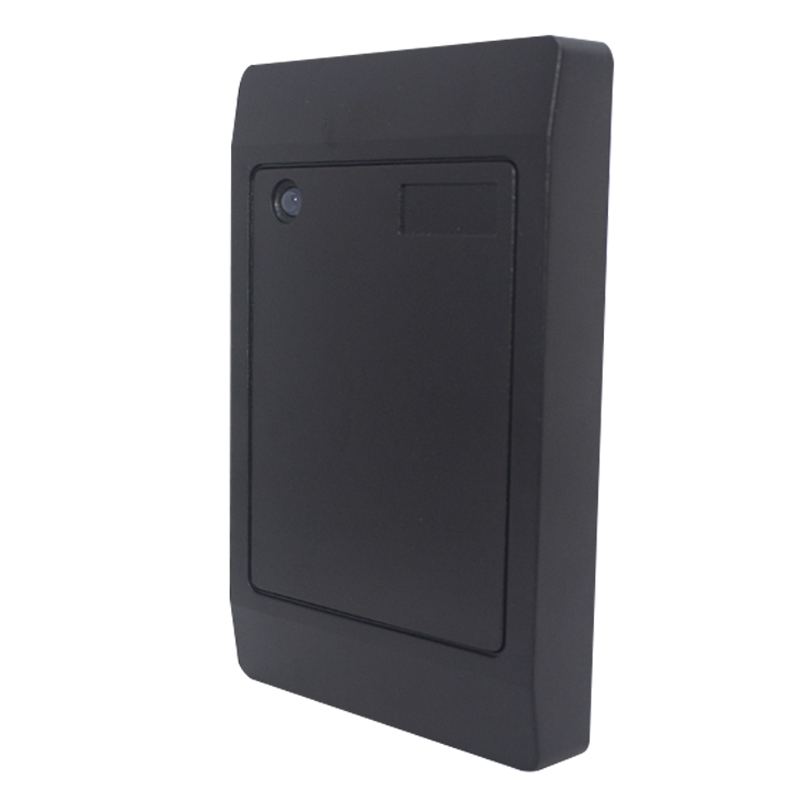

Wiegand and RS232 rfid Access Reader

>product material: PVC

>Sensing distance: 0-15cm

>Operating Voltage: DC 5~16V

  • Brand:

    S4A
  • Item NO.:

    PCD-100A
  • Specifications

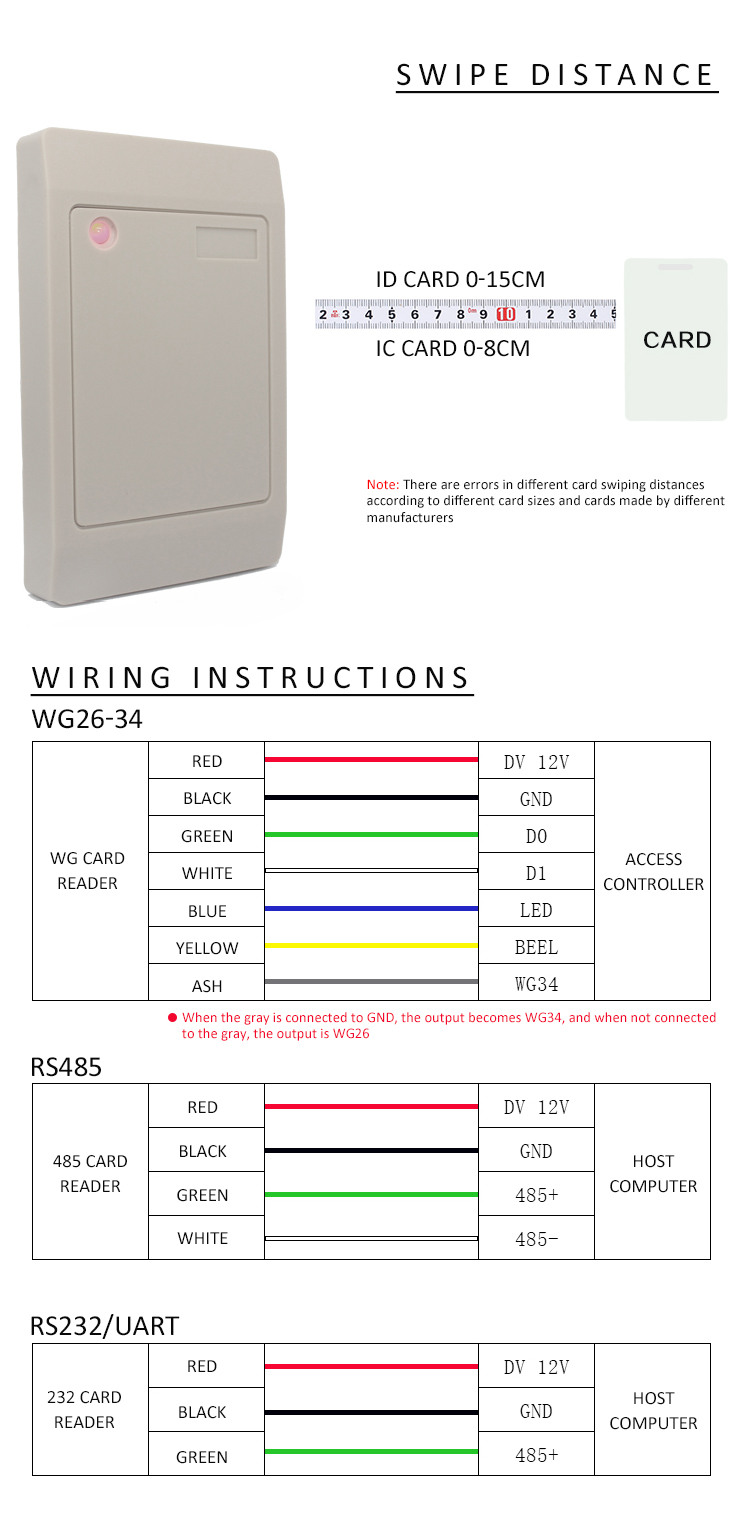

  • Wiring Diagram
  • Package
  • Download

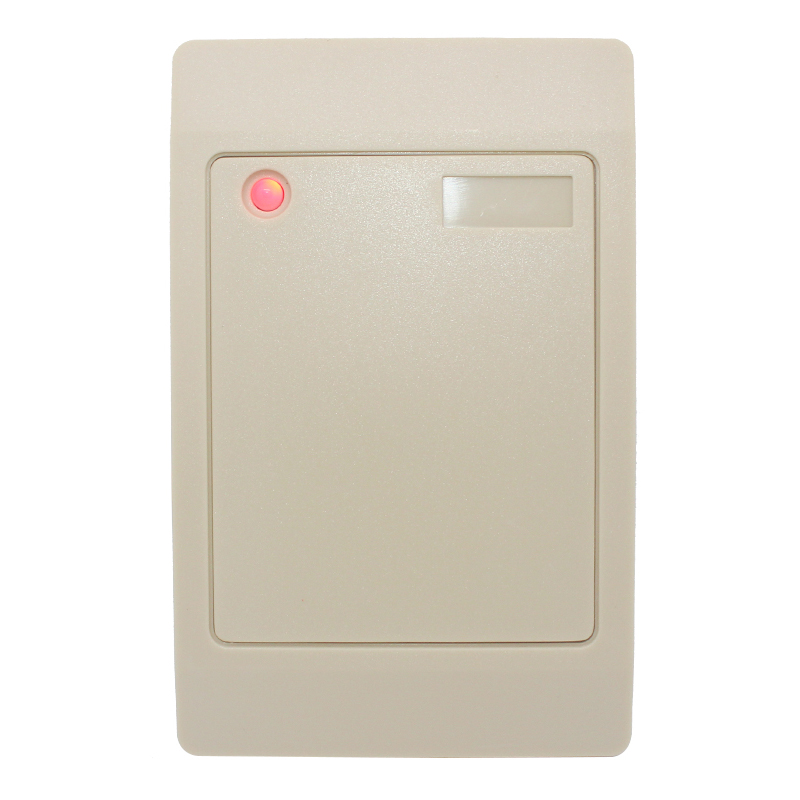

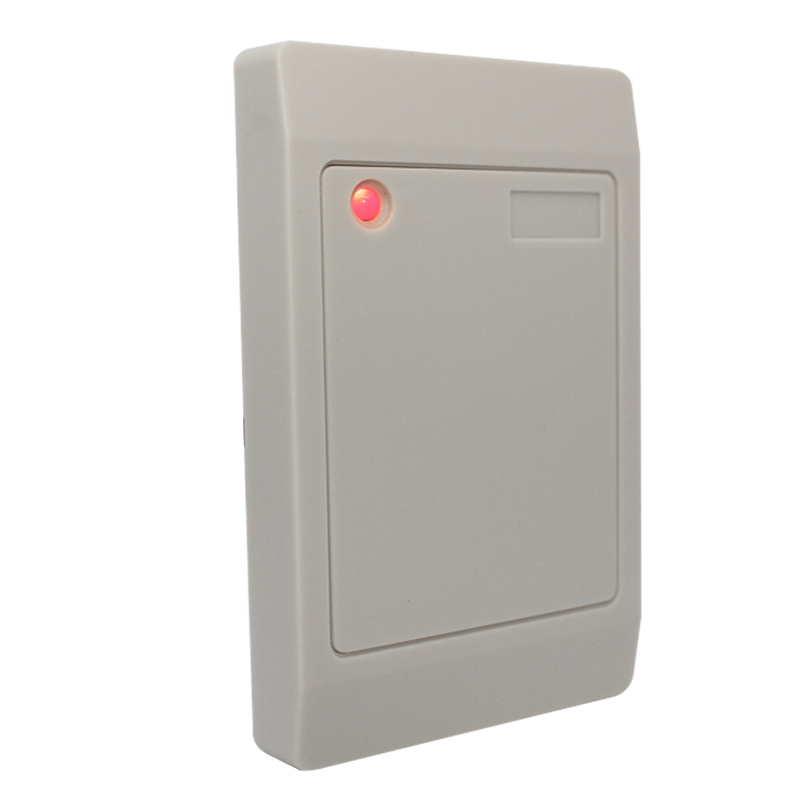

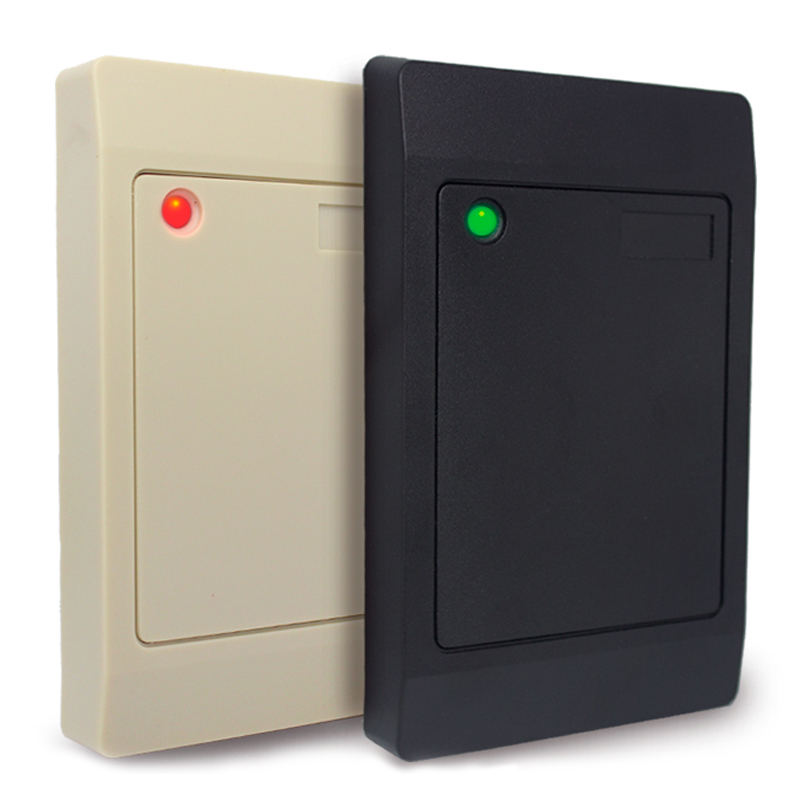

Wiegand and RS232 rfid Access Reader

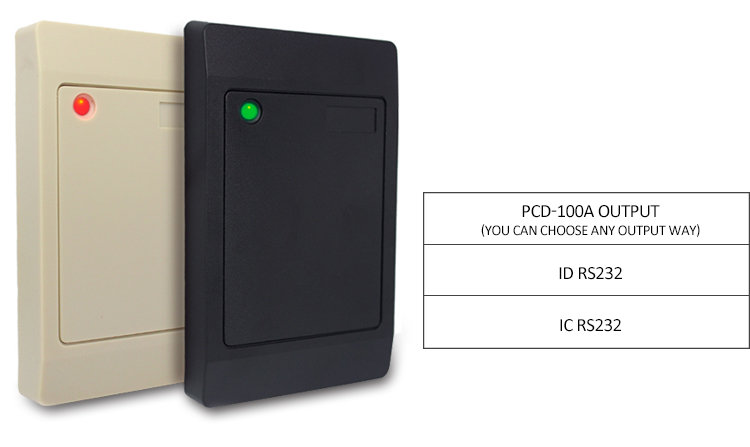

Model No.: PCD-100A Output (You can choose any output way)


rfid Access Reader


What is access control card reader?

Access control card readers are used in physical security systems to read a credential that allows access through access control points, typically a locked door. An access control reader can be a magnetic stripe reader, a bar code reader, a proximity reader, a smart card reader, or a biometric reader.


How do access control cards work?

The proximity card readers use an electromagnetic field to detect nearby cards and transmit data through the reader to the access control panel. If the card is authorized, the control panel sends a signal back to the reader to trigger a door unlock.


product material

PVC

Sensing distance

0-15cm

Card type

ID/IC card

Card reading speed

<0.2S

Operating Voltage

DC 5~16V

Working current

<25mA

Operating temperature

30C~85C

Working humidity

10%~ 90%

working frequency

ID125Khz/IC13.56Mhz

Communication Interface

WG 26~34/RS485/RS232/TTL frequency, etc. optional


rfid Access Reader

rfid Access Reader

rfid Access Reader

S4A Datesheet_Wiegand And RS232 Rfid Access Reader
