RFID Reader

/

ABS Rfid Reader

/Rfid Reader Built in Password Keypad

New Products

Rfid Reader Built in Password Keypad

> Card type: 125KHz or 13.56MHz Card

> Size: 86 x 86 x 19mm

  • Brand:

    S4A
  • Item NO.:

    U-P006
  • Specifications

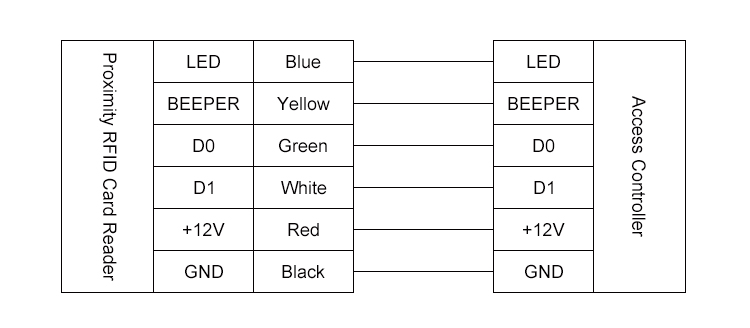

  • Wiring Diagram

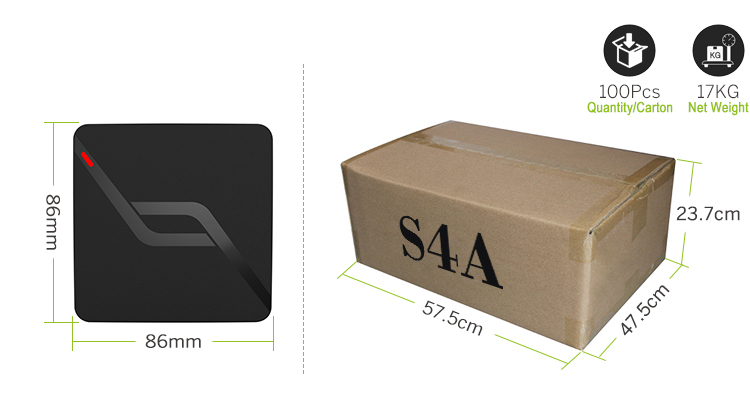

  • Package

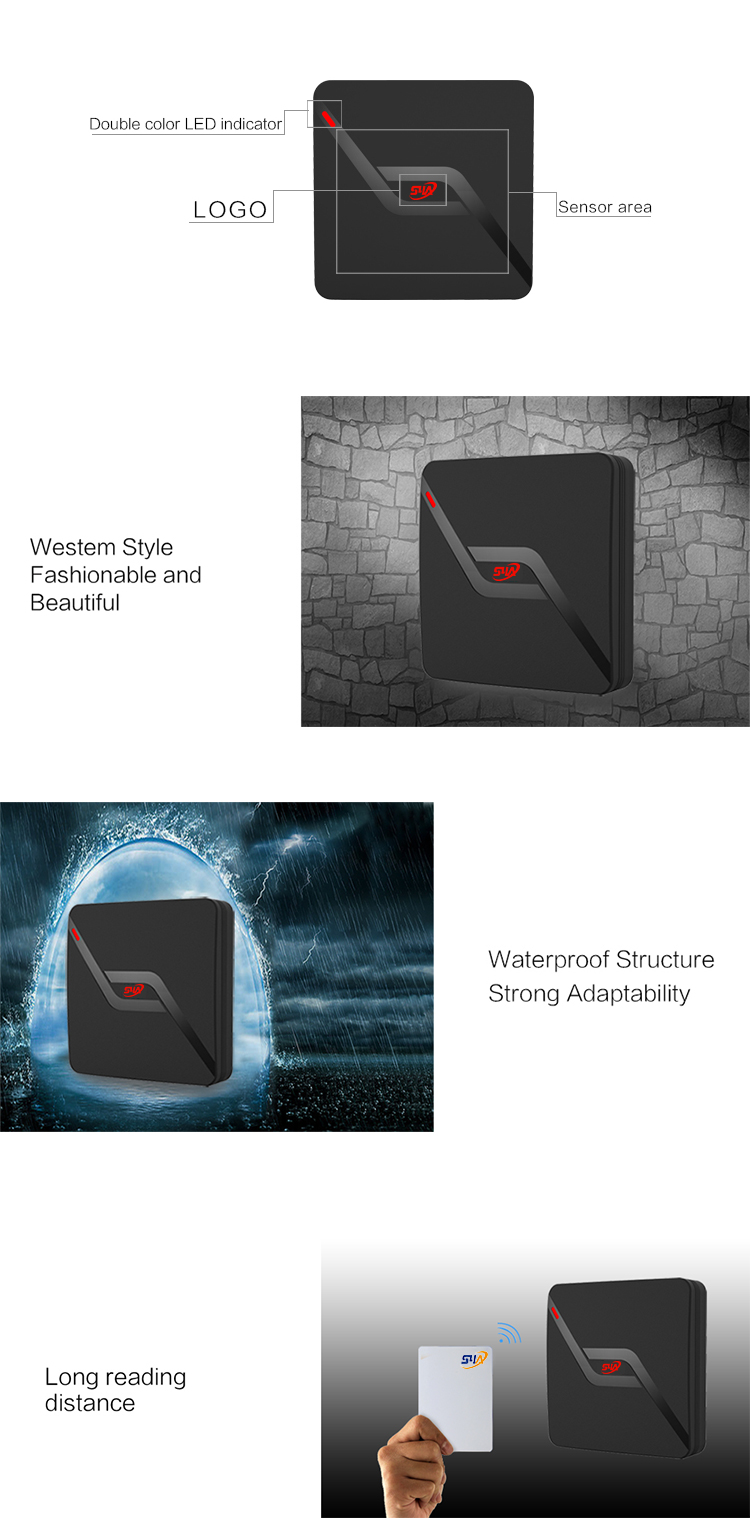

RFID Reader built-in Password Keypad

Model No.: U-P006 EM, MF


Features

> Plastic shell, anti-vandal

> Very low power consumption, standby current less than 30mA

> WG 26 output

> Fast Search speed: time between reading card and opening the door is less than 0.1S


Operating Voltage

9-12V DC

Card type

EM/Mifare

Reading Distance

3-6 cm

Quiescent Current

≤30mA

Operating Temperature

-45℃~60℃

Operating Humidity

10%- 90% RH

Waterproof

Conforms to IP68

Dimension

86*86*19 MM

RFID Reader built in Password

IP68 Waterproof RFID reader

Rfid Reader Built in Password Keypad

Model No.

Dimension

Quantity/Carton

Net Weight

Gross Weight

Carton Size

U-P006EM

86x86x19mm

100pcs

17KG

24KG

57.5x47.5x23.7cm

U-P006MF

17KG

24KG

RFID Reader built in Password
