RFID Access Wiegand Reader

/

ABS Rfid Reader

/Single Entry System and Double Entry System

New Products

Single Entry System and Double Entry System

> Card type: 125KHz or 13.56MHz Card

> Size: 110 x 48 x 20 mm

  • Brand:

    S4A
  • Item NO.:

    U-P002
  • Specifications

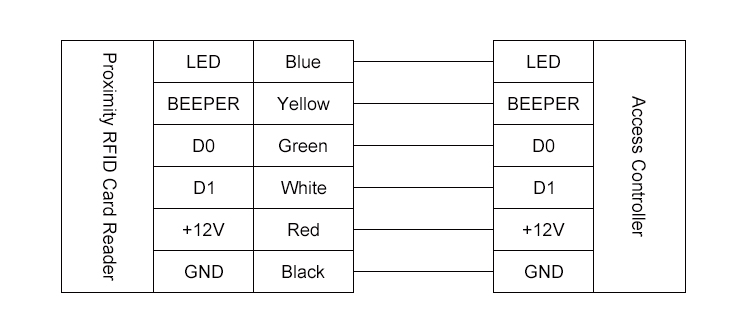

  • Wiring Diagram
  • Package
  • Download

Single Entry System And Double Entry System

Model No.: U-P002 EM, MF

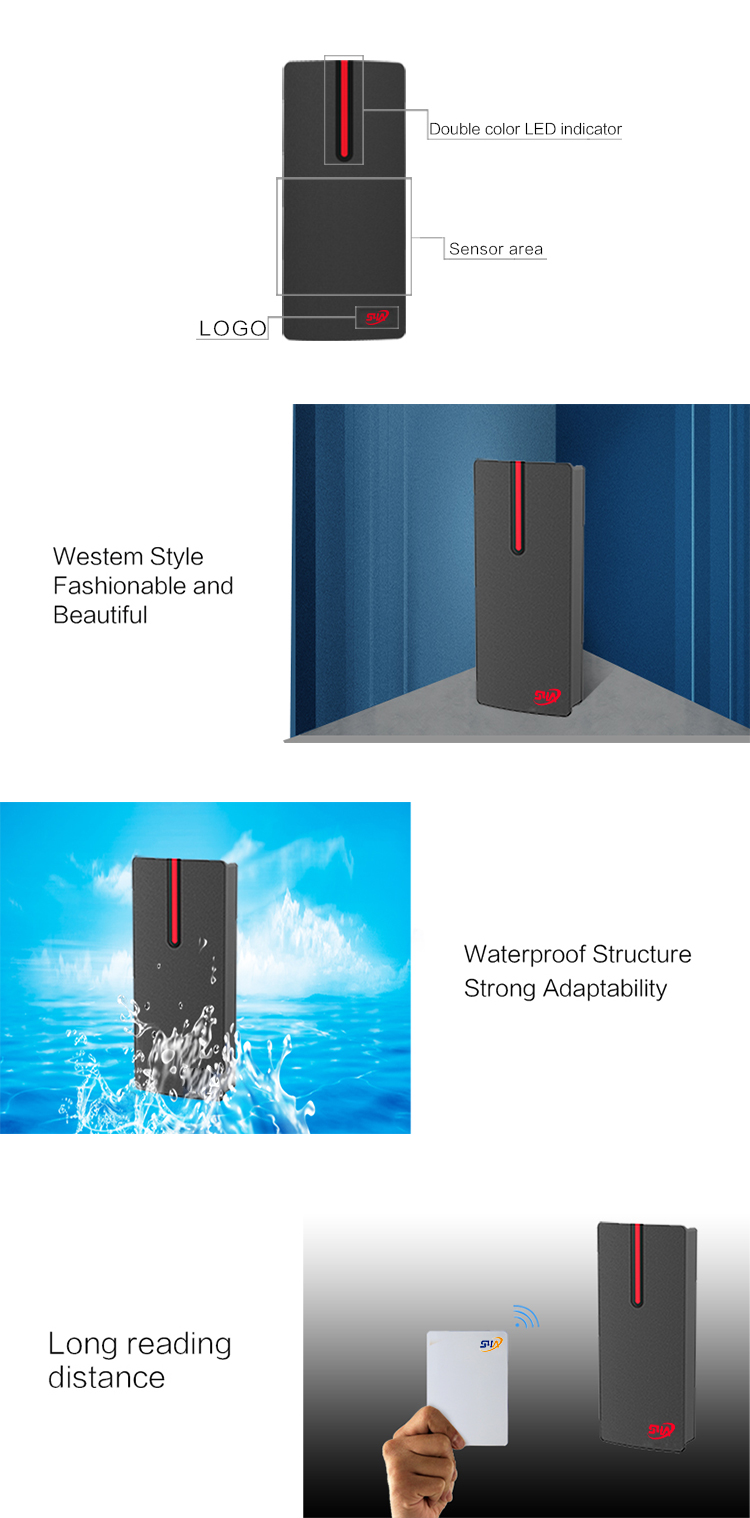

Features

> Plastic shell, anti-vandal

> Very low power consumption, standby current less than 30mA

> WG 26 output

> Fast Search speed: time between reading card and opening the door is less than 0.1S


Operating Voltage

9-12V DC

Card type

EM/Mifare

Reading Distance

3-6 cm

Quiescent Current

≤30mA

Operating Temperature

-45℃~60℃

Operating Humidity

10%- 90% RH

Waterproof

Conforms to IP68

Dimension

110*48*20 MM



Single Entry System

Single Entry System

Single Entry System and Double Entry System

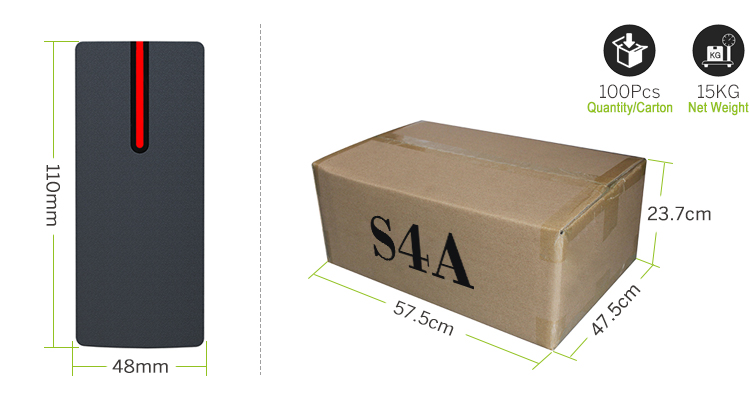

Model No.

Dimension

Quantity/Carton

Net Weight

Gross Weight

Carton Size

U-P002EM

110x48x20mm

100pcs

15KG

21.2KG

57.5x47.5x23.7cm

U-P002MF

15KG

21.2KG

Single Entry System

S4A Datesheet_Single Entry System and Double Entry System
