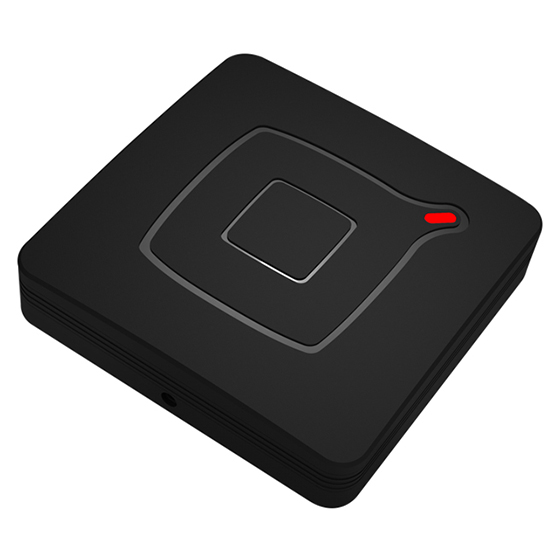

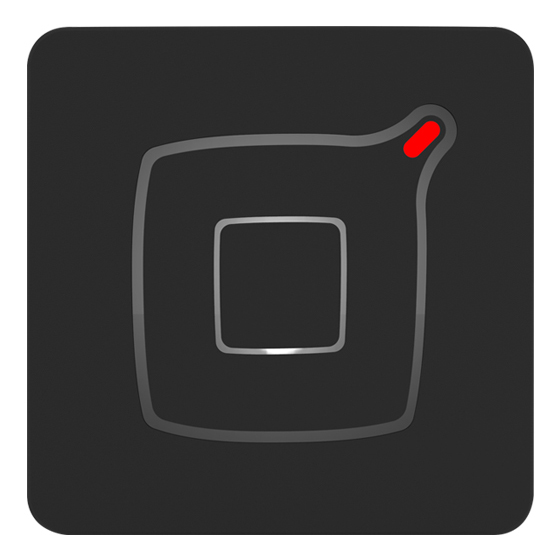

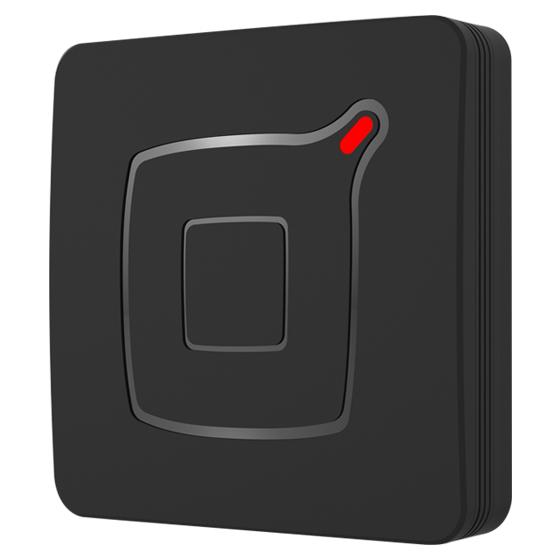

Rfid Reader for Gate Door-outdoor Use

> Card type: 125KHz or 13.56MHz Card

> Size: 86 x 86 x 19 mm

  • Brand:

    S4A
  • Item NO.:

    U-P005
  • Specifications

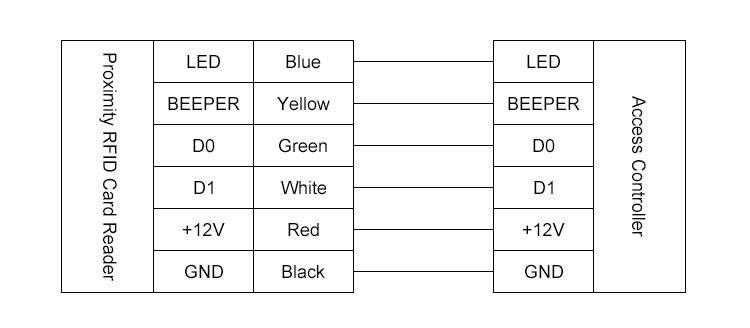

  • Wiring Diagram
  • Package
  • Download

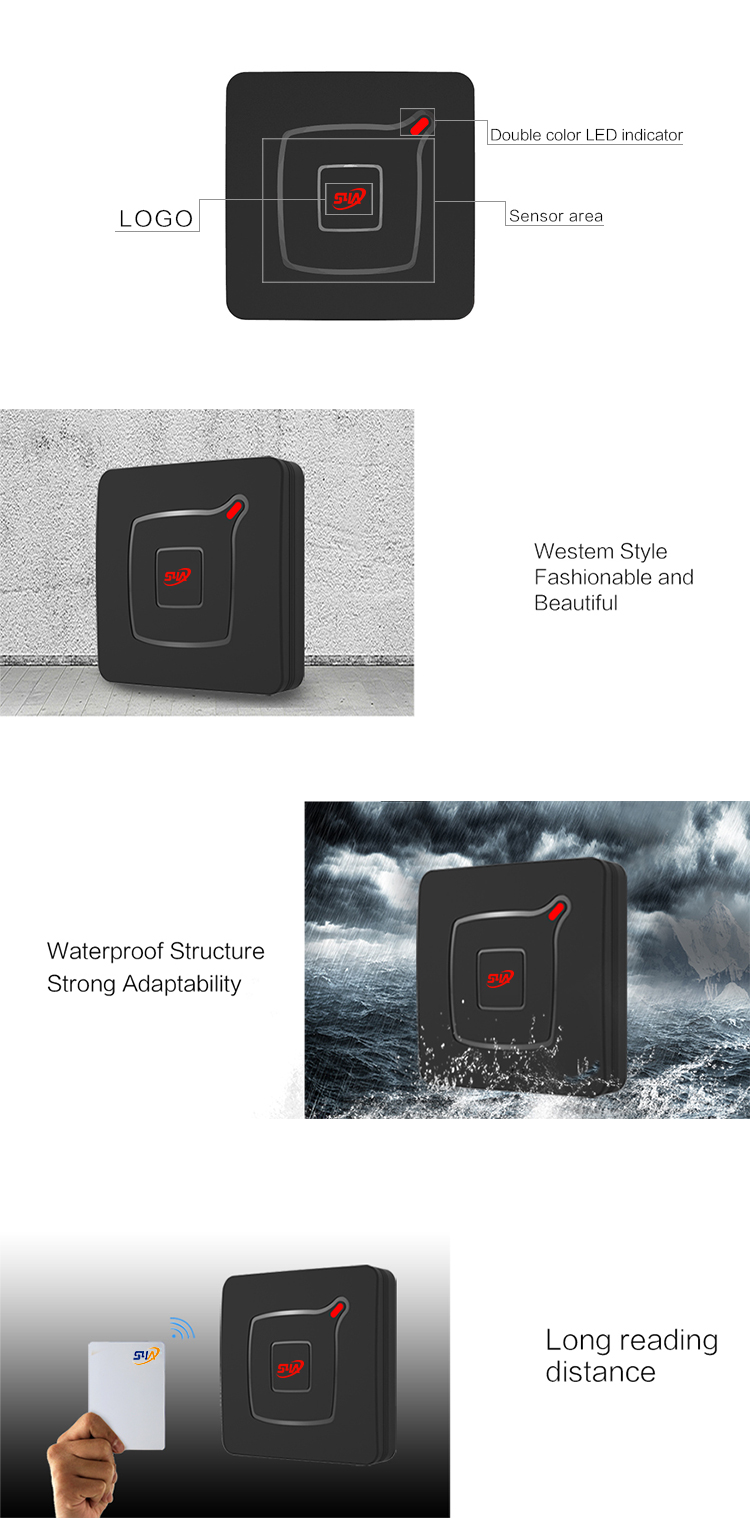

Rfid Reader for Gate door-outdoor use

Model No.: U-P005 EM, MF


Features

> Plastic shell, anti-vandal

> Very low power consumption, standby current less than 30mA

> WG 26 output

> Fast Search speed: time between reading card and opening the door is less than 0.1S


Operating Voltage

9-12V DC

Card type

EM/Mifare

Reading Distance

3-6 cm

Quiescent Current

≤30mA

Operating Temperature

-45℃~60℃

Operating Humidity

10%- 90% RH

Waterproof

Conforms to IP68

Dimension

86*86*19 MM

Rfid Reader for Gate door

Rfid Reader for Gate door

Rfid Reader for Gate Door-outdoor Use

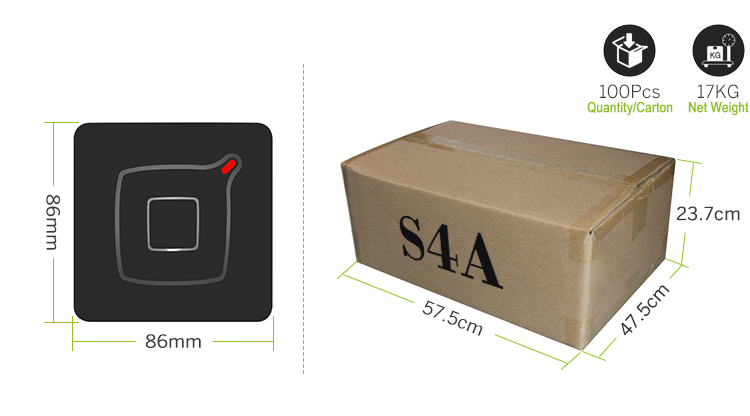

Model No.

Dimension

Quantity/Carton

Net Weight

Gross Weight

Carton Size

U-P005EM

86x86x19mm

100pcs

17KG

24KG

57.5x47.5x23.7cm

U-P005MF

17KG

24KG

Rfid Reader for Gate door

S4A Datesheet_Rfid Reader for Gate Door-outdoor Use
