Categories
> Card type: EM or MF
> Waterproof Degree: IP68
> Transmit format: WG26/WG34
> Ultra- low power consumption: Standby current less than 30mA
> Fast Searching speed: Time is less than 0.1S between reading card and opening the door
Brand:
S4AItem NO.:

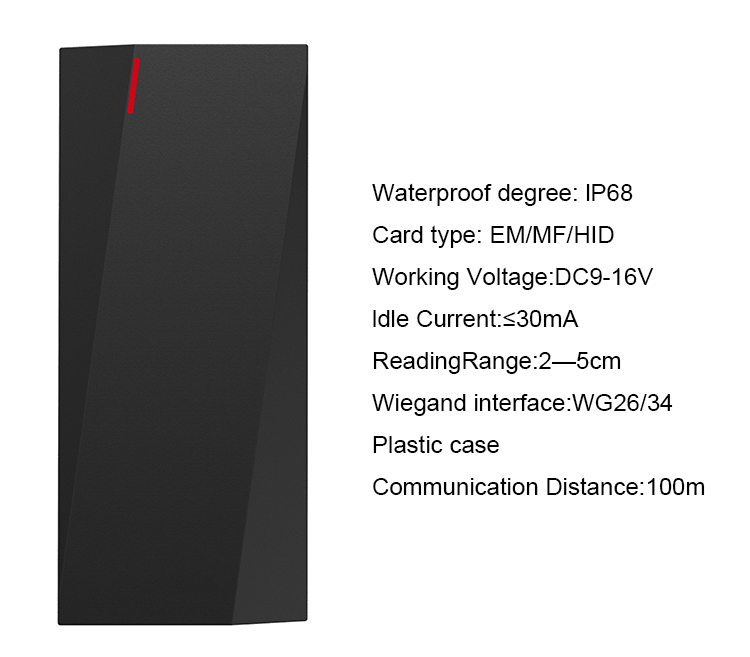

U-P007RFID Contactless Card Reader
Model No.: U-P007
What is Contactless Card reader?
Contactless smart card readers use radio waves to communicate with, and both read and write data on a smart card. When used for electronic payment, they are commonly located near PIN pads, cash registers and other places of payment.
Card Type | EM or MF |
Operating Voltage | DC9-12V |
Reading Distance | 2-5cm |
Operating Humidity | 10%-90%RH |
Waterproof Degree | IP68 |
Standby Current | < 30mA |
Operating Humidity | -45℃~60℃ |
Searching Speed | Less than 0.1S between reading card and opening the door |

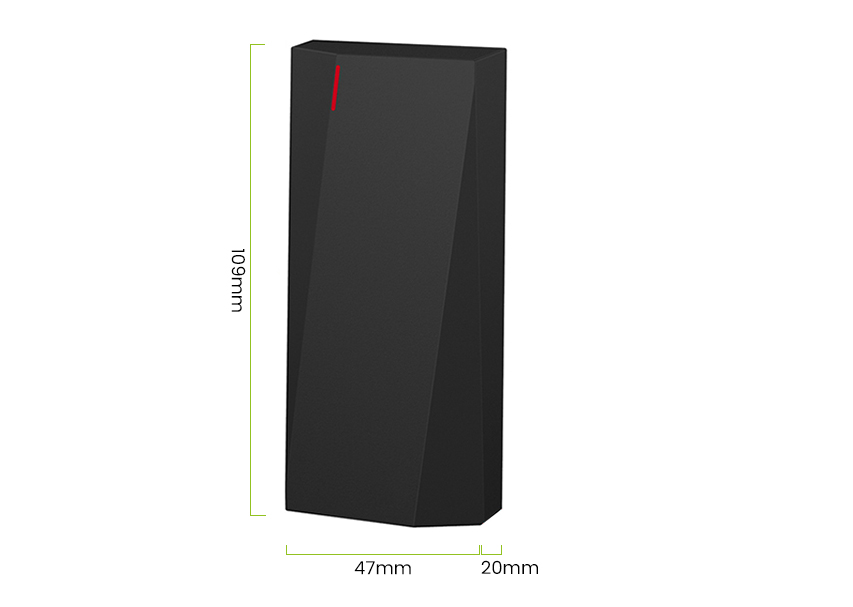

Dimension | 109*47*20mm |
S4A User Manual U-P007_RFID Contactless Card reader
> Card type: 125KHz or 13.56MHz Card> Size: 110 x 48 x 20 mm
> Card type: 125KHz or 13.56MHz Card> Size: 110 x 48 x 20 mm
> Card type: 125KHz or 13.56MHz Card> Size: 110 x 48 x 20 mm
> Card type: 125KHz or 13.56MHz Card> Size: 86 x 86 x 19 mm
> Card type: 125KHz or 13.56MHz Card> Size: 86 x 86 x 19 mm
> Card type: 125KHz or 13.56MHz Card> Size: 86 x 86 x 19mm
> Card type: 125KHz or 13.56MHz Card> KR100EM: 125KHz (WG26 output)> KR100Mifare: 13.56MHz (WG34 output)
> Card type: 125KHz or 13.56MHz Card> KR101EM: 125KHz (WG26 output)> KR101Mifare: 13.56MHz (WG34 output)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
