> Card type: EM or MF Card
> Metal structure design, anti-vandal
> Digital backlit keyboard
> All-in-one, WG26 output/input
> Three-way to open the door, card, password, card + password
> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Brand:
S4AItem NO.:

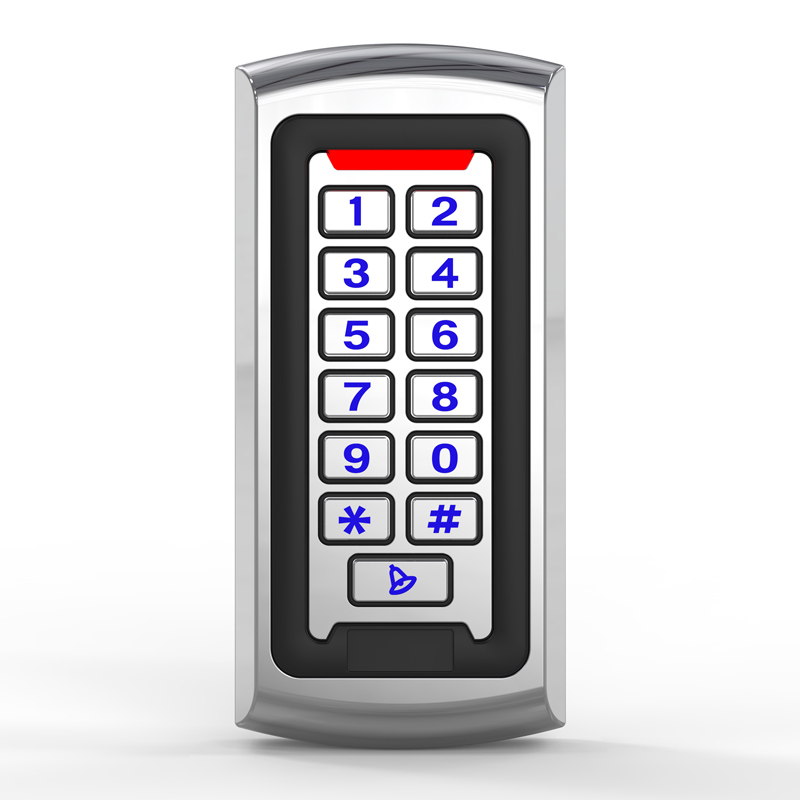

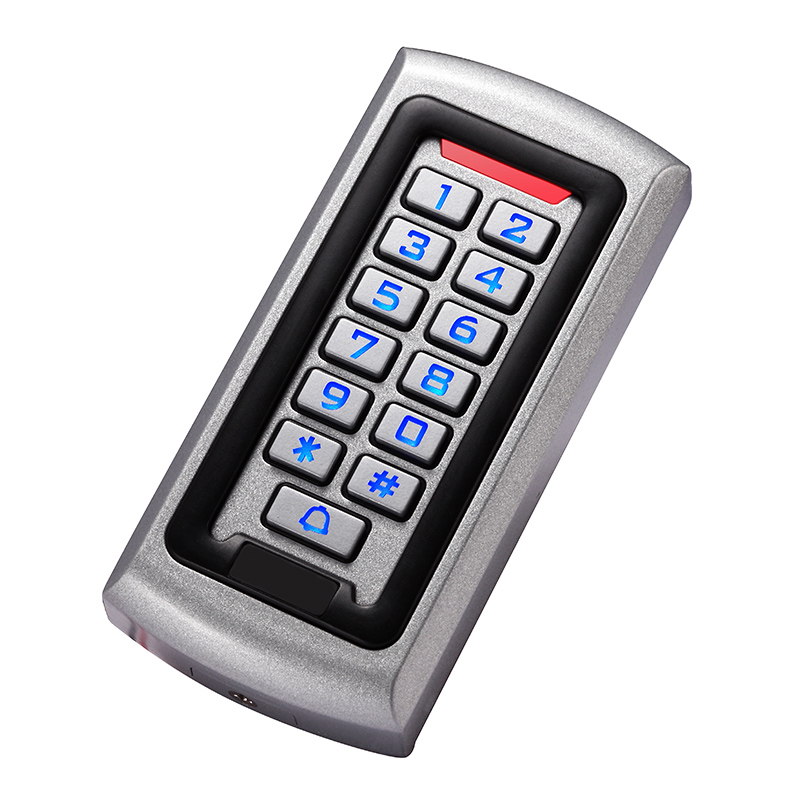

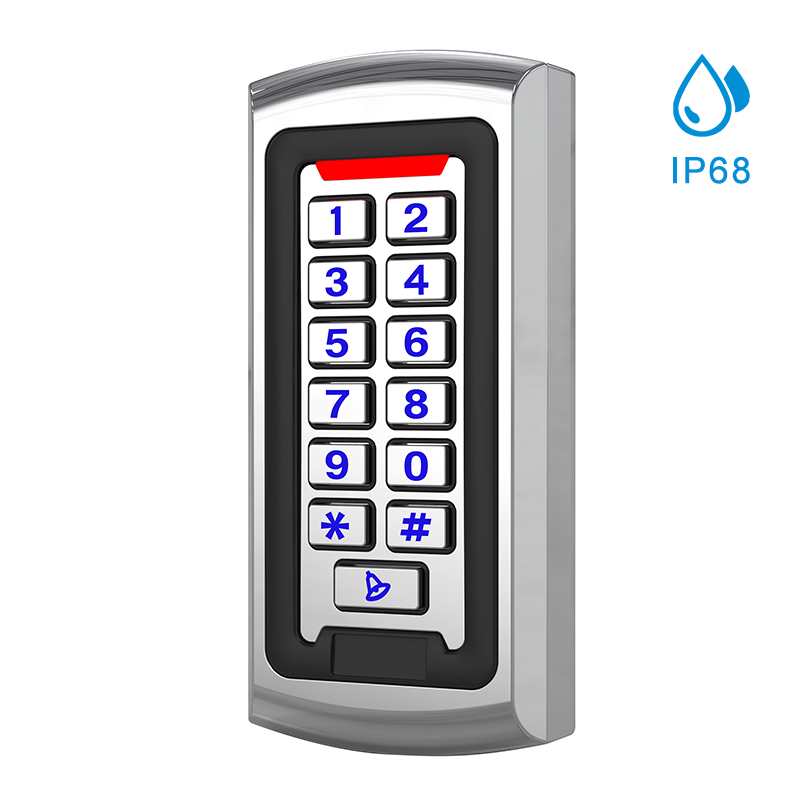

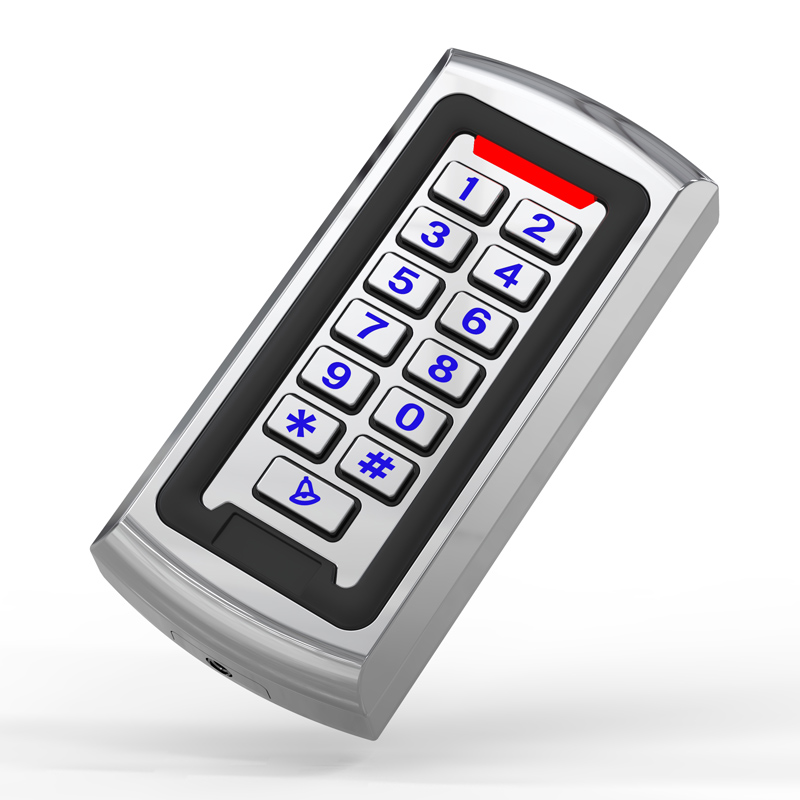

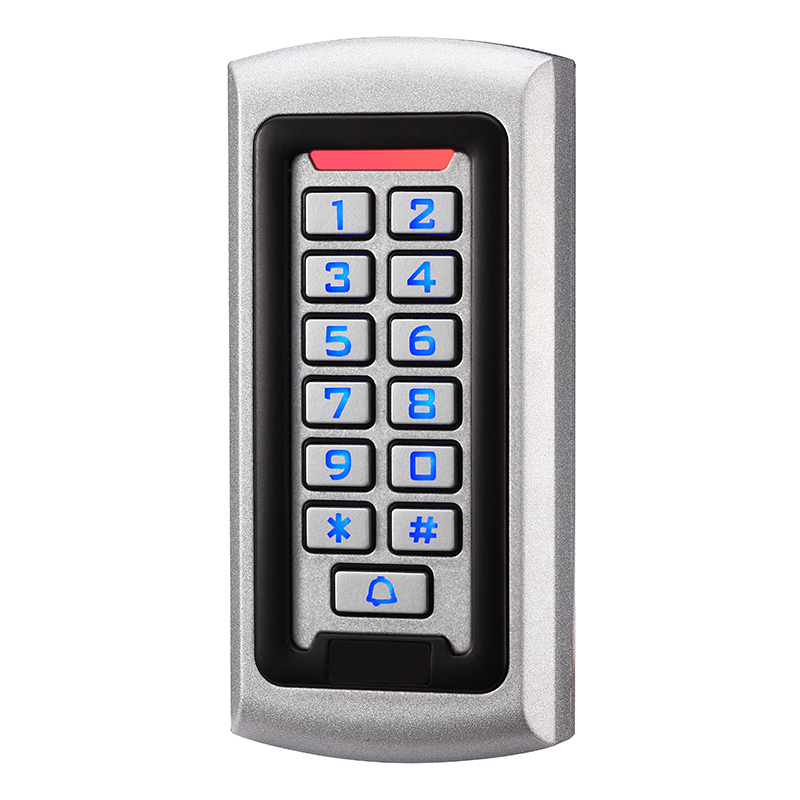

S603-WWaterproof Metal Access Control
Model No.: S603-W EM, MF
Card type | EM or MF |
Waterproof degree | Non-Waterproof(S603) / IP68(S603-W) |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

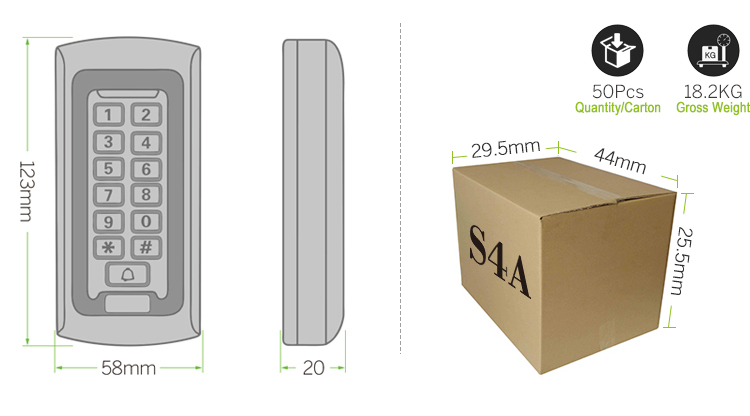

Dimension | 123*58*20mm |
Waterproof Metal Access Control Card Reader | ||||
Model No. | Keypad | Quantity/Carton | Gross Weight | Carton Size |
S603EM | Metal Keypad | 50pcs | 18.2KG | 44x29.5x25.5cm |
S603MF | ||||
S603EM-W | Metal Keypad | 50pcs | 20.7KG | |
S603MF-W | ||||
S603EM | Silicon Keypad | 50pcs | 16.7KG | |
S603EM-W | Silicon Keypad | 50pcs | 19.2KG | |
S4A User Manual S603-W_Waterproof Metal Access Control Card Reader
