TTL to Wiegand Access Control Reader

> Card type: EM, HID, MF, CPU Card

(Factory default: EM 125KHz)

> Operate by infrared remote

> 10,000 card users and 300 fingerprint users

> Relay NO/NC/COM output

  • Brand:

    S4A
  • Item NO.:

    F605
  • Specifications

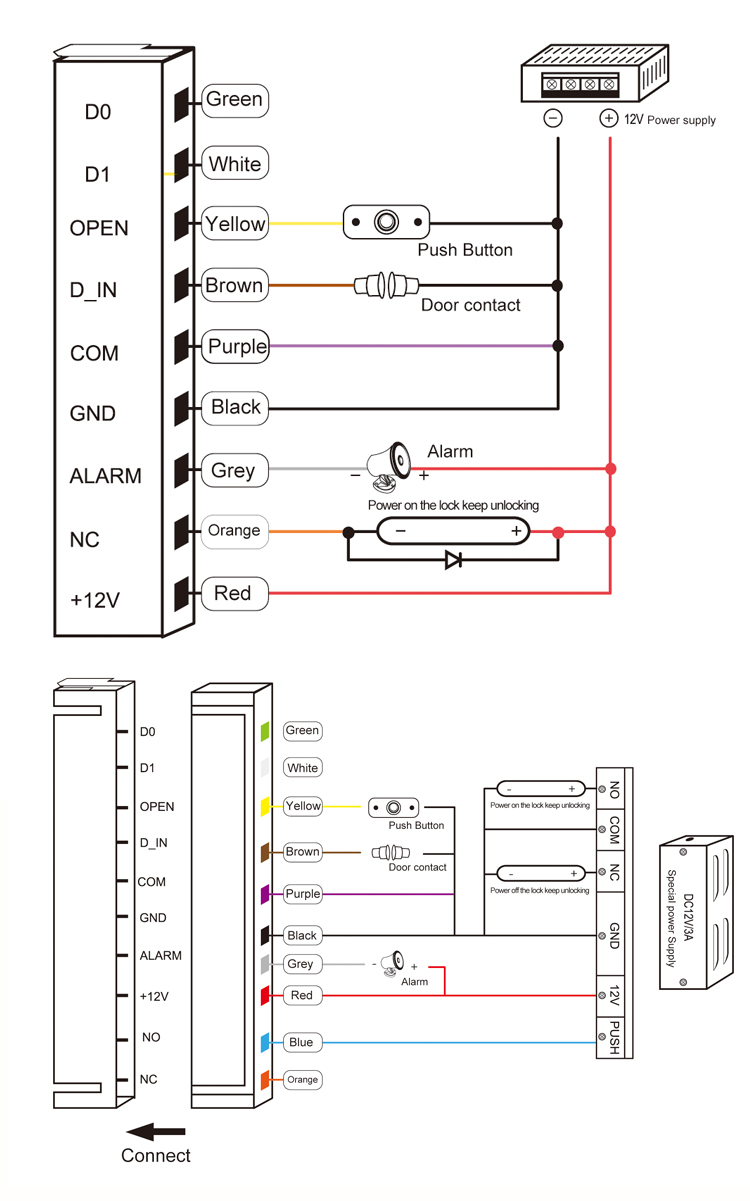

  • Wiring Diagram
  • Package
  • Download

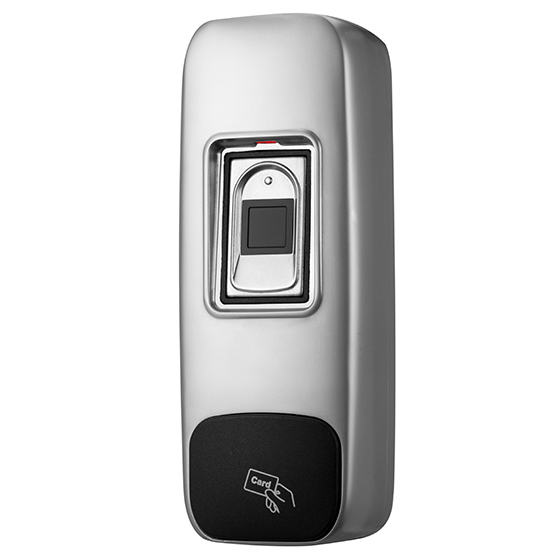

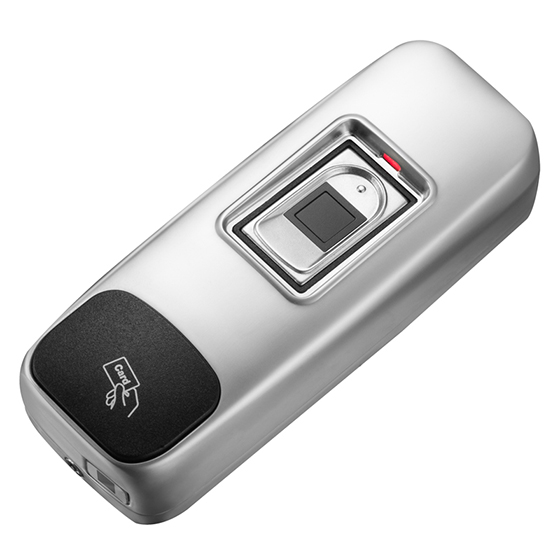

Fingerprint Standalone Access Controller

Model No.: F605 EM, HID, MF, CPU


The series of product is a new generation of multi-functional standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode etc.. It's widely applied to different occasions, such as office, residential communities, villa etc..


> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)

> Operate by infrared remote

> Contain reader mode, the transmission format could be adjusted by users.

> Support multi-access ways: Card+Fingerprint, multi cards or multi fingerprints

> Support admin card/admin fingerprint

> 10,000 card users and 300 fingerprint users

> Relay NO/NC/COM output


Card type

EM / HID / MF / CPU

User Capacity

10,000 card

Fingerprint Capacity

300

Operating Voltage

DC 12-24V

Standby Current

≤35mA

Operating Current

≤100mA

Operating Temperature

-20℃~60℃

Operating Humidity

0%~95%

Electric lock signal relay contact current

≤1A

Alarm signal MOS tube output current

≤1A

Unlocking time

0~300s adjustable

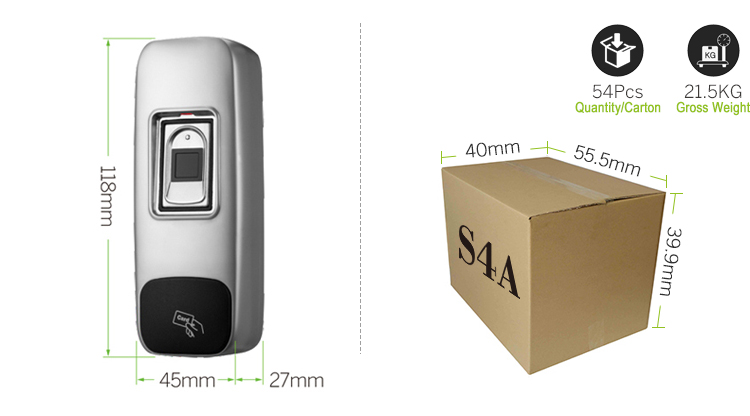

Size

118x45x27mm

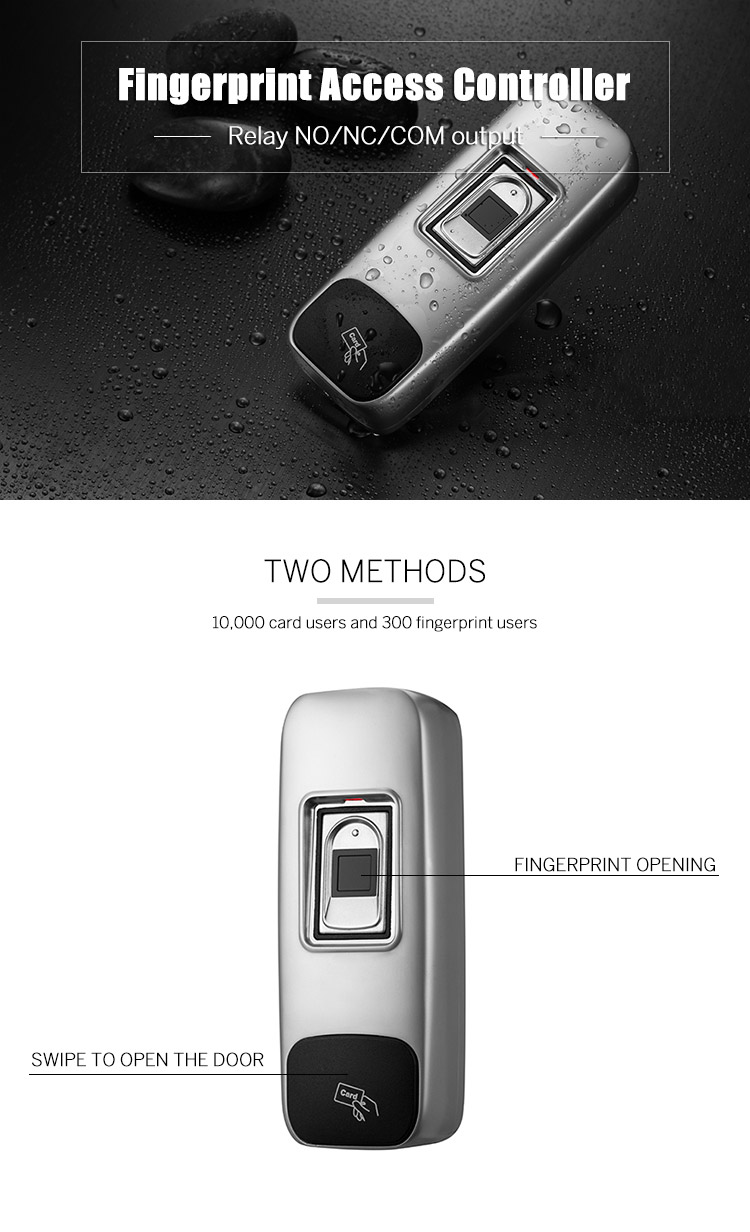

Access Control Reader

Fingerprint Standalone Access Controller

TTL to Wiegand Access Control Reader

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

F605EM

118x45x27mm

54pcs

21.5KG

55.5x40x39.9cm

F605MF

54pcs

21.5KG

F605EM-W

118x45x27mm

54pcs

22.6KG

F605MF-W

54pcs

22.6KG

Access Control Reader

S4A User Manual F605_TTL to Wiegand Access Control Reader
