Dual Configuration Options: Choose between the standard 1,000-user standalone unit or the optional 500-user version equipped with WG26/34 Wiegand output.
Reliable RFID Card Reading: Built-in proximity reader supporting 125KHz ID cards with a consistent detection range of 1cm to 10cm.

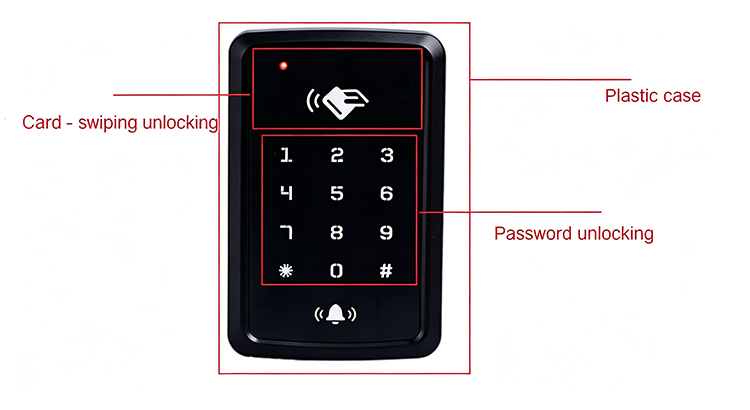

Tactile Physical Keypad: Engineered with a classic, wear-resistant physical keyboard that provides tactile feedback for accurate PIN code entry.
Wide Environmental Tolerance: Performs reliably in harsh indoor climates, withstanding a temperature range from -20°C to 60°C.

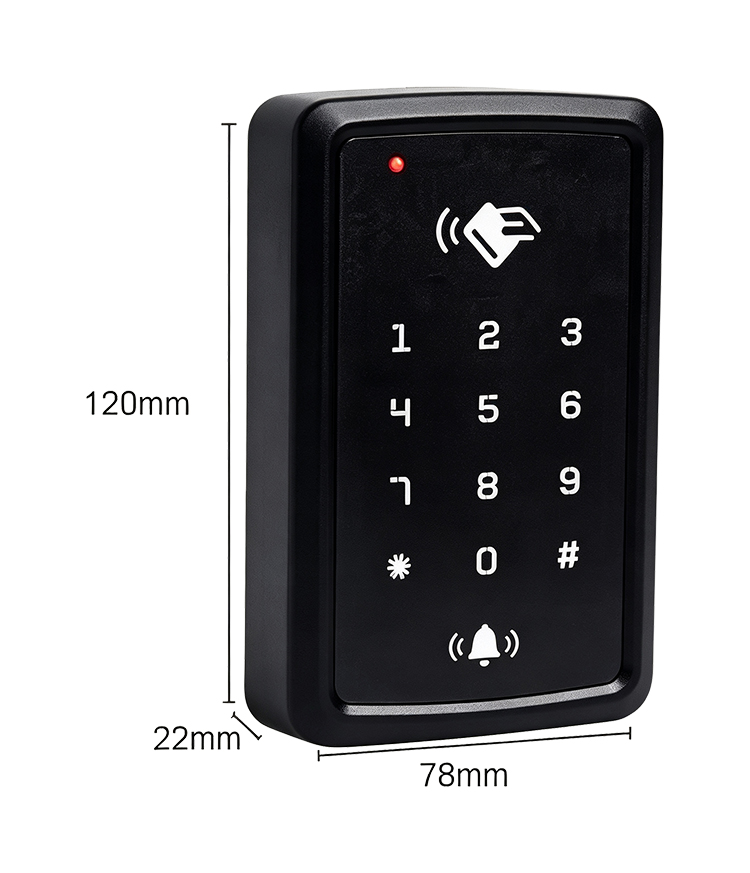

Compact and Slim Profile: Housed in a space-saving 120mm * 78mm * 22mm casing, making it easy to install on standard door frames and narrow spaces.
Brand:
S4AItem NO.:

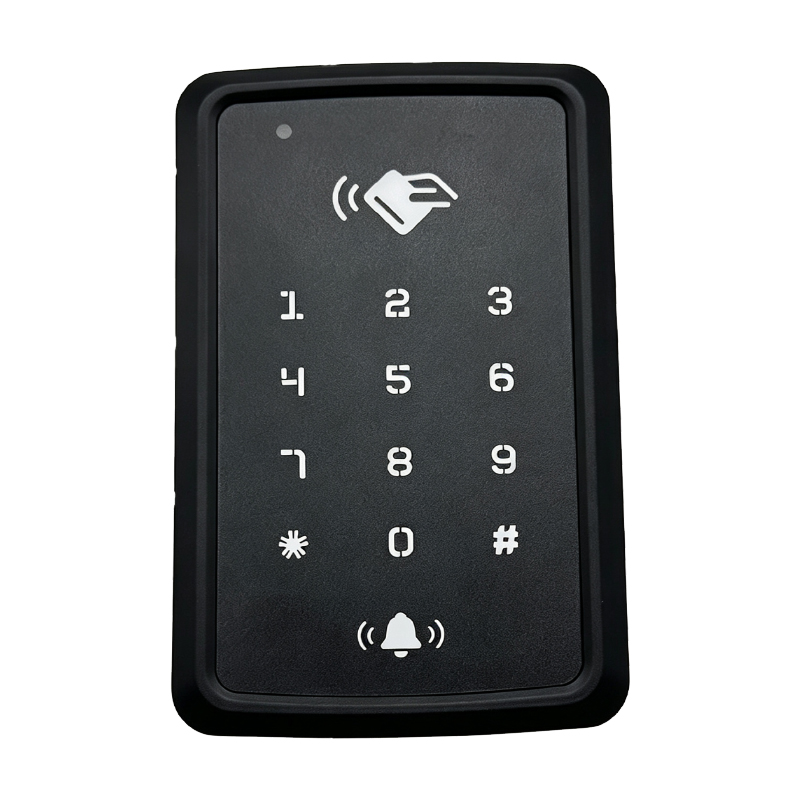

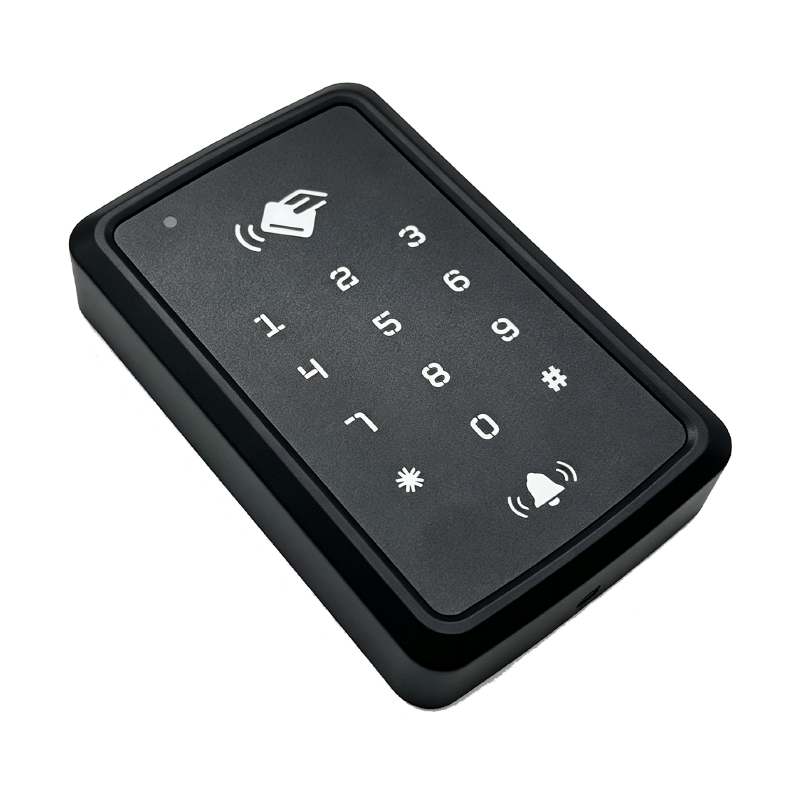

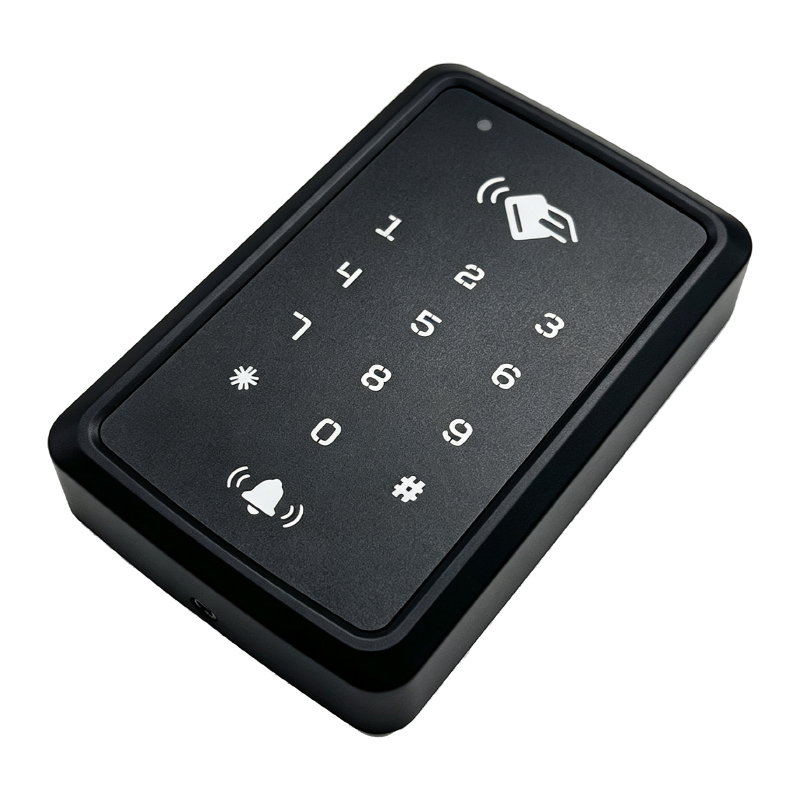

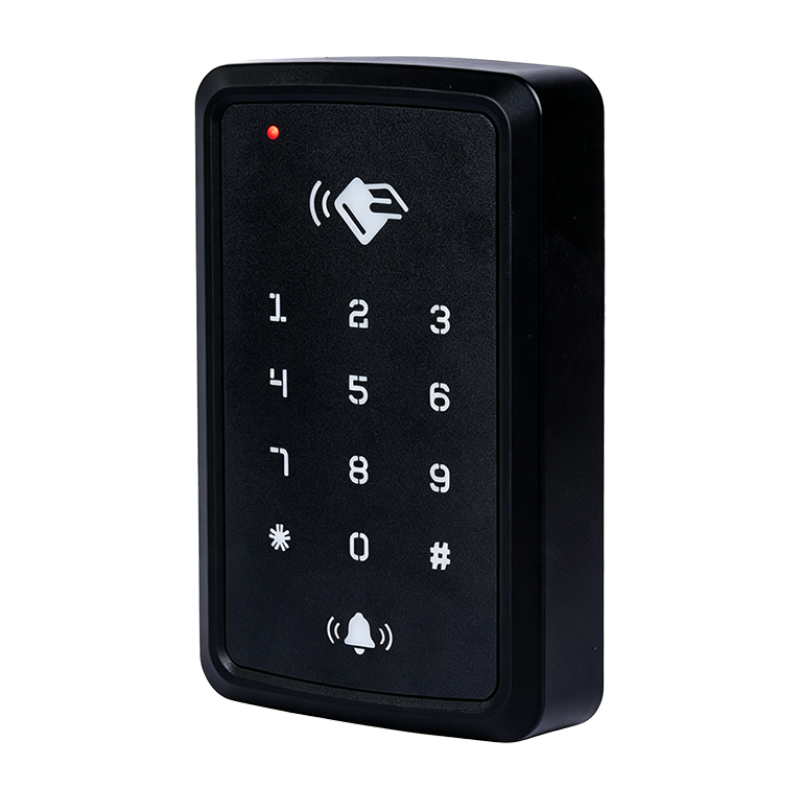

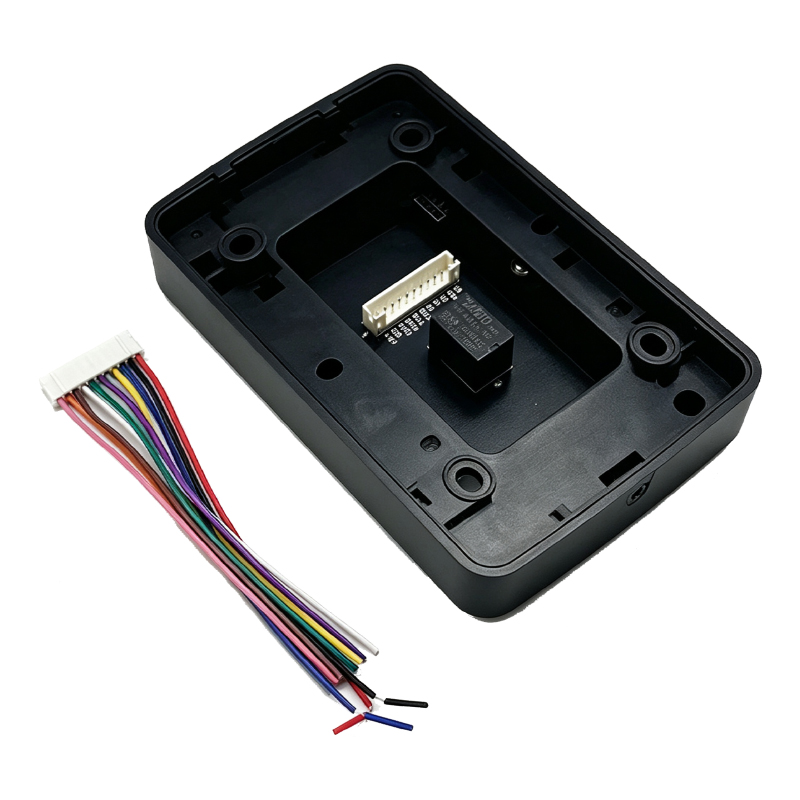

T13DT13D Standalone RFID Access Control Keypad with Optional Wiegand
The T13D is a highly reliable standalone access control terminal featuring durable mechanical physical keys and an integrated 125KHz RFID reader. Designed for simple yet secure entry points, it supports up to 1,000 ID card users in its standard standalone configuration. For expanded system integration, an optional version is available supporting WG26/34 Wiegand output with a 500-user capacity, making it an incredibly versatile choice for offices, residential properties, and commercial facilities.
Product Parameter
Parameter Descr1ption
Model
T13D
Working Voltage
DC 12V ± 10%
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Physical Keypad
User Capacity
1,000 Users / 500 Users(Optional)
Card Types
ID Card
Wiegand Interface
N/A / WG26 / WG34 Output(Optional)
External Connectivity
Supports External Card Reader
Reading Distance
1cm - 10cm
Dimensions
120mm * 86mm * 18mm
> Waterproof conforms to IP66 (Wireless Keypad)> Communication frequency: 433MHz> 600 PIN/card users> Communication distance: 50m Max> Tri-color LED status display
> Card type: EM Card > Access Control Keypad Containing 800 users > 800 cards, a 'Personal PIN' goes alone with each card > Card Reading Distance: 5~15cm > Voltage: 12VDC
> Card type: EM Card> Capacity: 2000 users> Working Voltage: DC12-24V> Card Reading Distance: 1~3cm> Dimension: 114x75x16mm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~5cm> Open Mode: Card or Access PIN
> Card type: EM Card> User Capacity: 1000 users (Standard)> User Capacity: 6000 users (Optional)> Read 125KHz EM Card (Standard)> Read 13.56MHz Mifare Card (Optional)> Open Mode: Card or PIN> Card reading distance: 1~5cm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~15cm> Open Mode: Card or Access PIN
> Card type: EM Card> ABS single door access control
> Card type: EM Card > Multi-function standalone device can be used as the WG26 card reader > Capacity: 2000 card users, 2000 PIN users > Three-door open methods: card, code, card+code > Backlit keypad: Can operate keyboard in dark nigh
