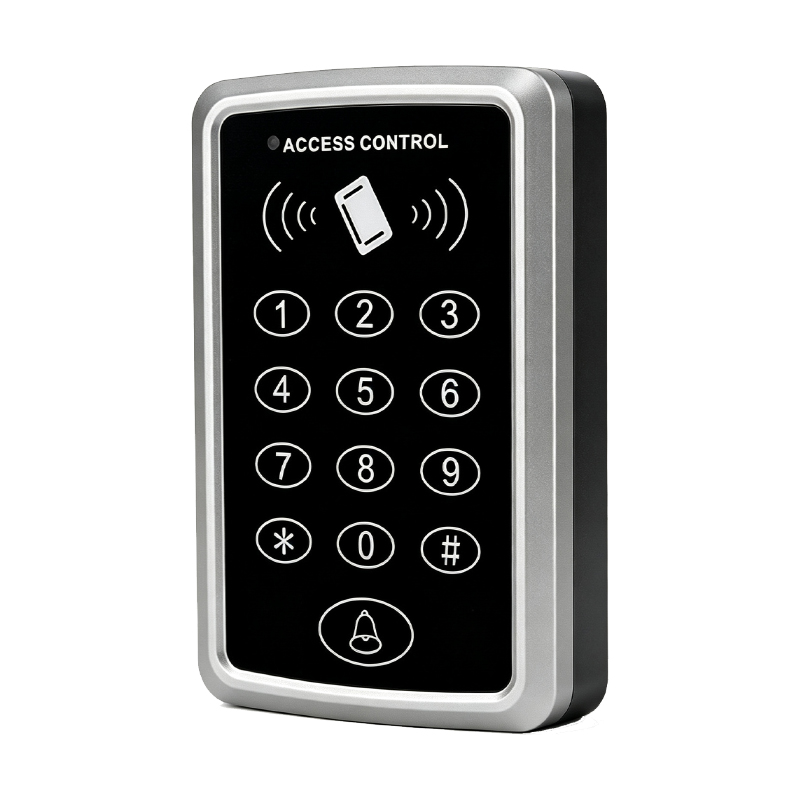

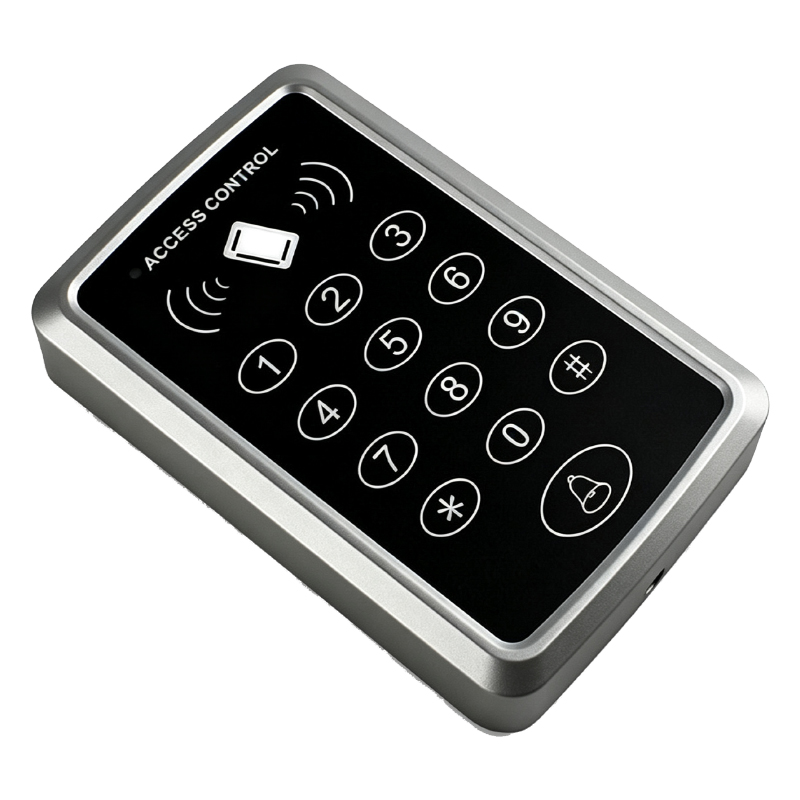

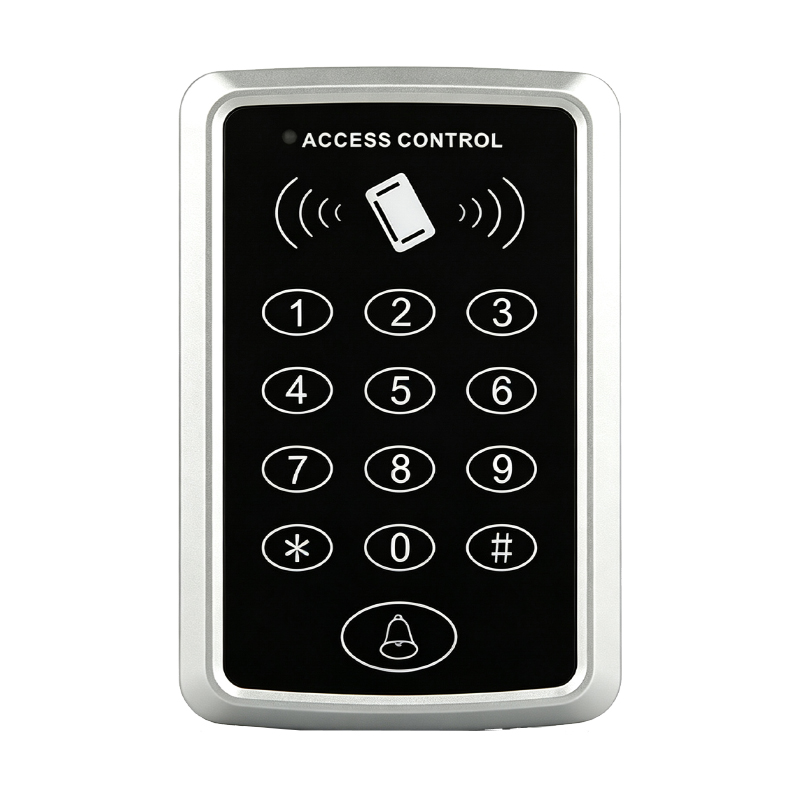

T11D T12D T13C Standalone Access Control Keypad RFID Door Entry System

Flexible Model Configurations: Choose between the classic T11D/T12D ID card models or the upgraded high-capacity T13C IC card model.
Up to 6,000 User Capacity: Accommodates standard deployments with a 1,000-user limit (T11D/T12D) or larger scale facilities with a 6,000-user capacity (T13C).
Wiegand WG26/34 Integration: The T13C model includes built-in Wiegand input and output signals, allowing easy connection to external readers or controllers.

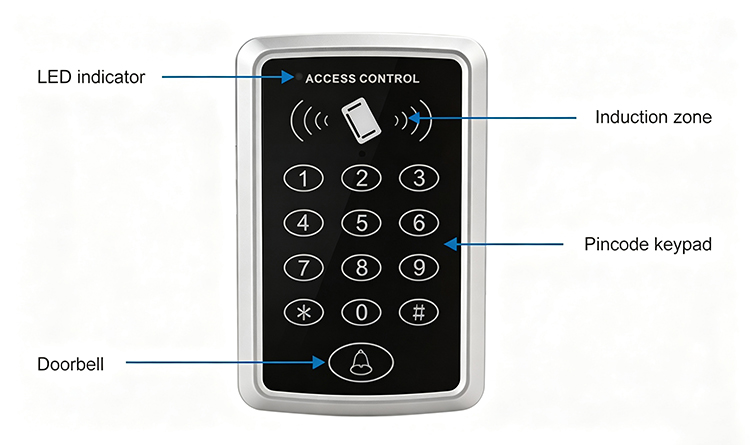

Durable Physical Keypad: Equipped with a tactile, wear-resistant physical keyboard that ensures stable input and operation across high-traffic doors.
Wide Operating Temperature: Engineered to perform reliably in diverse environments with an operating temperature range of -20°C to 60°C.

Brand:
S4A
Item NO.:
T11D、T12D、T13C

Inquire Now

Specifications

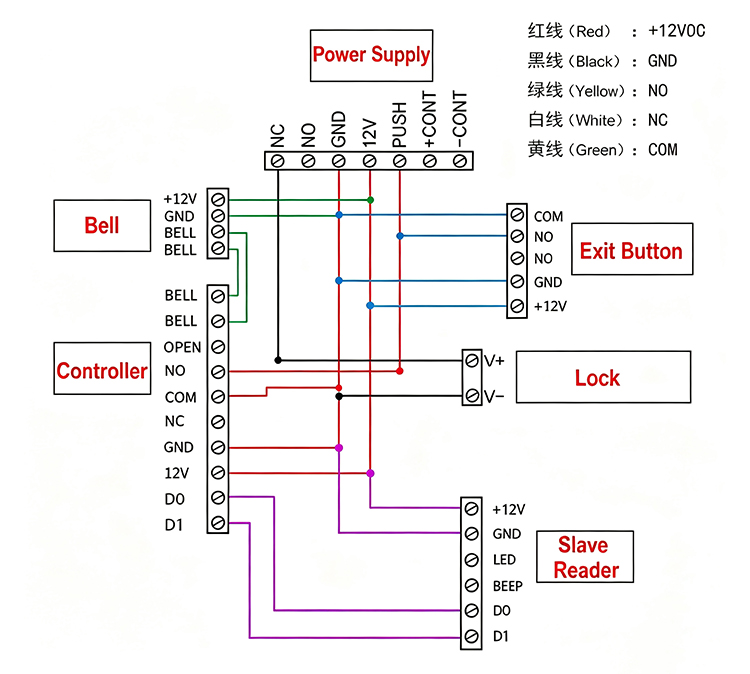

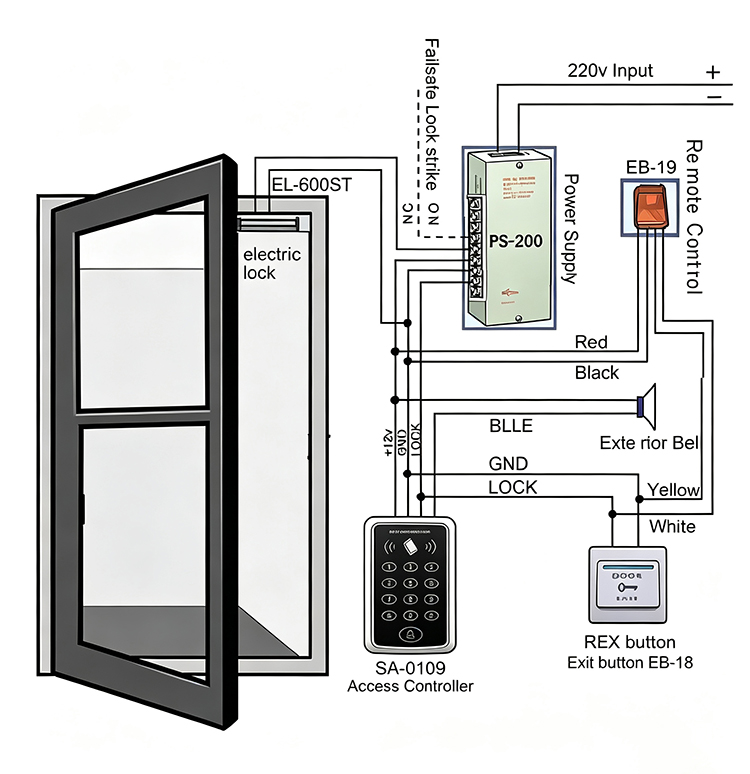

Wiring Diagram

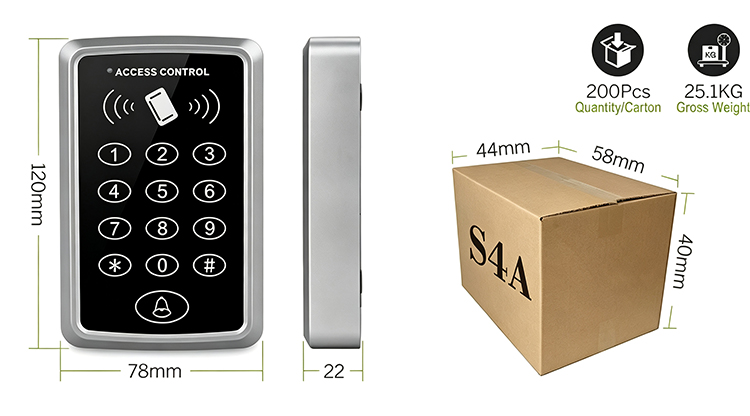

Package

T11D / T12D / T13C Series Standalone RFID Access Control Keypad

The T11D / T12D / T13C Series offers reliable, cost-effective standalone access control solutions designed with a classic mechanical physical keypad interface. The base models (T11D/T12D) provide 125KHz ID card authentication for up to 1,000 users. For advanced security demands, the upgraded T13C model introduces high-frequency 13.56MHz IC card support, a massive 6,000-user capacity, and standard Wiegand (WG26/34) input/output communication for wider system integration.

Parameter	T11D / T12D (Base Models)	T13C (Upgraded Model)
Working Voltage	DC 12V ± 10%
Working Current	< 100mA
Operating Temperature	-20°C to 60°C
Keypad Type	Physical Keypad
Card Type Support	ID Card	IC Card
User Capacity	1,000 Users	6,000 Users
Wiegand Interface	N/A	WG26 / WG34 Input & Output
Reading Distance	1cm - 10cm

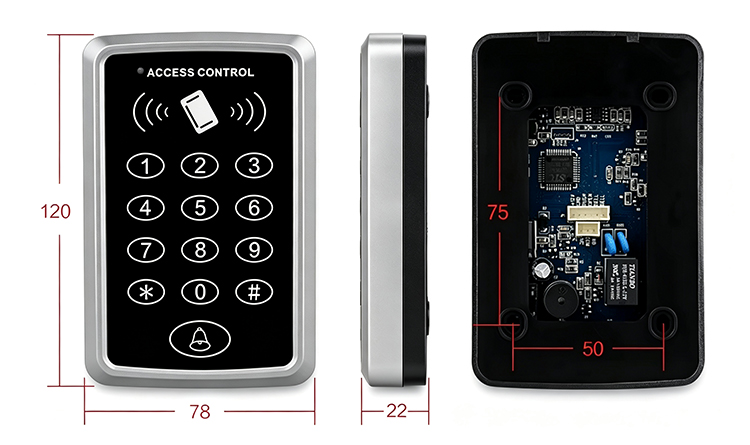

Dimensions	120mm * 78mm * 22mm

Related Tags : T11D Access Control T12D RFID Keypad T13C Standalone Keypad WG26 WG34 Access Control RFID Door Entry Terminal
