Sleek Touch Keypad: Designed with a highly responsive, modern touch-sensitive interface that is both wear-resistant and easy to clean.
High 4,000 User Capacity: Built-in system memory easily manages up to 4,000 user credentials, making it perfect for small to medium-sized enterprises.
Flexible Frequency Options: Available in two models to match your facility's legacy cards—choose 125KHz ID (T6D) or high-security 13.56MHz IC (T6C).
Wiegand & External Reader Support: Features standard WG26/WG34 output and external reader compatibility for seamless dual-direction entry and exit control.
Compact & Reliable Design: Packaged in a compact 117mm * 75mm * 20mm frame that performs reliably in temperatures ranging from -20°C to 60°C.
Brand:
S4AItem NO.:

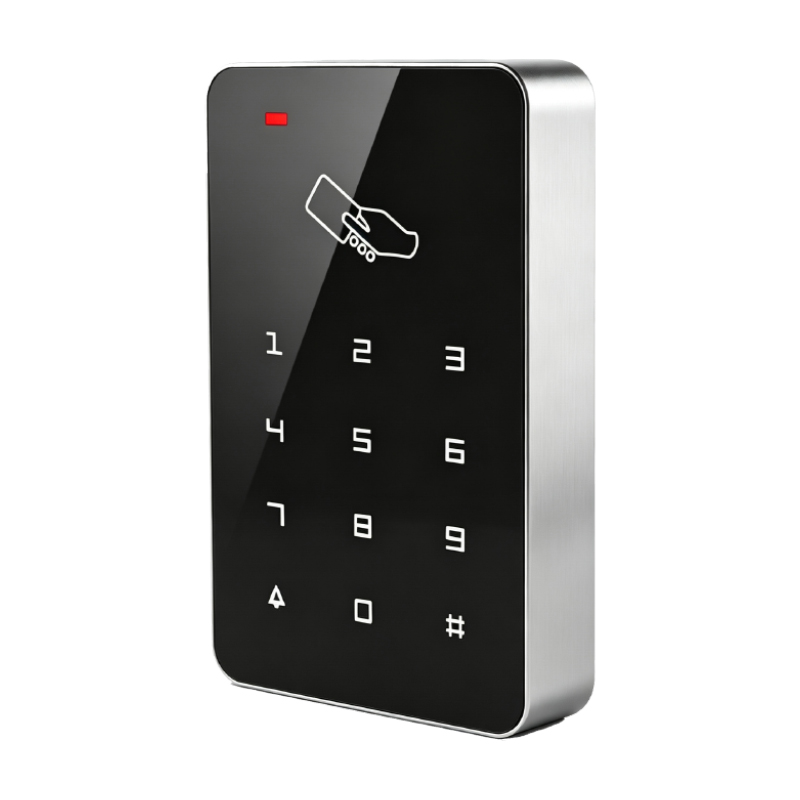

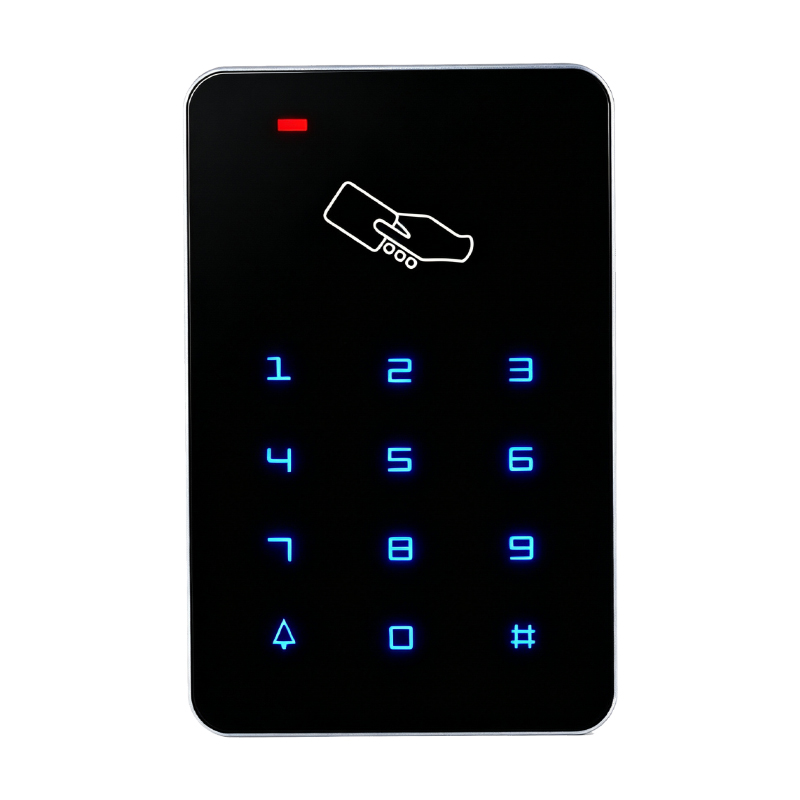

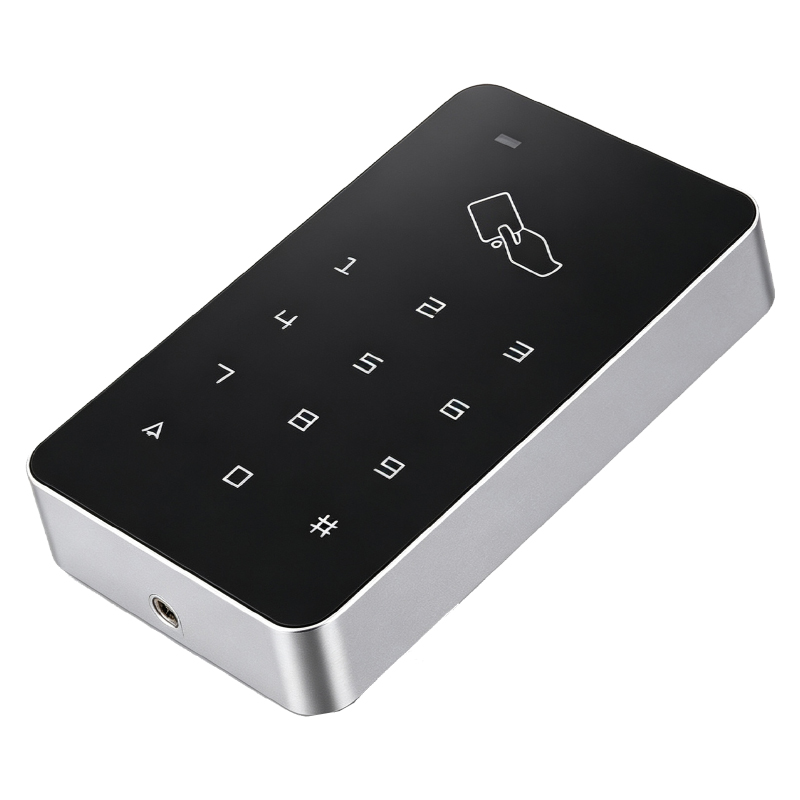

T6D、T6CT6D / T6C Standalone Touch Keypad Access Control Terminal
The T6D / T6C Series represents a sleek, modern standalone access control solution featuring a highly responsive, modern touch keypad. Engineered for versatile security management, the system offers a generous capacity of 4,000 users and supports either 125KHz ID (T6D) or 13.56MHz IC (T6C) credentials. With integrated Wiegand (WG26/34) output and external reader support, this compact terminal provides exceptional scalability for modern offices, apartments, and commercial facilities.
Product Parameter
Parameter Descr1ption
Model
T6D (ID) / T6C (IC)
Working Voltage
DC 12V ± 10%
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Touch Keypad
User Capacity
4,000 Users
Card Types
ID (T6D) or IC (T6C)

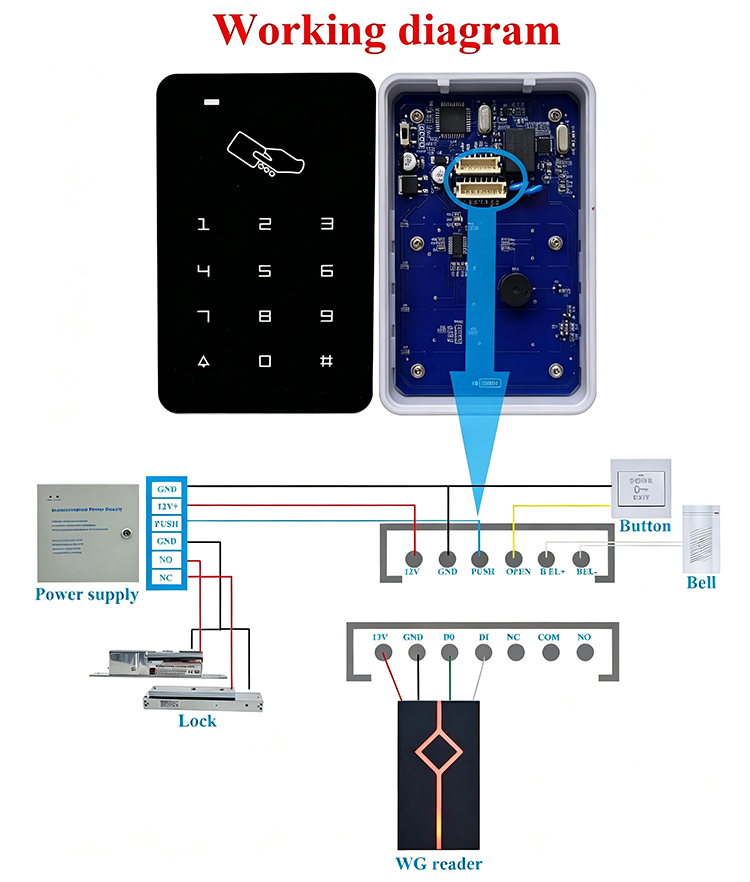

Wiegand Interface
WG26 / WG34 Output
External Connectivity
Supports External Card Reader
Reading Distance
1cm - 10cm
Dimensions
115mm * 75mm * 21mm
> Waterproof conforms to IP66 (Wireless Keypad)> Communication frequency: 433MHz> 600 PIN/card users> Communication distance: 50m Max> Tri-color LED status display
> Card type: EM Card > Access Control Keypad Containing 800 users > 800 cards, a 'Personal PIN' goes alone with each card > Card Reading Distance: 5~15cm > Voltage: 12VDC
> Card type: EM Card> Capacity: 2000 users> Working Voltage: DC12-24V> Card Reading Distance: 1~3cm> Dimension: 114x75x16mm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~5cm> Open Mode: Card or Access PIN
> Card type: EM Card> User Capacity: 1000 users (Standard)> User Capacity: 6000 users (Optional)> Read 125KHz EM Card (Standard)> Read 13.56MHz Mifare Card (Optional)> Open Mode: Card or PIN> Card reading distance: 1~5cm
> Card type: EM Card> Storage: 1000users> Operating voltage: DC 12V±10% > Card reading distance: 1~15cm> Open Mode: Card or Access PIN
> Card type: EM Card> ABS single door access control
> Card type: EM Card > Multi-function standalone device can be used as the WG26 card reader > Capacity: 2000 card users, 2000 PIN users > Three-door open methods: card, code, card+code > Backlit keypad: Can operate keyboard in dark nigh
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
