Rfid Reader and Access Card Reader

> Card type: 125KHz or 13.56MHz Card
> PCD-104EM: 125KHz (WG26 output)
> PCD-104Mifare: 13.56MHz (WG34 output)

Brand:
S4A
Item NO.:
PCD-104

Inquire Now

Specifications
Package
Download

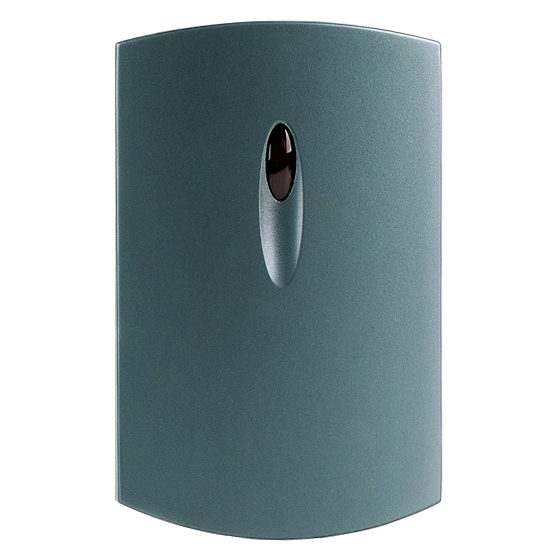

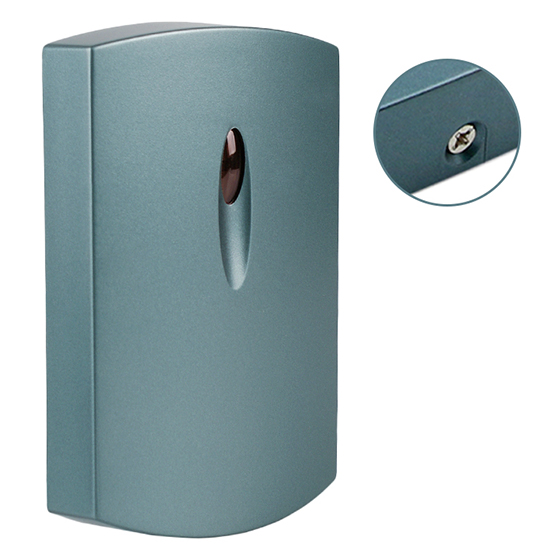

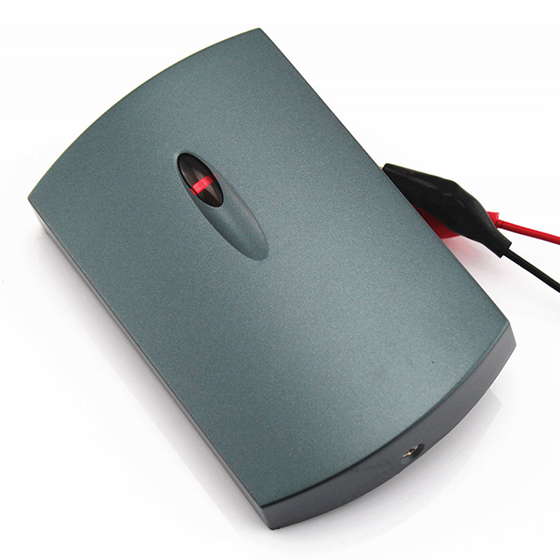

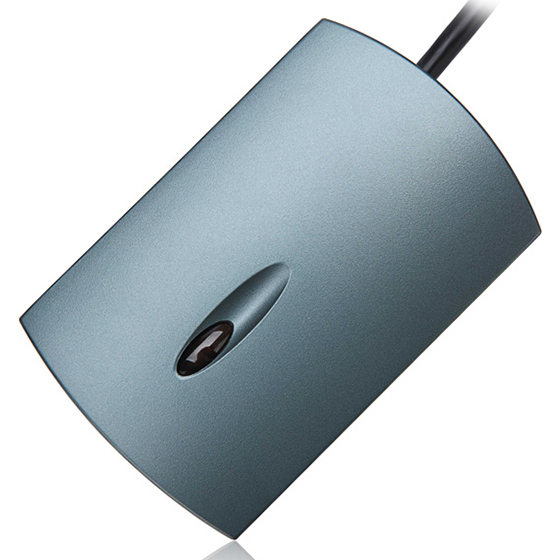

RFID reader and Access Card reader

Model No.: PCD-104 EM, MF

Introduction:

PCD-104E: 125KHz Proximity card reader

PCD-104M: 13.56MHz Mifare card reader

Features:

> 125KHz Proximity /13.56MHz Mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)

> Easy to install on Metal Door Frame or Mullion

> External LED Control

> External Buzzer Control

> Indoor / Outdoor Operation

> Solid Epoxy Potted

> Waterproof IP65

> Reverse Polarity Protection

Model	PCD-104EM and PCD-104MF
Read Range	PCD-104EM: Up to 10CM, PCD-104MF:Up to 5CM
Reading Time (Card)	≤300ms
Power / Current	DC 6-14V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit/34bit Wiegand (default)
LED Indicator	2 Colour LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Colour	Black
Material	ABS+PC with texture
Dimension(W x H x T)mm	126 x 76x 23mm
Weight	50g
Index of Protection	IP65

Package	100pcs/Carton
Unit weight	0.12KG/pcs
Carton Dimension:	45X55X20(cm)

S4A Datesheet_Rfid Reader and Access Card Reader

Download
