> Two Accesses: Fingerprin, Pincode
> Hardware Platform: ARM9
> Wiegand: WG26 output
Brand:
S4AItem NO.:

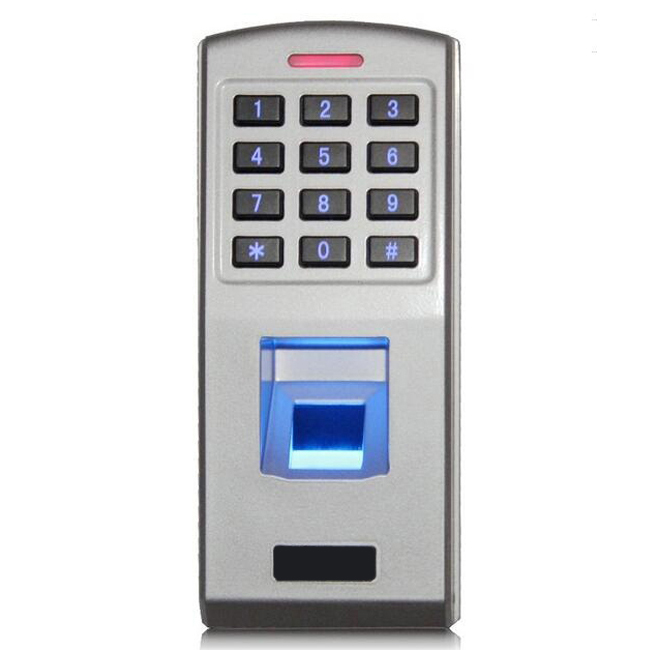

F3KOutdoor Biometric Standalone Keypad Access Control Entry System
Model No.: F3K
Product Features:
> Internal electric lock control directly, the out switch, magnetic detection(independent control mode)
> Capacitance induction type fingerprint collector, standby and power nap function.
> The administrator function, we can effectively operate the equipment without needing a connection to any of the PC machines. Operation is more convenient.
> Wiegand signal output can combine with all standard controller
Hardware platform | ARM9 |
Fingerprint collector | Fingerprint sensing optical Blu ray fingerprint collector |
Fingerprint Capacity | 500(standard), Can be extended to 1000,3000 |
Password Capacity | 500 groups |
Administrator Function | support 2 groups of administrators to register and delete |
Wiegand | WG26 output |
Recognition Speed | <1second |
LED | Red&Blue |
Alert Tone | Buzzer |
Alarm Function | Anti-dismantle, Force to open the door, Open door overtime |
Temperature of use | －25℃～50℃ |
Work humidity | 20%～80% |
Power supply | +12V |

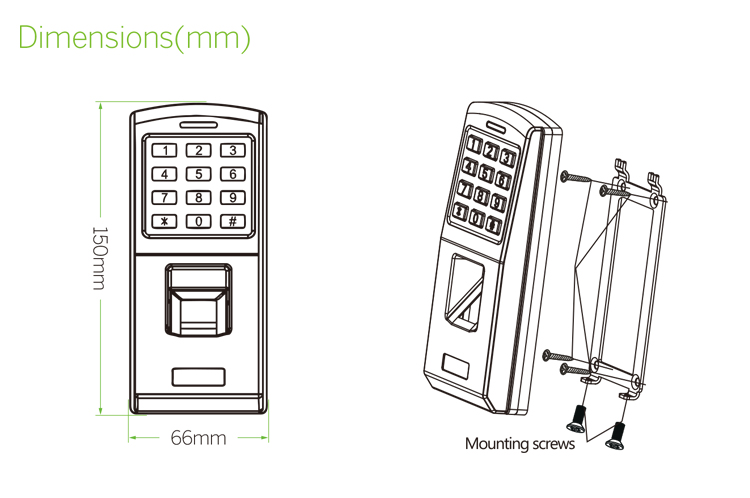

Size | 150 x 66mm |
S4A Datasheet_Outdoor Biometric Standalone Keypad Access Control Entry System
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
