> Waterproof, conforms to IP66
> Metal case, anti-vandal
> One Programming relay output
> Multi-color LED Status Display
Brand:
S4AItem NO.:

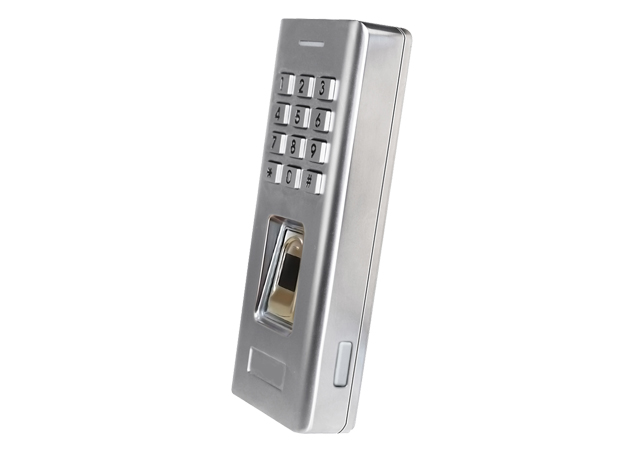

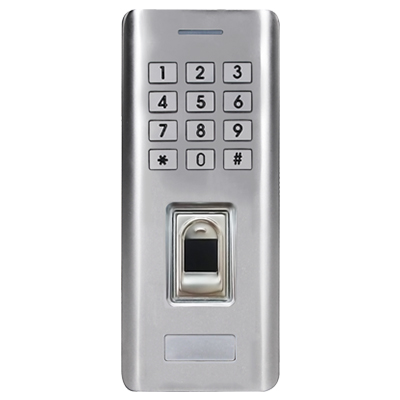

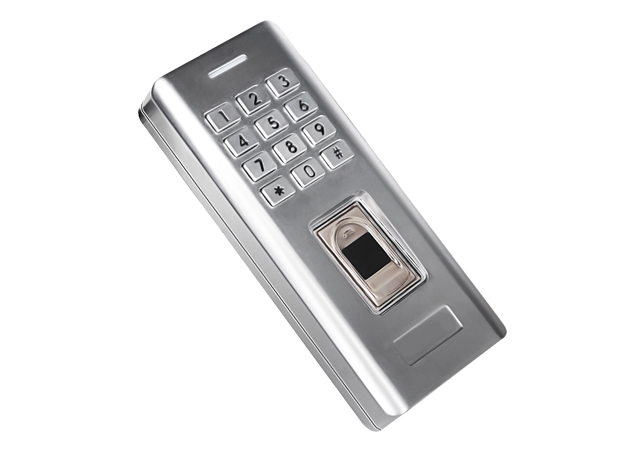

SF5IP65 Waterproof Standalone RFID Fingerprint Access Controller with Keypad
Model No.: SF5
SF5 is a standalone fingerprint access control with a keypad.
The IP66 waterproof version is very suitable for outdoor use. The device supports up to100 fingerprint users and 900 PIN users, it can be easily operated through the keypad and master.
Features:
> Waterproof, conforms to IP66
> Metal case, anti-vandal
> One Programming relay output
> Multi-color LED Status Display
> 1000 Users: 100 Fingerprint Users, 890 PIN Users, 10 Visitor Users
> PIN length: 4~6 digits
> Integrated alarm & Buzzer output
> Capacitive Fingerprint Sensor
User Capacity | 1000 |
Fingerprint | 100 |
PIN | 890 |
Visitor | 10 |
PIN Length | 4~6 digits |
Operating Voltage | 12V DC |
Idle Current | ≤ 45mA |
Active Current | ≤ 150mA |
Fingerprint Reader | Capacitive Fingerprint Module |
Resolution | 500DPI |
Identification time | <1S |
FAR | <0.001% |
FR | <0.01% |

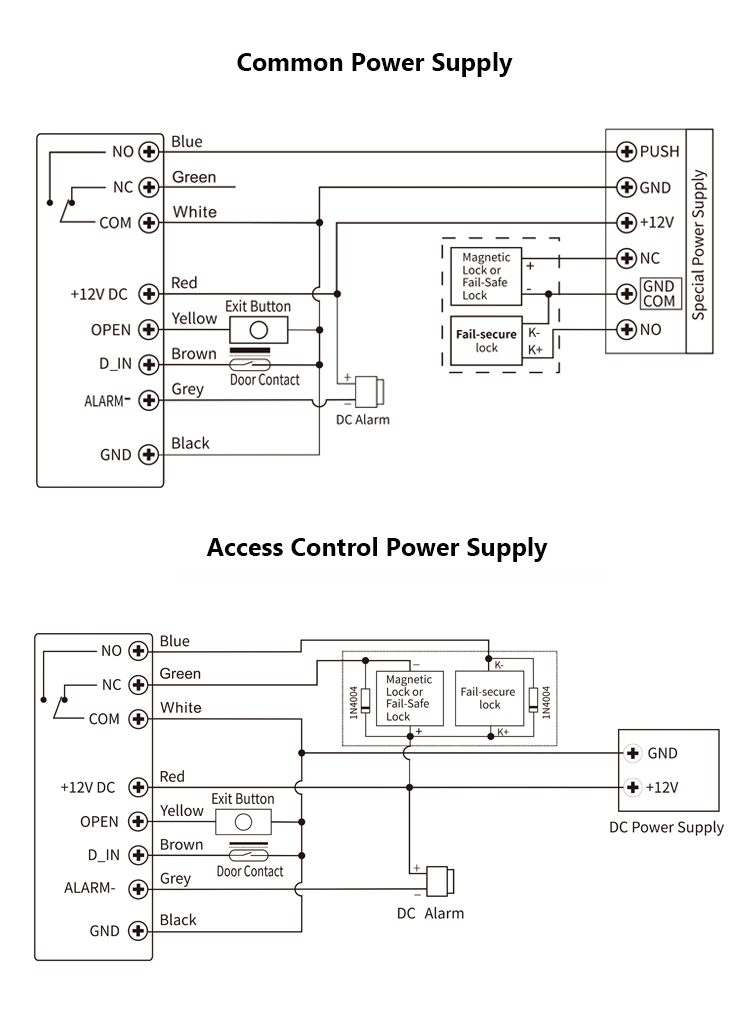

Wiring Connections | Relay output, exit button, alarm, door contact |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
Adjustable Alarm Output Time | 0~3 Minutes (default: 1 minute) |
Lock Output Load | 2 Amp Maximum |
Alarm Output Load | 5 Amp Maximum |
Environment | Meets IP66 |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F)--Default |
-40°C ~ 60°C (-40°F ~ 140°F)--Optional | |
Operating Humidity | 20%RH ~ 90%RH |
Physical | Zinc-Alloy |
Surface Finish | Powder Coat |

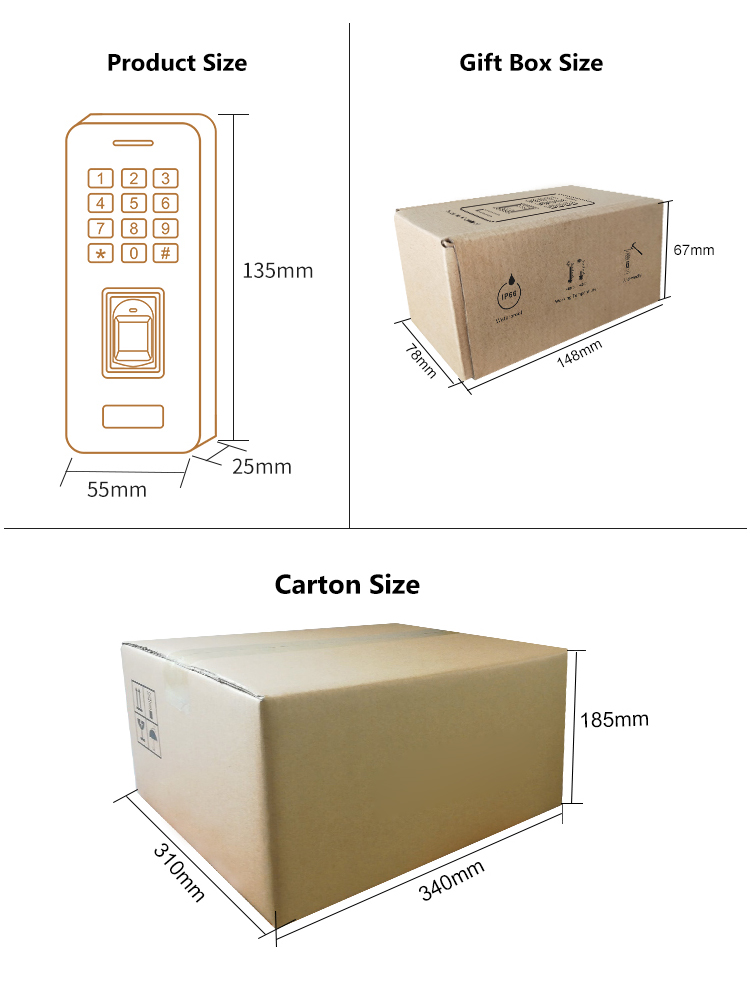

Dimensions | L135 x W55 x H25 (mm) |
Unit Weight | 232g |
Shipping Weight | 269g |
S4A Datasheet_IP65 Waterproof Standalone RFID Fingerprint Access Controller with Keypad
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
