> Control 1 door, 2 readers
> Communication Protocol: TCP/IP
> Door control: 1 door, 1pcs relay
> Power Supply Input: 12V DC
Brand:
S4AItem NO.:

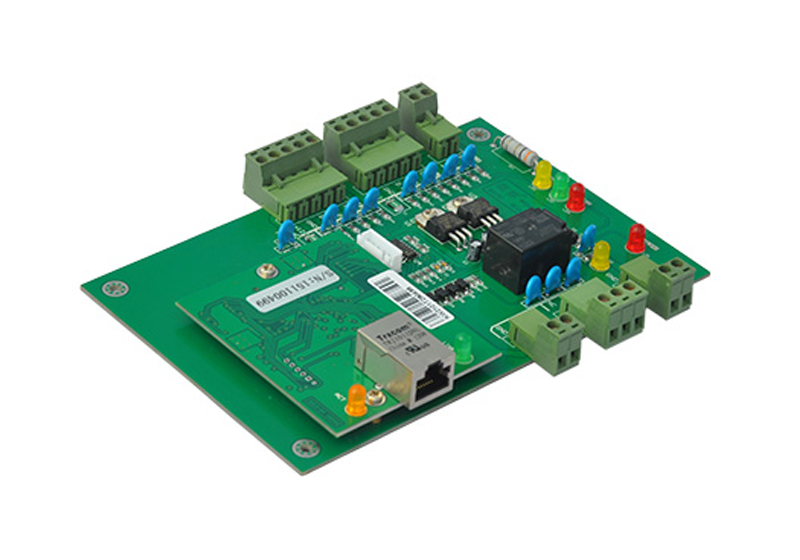

ACB-W1One Door TCP/IP Network Access Control Panel Wiegand Controller, Computer-Based Software with Remote Open
Model No.: ACB-W1
Access control is a security technique that regulates who or what can view or use resources in a computing environment. It is a fundamental concept in security that minimizes risk to the business or organization.
There are two types of access control: physical and logical. Physical access control limits access to campuses, buildings, rooms, and physical IT assets. Logical access control limits connections to computer networks, system files, and data.
To secure a facility, organizations use electronic access control systems that rely on user credentials, access card readers, auditing, and reports to track employee access to restricted business locations and proprietary areas, such as data centers. Some of these systems incorporate access control panels to restrict entry to rooms and buildings, as well as alarms and lockdown capabilities, to prevent unauthorized access or operations.
Parameter | One-door TCP/IP Network Door Controller | Two-door TCP/IP Network Door Controller | Four-door TCP/IP Network Door Controller |
Model # | ACB-W1 | ACB-W2 | ACB-W4 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping a card or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card and get outdoors by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card readers with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pcs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||
One-Door TCP/IP Network Access Control Panel Wiegand Controller, Computer-Based Software | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
ACB-W1 | 80pcs | 20.9KG | 21.22KG | 63x52x32cm |
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
