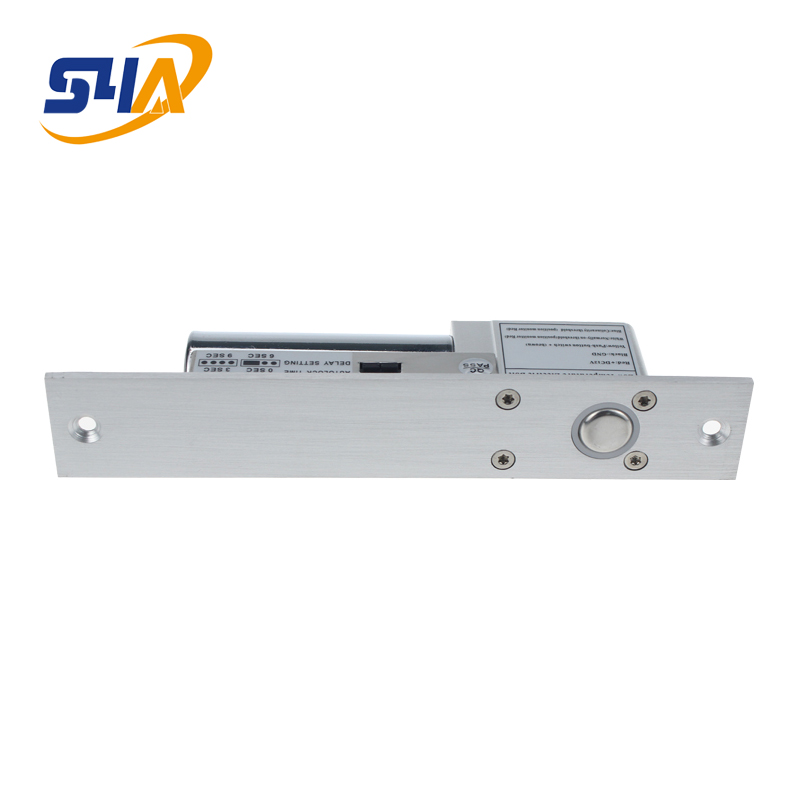

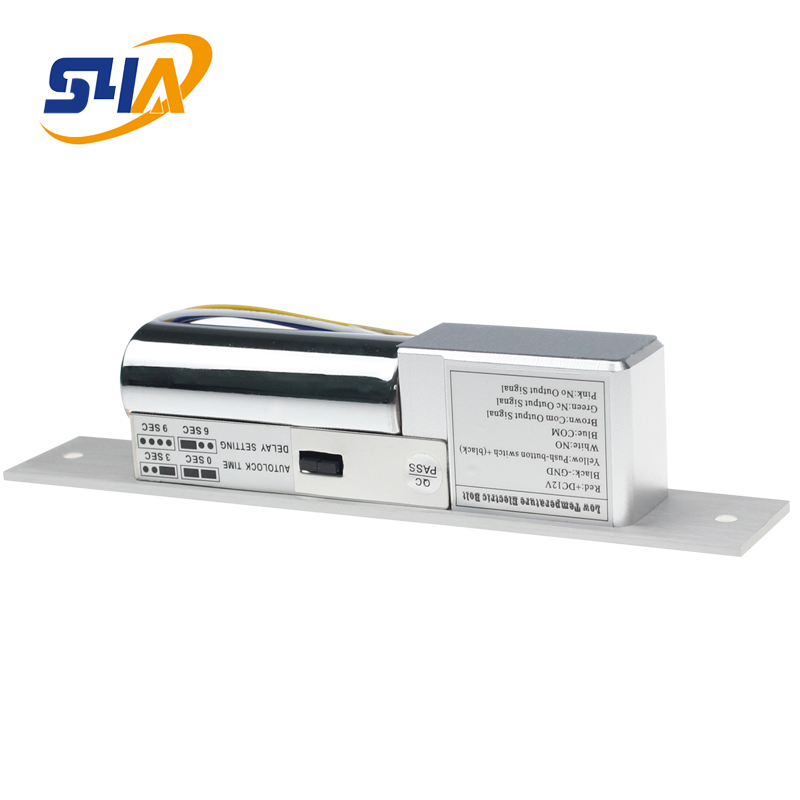

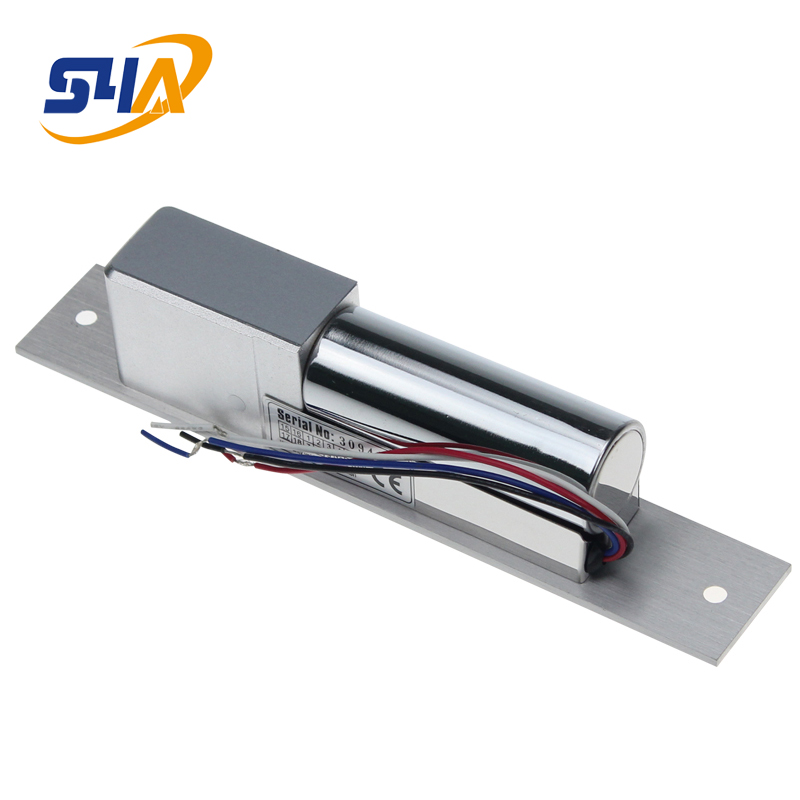

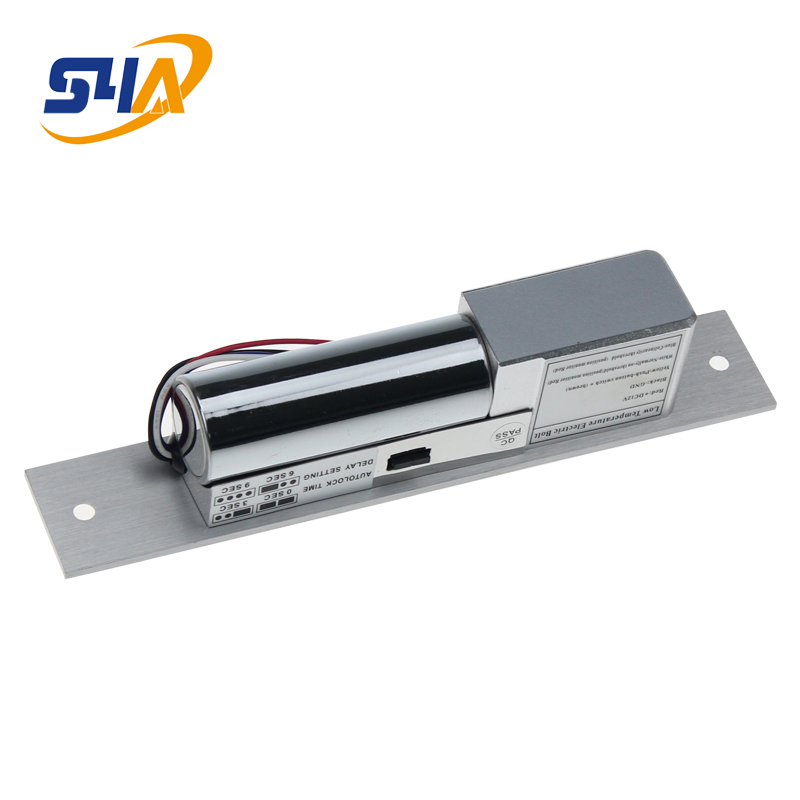

5 Line Electric Bolt Lock with Feedback Signal

>Signal Output: door open or door close state detection

>with output point, NC/COM

>Fail-Safe:Power to lock



  • Brand:

    S4A

  • Item NO.:

    BL-C2001D
Inquire Now
  • Specifications

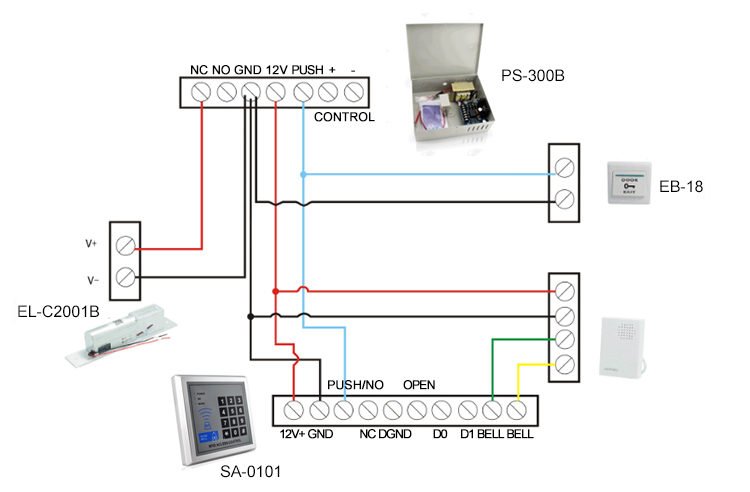

  • Wiring Diagram
  • Package
  • Download

5 Line Electric Bolt Lock With door feedback and Timer

Model No.: BL-C2001D


 Fail-Safe: Adjustable fail-safe (Power to lock) Adjustable to fail-safe (Power to lock) for public places.

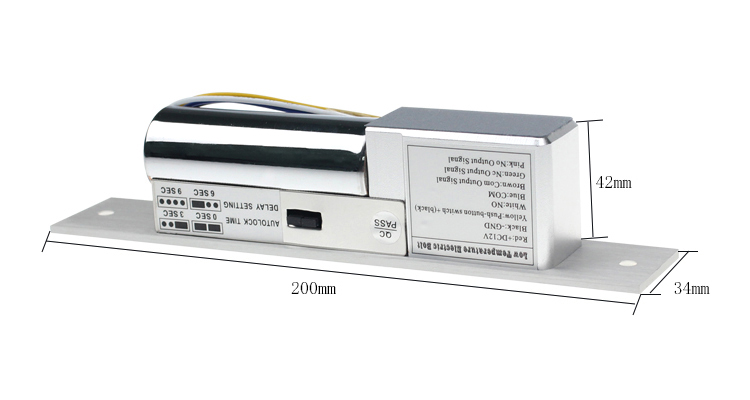

Face Plate

205Lx35WX40H(mm)

Strike plate

90Lx25Wx2H(mm)

Bolt

16mm(Throw) x 16mm(Diameter)

Electric Bolts Lock

Electric Bolts Lock

5 Line  Electric Bolt Lock with Feedback Signal

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

BL-C2001D

50PCS

21.5KG

22KG

43X24X43cm

Electric Bolts Lock

S4A Datesheet_5 Line Electric Bolt Lock with Door Feedback and Timer

Download
