> Door Weight: 50-65KG
> Material: Aluminum alloy
> Door Width: 1000mm
> Dimensions: 175x65x40mm
Brand:
S4AItem NO.:

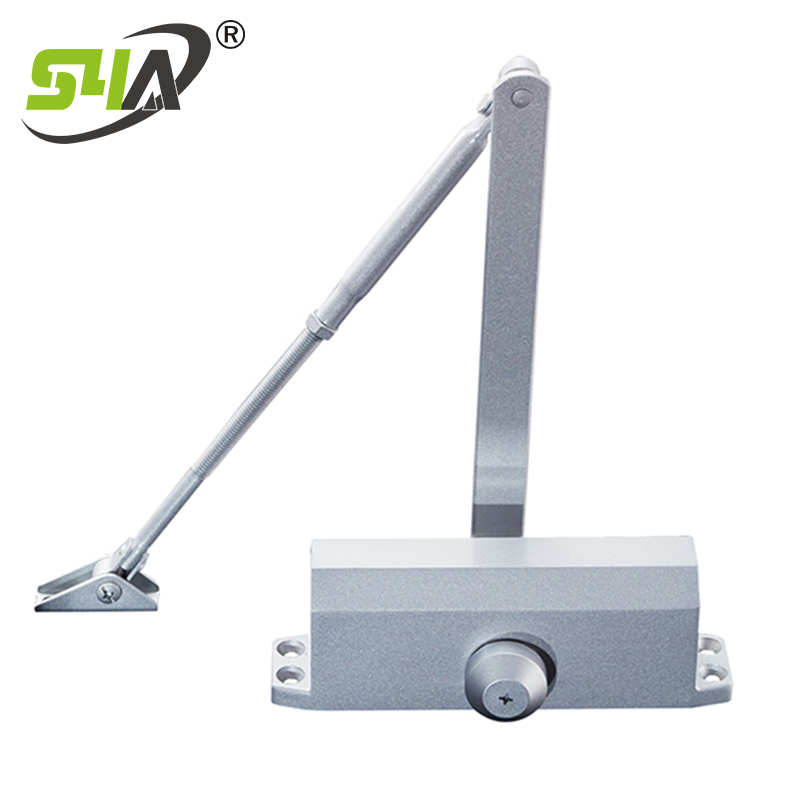

DL-60ANSI Fire Rated America Style Heavy Duty Door Width 1000 Door Closers
Model No.: DL-60
Material | Aluminum alloy |
Door Weight | 50~65KG |
Door Width | 1000mm |
Finish | Electrostatic paint |
Speed adjustment | Two stages of adjustable speed |
Temperature | -40°C~80°C, -60°C~80°C |
Function | 90° hold-open and Automatic (Factory default is Automatic) |
Warranty | 300000 times; 500000 times |
Dimensions | 175x65x40mm |
Application:
The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.
Functional:
A. Economic type door closer of residential and commercial
B. Performance standard: QB/T 2698-2013
C. Two-speed control valve, adjusting closing speed and latching speed
D. ADC12 environmental production of aluminum alloy casting body
Product Details:
1. Cycle test: up to 500,000 cycles
2. Hydraulic oil: low-temperature resistance to -45℃
3. Rocker arm: made of good quality carbon steel material, not easily deformed or broken
4. Surface: double painted with anti-corrosion material, 96 hours corrosion resistance
5. Power Size EN4/5
6. Positioning Function Optional
7. Back-check function Optional
8. Manufactured under strict observation of EN1154 standard
9. Precise sealed, preventing oil leakage
10. High-quality die-casting aluminum alloy, protected with two-layer bright paint.
11. Two hydraulic press valves controlling two stage doors closing automatically.

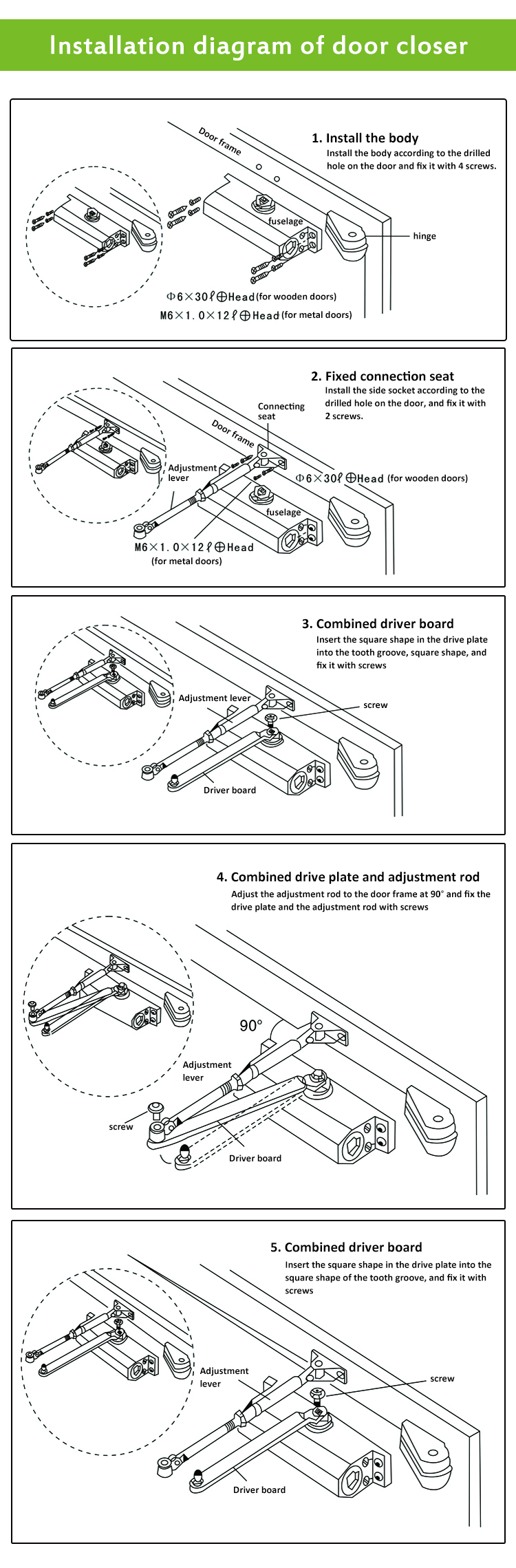

12. It can be installed on the door plate or installed on the doorframe.
Packaging:
Polybag inside, carton box outside, each carton is less than 25kg. (Or according to the customer's request)
Door Closer, Commercial Grade Size 4 Spring, Hydraulic Automatic Width 1000 Door Closer Sprayed Aluminum | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
DL-60 | 20pcs | 22.32KG | 41X29X26cm |
S4A_Datesheet_Door Closer, Commercial Grade Size 4 Spring, Hydraulic Automatic Width 1000 Door Closer Sprayed Aluminum
