Categories
> Card type: EM or MF Card
> Strong Zinc Alloy Electroplated anti-vandal case
> Full programming from the keypad
> 2000 uses, supports Card, PIN, Card + PIN

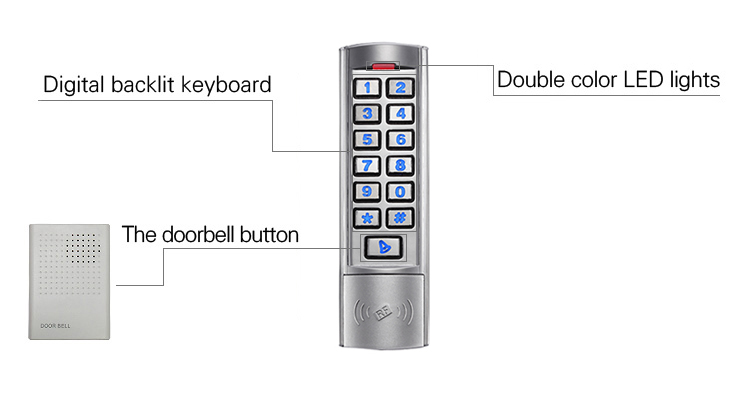

> Backlight keys
> Red, Yellow, and Green LEDs display the working status
Brand:
S4AItem NO.:

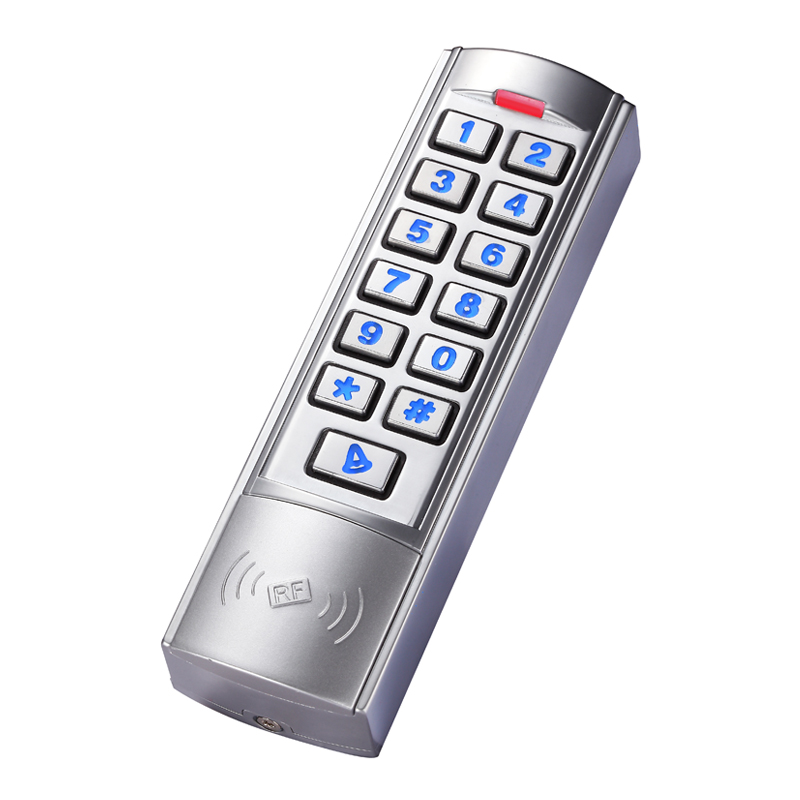

N1Office Door Access Control System Kit RFID Keypad
Model No.: N1 EM, MF
> Strong Zinc Alloy Electroplated anti-vandal case
> Full programming from the keypad
> 2000 uses, supports Card, PIN, Card + PIN
> Backlight keys
> Red, Yellow, and Green LEDs display the working status
Card type | EM or MF |

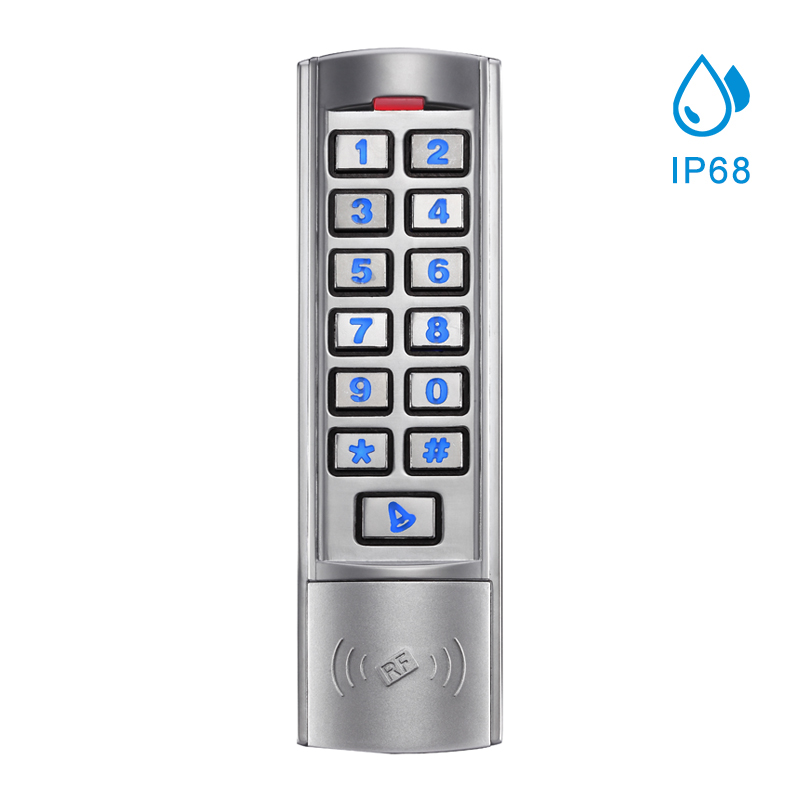

Waterproof degree | IP68 |
Operating Voltage | DC 12V±10% |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Adjustable Door Relay time | 0 - 99 seconds |
Adjustable Alarm Time | 0 - 3 minutes |
Wiegand Interface | Wiegand 26 bit |

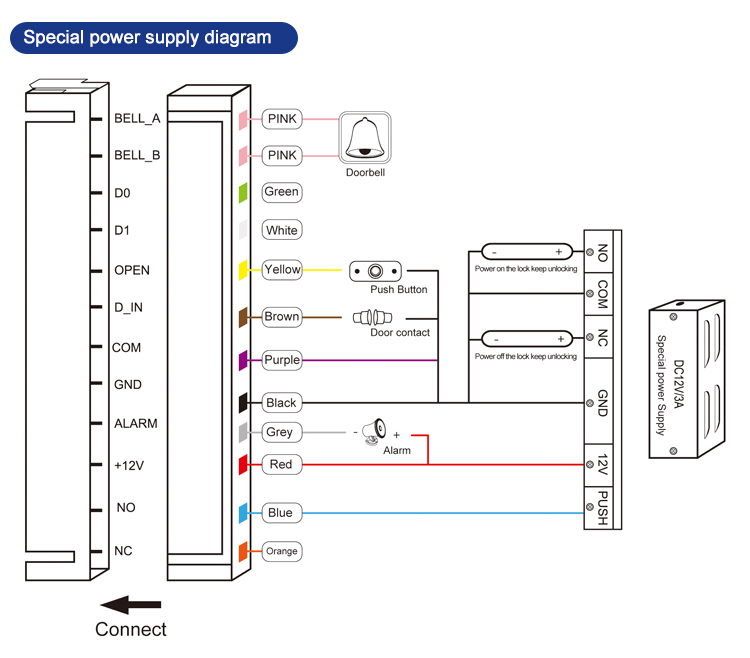

Wiring Connections | Electric Lock, Exit Button, External Alarm, External reader |
S4A User Manual N1_Office Door Access Control System Kit RFID Keypad
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or EM+HID Card> Capacity: 10,000 card users> Waterproof IP68> Rainproof, moistureproof, durable> Can be used as WG26 reader
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
