>Operating Voltage:DC9-DC12V
>Relay:NO/NC/OM
Brand:
S4AItem NO.:
S4A13No-touch Tuya release push button
Model No.: S4A13

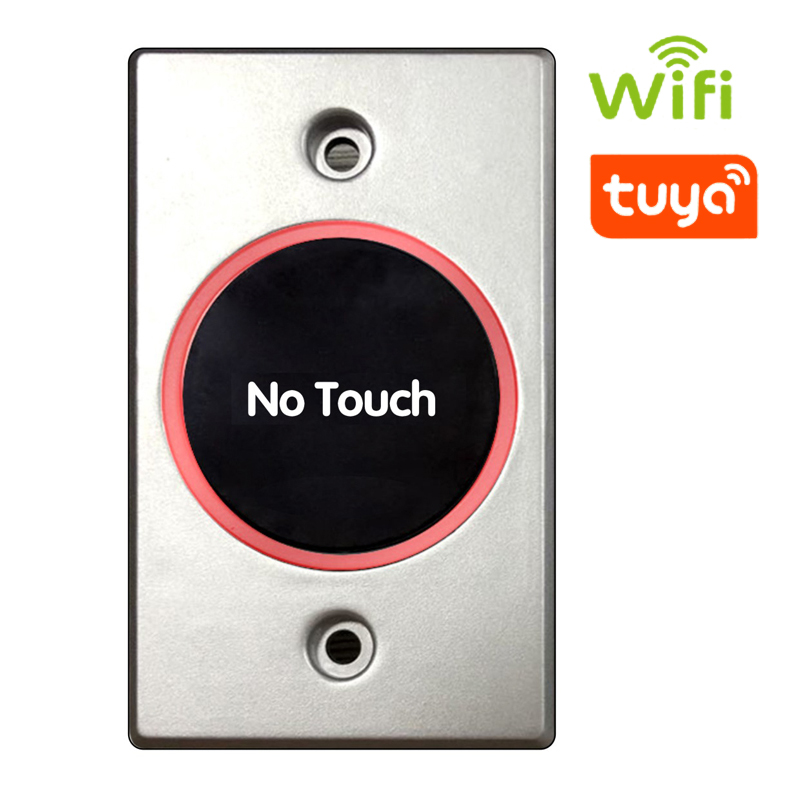

S4A13 series Exit Button is no-touch infrared exit button with Tuya smart APP.
It's very stable and sensitive,with automatic adaptability to ambient temperature and humidity,
do not affect by the weather or temperature.
Output the NO or NC signal when recognize the gesture .
The indicator light is red when it's in standby, and the indicator light is green when the signal is recognized.
Product Parameter | Parameter Description |
S4A Model | S4A13 |
Product Name | Contactless Infrared Tuya Exit button |
Operating Voltage | DC9-DC12V |
Relay | NO/NC/OM |
Reading Distance | 1 ~ 10cm |
Operating Current | <600ma |
Operating Temperature | -30℃~60℃ |
Operating Humidity | 20%-80% |
Unit Weight | 0.12KG |
Standard Package | 100PCS/carton |
Carton Weight | 12KG |
Carton Size | 57.5*47.5*23.7(cm) |
S4A_Datesheet_No-touch Tuya release push button
>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM>Material:Acrylic Panel
>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM>Material:Acrylic Panel
>Dimensions:115Lx70Wx21H(mm)>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM
>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM>Material:Acrylic Panel
>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM
>Power supply mode: DC12V>Product specification: 86X86X22mm>Material: fireproof fuel mixed resin
> Fingerprint Capacity: 10 users> Waterproof IP54> Charge: 5V 0.5A (Micro USB)> Dimension: 75x48x16.4mm
> Face Plate: 205Lx35WX40H(mm)> Bolt: 16mm(Throw) x 16mm(Diameter)> Voltage: DC12V
