Brand:
S4AItem NO.:

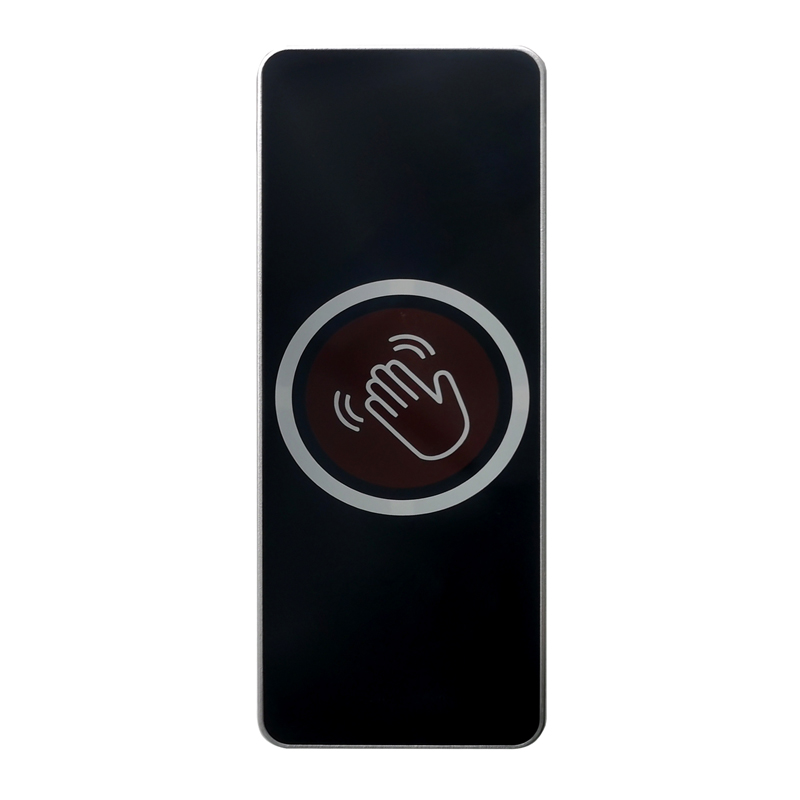

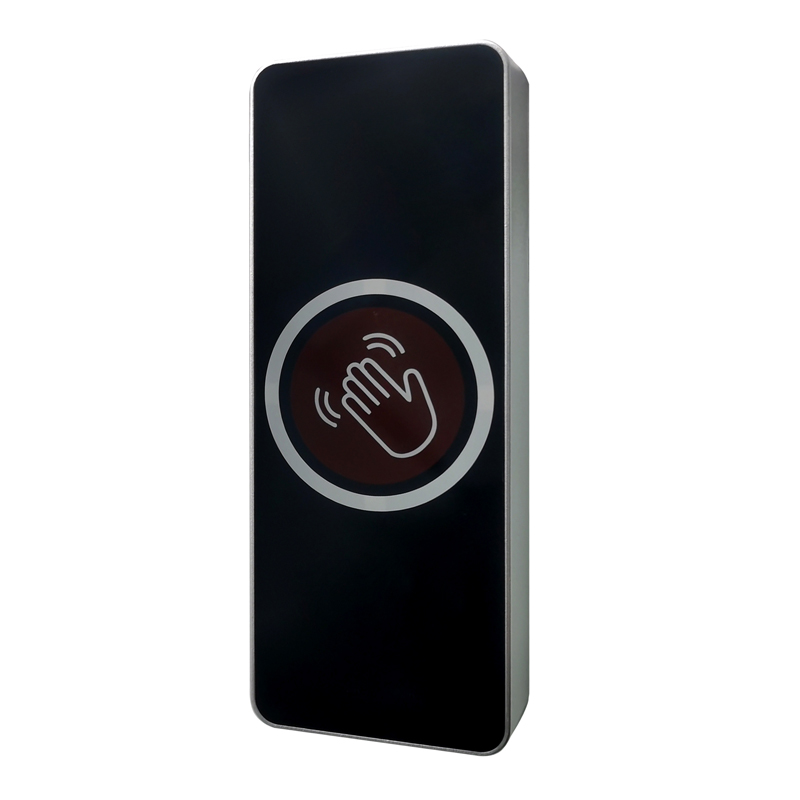

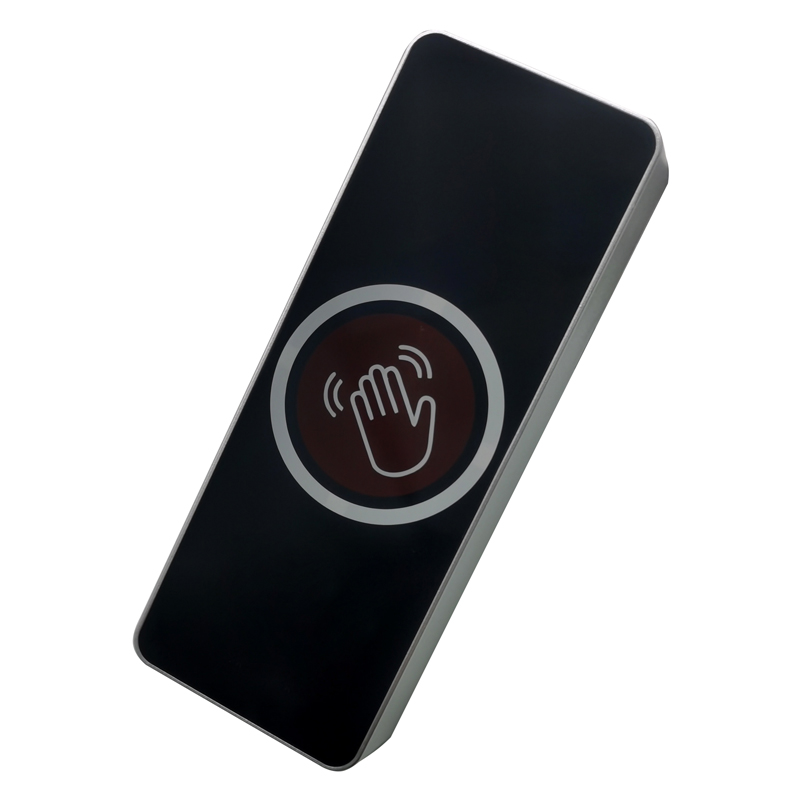

S4A24BWireless Release Push Switch For Electronic Door Lock
Model No.: S4A24B

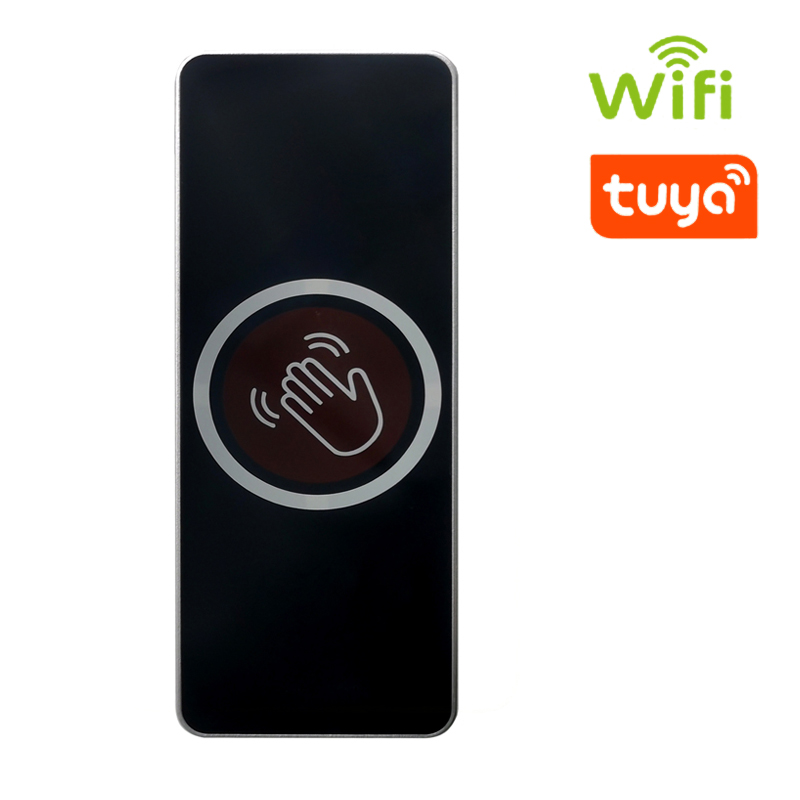

S4A24 series Exit Button is no-touch infrared exit button with Tuya smart APP.
It's very stable and sensitive,with automatic adaptability to ambient temperature and humidity,
do not affect by the weather or temperature.
Output the NO or NC signal when recognize the gesture .
The indicator light is red when it's in standby, and the indicator light is green when the signal is recognized.
Product Parameter | Parameter Description |
S4A Model | S4A24B |
Product Name | Contactless Infrared Exit Button with Tuya Smart APP |
Dimensions | 86Lx55Wx21H(mm) |
Operating Voltage | DC9-DC12V |
Relay | NO/NC/OM |
Material | Acrylic Panel |
Reading Distance | 1 ~ 10cm |
Operating Current | <600ma |
Operating Temperature | -30℃~60℃ |
Operating Humidity | 20%-80% |
Unit Weight | 0.1KG |
Standard Package | 100PCS/carton |
Carton Weight | 10KG |
Carton Size | 57.5*47.5*23.7(cm) |
