Tuya WiFi Door Exit Button

>Operating Voltage:DC9-DC12V
>Relay:NO/NC/OM
>Material:Acrylic Panel

Brand:
S4A
Item NO.:
S4A24A

Inquire Now

Specifications
Package

Model No.: S4A24A

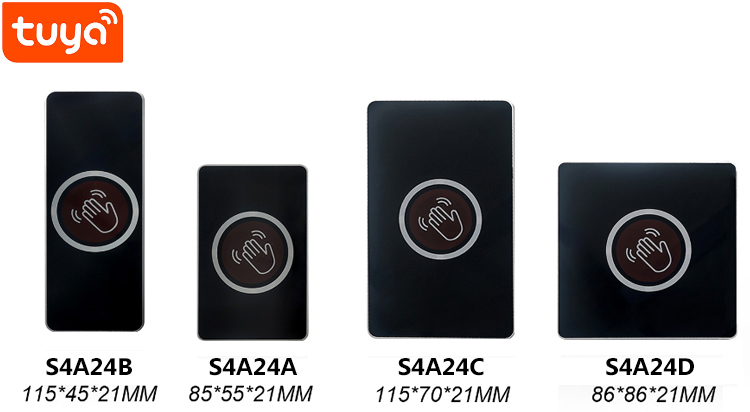

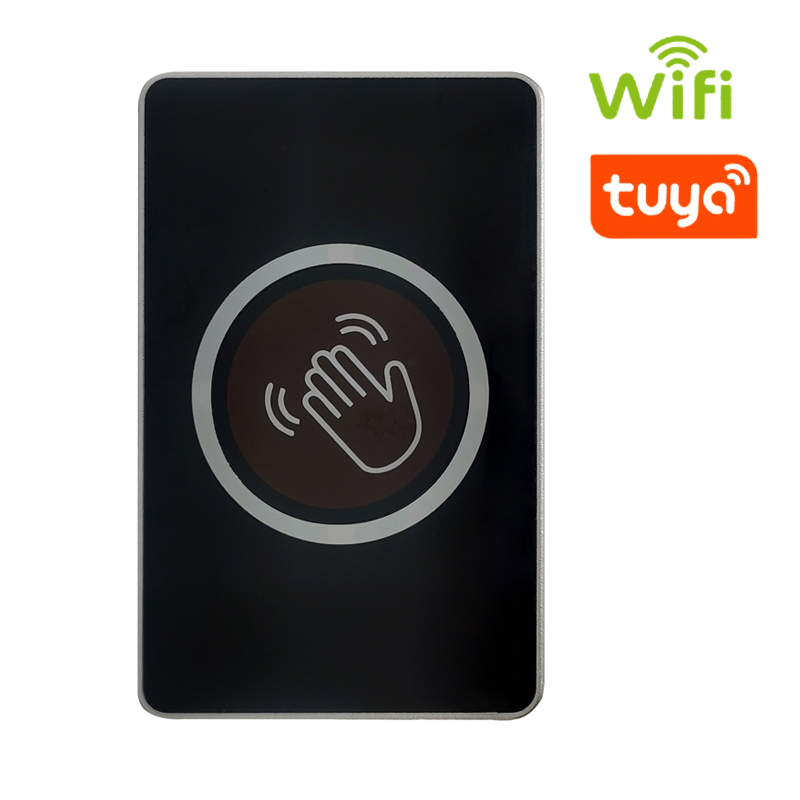

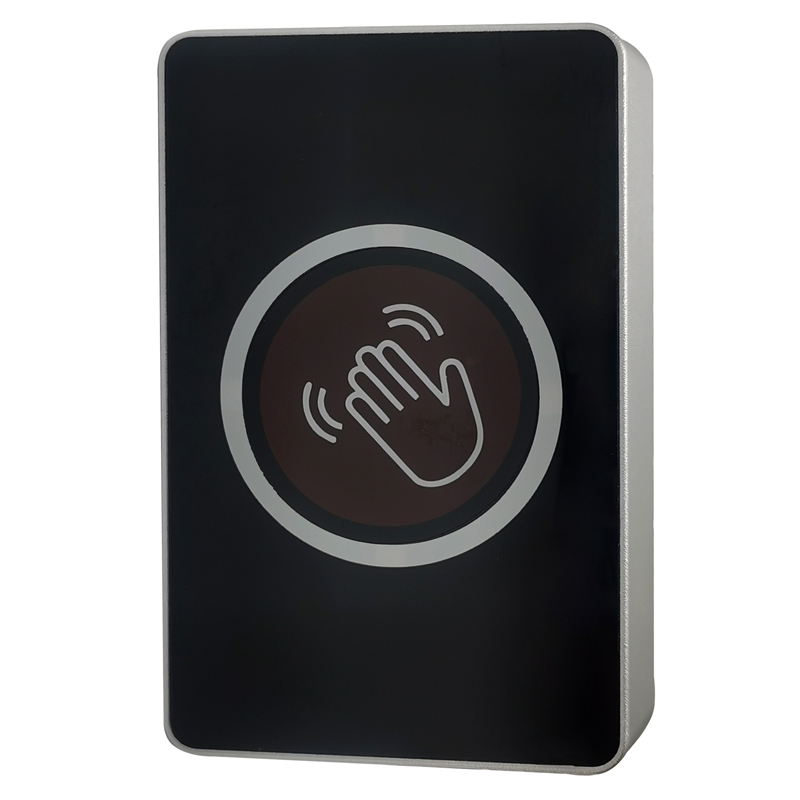

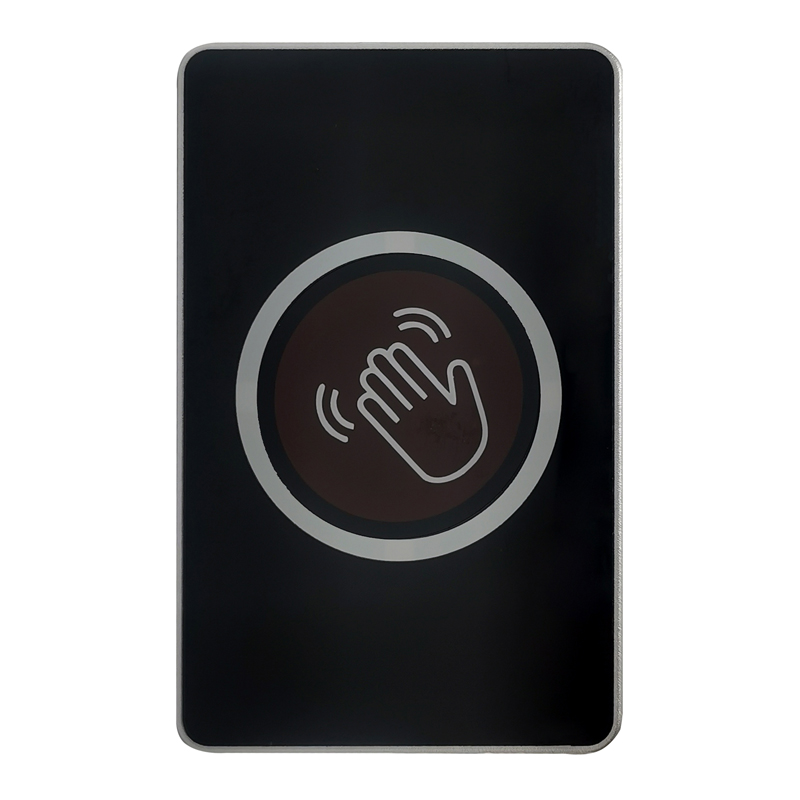

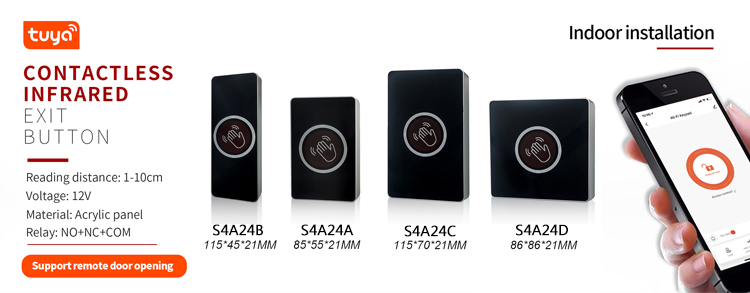

S4A24 series Exit Button is no-touch infrared exit button with Tuya smart APP.

It's very stable and sensitive,with automatic adaptability to ambient temperature and humidity,

do not affect by the weather or temperature.

Output the NO or NC signal when recognize the gesture .

The indicator light is red when it's in standby, and the indicator light is green when the signal is recognized.

Product Parameter	Parameter Description
S4A Model	S4A24A
Product Name	Contactless Infrared Exit Button with Tuya Smart APP
Dimensions	115Lx45Wx21H(mm)
Operating Voltage	DC9-DC12V
Relay	NO/NC/OM
Material	Acrylic Panel
Reading Distance	1 ~ 10cm
Operating Current	<600ma
Operating Temperature	-30℃~60℃
Operating Humidity	20%-80%
Unit Weight	0.1KG
Standard Package	100PCS/carton
Carton Weight	10KG
Carton Size	57.547.523.7(cm)

Tuya WiFi Door Exit Button

Related Tags : Tuya WiFi Door Exit Button APP Remote Control Exit button Door Exit Button Door exit switch button

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Tuya WiFi Door Exit Button

Next :Wireless Release Push Switch For Electronic Door Lock

Related Products

Wireless Release Push Switch For Electronic Door Lock

>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM>Material:Acrylic Panel

APP Remote Control for Access Control System

>Dimensions:115Lx70Wx21H(mm)>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM

Tuya WiFi Door access Control point action door exit switch button

>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM>Material:Acrylic Panel

No-touch Tuya release push button

>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM

Access Control Contactless Infrared Tuya WIFI Exit button

>Operating Voltage:DC9-DC12V>Relay:NO/NC/OM

Tuya plastic exit button

>Power supply mode: DC12V>Product specification: 86X86X22mm>Material: fireproof fuel mixed resin

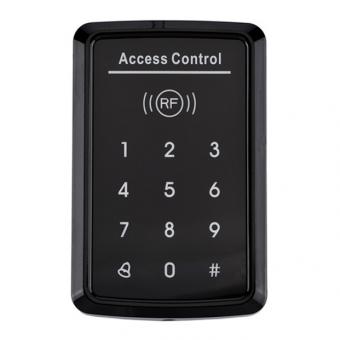

125KHz Wiegand 26/34 RFID Reader with 2 relays Connect with Access Control Board
