RFID Access Control Keypad 125KHz EM

> Card Type: EM Card
> Storage: 4000 users
> Working frequency: 125KHz
> Operating voltage: DC12V
> Wiegand 26 Input and Output

Brand:
S4A
Item NO.:
SA-TS24A Silver

Inquire Now

Specifications
Wiring Diagram
Package
Download

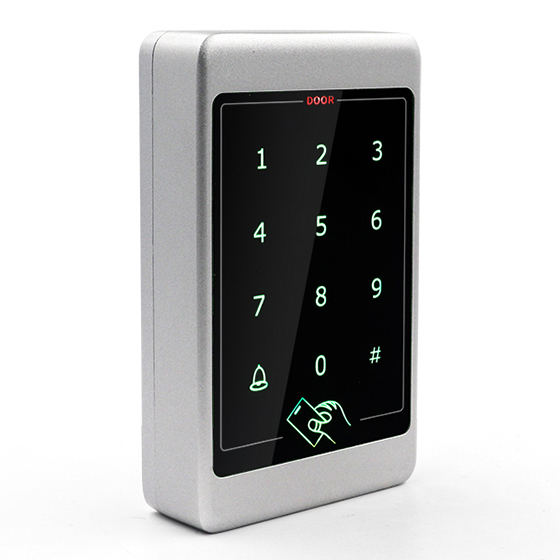

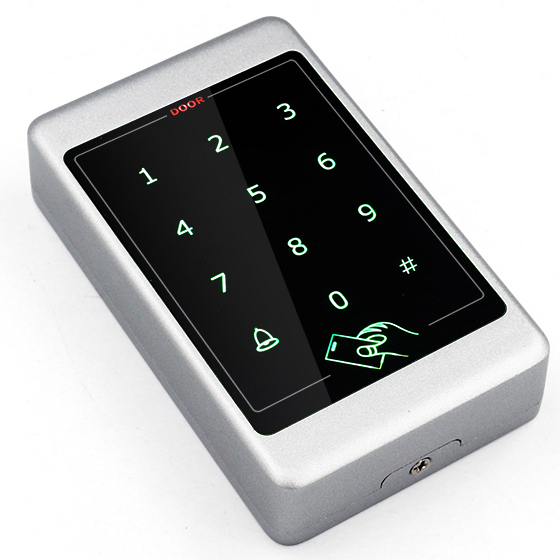

Metal & Waterproof Touch screen Access Controller

Model No.: SA-TS24A Silver

1. Specifications

1.1 Technical parameters:

Card type(alternative)	EM Card (IC card for options)
Storage	4000 users
Operating voltage	DC12V ±10%
Operating current	<100mA
Card reading distance	1~15CM
Ambient temperature	0℃~60℃
Relative humidity	20%~80%

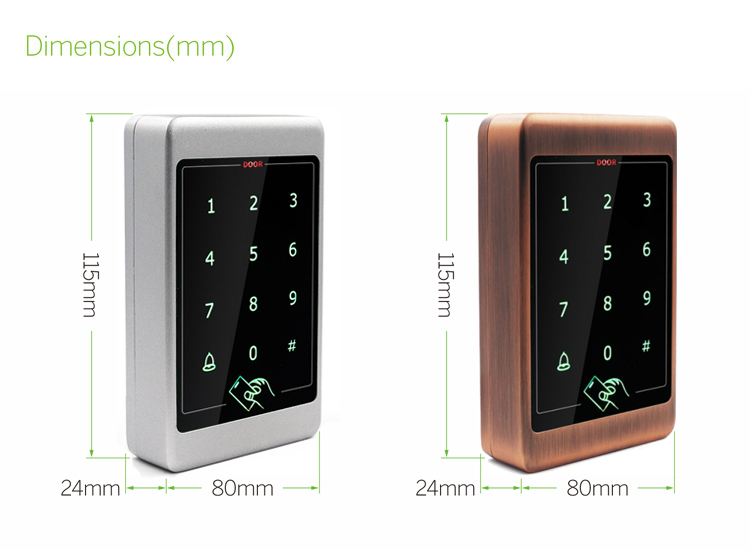

Dimensions	115×80×24mm
Weight	110g

1.2 Factory Default:

Programming Password	123456
Common Access Password	None
Relay Unlock output	5 Seconds
Open mode	Card or Access Password Access Password include Private Access Password(PIN) and Common Access Password
Security mode	OFF
Backlight (For options)	Auto
W26 port (For options)	input

1.3 Light and Sound indicates:

Light: red and green

Light Description	indicates
Red light flash every 1 sec (Slow flash)	Standby state
Greenlight flash every 0.5sec (Fast flash)	Pending further action
Red light is always ON	Programming state
Greenlight is always ON within Open Time	Unlocking state

Sound: Buzz

Sound Description	Indicates
1 short buzz	Valid input
3 short buzz	Invalid input
1 long buzz	Programming success
Continuous long buzz	Restoring factory programming passwords

2. Installations Guide

Mark	Colour	Function
+12V	Red	Power+
GND	Black	Power-
PUSH	BLUE	Low-level output
OPEN	Yellow	Door Release
BEL+	Grey	BELL+
BEL-	Purple	BELL-
DATA	Green	WG DATAO
DATA1	White	WG DATA1
NC	Brown	Relay NC output
COM	Orange	Relay Com output
No	Pink	Relay NO output

RFID Access Control

S4A User Manual SA-TS24_RFID Access Control Keypad 125KHz EM
