> Card Type: EM+MF Card
> Working frequency: 125KHz+13.56MHz
> Operating voltage: DC9~16V
> Wiegand 26/34 Input and Output
> Storage capacity: The sum of cards or passwords is 2000. The combination of card and password is verified as 1000 groups.
Brand:
S4AItem NO.:

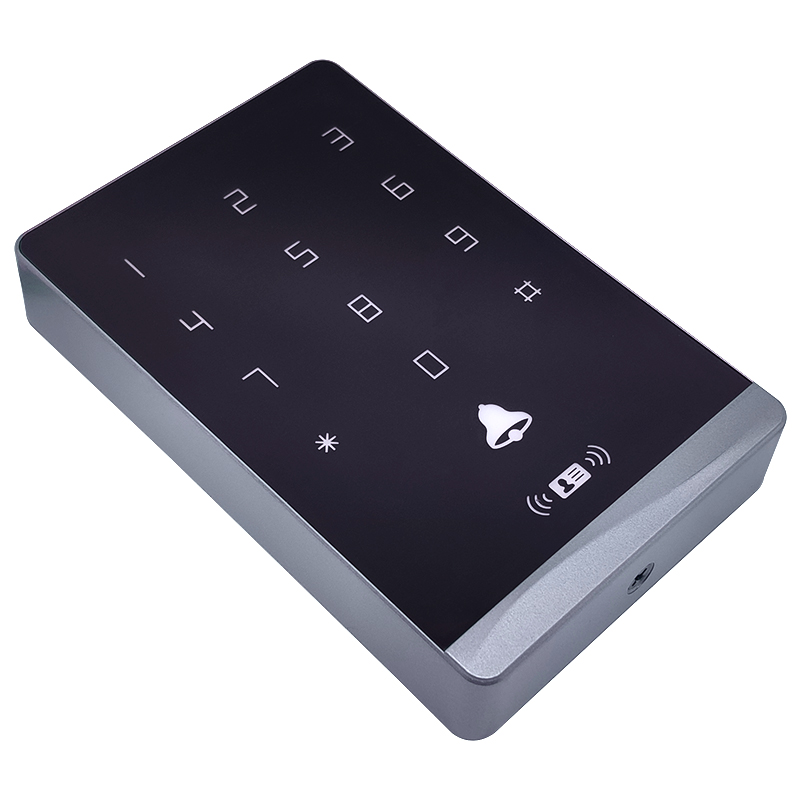

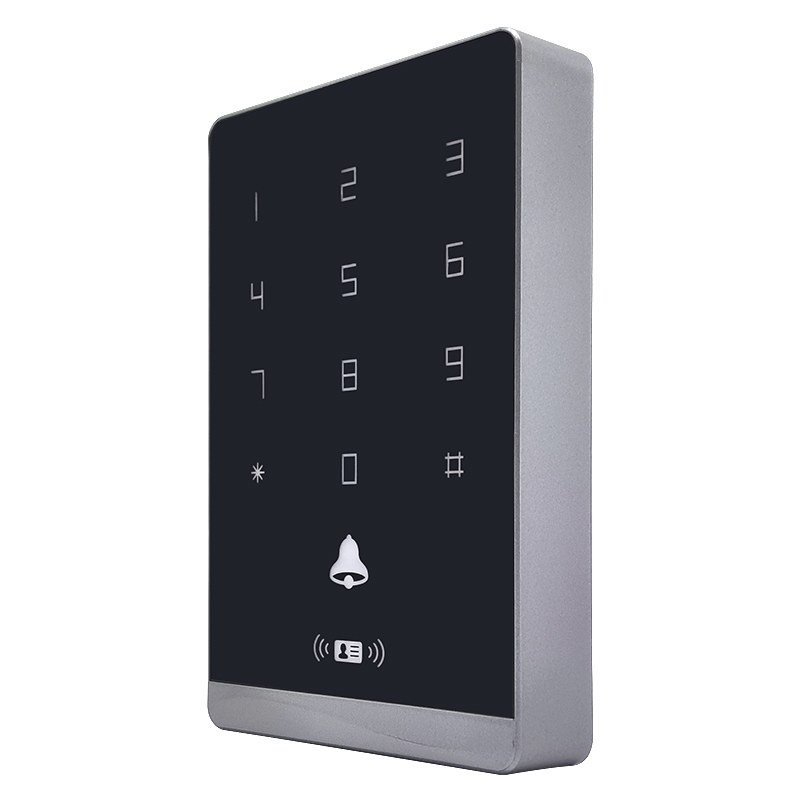

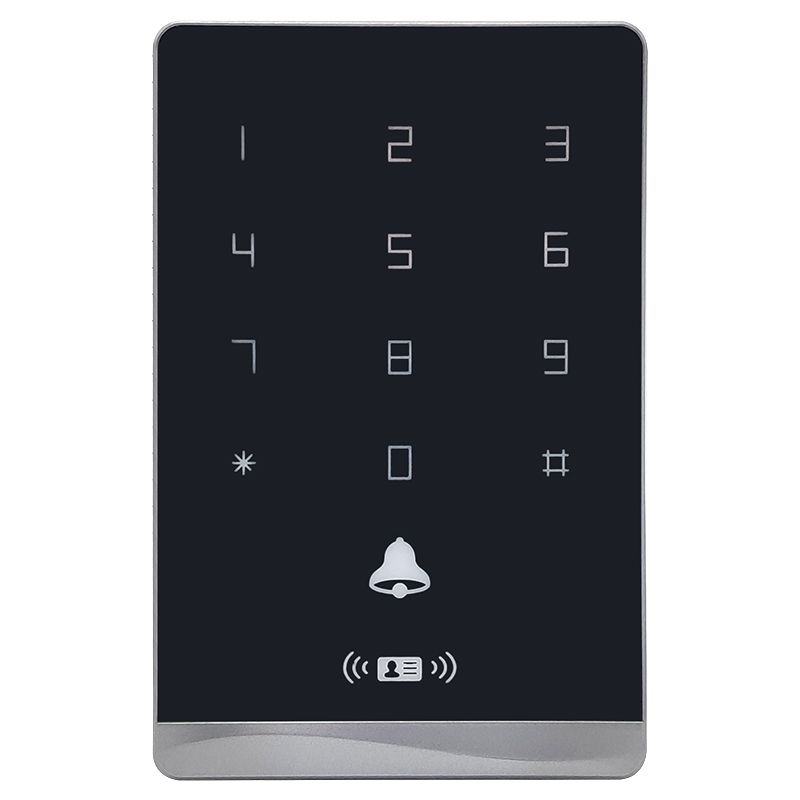

T2DCIP67 Waterproof Touch Screen RFID Access Control Systems
Model No.: T2DC EM+MF (Plastic shell)
Product Introduction

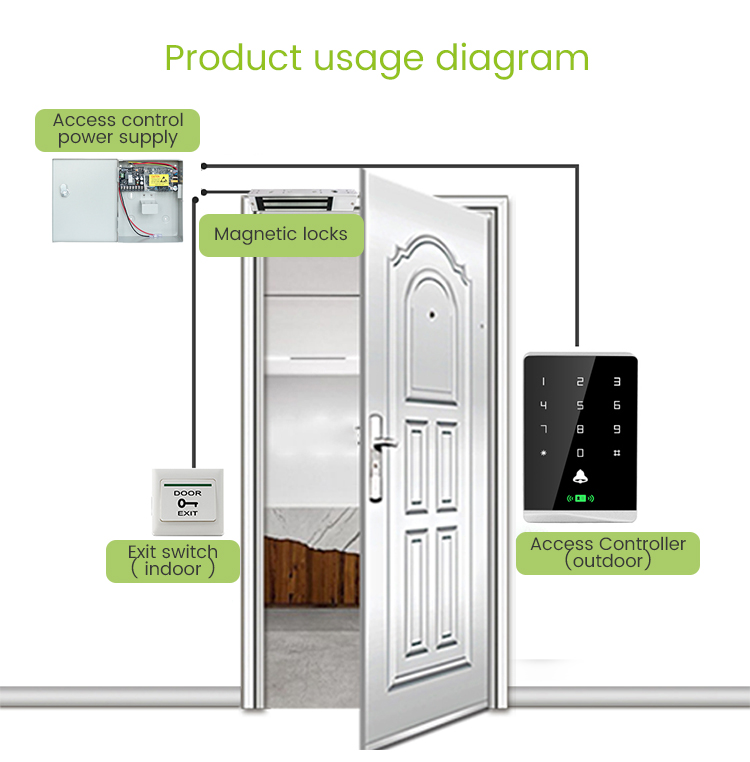

This product is a non-contact proximity card and password access control Integration machine. It supports two proximity cards, EM and Mifare. It is one of the most advanced single door controllers at present. Can be widely used in high-end office buildings, residential quarters and other public places.

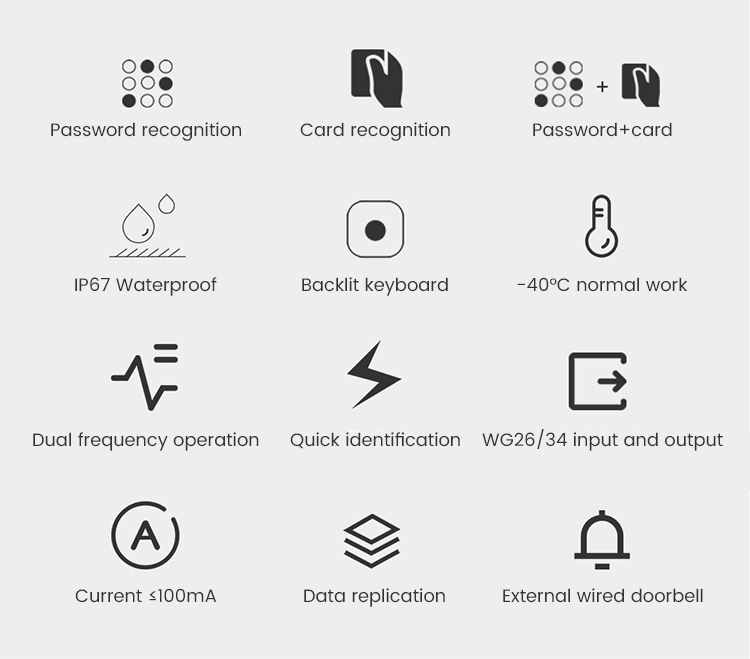

Features
> Power consumption: current is less than 100mA

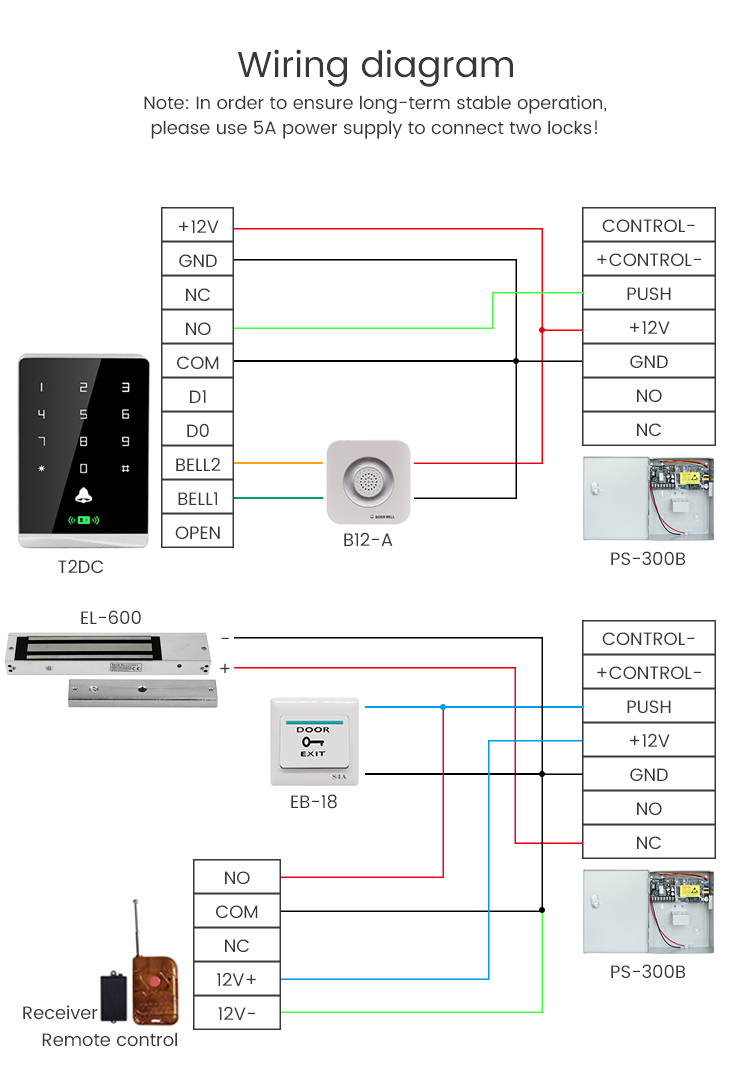

> Wiegand output: WG26/34 output and input, it can also be connected with an external card reader and key input reader.
> Search time: the time from swiping the card to opening the door is less than 0.1S

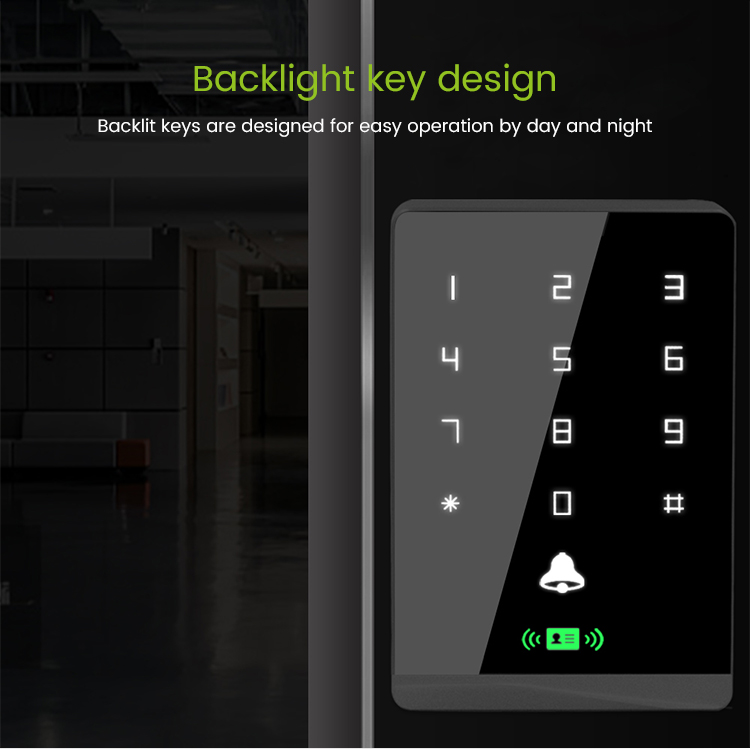

> Luminous keyboard: easy to operate at night
> Doorbell interface: external wired doorbell can be connected

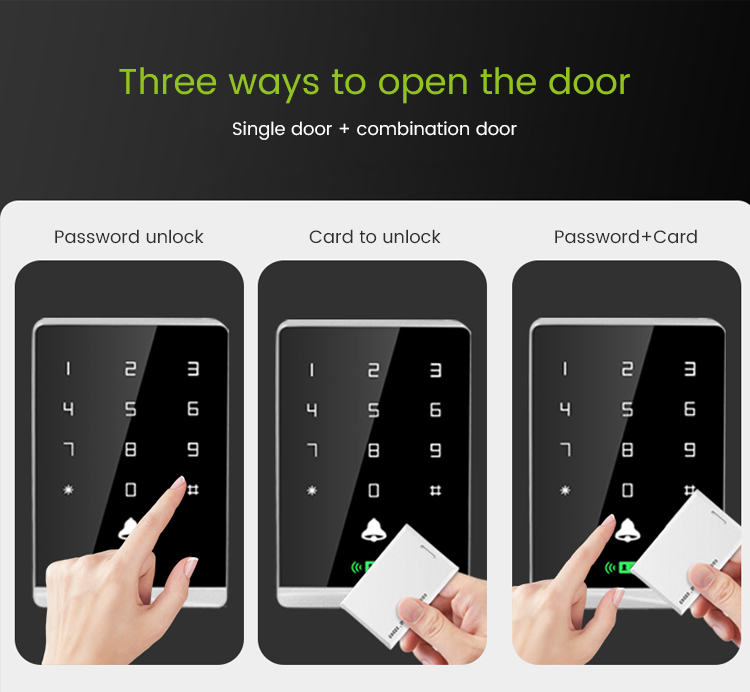

> Door opening method: card, password, card plus password
> Independent password: use a password that has nothing to do with the card to open the door
> Modify password: the user can modify the password to open the door by himself
> Delete card number: use the keyboard to delete the card number after the card is lost, completely eliminating security risks

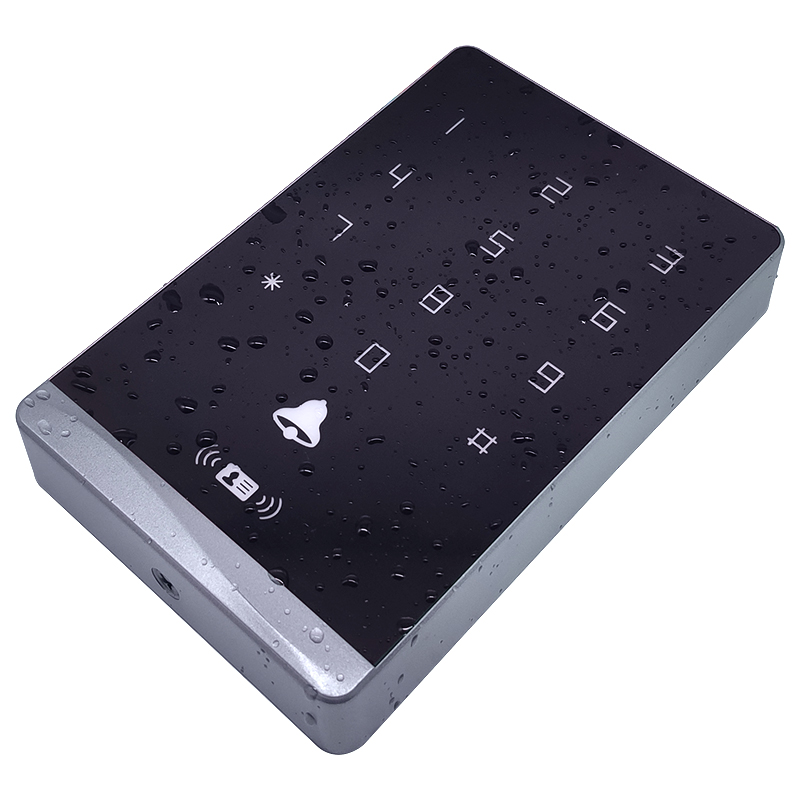

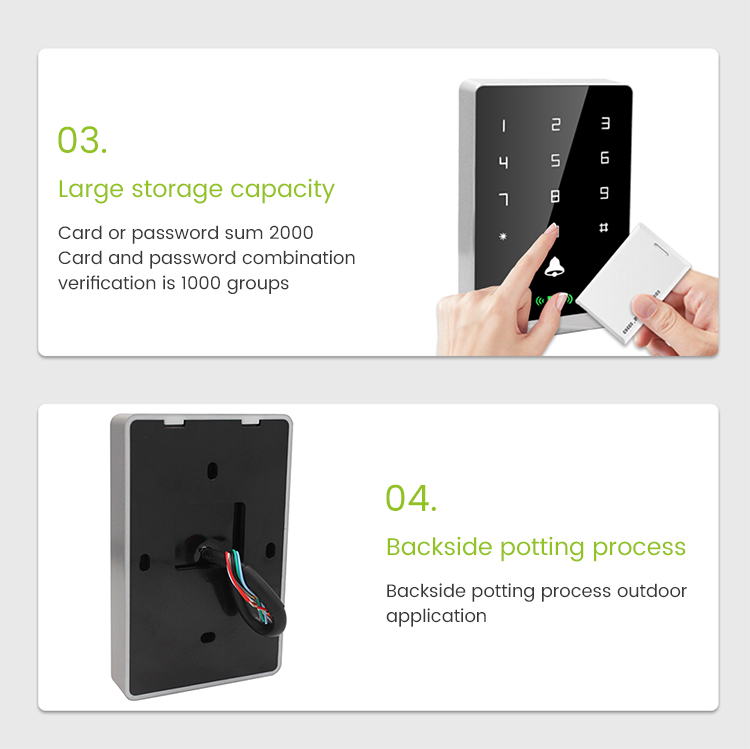

> Waterproof grade: epoxy resin potting package. Suitable for outdoor

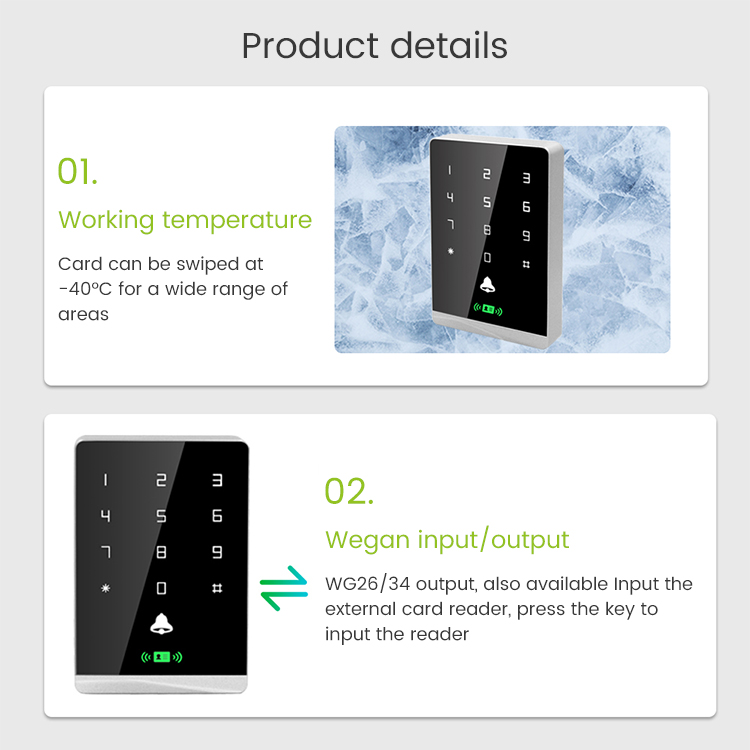

> Working temperature: -40℃-70℃, applicable to a wide range of areas
> Unattended card addition: convenient for user management

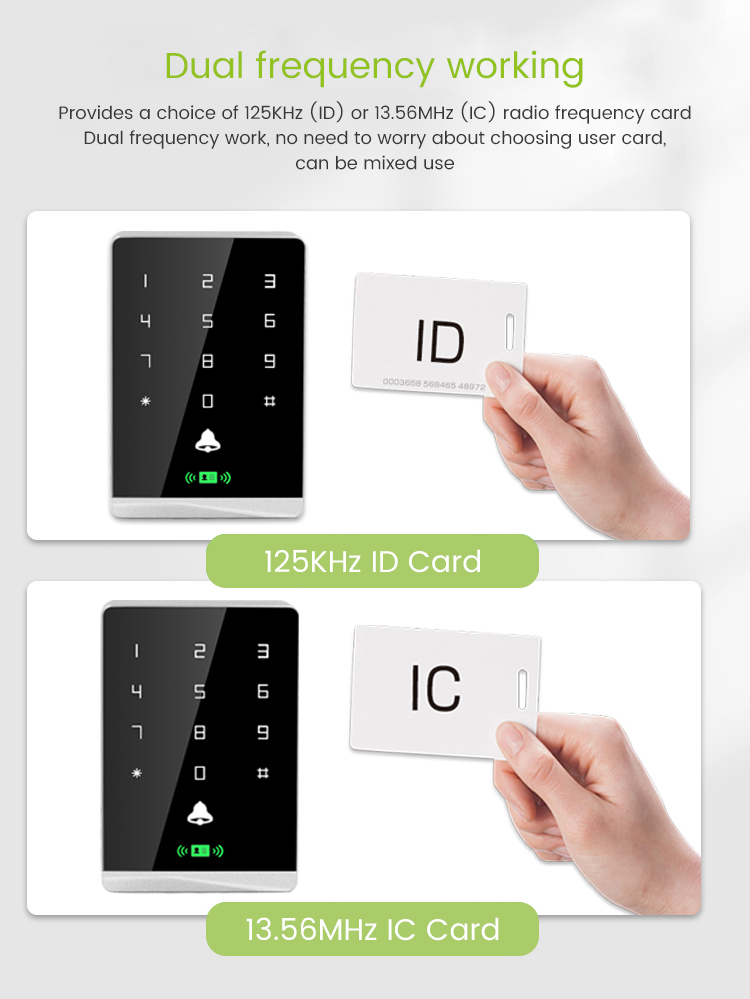

> Dual-frequency operation: No need to worry about choosing user card. Mixed use is possible
> Machine data is copied to each other: Register one, multiple machines share data, and the workload is reduced.
Working voltage | DC9-16V |
Card reading distance | 2～6cm |
Storage capacity | The sum of cards or passwords is 2000. The combination of card and password is verified as 1000 groups. |
Default programming password | 123456 |
waterproof | IP67 |
Quiescent current | ≤100mA |
Ambient temperature | -40℃～70℃ |
Opening time | 0～999 seconds (adjustable), 5 seconds by default |

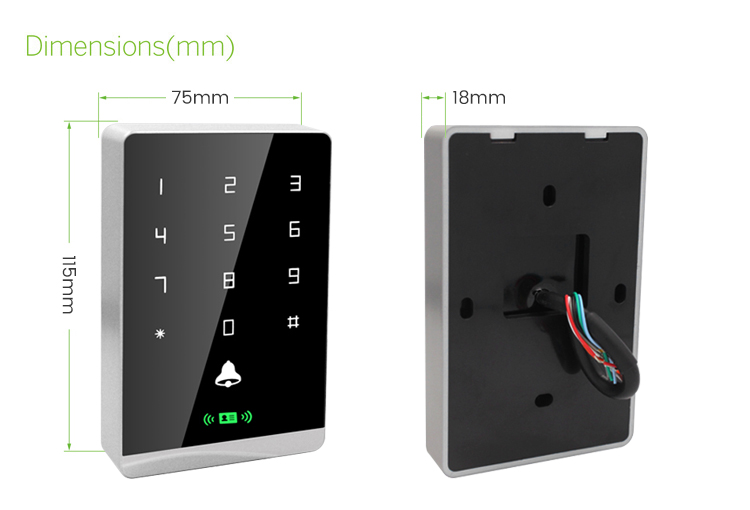

Product size | 115x75x18mm |
