> Holding Force: 60KG(100Lbs)
> Voltage: DC24V
> lock size: 79Lx40Wx23H(mm)
> Armature plate: 75Lx31Wx10H(mm)
Brand:
S4AItem NO.:

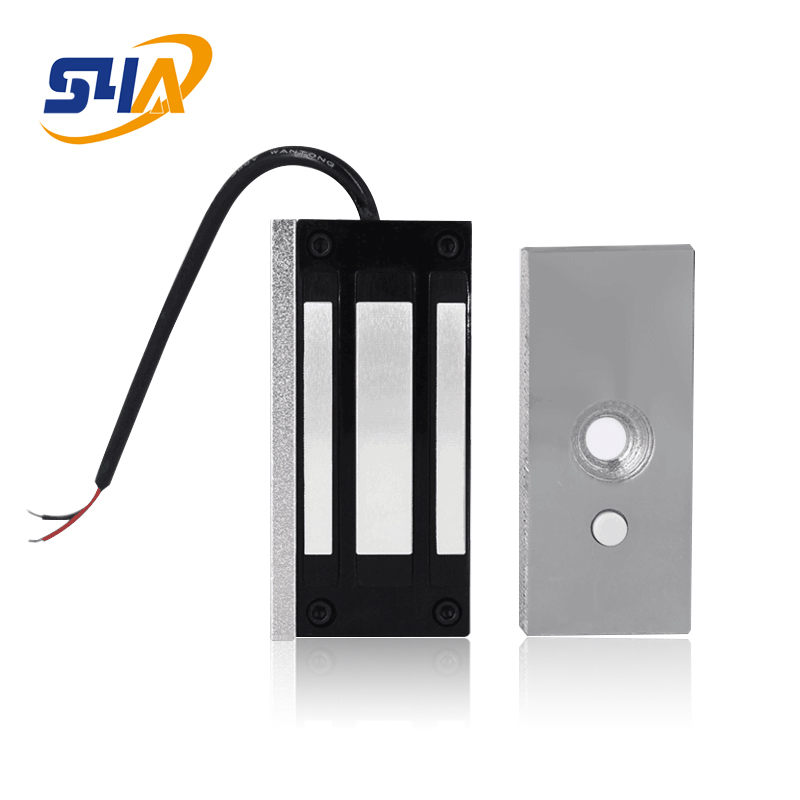

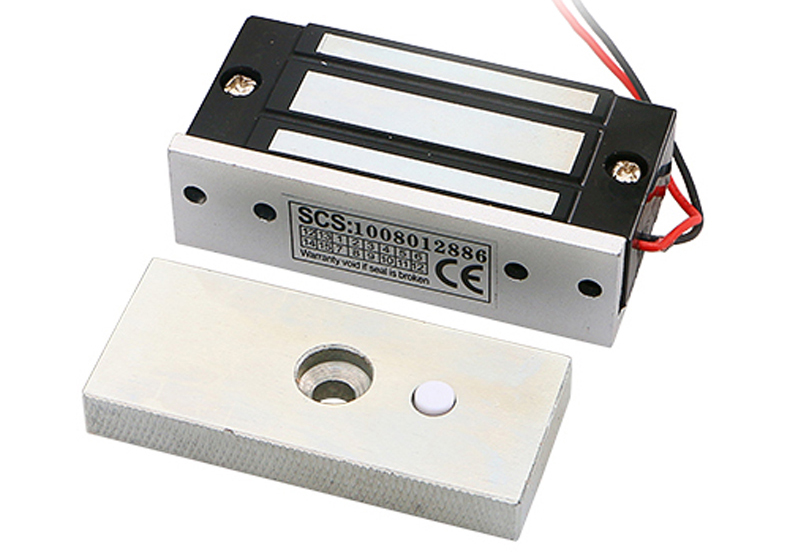

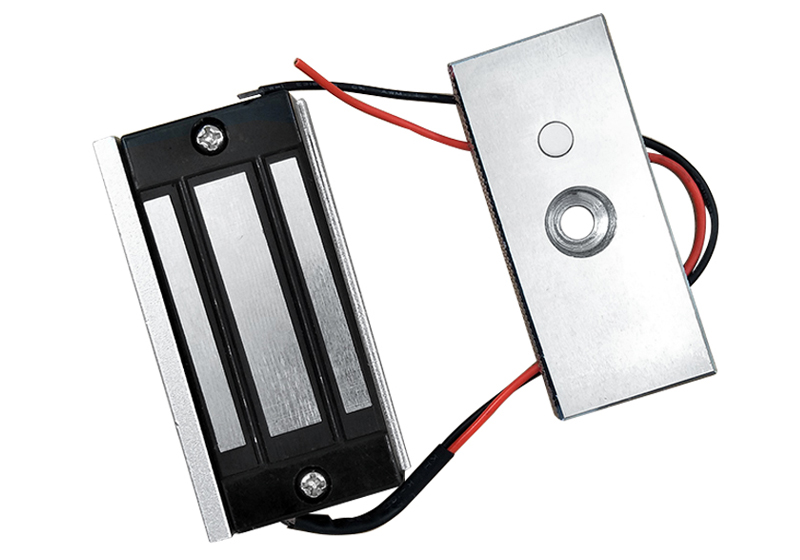

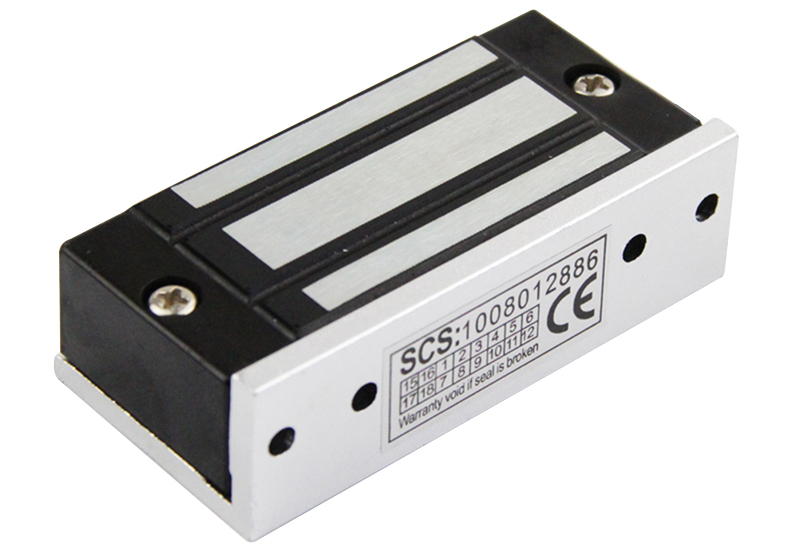

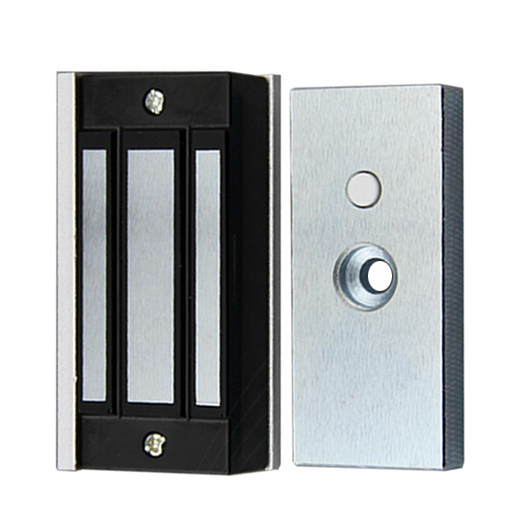

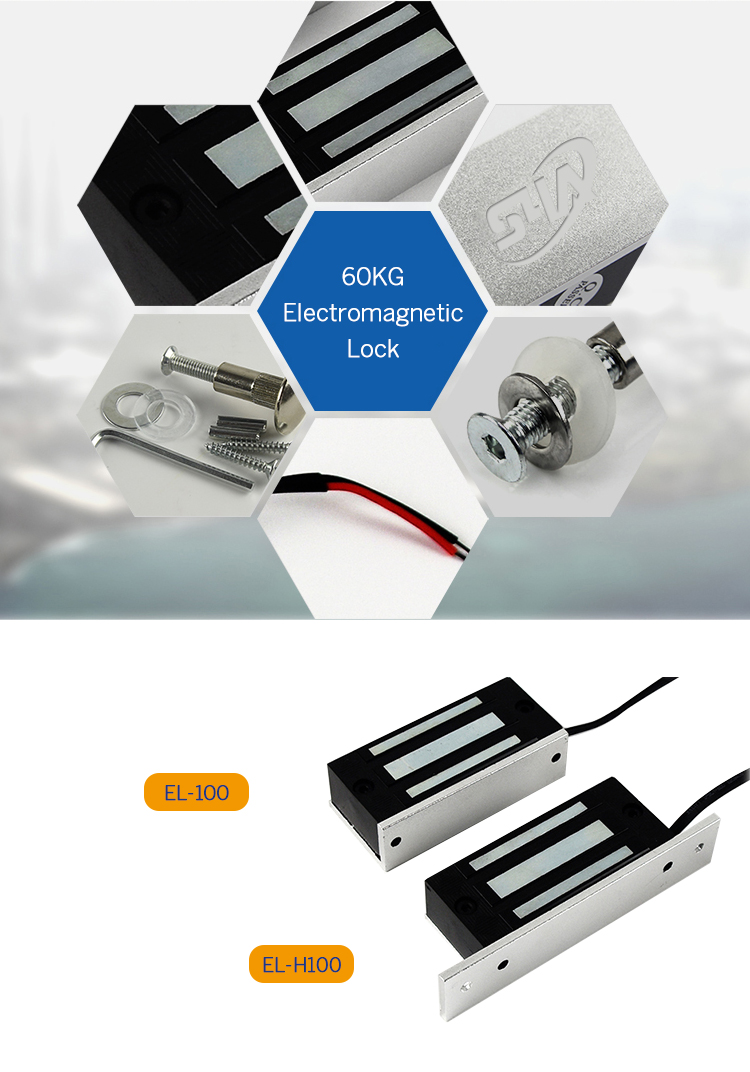

EL-10060KG Electromagnetic Lock
Model No.: EL-100 24V
What is Electromagnetic Lock?
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate. There are two main types of electric locking devices. Locking devices can be either "fail safe" or "fail secure". A fail-secure locking device remains locked when power is lost. Fail-safe locking devices are unlocked when de-energized. Direct pull electromagnetic locks are inherently fail-safe. Typically the electromagnet portion of the lock is attached to the door frame and a mating armature plate is attached to the door. The two components are in contact when the door is closed. When the electromagnet is energized, a current passing through the electromagnet creates a magnetic flux that causes the armature plate to attract to the electromagnet, creating a locking action. Because the mating area of the electromagnet and armature is relatively large, the force created by the magnetic flux is strong enough to keep the door locked even under stress.

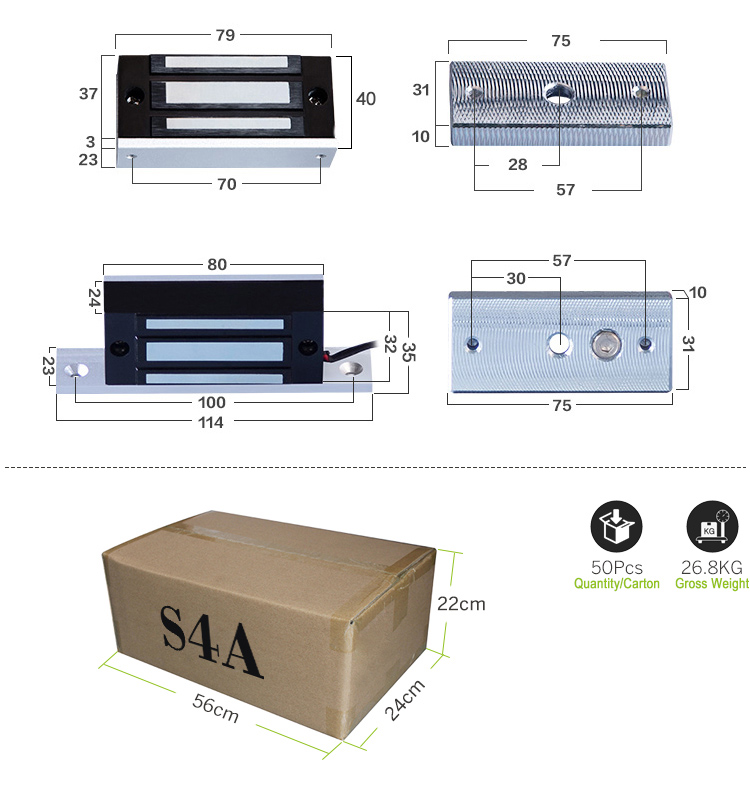

Item | Parameter |
Lock size | 79Lx40Wx23H(mm) |
Armature plate | 75Lx31Wx10H(mm) |
Holding force | 60kg(100Lbs) |
Voltage | DC 24V |
Current draw | 24V/200mA |
Suitable for | File Cabinet, Display Cabinet |
Operating temp | ≤20°C |
Surface temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable humidity | 0~90% (non-condensing) |
Finishes for shell | Anodized aluminum surface texture processing |
Finishes for magnetic | Zinc |
Finishes for armature | Zinc |
Weight | 0.6kg |
Standard packing | 60pcs |
Mini Electric Magnetic Door Lock | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-100 12V | 79x40x23mm | 50pcs | 27.1KG | 56x24x22cm |
EL-100 24V | 27.1KG | |||

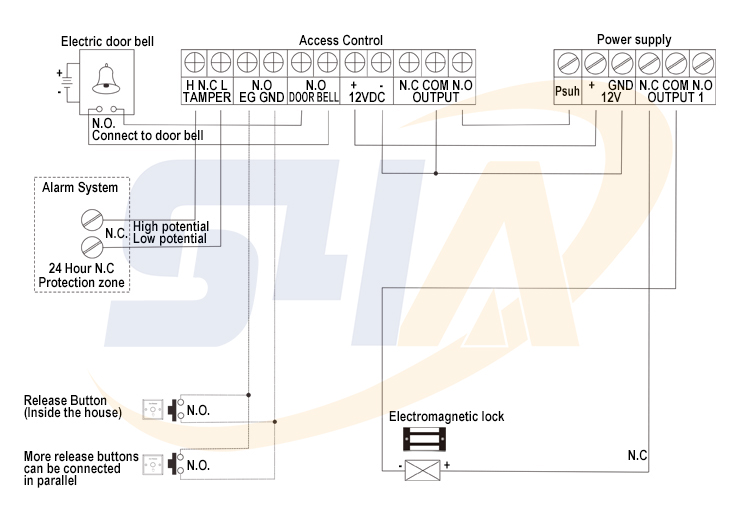

S4A Instruction_EL-100 Mini Electric Magnetic Door Lock
