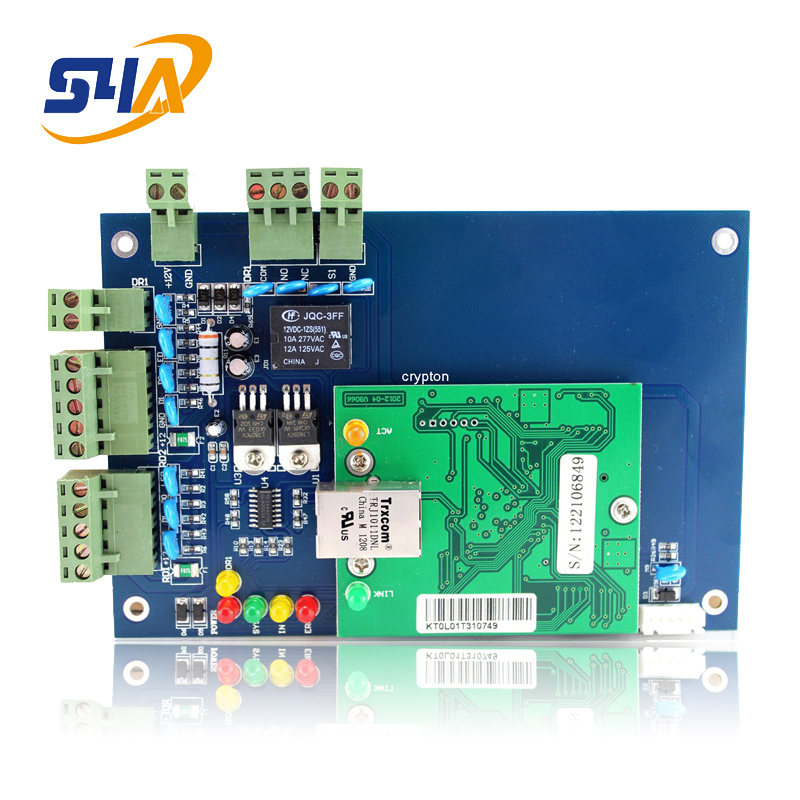

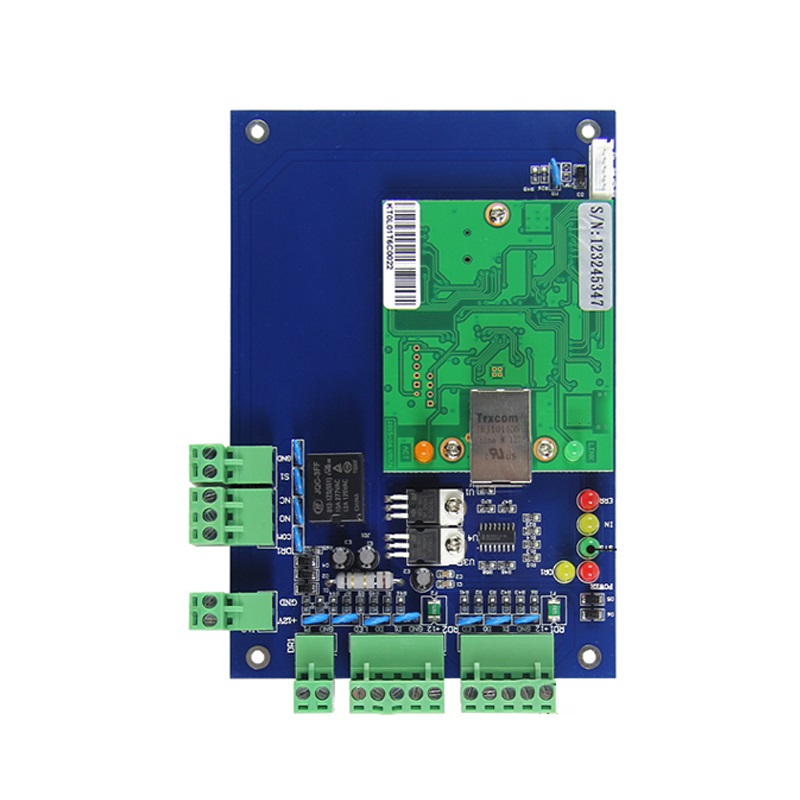

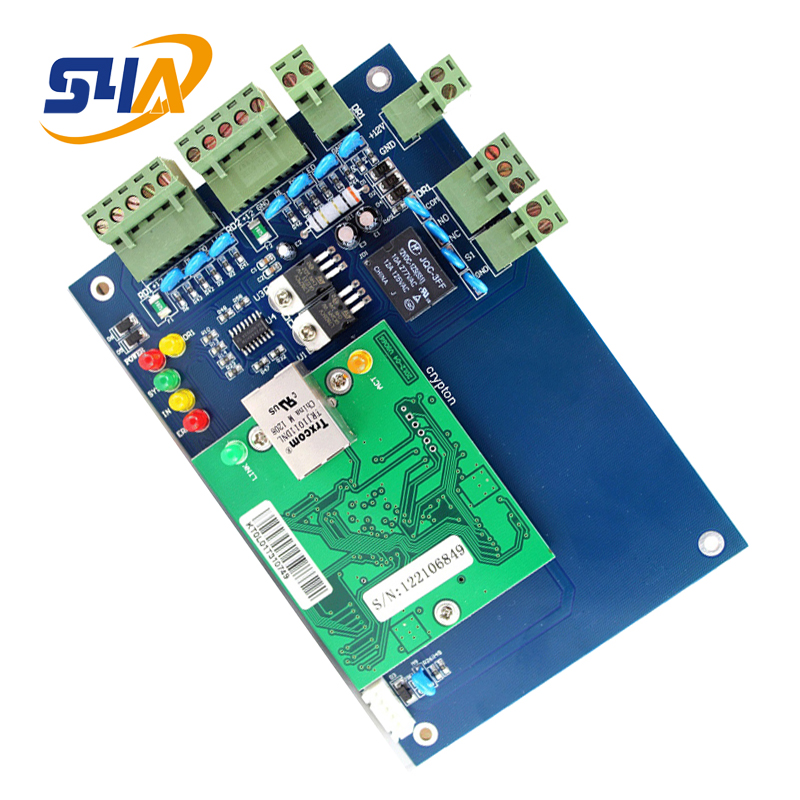

Single door Network access control board built-in TCP/IP
Support APP/4G/Web-server with free software and SDK
1door support 2pcs RFID Access reader or 1pcs RFID reader+1pcs exit push button
Brand:
S4AItem NO.:
ACB-001Wholesale Price RFID System One Doors Network Panel Wiegand Gate Access Control Panel
Model No.: ACB-001
What is Access Control?
Access control is a security technique that regulates who or what can view or use resources in a computing environment. It is a fundamental concept in security that minimizes risk to the business or organization.
Parameter | Single Door Control Panel | Multi Door (2) Control Panel | Multi Door (4) Control Panel |
Model # | ACB-001 | ACB-002 | ACB-004 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card and get out the door by button |

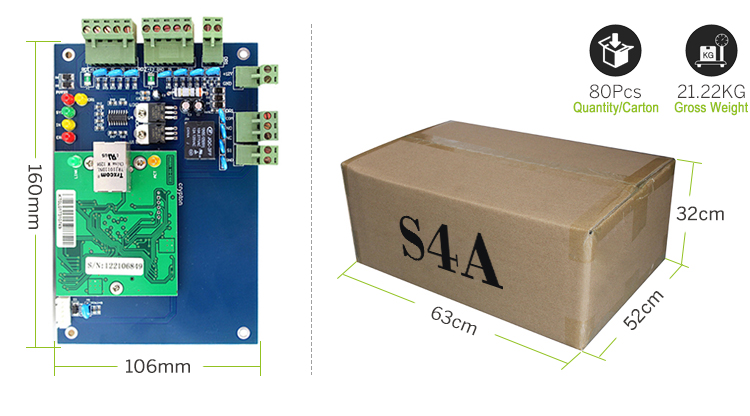

Size of PCB board | 160mm*106mm | 160mm*106mm | 160mm*106mm |

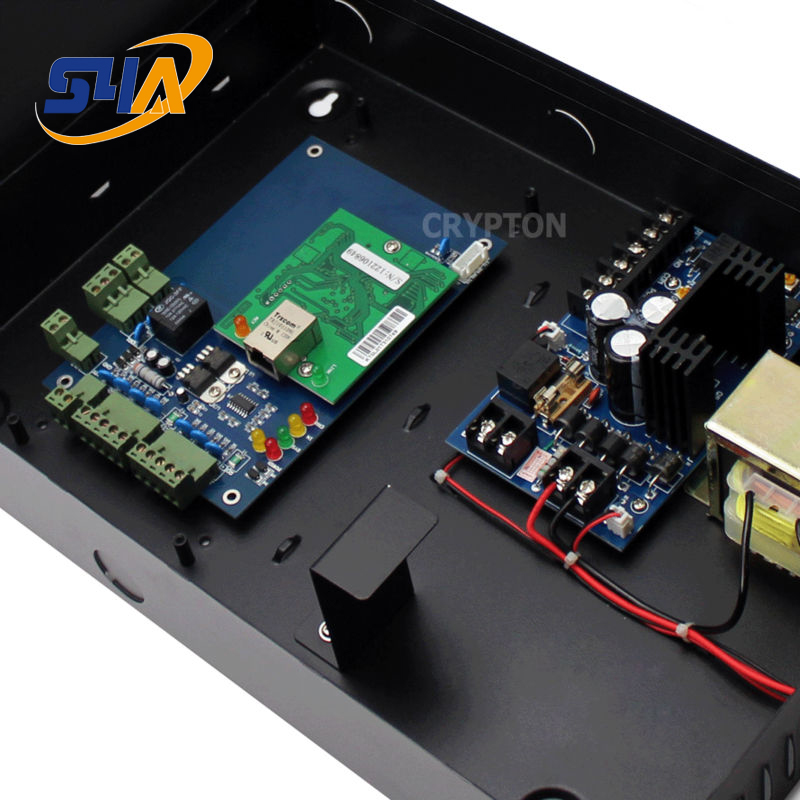

Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pcs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Network Access Control systems and solutions | |||||
Model No. | Dimension | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
ACB-001 | 160x106mm | 80pcs | 20.9KG | 21.22KG | 63x52x32cm |
S4A User Manual_ACB-001 Access Control Board Software
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
