/600lbs Electromagnetic Locking Sysems Holding Force for Access Control Single Door 12V and 24V

New Products

600lbs Electromagnetic Locking Sysems Holding Force for Access Control Single Door 12V and 24V

> LED, door sensor

> Voltage: DC12V and DC24V

> Holding Force: 280KG

> Built in LED and door sensor


  • Brand:

    S4A
  • Item NO.:

    EL-600SD
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Electromagnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door

Model No.: EL-600SD


What is Electromagnetic Lock?


An electromagnetic lock, magnetic lock, or maglock, is a locking device that consists of an electromagnet and an armature plate. It is a magnet that is created when an electrical current is passed through a solenoid (coiled wire wrapped around a metal core).

EL-600

Without indicator lights

EL-600S

With LED (Red only)

EL-600SD

LED, door sensor

EL-600ST

LED, door sensor, Time delay

EL-600SZ

LED, door sensor, Buzzer

Lock size

250Lx48.5Wx25H(mm)

Plate

180Lx38Wx11H(mm)

Holding Force

280kg (600Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/500mA 24V/250mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10℃ ~ 55℃ (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2kg

Standard Packing

10pcs

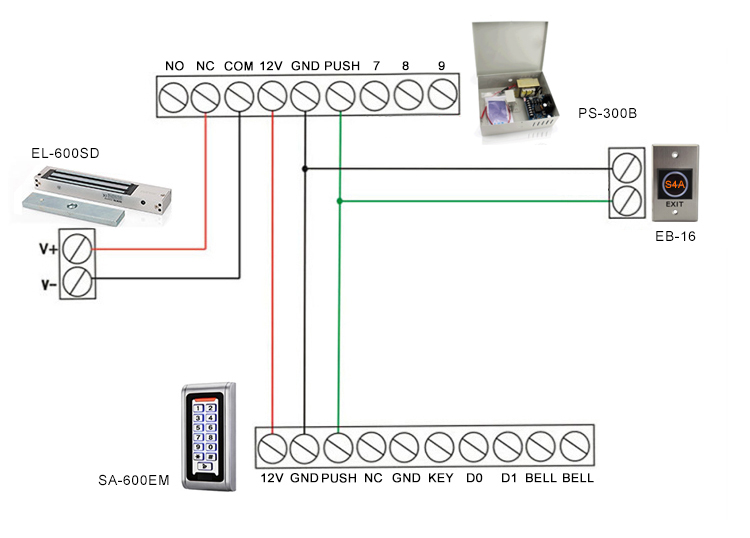

Electromangetic Locking Systems

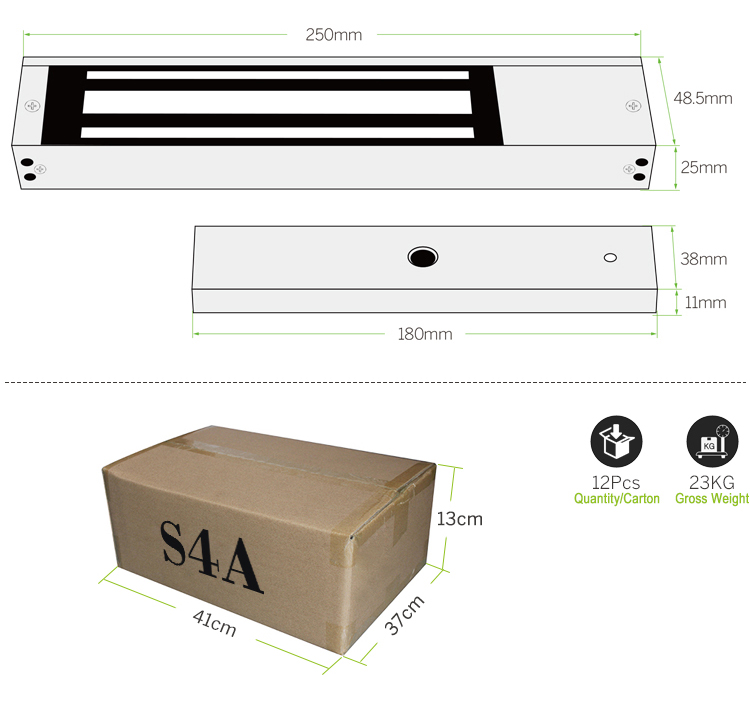

Electromangetic Locking Systems

600lbs Electromagnetic Locking Sysems Holding Force for Access Control Single Door 12V and 24V

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

EL-600SD

250x48.5x25mm

10pcs

20KG

29X33X16cm

Electromangetic Locking Systems

S4A Instruction_EL-600SD_Electromagnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door
