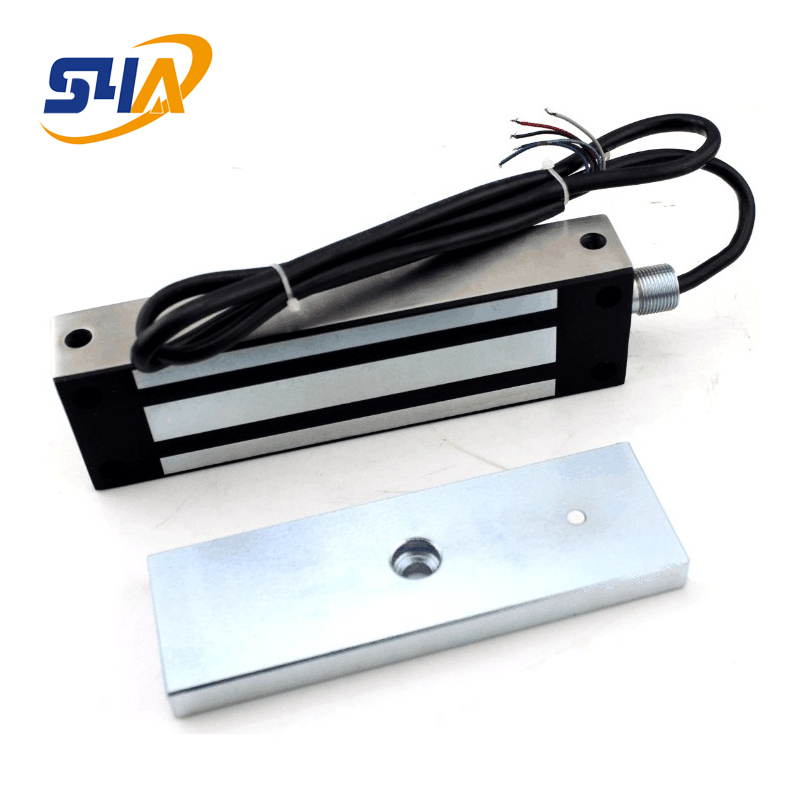

> EL-W1200SD 7Wires
> Size: 222Lx62Wx38H(mm)
> Armature plate: 195Lx61Wx15H(mm)
> Holding Force: 500kg (1200Lbs)
> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
Brand:
S4AItem NO.:

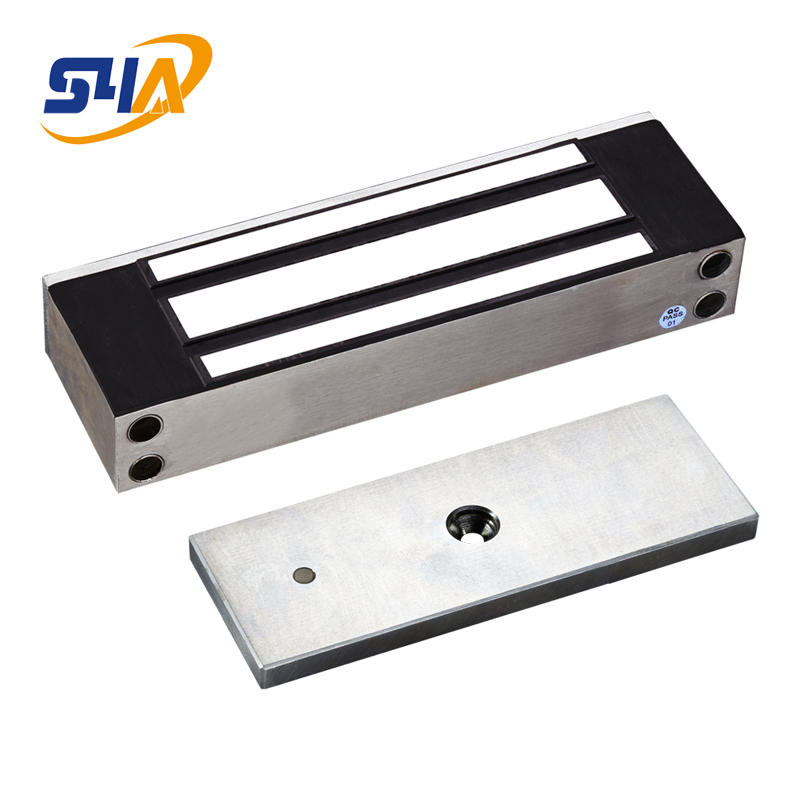

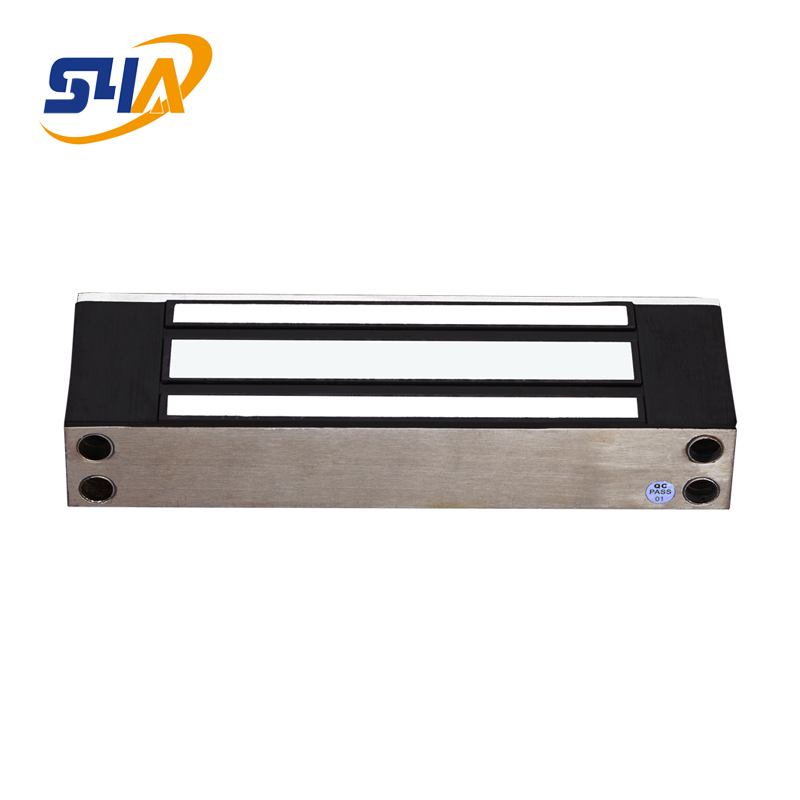

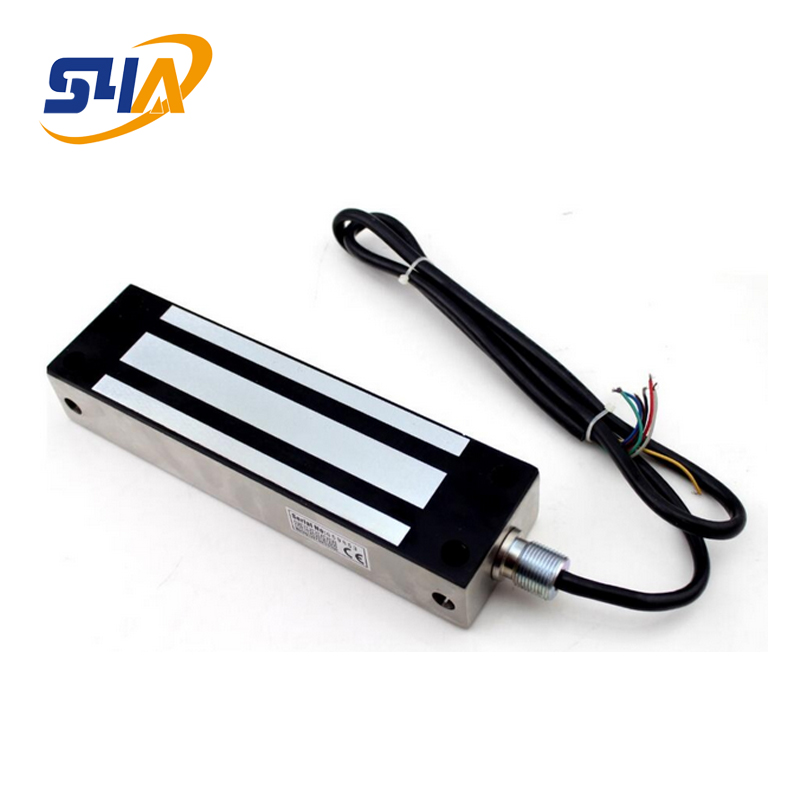

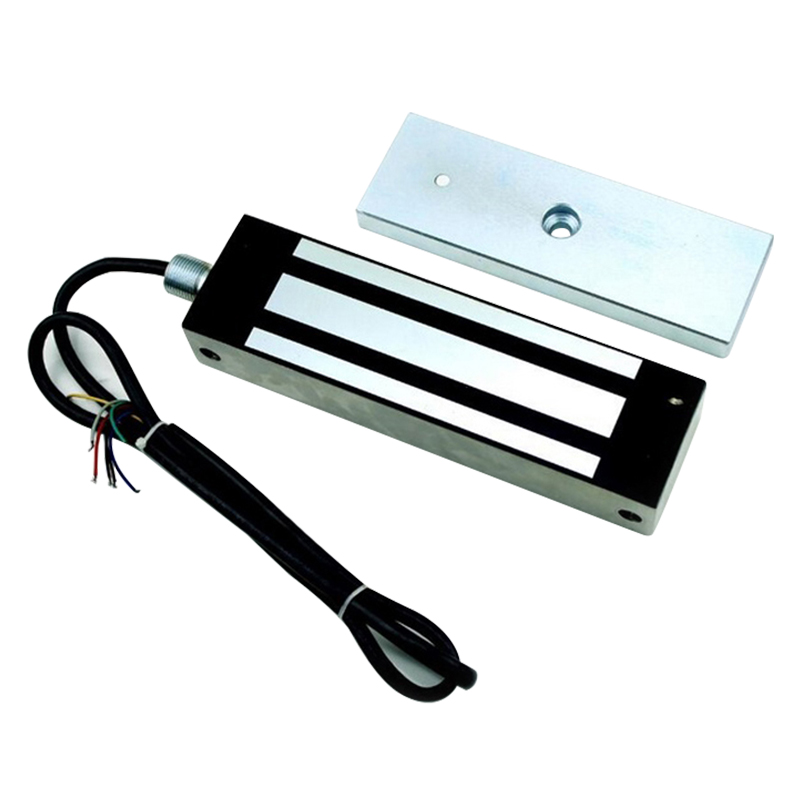

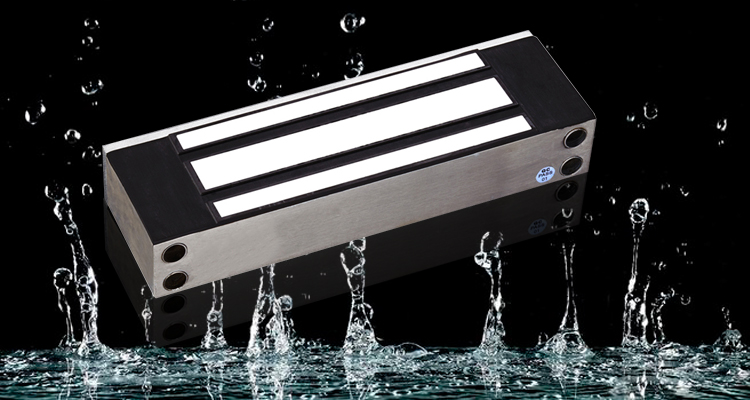

EL-W1200Waterproof Electromagnetic Lock with 7Wires
Model No.: EL-W1200SD 7Wires
What is Electromagnetic Lock?
An electromagnetic lock securely prevents a door from opening without proper access credentials. Maglocks can be paired with switches to release the lock remotely and/or credential accessories that grant access at the door. These flexible solutions can easily fit the access procedures of new or retrofit security situations. When access is granted the electrical current connected to the lock is paused and immediately releases the lock. An electromagnetic lock is naturally fail-safe. This provides peace of mind for operators that when power is turned off, such as during an emergency, the lock automatically releases to allow safe egress. The magnetic strength of dormakaba's RCI electromagnetic locks creates a holding force of up to 1200 lbs. These features make RCI electromagnetic locks an ideal solution for low-risk security applications such as interior doors, rooms with specified access, storage closets, and staffed areas.
EL-W1200S 4Wires | 12V & 24V adjustable |
EL-W1200SD 7Wires | 12V & 24V adjustable and door sensor function, NO/NC/COM |

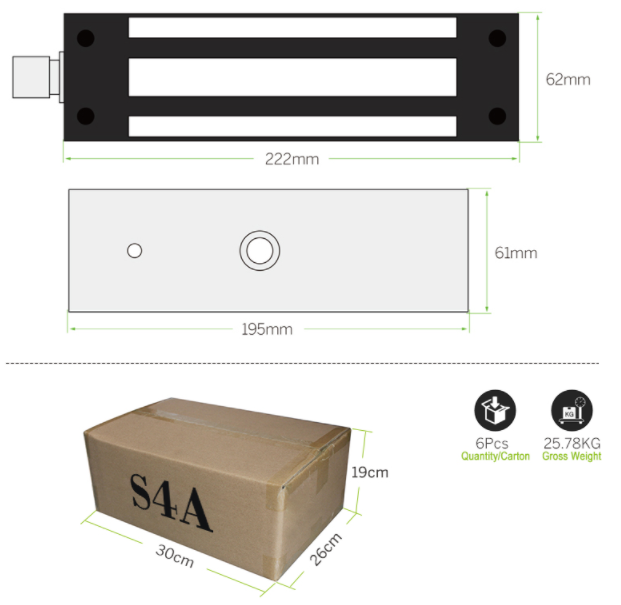

Lock Size | 222Lx62Wx38H(mm) |
Armature plate | 195Lx61Wx15H(mm) |
Holding Force | 500kg(1200Lbs) |
Voltage | DC12V or DC24V(adjustable) |
Current Draw | 12V/420mA 24V/210mA |
Optional Bracket | LZ-W1200 |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4.5kg |

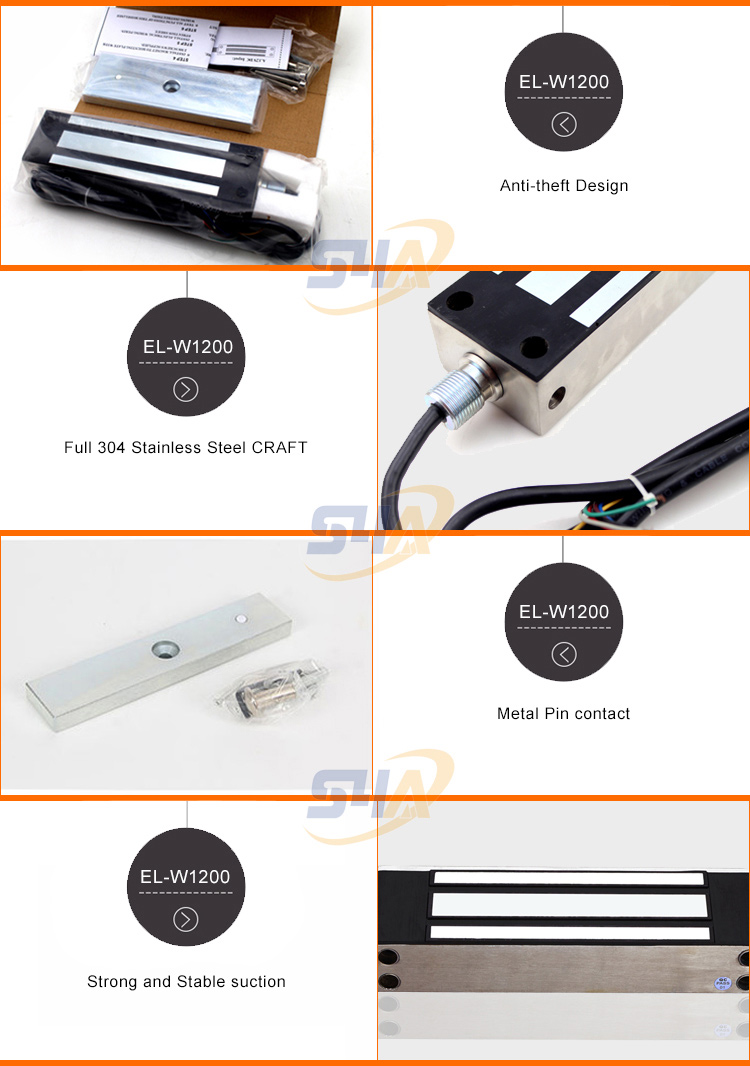

Electromagnetic Locks-Maglocks with 1200 Pound Holding Force with IP65 waterproof | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EL-W1200SD 7Wires | 6pcs | 25.78KG | 30x26x19cm |
S4A Instruction_EL-W1200S 4Wires_Waterproof Electromagnetic Lock with 4Wires
