> Card type: EM, HID, MF, CPU Card
(Factory default: EM 125KHz)
> Metal backlight keypad
> User capacity: 10,000 users
> Dimensions: 139x70x22mm
> Waterproof IP68
Brand:
S4AItem NO.:
TF1EM-WFingerprint Touch-Screen Standalone Access Control
Model No.: TF1 EM, HID, MF, CPU

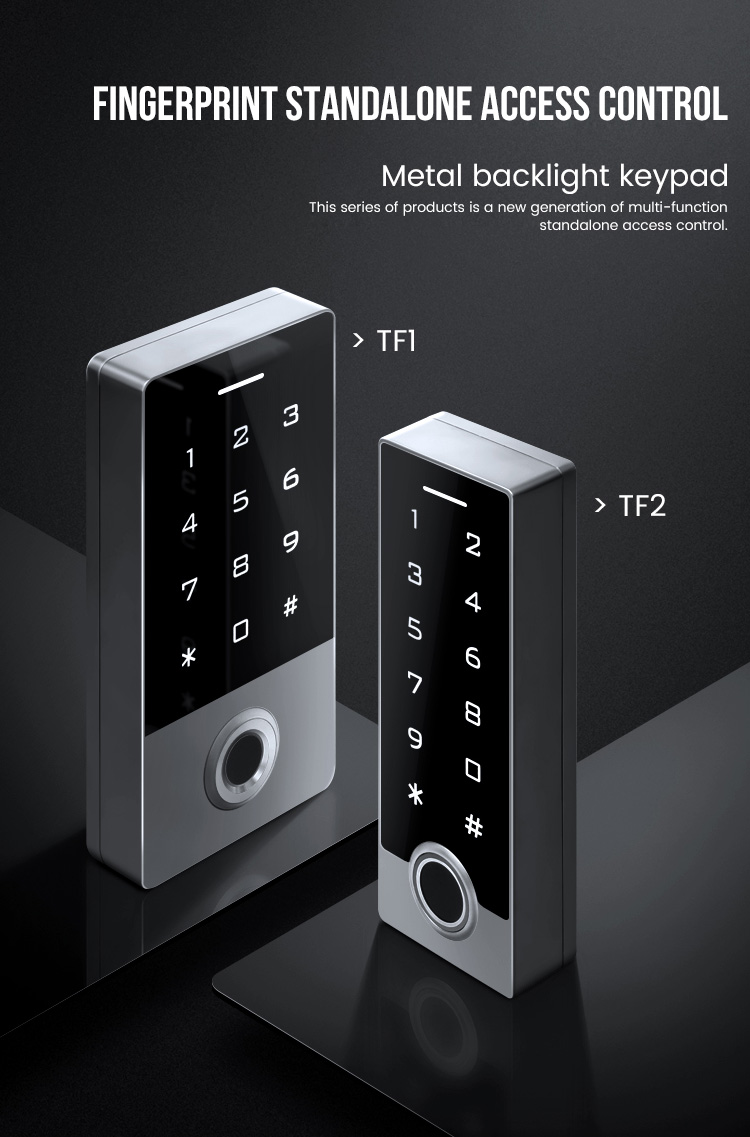

This series of products is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.
It includes card reader mode and standalone access control mode etc. Its widely applied to different occasions, such as offices, residential communities, villas, banks, prisons, etc.
Features:
> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
> Metal backlight keypad
> Contains card reader mode. The transmission format could be adjusted by user.

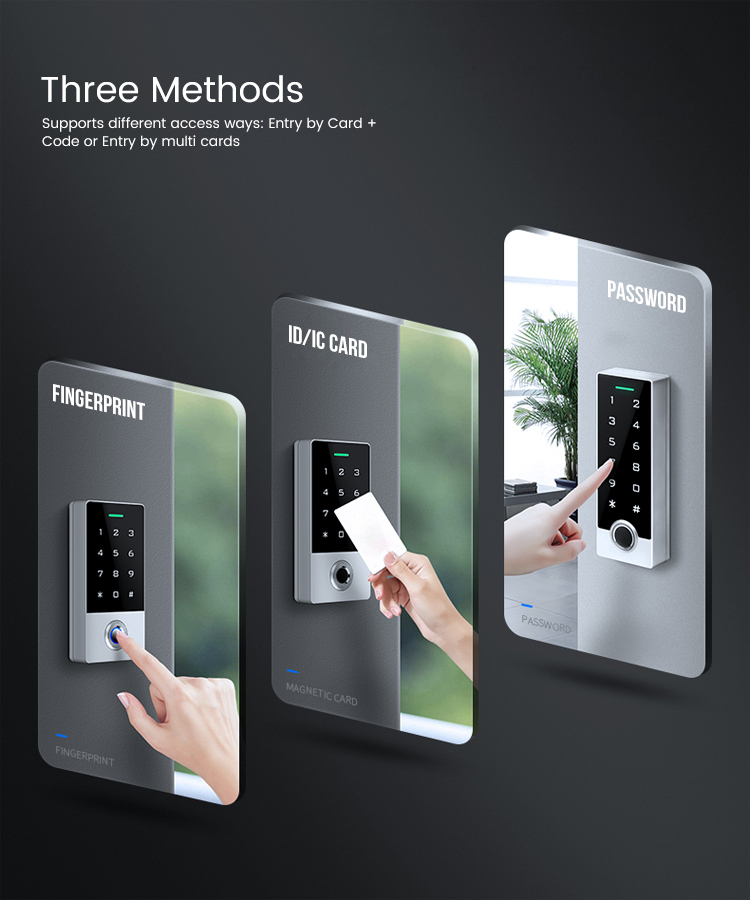

> Supports different access ways: Entry by Card + Code or Entry by multi cards
> Support master added a card and deleted the card
> User capacity: 10,000 users
Card type | EM / HID / MF / CPU |
User Capacity | 10,000 users |
Fingerprint Capacity | 600 |
Operating Voltage | DC 12-24V |
Standby Current | ≤35mA |
Operation Current | ≤100mA |
Operating Temperature | -40℃～60℃ |
Operating Humidity | 0%～95% |
Waterproof | IP68 |

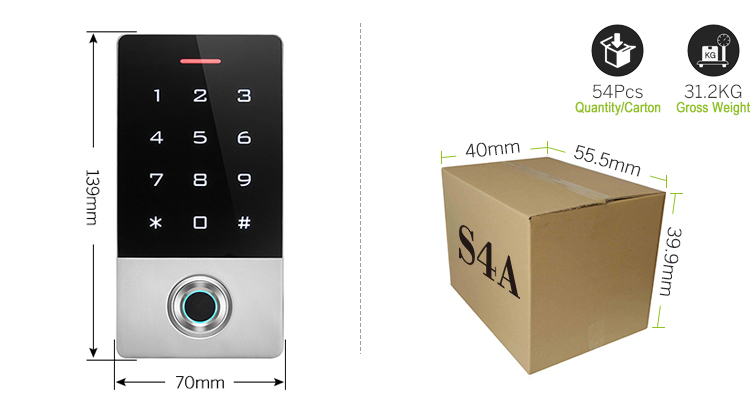

Dimensions | 139x70x22mm |
Access ways | Fingerprint, card, code, or multiple combination method to access |
Manufacturer Fingerprint Access Controller Keypad with RFID and Pincode | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
TF1EM-W | 139x70x22mm | 54pcs | 31.2KG | 55.5x40x39.9cm |
TF1MF-W | 54pcs | 31.2KG | ||
S4A User Manual TF1_Fingerprint Touch-Screen Standalone Access Control
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
